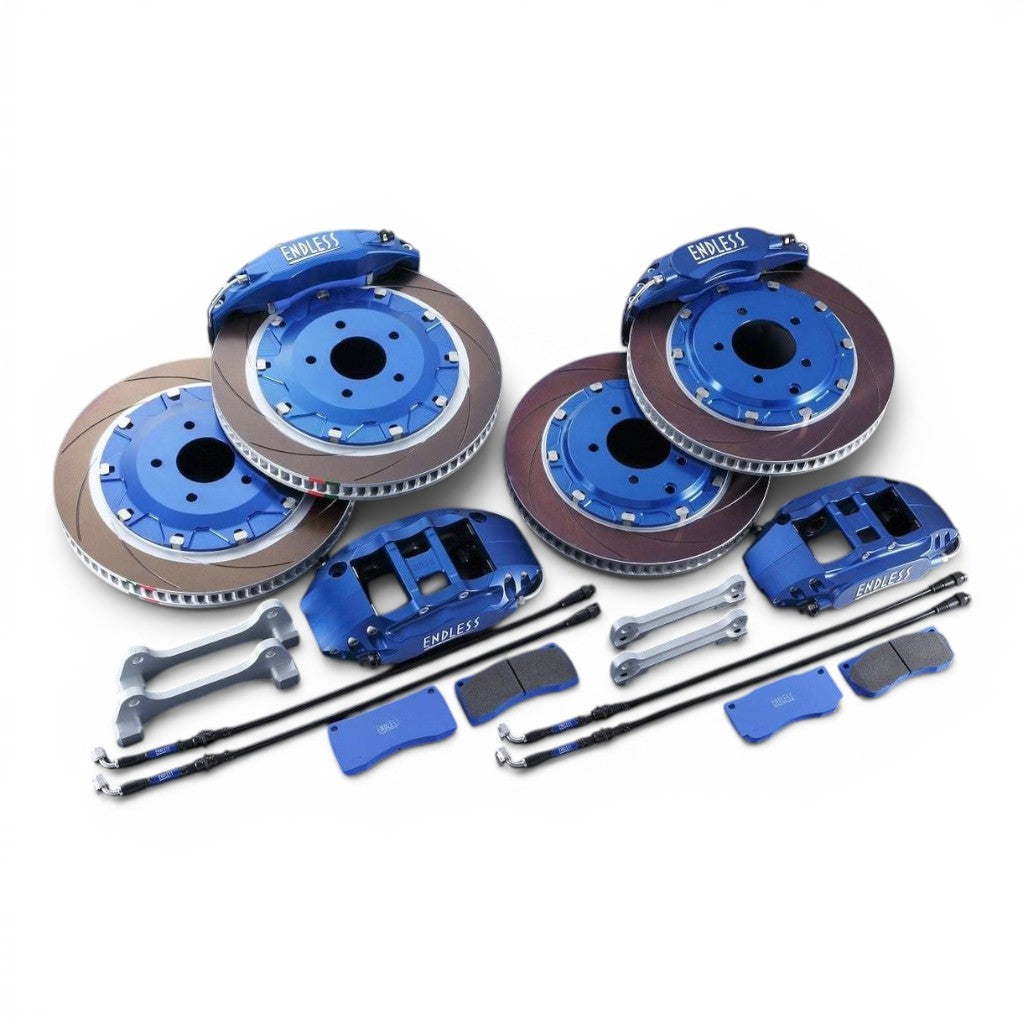

ENDLESS EDYAXZN6 Front & Rear Brake Kit Racing MONO 4 & 4r for TOYOTA 86 (ZN6)

Description ENDLESS EDYAXZN6 Front & Rear Brake Kit Racing MONO 4 & 4r for TOYOTA 86 (ZN6)

This is a 4-piston version of the monoblock caliper, forged under thousands of tons of pressure. Through repeated testing and detailed design refinements, the caliper was perfected to achieve optimal performance in weight reduction, durability, and heat dissipation.

It accommodates wheels as small as 15 inches, expanding the range of compatible wheels. The challenging piston cylinder machining was overcome using advanced special techniques. The finished body is treated with ultra-hard anodizing.

The RacingMONO4 caliper body uses ultra-hard anodized aluminum, while the RacingMONO4r caliper body also uses ultra-hard anodized aluminum. The rotor bell housing features a Toughram coating with superior adhesion and corrosion resistance, providing greater durability than standard colored anodizing, even under high-temperature conditions during circuit racing.

• 4-piston monoblock caliper forged under thousands of tons of pressure
• Accommodates wheels as small as 15 inches
• Ultra-hard anodized caliper body
• Toughram-coated rotor bell housing

Specifications:

• Caliper: RacingMONO4 (EC4605N) / RacingMONO4r (EC4606N)
• Brake pad type: RCP153 / RCP147
• Brake disc size: 345 x 32 mm / 330 x 28 mm
• Brake hose: ECBHZN6F / ECBHZN6R
