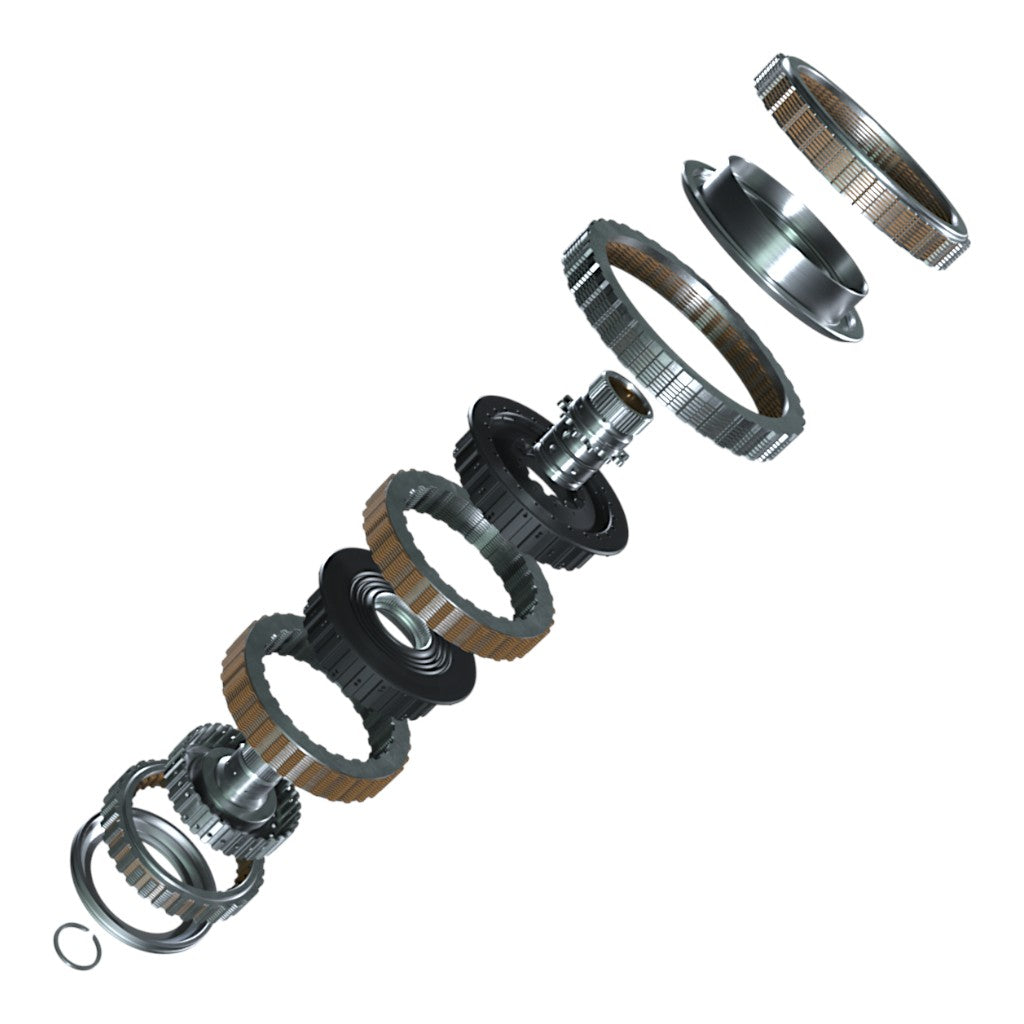

DODSON DMS-8688 Clutch Kit PROMAX for ZF 8HP76 Gearbox

Description DODSON DMS-8688 Clutch Kit PROMAX for ZF 8HP76 Gearbox

High-performance friction material and precision-manufactured steel discs.

Separator springs added to the hard-working C and E clutches minimize hub chatter, especially when paired with hard-anodized hubs. These springs reduce drag and improve crossover performance, eliminating the usual downsides of increased plate counts, such as jerky behavior, multiple learning attempts, or chattery take-off performance.

The patent-pending steel-core splined hub design with an aluminum outer provides the strength of a steel hub without transmission-upsetting inertia. The hard-anodized outers resist chatter and feature additional oiling holes to optimize oil flow and temperature control for the denser clutch stacks.

Specifications:

• Clutch A: 8 plates (+3)
• Clutch B: 7 plates (+2)
• Clutch C: 12 plates (+6)
• Clutch D: 8 plates (+4)
• Clutch E: 11 plates (+6)
• Horsepower / HP: Over 1700 HP

Kit comes with:

• C Hub featuring aerospace-grade billet aluminum, hard-anodized to minimize wear, with enhanced oiling passages
• Additional friction materials and steels over the Sportsman’s Plus
• Billet end plates
• Upgraded billet pistons
