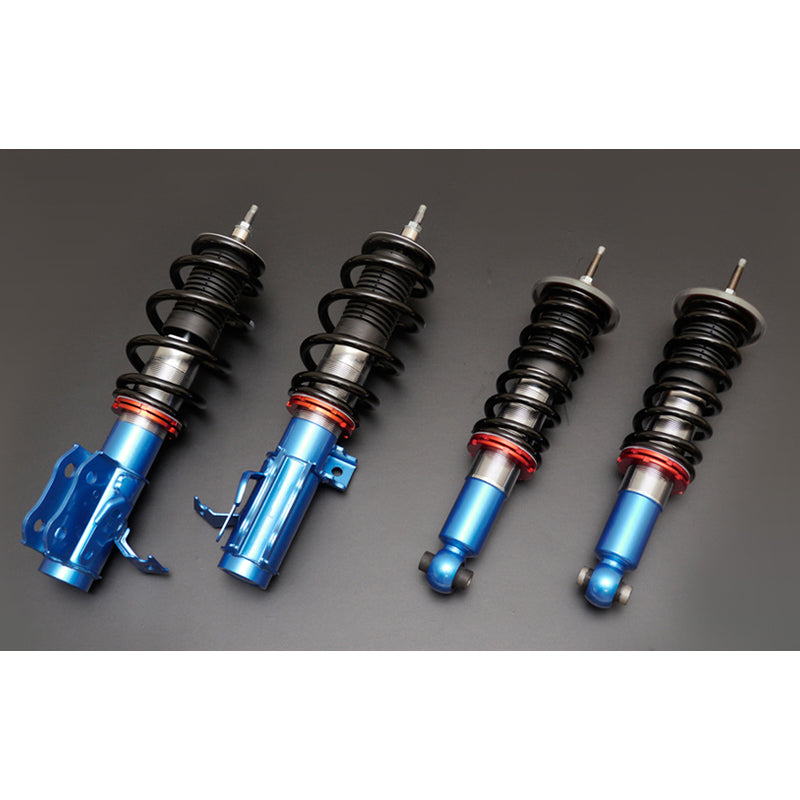

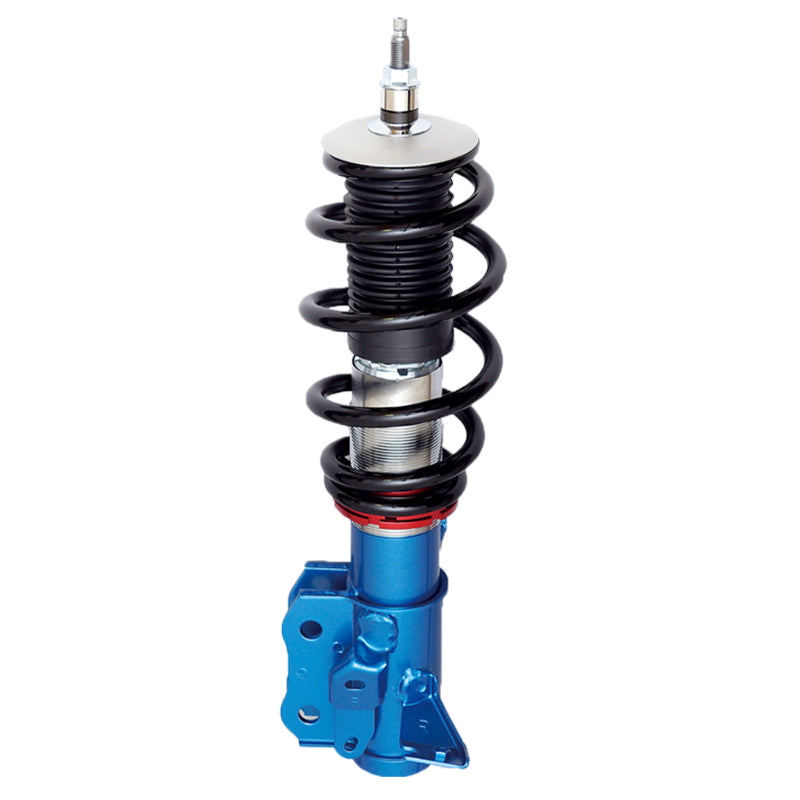

CUSCO 956 61J CB Coilover suspension kit STREET A for TOYOTA CAMRY (ACV40/AVV50)

All-round ride comfort and running with 40-stage damping force adjustment. Standard model with stylish lowdown and fine adjustment of damping force according to the driving scene.

• 40 steps of damping force adjustment
• Screw type (full length fixed) vehicle height adjustment
• Upper mountless kit
• Quiet design that suppresses the operating sound (squeaky sound) of damping adjustable shocks
• Compatible with e-con2 (compatible models only)

Damping force (ride comfort) 40-stage adjustable type that clearly shows the difference.

With a wide damping force adjustment range and uniform damping changes from 1 to 40 steps, you can easily adjust the ride comfort to your liking in any situation or stage. In addition, the knurled dial eliminates the need for tools for damping adjustment.

"Best lowdown design" that secures the stroke at the time of shipment

It promises a comfortable and stylish lowdown with a setting that thoroughly sticks to the total balance that matches the characteristics of each car model.

e-con2 compatible

Compatible with "e-con2" that allows you to adjust the damping force with a single button from the driver's seat. The optimum damping force can be adjusted at any time according to the scene (applicable models only).

Designed specifically for each model to ensure sufficient bump stroke even when lowered

Since it is specially designed for each car model in the lineup, sufficient bump stroke is secured. In addition, we have thoroughly tested everything from one-person riding to full-riding, and we have made settings that are comfortable no matter where you ride.

Adoption of a twin-tube shock provides a mild ride and sufficient stroke

A dual-tube structure low-pressure gas shock absorber is used to provide a mild ride. The generous shell case and piston diameter ensure sufficient oil capacity, and smooth damping characteristics are achieved to achieve both a smooth ride and high driving performance.

Attention to detail

"Nickel chrome plating" is used for the adjustment screws to protect them from rust, sand and dust. In addition, we are thoroughly particular about quality, such as inserting a high polymer thrust sheet to prevent the lock nut from loosening and improve quietness.

SPECIFICATIONS:

• Dumping Force: 40 steps
• Recommended Ride Height Range (mm): Front -55 to -35; Rear -60 to -35
• Max Ride Height Range (mm): Front -55 to -35; Rear -110 to -35
• Default Height (mm): -50 / -50
• Spring Rate (kgf/mm): Front 6 or (7/8); Rear 4 or (5/6)
• Height Adjust: Front Concentric; Rear Concentric
• E-CON2: Imcompatible
