CUSCO 910 62P CBHF Coilover suspension kit STREET ZERO for TOYOTA Alphard 2002-2008
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CUSCO 910 62P CBHF Coilover suspension kit STREET ZERO for TOYOTA Alphard 2002-2008
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Ride comfort remains the same even if the vehicle height is changed because of the "full length adjustment type vehicle height adjustment".In addition, the rear damping force can be adjusted in 14 steps to suit the scene.
Full length adjustable vehicle height adjustment
- "Overall length adjustment type" that does not change the suspension stroke even if the vehicle height is lowered. Both fine vehicle height adjustment and high ride comfort are achieved.

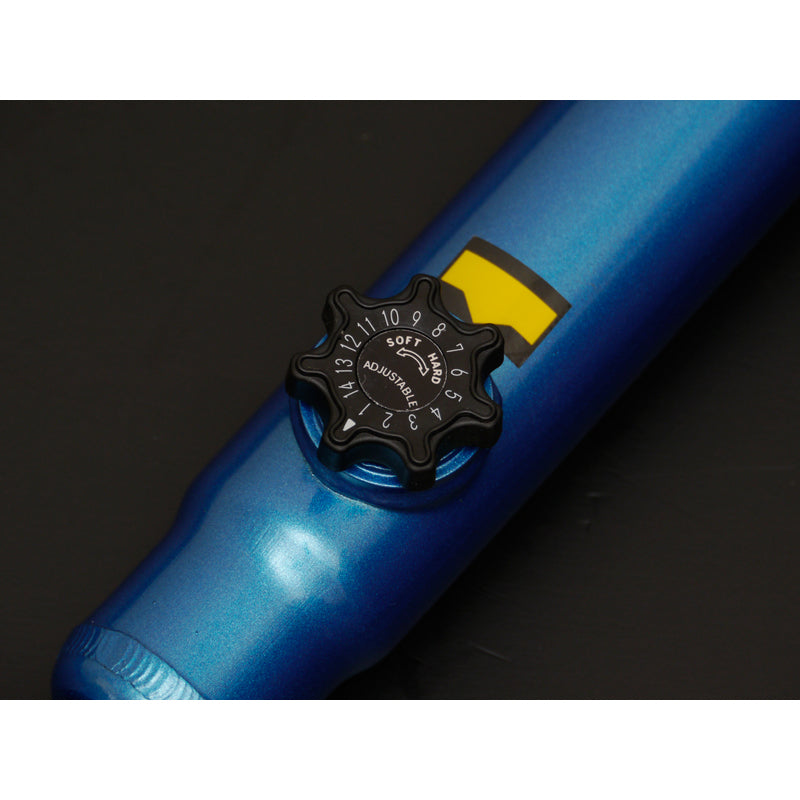

Equipped with a new 14-stage rear damping force adjustment as standard.
- You can easily adjust the damping force by dial operation according to the number of passengers and the driving scene. *For some models, the rear damping force is 8 steps or the damping force is fixed.
Designed specifically for each model to ensure sufficient bump stroke even when lowered
- Since it is specially designed for each car model in the lineup, sufficient bump stroke is secured. In addition, we have thoroughly tested everything from a single passenger to a full passenger, and if it is a minivan, we have made comfortable settings for the third seat.
Adoption of a twin-tube shock provides a mild ride and sufficient stroke
- A dual-tube structure low-pressure gas shock absorber is used to provide a mild ride. The generous shell case and piston diameter ensure ample oil capacity, and by exhibiting smooth damping characteristics, both a smooth ride and high driving performance are achieved.
"Best lowdown design" that secures the stroke at the time of shipment
- It promises a comfortable and stylish lowdown with a setting that thoroughly sticks to the total balance that matches the characteristics of each car model.
Attention to detail
- "Nickel chrome plating" is used for the adjustment screws to protect them from rust, sand and dust. In addition, we are thoroughly particular about quality, such as inserting a high polymer thrust sheet to prevent the lock nut from loosening and improve quietness.
SPECIFICATIONS:
- Dumping Force: 14 steps
- Recommended Ride Height Range (mm): Front -80 to -40; Rear -60 to -40
- Max Ride Height Range (mm): Front -99 to 0; Rear -62 to -23
- Default Height (mm): -70 / -60
- Spring Rate (kgf/mm): Front 6 or (7); Rear 6
- Height Adjust: Front Full-length Adjustable; Rear Threaded spacer
