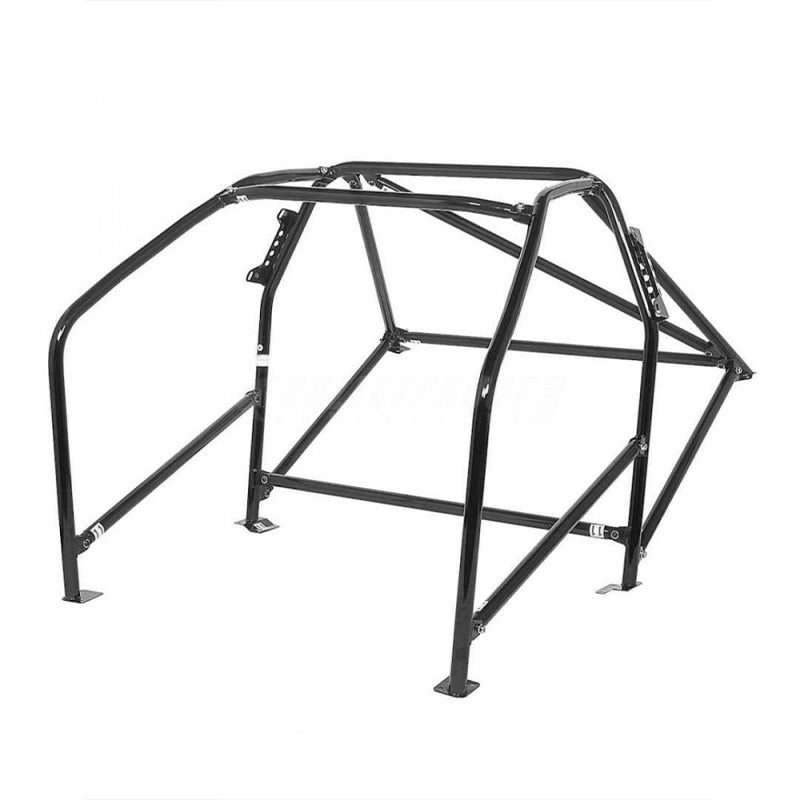

CUSCO 623 270 L20 Roll cage SAFETY 21 along roof (7 point, 4 passenger, escape dash) for SUZUKI Alto Works (HA36S)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

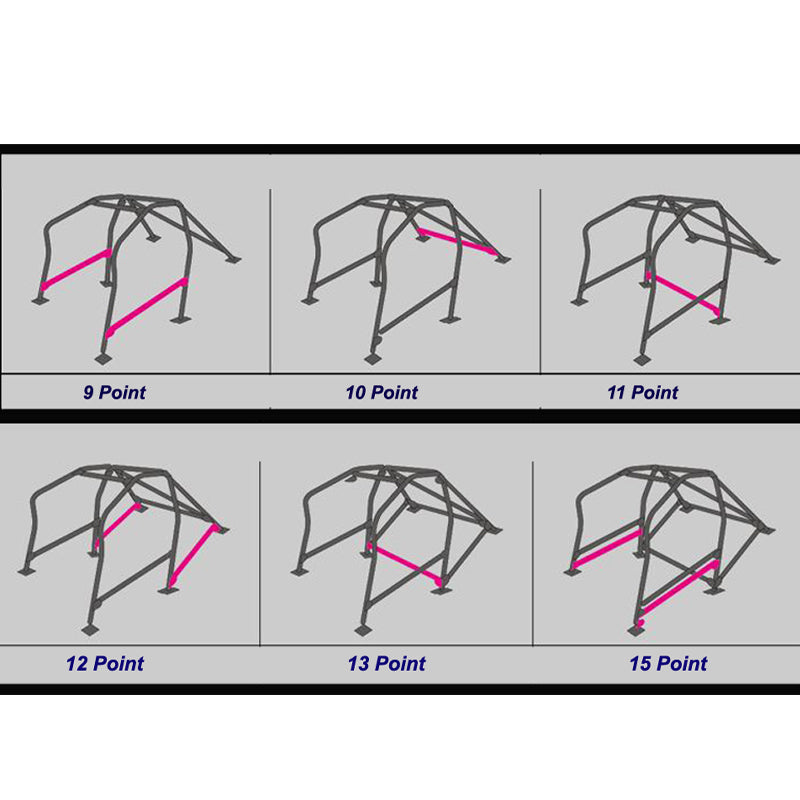

Flexible configurations from simple 4 point enthusiast spec, to the most elaborate and extreme FIA regulation homologation-grade systems. Safety 21 cages provide Sunday racers to top professionals the protection needed for racing.
- Made from cold drawn seamless carbon steel
- Variations of types that correspond widely to JAF competition regulations
- Pursuing weight reduction from the entire roll cage to joints
- High rigidity with bending processing that clears JAF domestic safety regulations
- Front cage design that does not obstruct the driver's field of vision
- Body rigidity and safety are further improved by setting the mounting position at the base of the suspension or at a position with high chassis strength.
SPECIFICATIONS:
- Material Steel: Cold drawn seamless carbon steel
- Pipe diameter: 40mm
- Pipe thickness: t=2.0mm
- Mounting plate area/wall thickness: 60m² or more/t=2.6mm
- Reinforcing plate area/wall thickness: 120m² or more/t=3.2mm

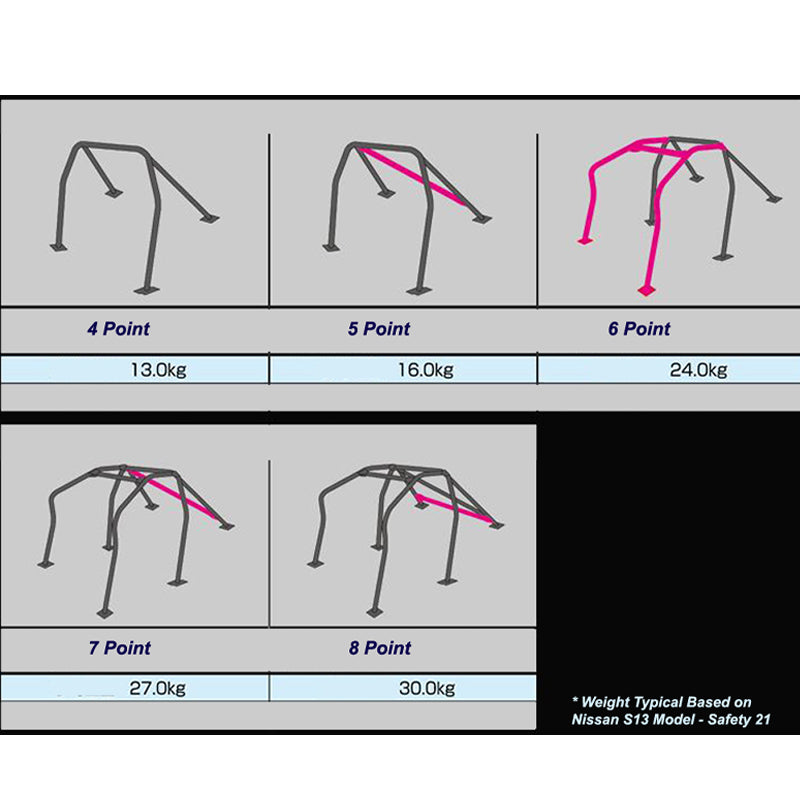

- Cage weight: 27.0Kg (average)
