CUSCO 429 64V CP Coilover suspension kit SPORT TN_R for MAZDA Roadster (ND5RC)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
CUSCO 429 64V CP Coilover suspension kit SPORT TN_R for MAZDA Roadster (ND5RC)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Set up the damping force characteristics and layout (stroke amount) with an emphasis on response when drifting and control and traction performance.
- Damping force adjustment 1-way, 24-stage adjustment
- Monotube shock absorber
- Full length adjustable vehicle height adjustment

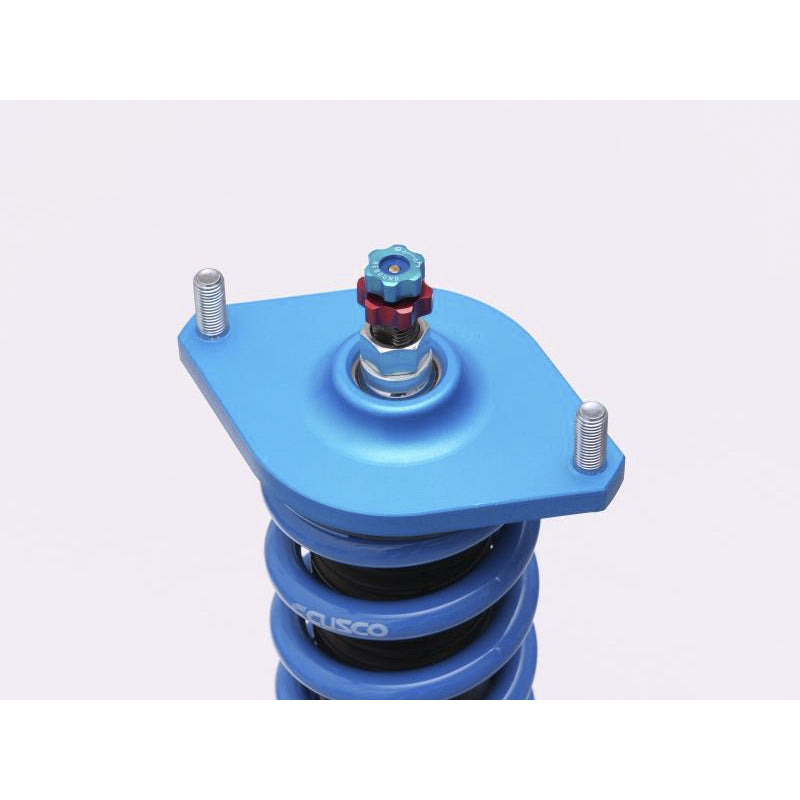

- Pillow ball upper mounts are standard equipment (front and rear)
- Front strut type adopts camber adjustable pillow ball upper mounts
- Ram type (inverted type) shock absorber *Front strut type only
- CUSCO SPORT dedicated spring "Blue spring" adopted
CUSCO SPORT R for DRIFT development concept
- Set up the damping force characteristics and layout (stroke amount) with an emphasis on response when drifting and control and traction performance.
- A large-diameter piston monotube damper is used for hard drift driving (front strut model is an inverted type)
- Simple damping force 1-way adjustment type (SPORT R) and 2-way adjustment type (SPORT TN_R) with damping force extension/compression independent adjustment corresponding to course layout and road surface conditions are available.
- Semi-order correspondence that can change the stroke, including damping force and spring rate, according to vehicle specifications
SPECIFICATIONS:
- Recommended Ride Height Range (mm): Front -50 to 0; Rear -50 to 0
- Max Ride Height Range (mm): Front -65 to 0; Rear -65 to 0
- Dumping Force: 24 steps
- Default Height (mm): -40 / -40
- Spring Rate (kgf/mm): Front 12 or (9/10/11/13/14/15/16/18); Rear 8 or (6/7/9/10/12/13/14)
- Height Adjust: Front Full-length Adjustable; Rear Full-length Adjustable
- Upper mount: Front Non-adjustable pillow ball upper mount; Rear Non-adjustable pillow ball upper mount
