Description CUSCO 1C8 64X CP Coilover Kit SPORT X for TOYOTA GR YARIS (GXPA16) 2024

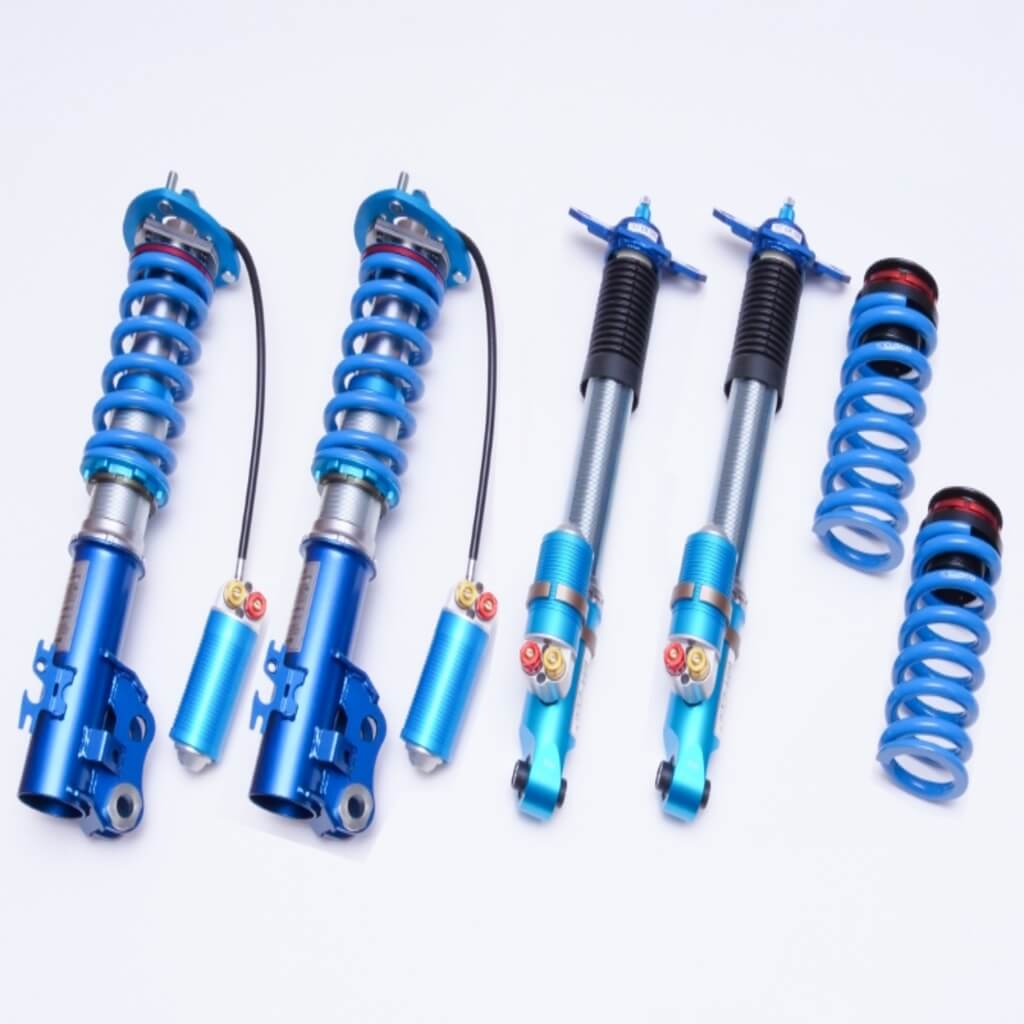

CUSCO 1C8 64X CP SPORT X Coiloverkit suspension kit consists of front desk and rear desk. Front desk: Camber Adjustable Pillow Ball upper mount,damping force adjustment Dial pressure side: Low-speed 24-step adjustment/high-speed 24-step adjustment,knuckle Bracket -Camber Adjustment color. Rear desk:PPillow ball upper mount / damping force adjustment Dial extension side: 24 steps adjustment,damping force adjustment Dial pressure side: Low-speed 24-step adjustment / high-speed 24-step adjustment.
CUSCO 1C8 64X CP Coiloverkit suspension kit SPORT X:

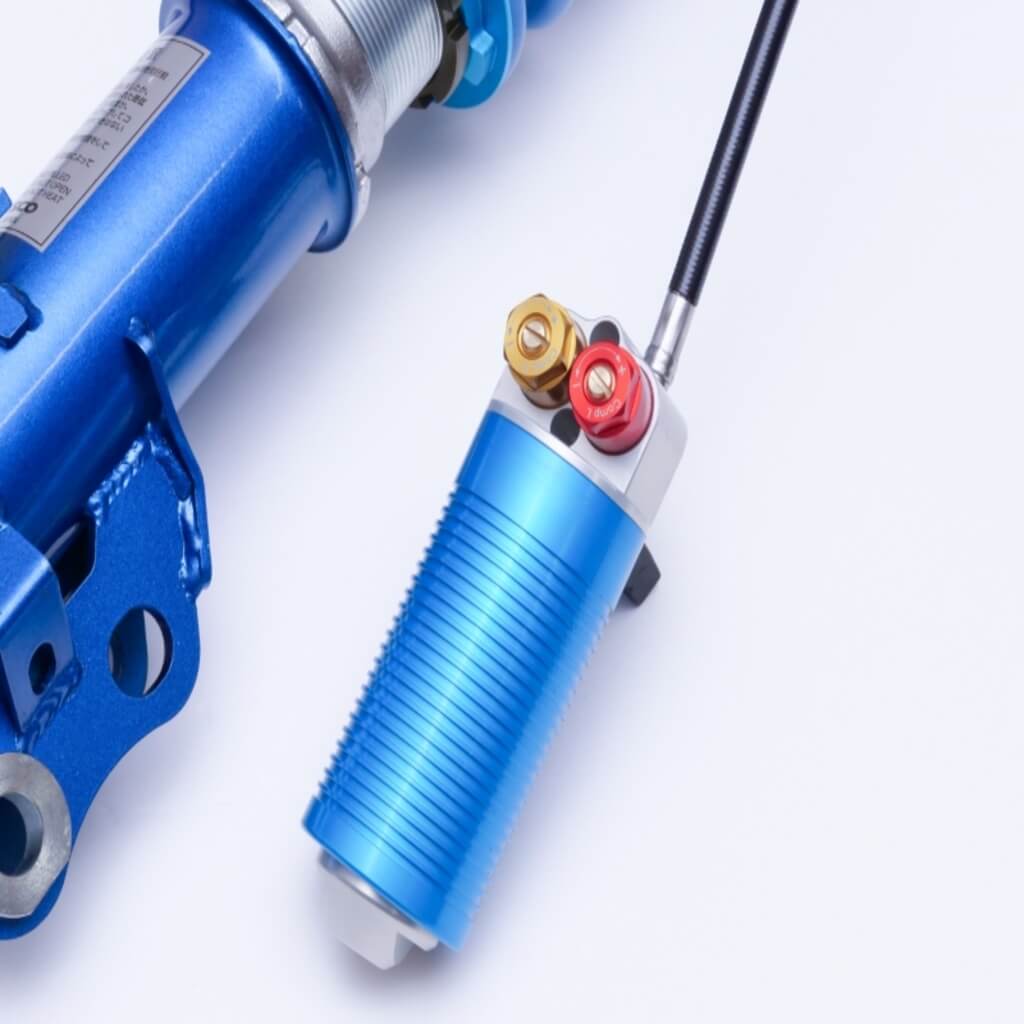

- High rigidity single-cylinder shock for full-scale race, time attack, and competition.
- 3Way damping force adjustment to enable precise setting: Stretch side: 24 steps adjustment, pressure side: Low-speed 24-step adjustment, high-speed 24-step adjustment.
- S tire correspondence, full specifications for seriously shaving time.
- High strength and durability “Blue Spring” as standard equipment.
- Full length adjustment type car height adjustment.
- Warranty of 1 year or 10,000km (according to CUSCO guarantee regulation).
Specifications:
- Vehicle height adjustment.Front: Full length adjustment type,Rear: Screw spacer adjustable.

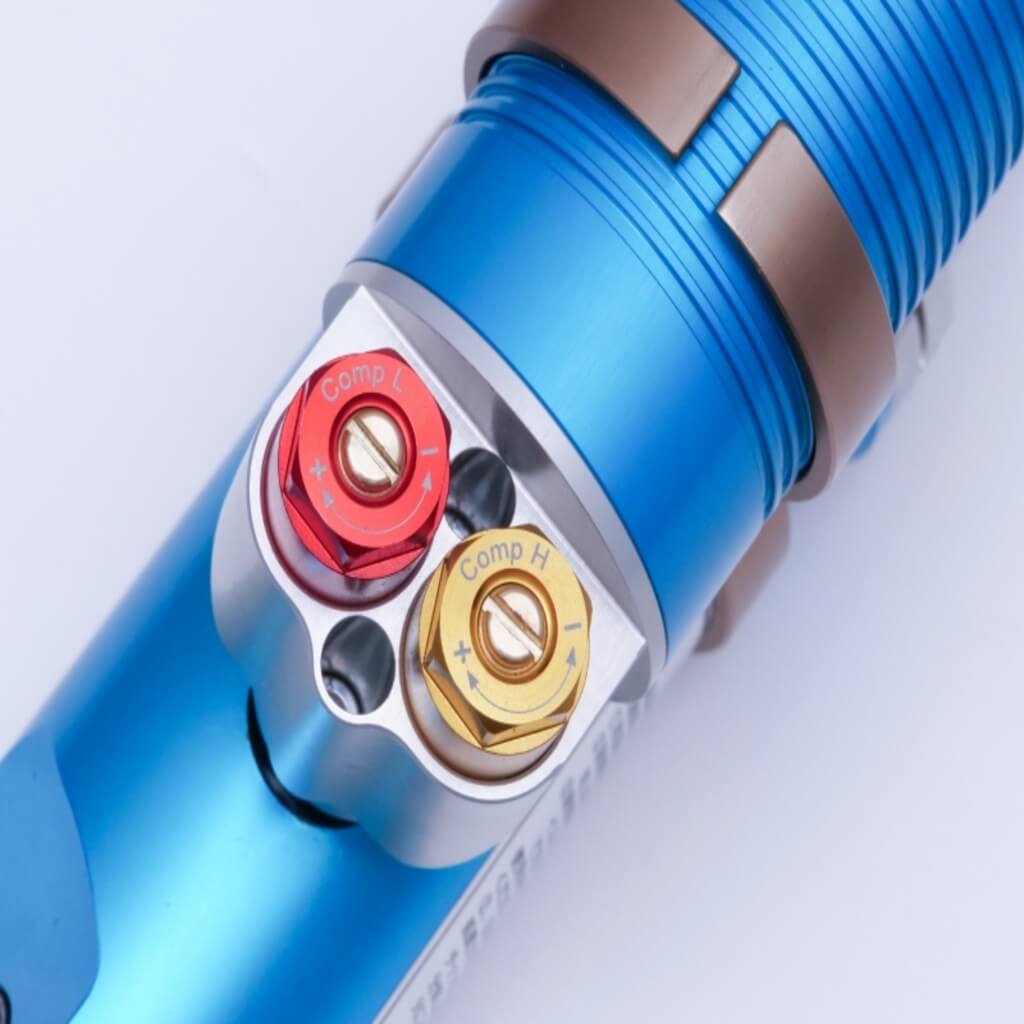

- Damping force adjustment: Front/rear, Stretch side: 24 steps adjustment, Pressure side: Low-speed 24-step adjustment, high-speed 24-step adjustment.

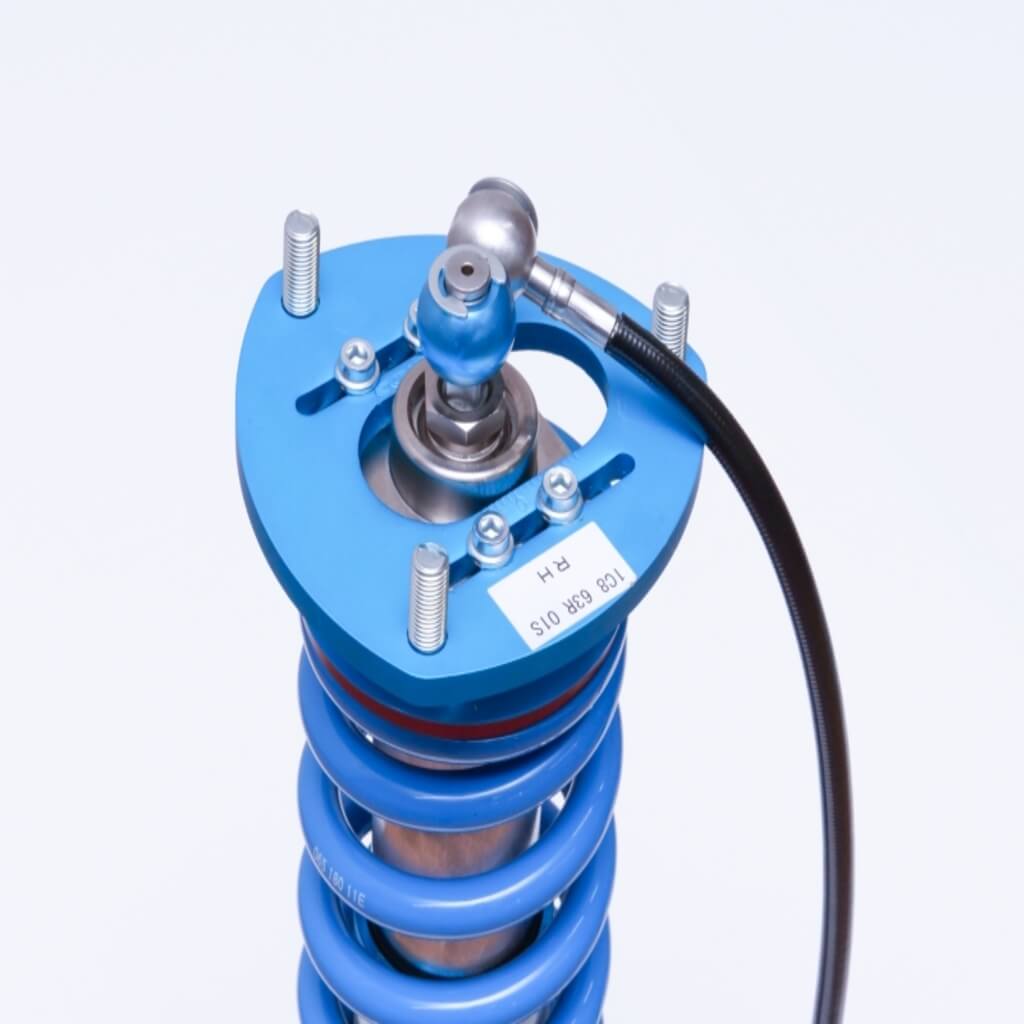

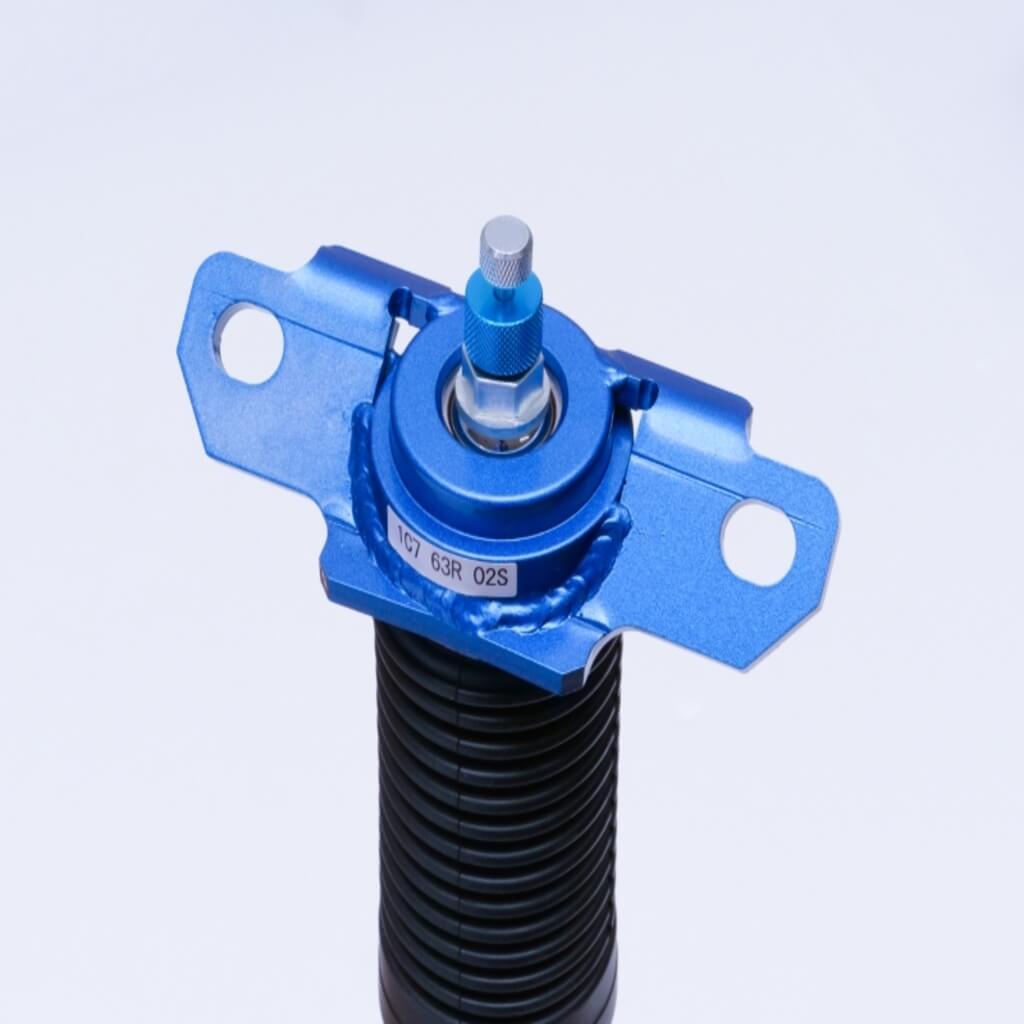

- Upper mount. Front: Camber adjustable pillow ball upper mount,rear: Pillow ball upper mount.
- Standard spring: Front: 11 kgf/mm (065-180-11E),rear: 14 kgf/mm (065-200-14E).
- Optional rate Spring: Front: 9,10,12,14,16 kgf/mm, Rear: 10,11,12,16,18 kgf/mm.
- Recommended car high adjustment width: Front desk: -45~ -10mm, rear: -50 to -20 mm.
- Reference vehicle height:Front: -30mm, Rear: -30mm.
- Maximum car height adjustment width: Front desk: -45~0mm,Rear: -75~ -20mm.

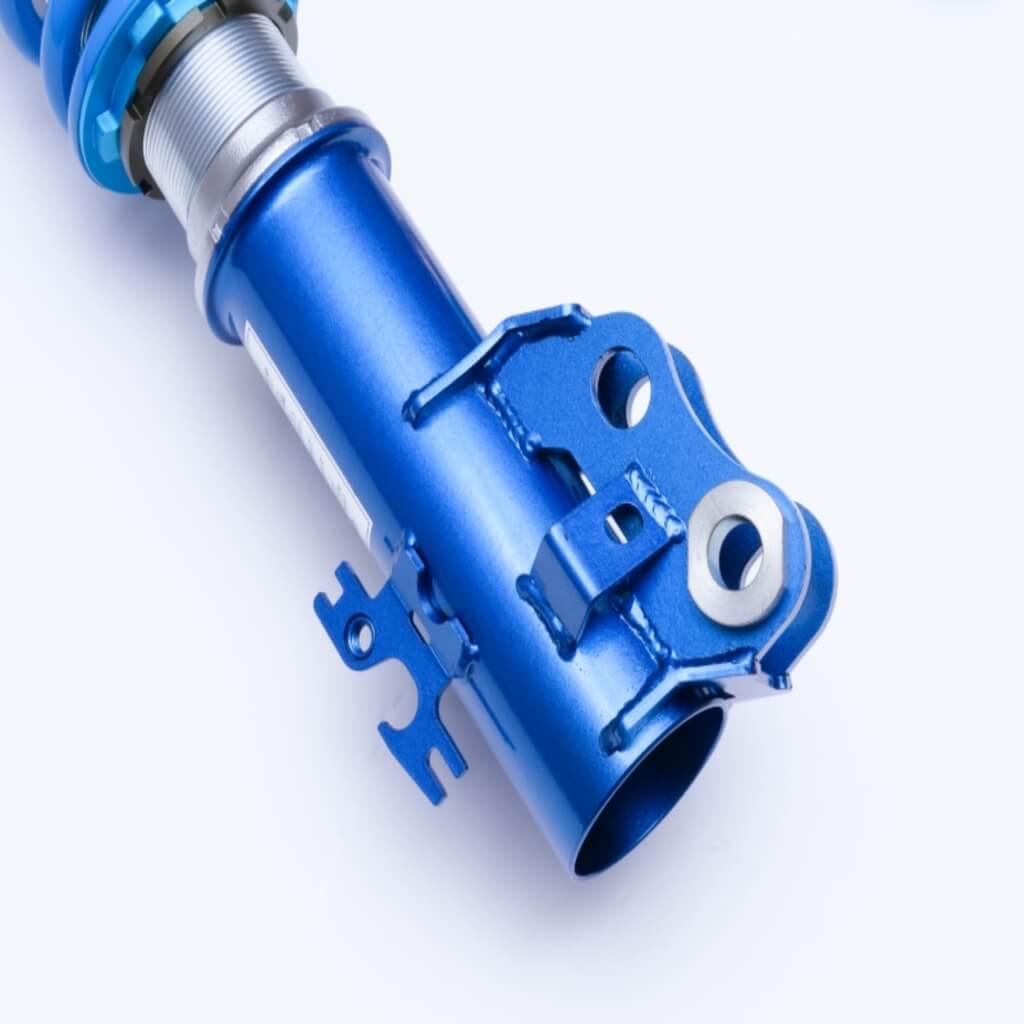

- Front camber adjustment: Camber adjustment is possible with upper mount and knuckle bracket Camber adjustment color.
- Overhaul, damping force and stroke changeable is possible for surcharge.
