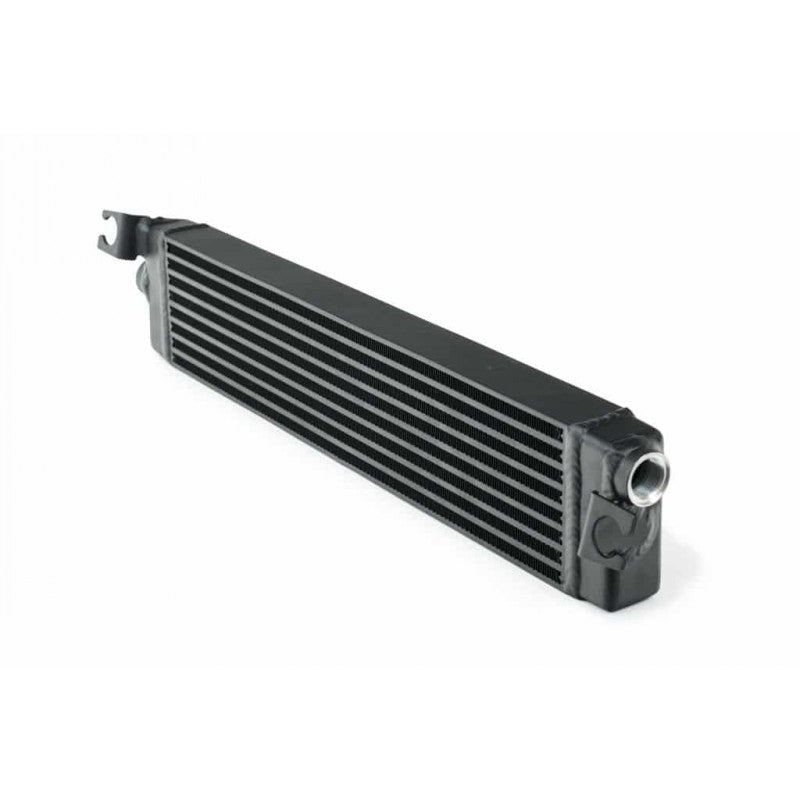

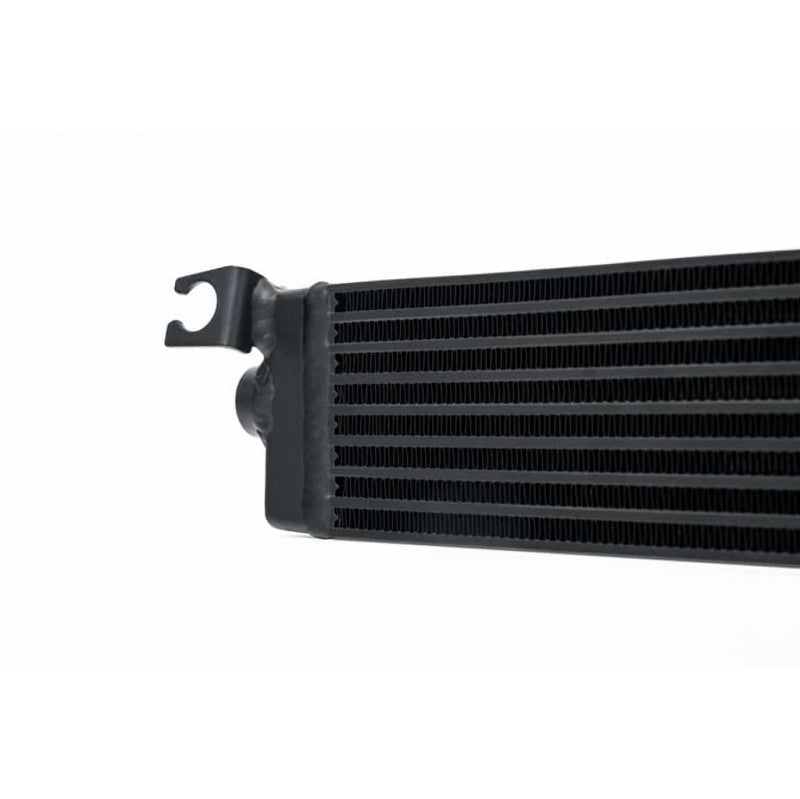

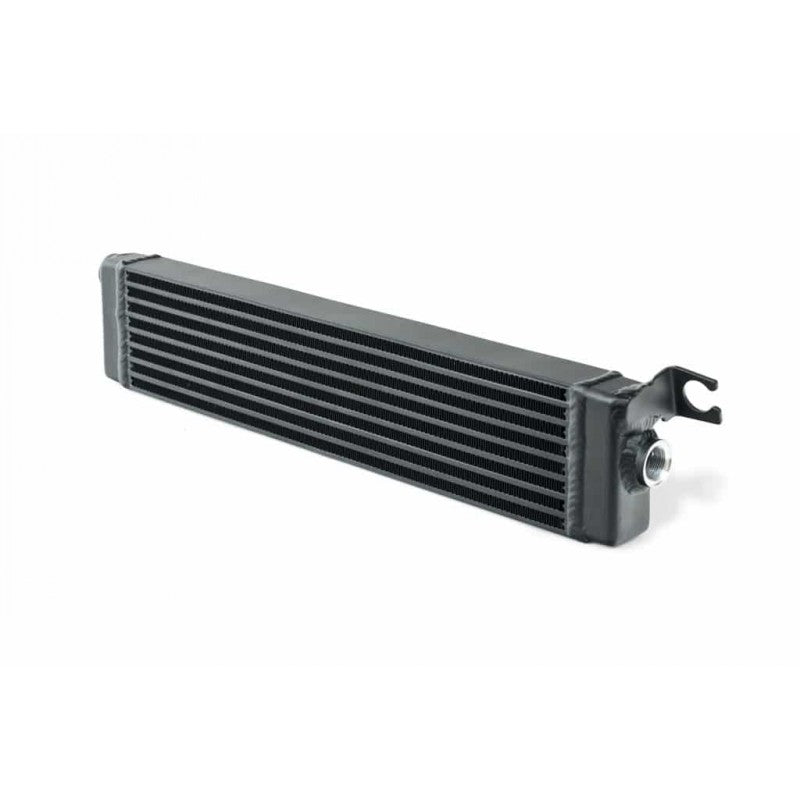

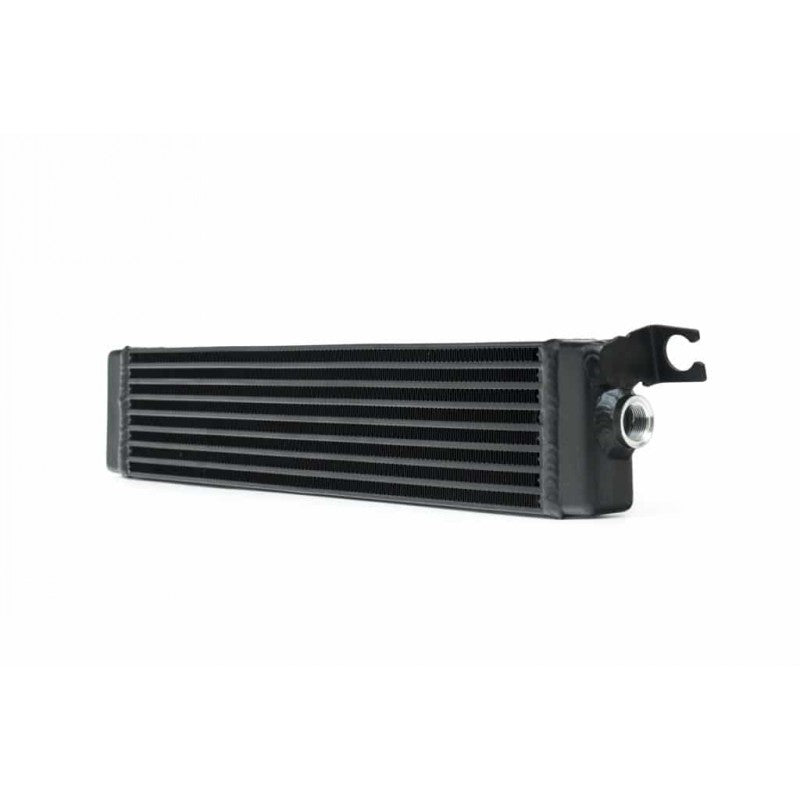

CSF 8218 Race Style Oil Cooler for BMW E30 M3

BMW E30 GROUP A / DTM RACE STYLE OIL COOLER

• Group A / DTM E30 M3 Oil Cooler Design
• Direct fit oil cooler for BMW E30 M3
• Can fit all E30 Chassis (see applications and fitment notes)
• High Efficiency & Rugged Durability Bar/Plate Design
• “Aero-Flow” Bar Lightweight Construction for Strength and Maximum Flow

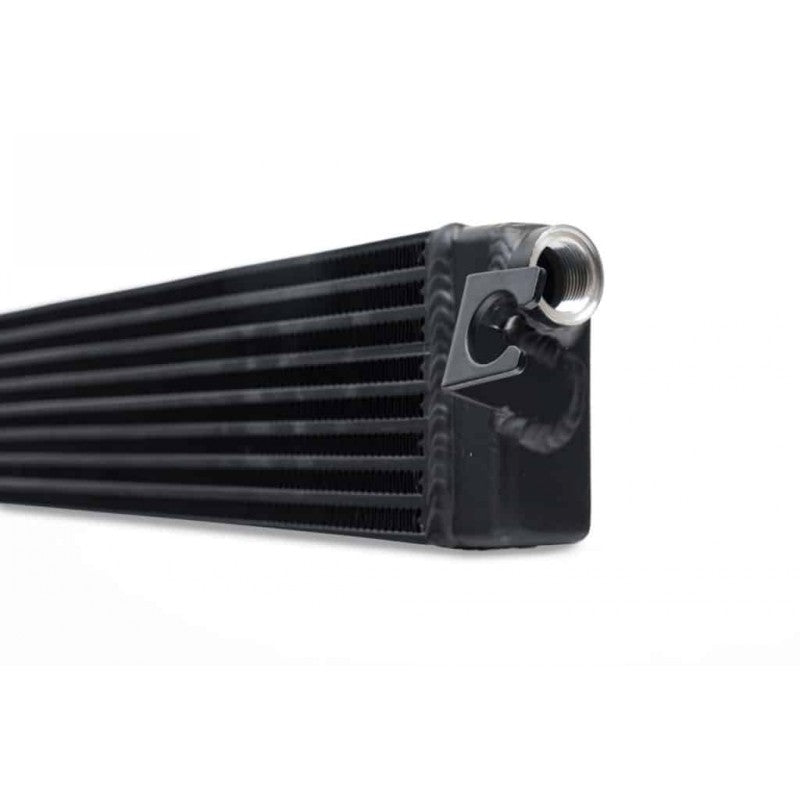

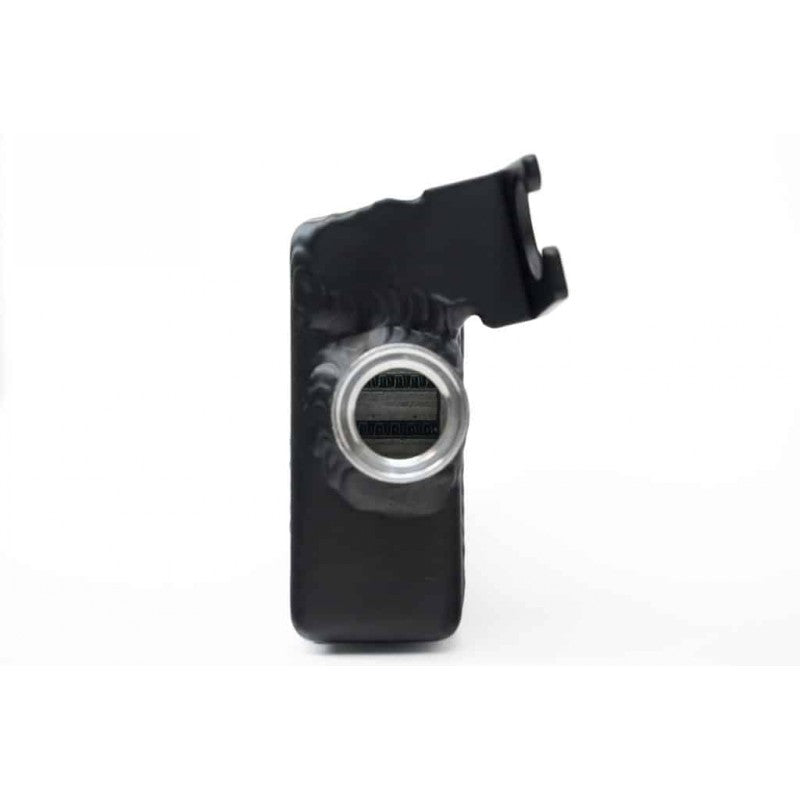

• Cast End Tanks with 100% Tig Welded Construction
• Satin Black Finish for Extreme Protection Against Corrosion and Debris

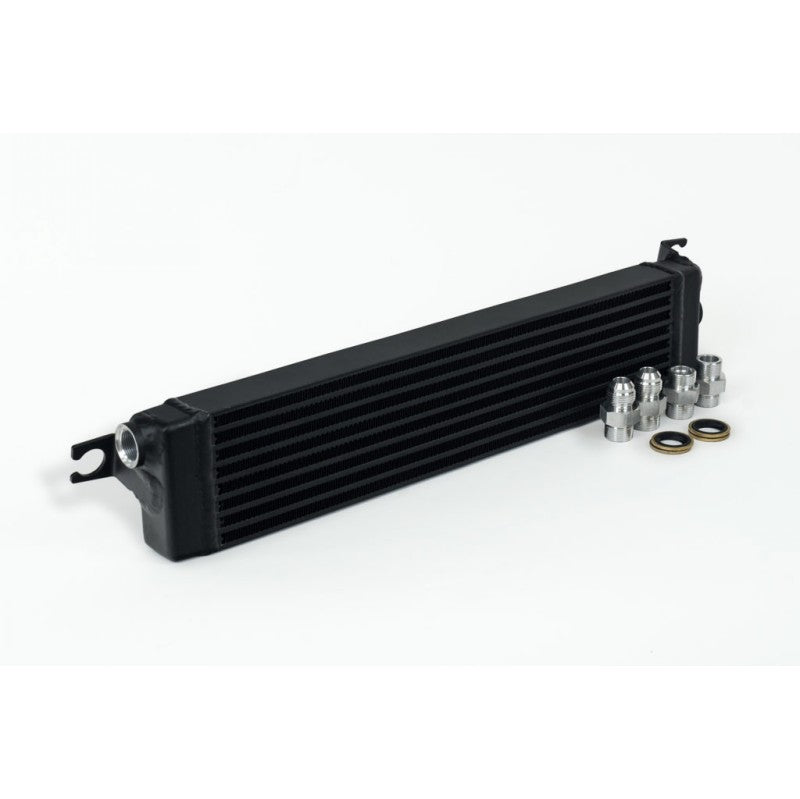

• Comes complete with fitting kit for both OEM style as well as -10 AN male connections

OEM Part #: 17211712658

Applications:

• 1986-1993 BMW E30 M3 (S14)*
• 1985-1987 (up to 09/87) BMW E30 325 w/ Factory Oil Cooler*
• 1988-1993 BMW E30 325 w/ Factory Oil Cooler*
• 1984-1993 BMW E30 3-Series w/o Factory Oil Cooler*

*Fitment NoteS:

1986-1993 BMW E30 M3 (S14)
The long factory oil hard line will not be able to use support brackets on the back of the radiator. This is due to the adapter fittings pushing the lines out about a ½” from factory so the brackets won’t line up but the lines will still run to the proper location and can be connected.

1985-1987 (up to 09/87) BMW E30 325 w/ Factory Oil Cooler
Requires custom lines (factory hard line passes over the oil cooler normally but this unit is too tall to run that line over the top).

1988-1993 BMW E30 325 w/ Factory Oil Cooler
Requires custom lines & mounting hardware. E30 Chassis has provisions for OEM mounting hardware. OEM Mounting Hardware part number listed below.

1984-1993 BMW E30 3-Series w/o Factory Oil Cooler
Requires lines, mounting hardware, and sandwich plate (or provision for oil hook up). E30 Chassis has provisions for OEM mounting hardware. OEM Mounting Hardware part numbers listed below.

The BMW OEM Parts Required for Retrofit:
– Body bracket: #17211719126 x 2
– Rubber grommet: #17211712839 x 2
– Grommet insert: #17211712844 x 2
– Grommet hex head screw: #07119916886 x 2
– Oil cooler O-rings: #17222245358 x 2
