CSF 8131 Front Mount Heat Exchanger w/rock guard (polished finish) for BMW B58/B48

AED 3,477.68

Tax included. Shipping calculated at checkout

CSFP/N: 8131
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

CSF 8131 Front Mount Heat Exchanger w/rock guard (polished finish) for BMW B58/B48

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

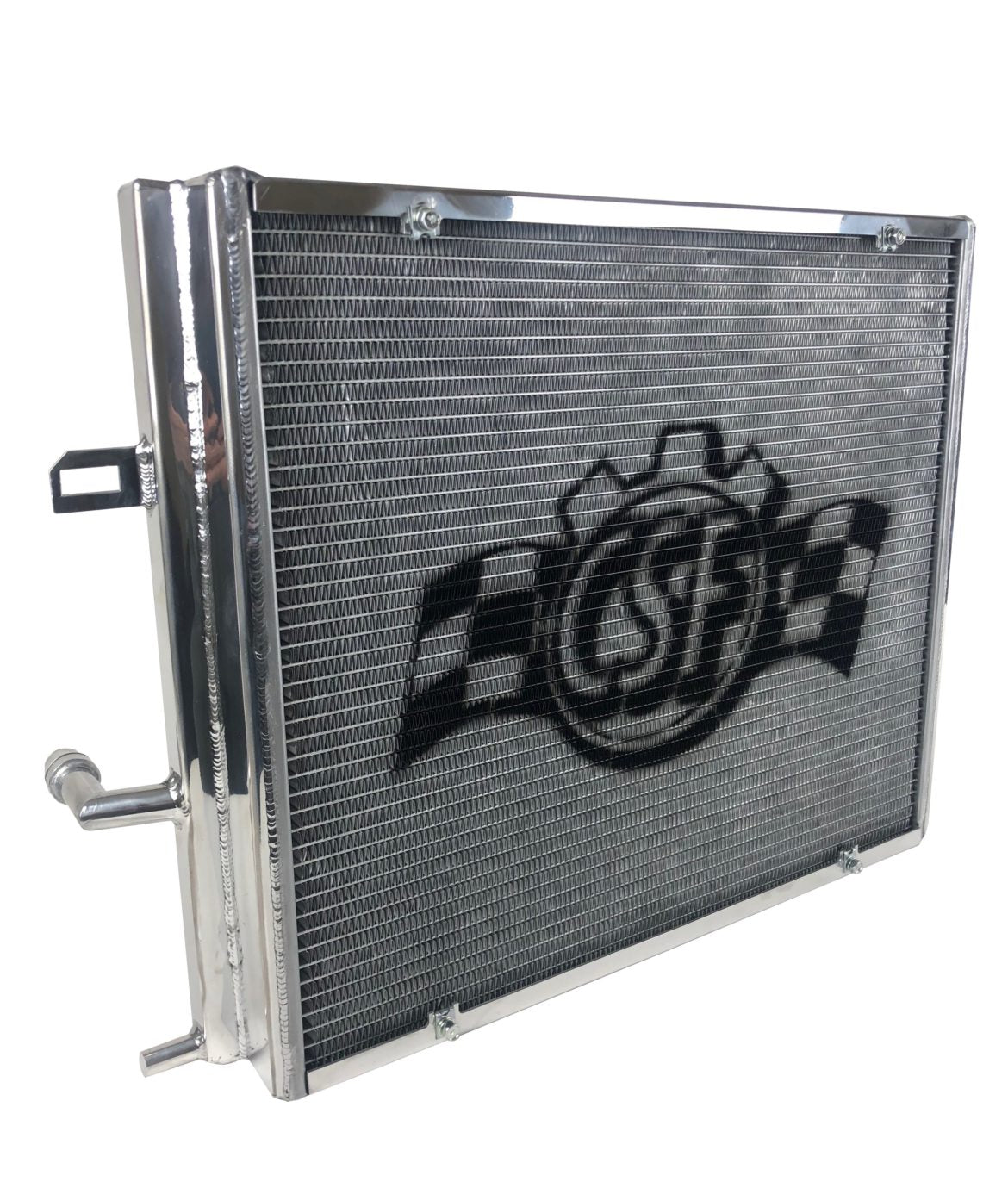

As the 3.0 Liter B58B30M0 (1st gen B58) turbo engine platform continues to be developed by the high performance industry and more power is extracted from the engine, CSF's high performance heat exchanger for the BMW B58 engine will be a critical component to keeping the vehicle charge air cool, and out of limp mode. The CSF BMW B58 upgraded heat exchanger for F-series vehicles will be especially important to install in upgraded turbo applications and/or vehicles running high performance tuning software.

The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design, as well as more expensive aftermarket designs, all have single-pass flow structures.

Applications

  • 2017-2021 BMW F22 230i - Turbocharged 2.0L L4
  • 2017-2021 BMW F23 230i - Turbocharged 2.0L L4
  • 2017-2021 BMW F22 230i xDrive - Turbocharged 2.0L L4
  • 2017-2021 BMW F23 230i xDrive - Turbocharged 2.0L L4
  • 2016-2018 BMW F30 330e - Turbocharged 2.0L L4
  • 2017-2018 BMW F30 330i - Turbocharged 2.0L L4
  • 2017-2018 BMW F34 330i GT xDrive - Turbocharged 2.0L L4
  • 2017-2018 BMW F30 330i xDrive - Turbocharged 2.0L L4
  • 2017-2019 BMW F31 330i xDrive - Turbocharged 2.0L L4
  • 2016-2018 BMW F30 340i - Turbocharged 3.0L L6
  • 2017-2019 BMW F34 340i GT xDrive - Turbocharged 3.0L L6
  • 2016-2018 BMW F30 340i xDrive - Turbocharged 3.0L L6
  • 2017-2020 BMW F32 430i - Turbocharged 2.0L L4
  • 2017-2020 BMW F33 430i - Turbocharged 2.0L L4
  • 2017-2020 BMW F32 430i xDrive - Turbocharged 2.0L L4
  • 2017-2020 BMW F33 430i xDrive - Turbocharged 2.0L L4
  • 2017-2020 BMW F36 430i xDrive Gran Coupe - Turbocharged 2.0L L4
  • 2017-2020 BMW F32 440i - Turbocharged 3.0L L6
  • 2017-2020 BMW F33 440i - Turbocharged 3.0L L6
  • 2017-2020 BMW F36 440i Gran Coupe - Turbocharged 3.0L L6
  • 2017-2020 BMW F32 440i xDrive - Turbocharged 3.0L L6
  • 2017-2020 BMW F33 440i xDrive - Turbocharged 3.0L L6
  • 2017-2020 BMW F36 440i xDrive Gran Coupe - Turbocharged 3.0L L6
  • 2017-2021 BMW F22 M240i - Turbocharged 3.0L L6
  • 2017-2021 BMW F23 M240i - Turbocharged 3.0L L6
  • 2017-2020 BMW F22 M240i xDrive - Turbocharged 3.0L L6
  • 2017-2020 BMW F23 M240i xDrive - Turbocharged 3.0L L6

OEM Part Numbers

  • BMW: 17 11 8 741 830
  • BMW: 17-11-8-741-830
  • BMW: 17118741830
