CSF 8127 High Performance Intercooler for BMW N54 brilliant silver
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 8127 High Performance Intercooler for BMW N54 brilliant silver
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The BMW N54 engine is well known for its incredible power potential. Many owners are pushing well over 500hp out of these motors and some have seen as high as 1000hp. Truly amazing performance can be achieved when using the proper components from quality high performance companies, including a worthy high performance intercooler to handle the increased Intake Air Temperatures (IATs) generated from more power and higher boost pressures associated with these built vehicles.

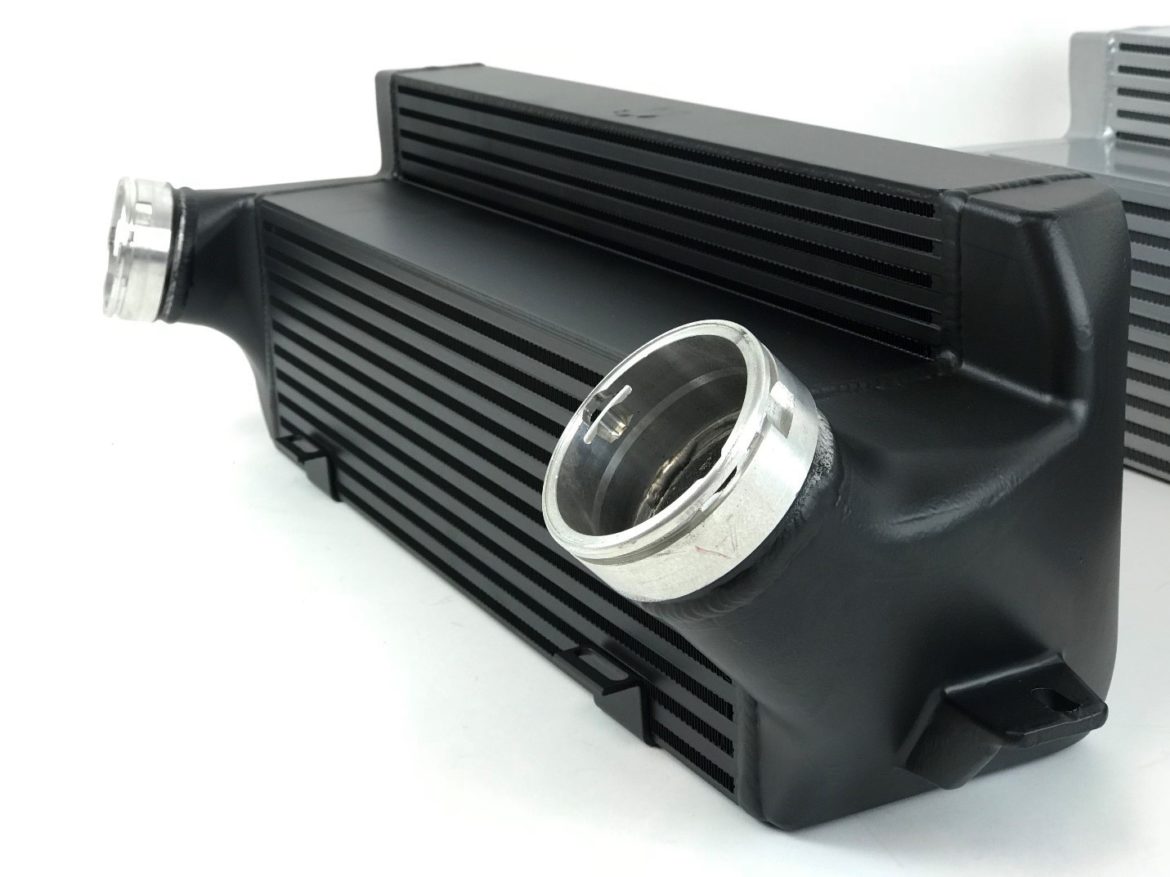

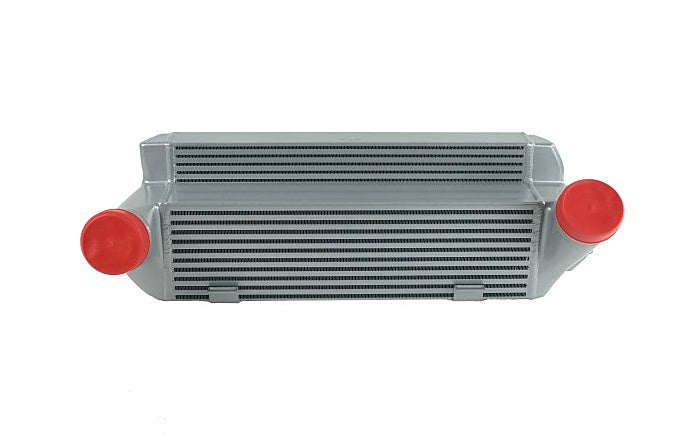

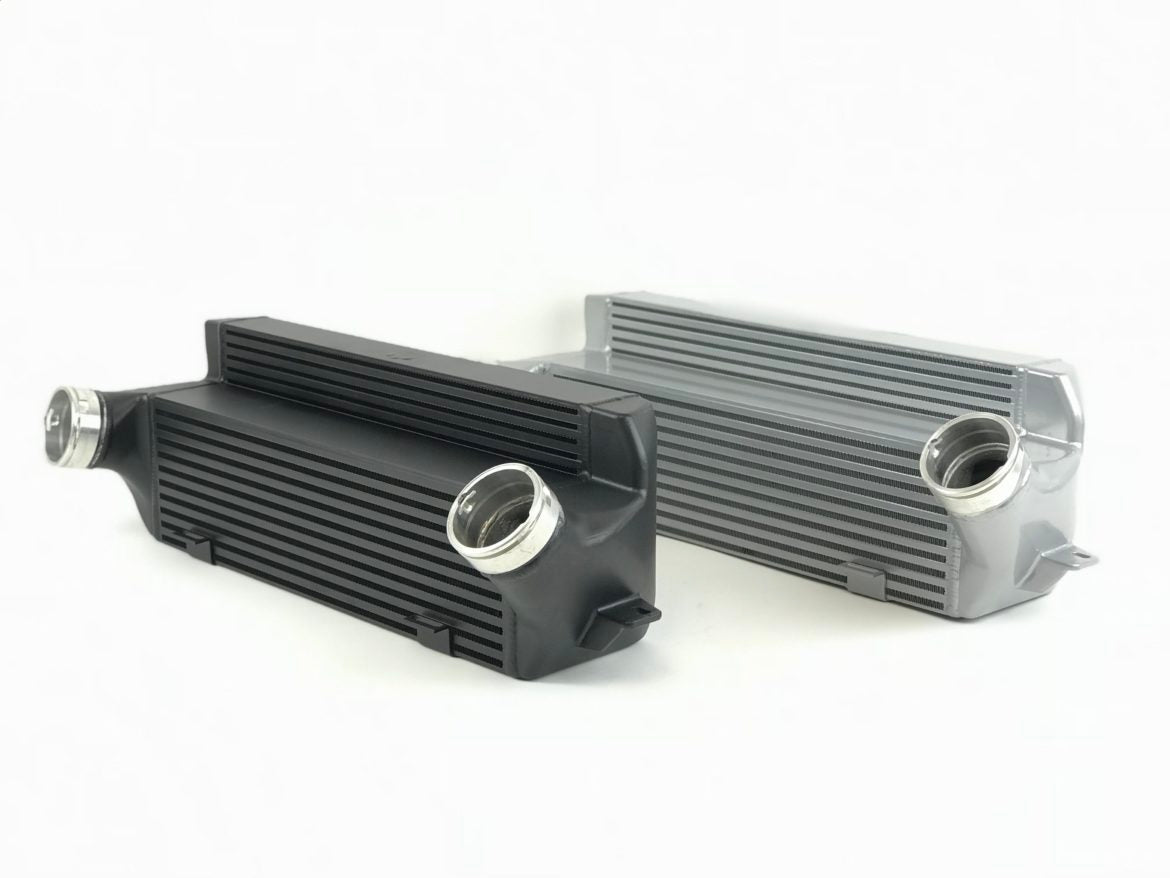

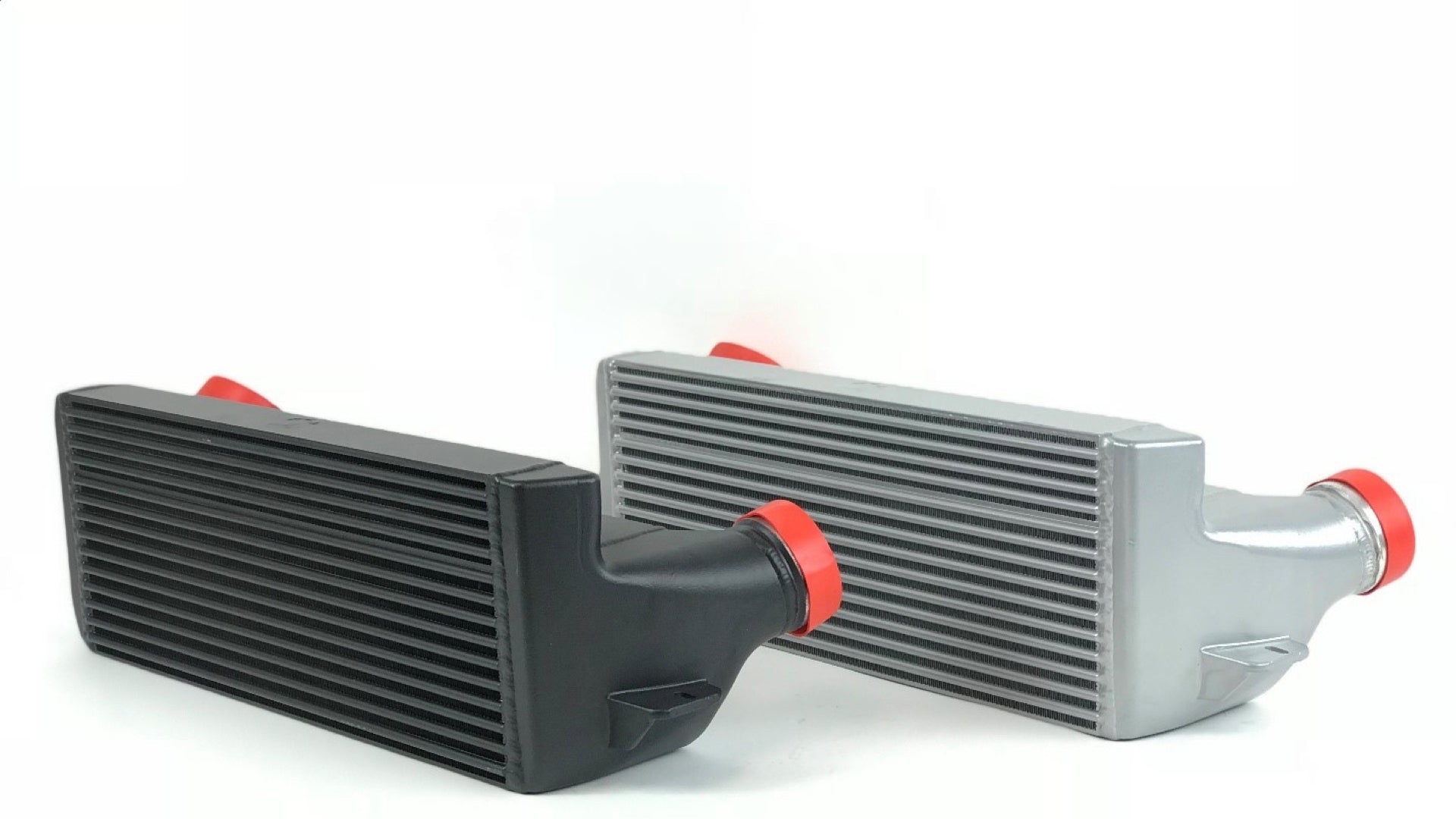

The OEM intercooler is made from plastic end tanks that are crimped onto an aluminum tube/fin core that is 4 inches thick (105mm core width) and is 5 inches in height (127mm). This may be enough to keep IAT's in check on a completely unmodified / stock vehicle, but once users to start increase power through bolt-on modifications, tuning, and built engines, the OEM intercooler will become the Achilles Heel of the system with IAT's skyrocketing out of the optimal range and drastically lowering the performance capabilities of the vehicle. Enter CSF with their stepped core design, bar/plate high performance N54 intercooler. This "drop-in fit" intercooler, which requires no modifications to install, has a bottom / larger section that is 5.5in thick (140mm) with a front face that is massive 8.25in tall (210mm). Made from CSF's industry exclusive rounded bar/plate core design. The rounded front face of the cooling bars allows for better airflow into the core. Airflow hits the core surface, and rather than scattering like it does with hitting the face of a flat bar that all competing products have, it travels around the face of the round bar and into core for much better performance than both the OEM design (flat face) and all other aftermarket competitors (all have flat face tubes or bars). A huge improvement over the OEM unit, and enough to handle even the most advanced N54 engine builds. Good for 1000hp no problem!
Applications
- 2008-2013 BMW E82 135i - Turbocharged 3.0L L6
- 2008-2013 BMW E88 135i - Turbocharged 3.0L L6
- 2013 BMW E82 135is - Turbocharged 3.0L L6
- 2013 BMW E88 135is - Turbocharged 3.0L L6
- 2007-2011 BMW E90 335i - Turbocharged 3.0L L6
- 2007-2013 BMW E92 335i - Turbocharged 3.0L L6
- 2007-2013 BMW E93 335i - Turbocharged 3.0L L6
- 2009-2011 BMW E90 335i xDrive - Turbocharged 3.0L L6
- 2009-2013 BMW E92 335i xDrive - Turbocharged 3.0L L6
- 2011-2013 BMW E92 335is - Turbocharged 3.0L L6
- 2011-2013 BMW E93 335is - Turbocharged 3.0L L6
- 2007-2008 BMW E90 335xi - Turbocharged 3.0L L6
- 2008 BMW E92 335xi - Turbocharged 3.0L L6
- 2013-2015 BMW E84 X1 xDrive35i - Turbocharged 3.0L L6
- 2009-2016 BMW E89 Z4 sDrive35i - Turbocharged 3.0L L6
- 2011-2016 BMW E89 Z4 sDrive35is - Turbocharged 3.0L L6
OEM Part Numbers
- BMW: 17 51 7 540 035
- BMW: 17-51-7-540-035
- BMW: 17517540035
