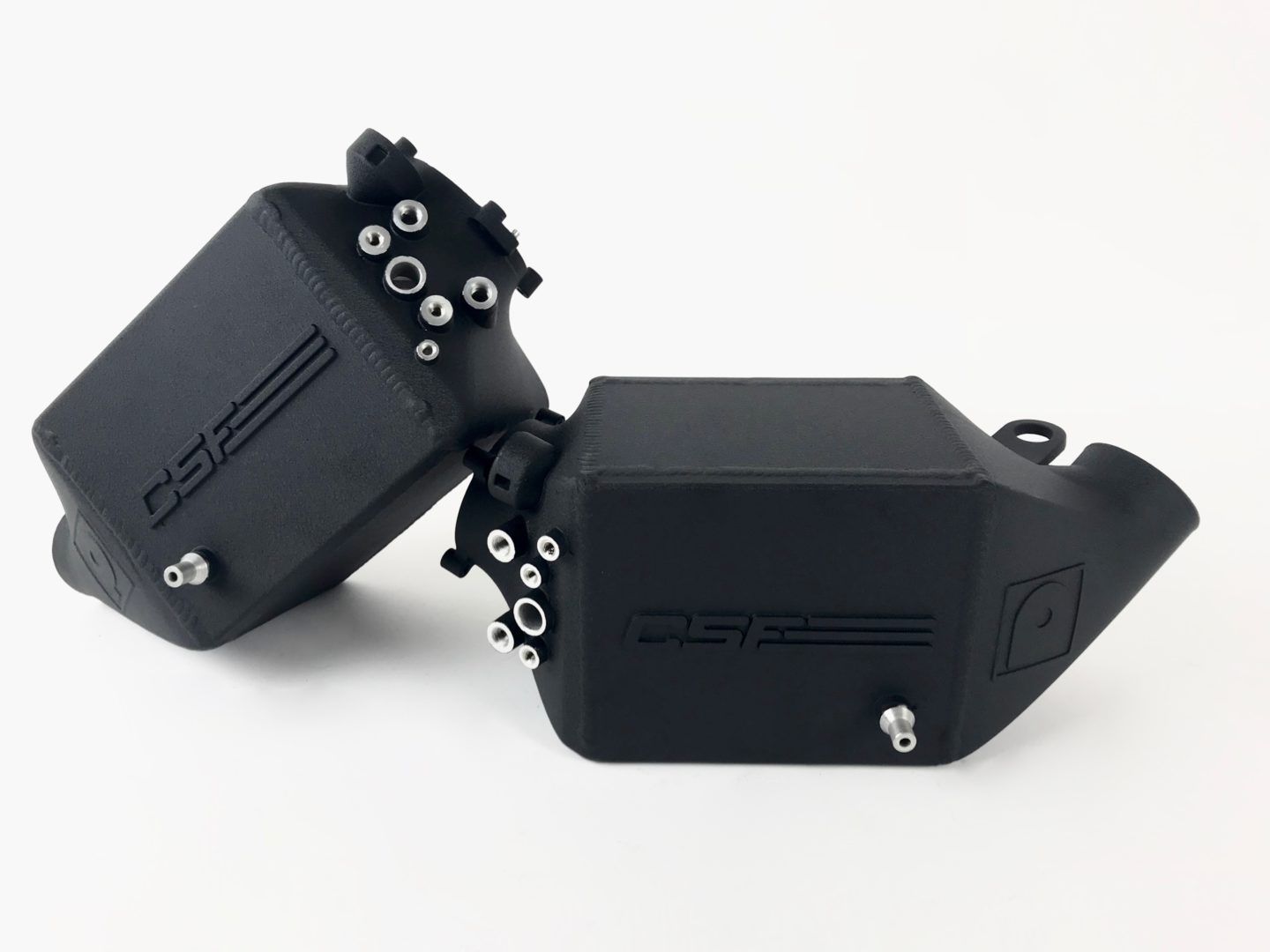

CSF 8109 Twin Charge-Air-Cooler set for BMW M5 (F10) / M6 (F06/F12/F13)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 8109 Twin Charge-Air-Cooler set for BMW M5 (F10) / M6 (F06/F12/F13)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The S63 4.4L Twin Turbo V8 in the BMW F1X M5/M6 is an absolute monster that responds incredibly well to bolt-on upgrades, larger turbos, and performance tuning. Tuners quickly found that increasing power on the S63 pushed charge air temperatures past the OEM Charge-Air-Coolers' limits resulting in dangerously high Intake Air Temperatures (IATs). Pure turbos approached CSF to develop a Charge-Air-Cooler upgrade that would hold up to the extreme boost levels their turbos upgrades could generate and keep the car's IATs in check. The result was the World's 1st Cast End Tank Designed High-Performance Charge-Air-Cooler Set for the F1X M5/M6. CSF used CFD analysis and testing to create the largest charge-air-cooler that could fit in the factory location. The Top/Bottom, Cross-Flow, Dual-Pass Cores are 28% larger than the factory coolers and offer significant reductions in IATs at increased boost levels.
Applications
- 2013-2016 BMW F10 M5 - Turbocharged 4.4L V8
- 2012-2018 BMW F12 M6 - Turbocharged 4.4L V8
- 2013-2018 BMW F13 M6 - Turbocharged 4.4L V8
- 2014-2019 BMW F06 M6 Gran Coupe - Turbocharged 4.4L V8
OEM Part Numbers
- BMW: 17 51 7 843 119 *Right
- BMW: 17-51-7-843-119 *Right
- BMW: 17517843119 *Right
- BMW: 17 51 7 843 123 *Left
- BMW: 17-51-7-843-123 *Left
- BMW: 17517843123 *Left
