CSF 8104 Oil Cooler Race-Spec for BMW M2 (F87) 2016-2018
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 8104 Oil Cooler Race-Spec for BMW M2 (F87) 2016-2018
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

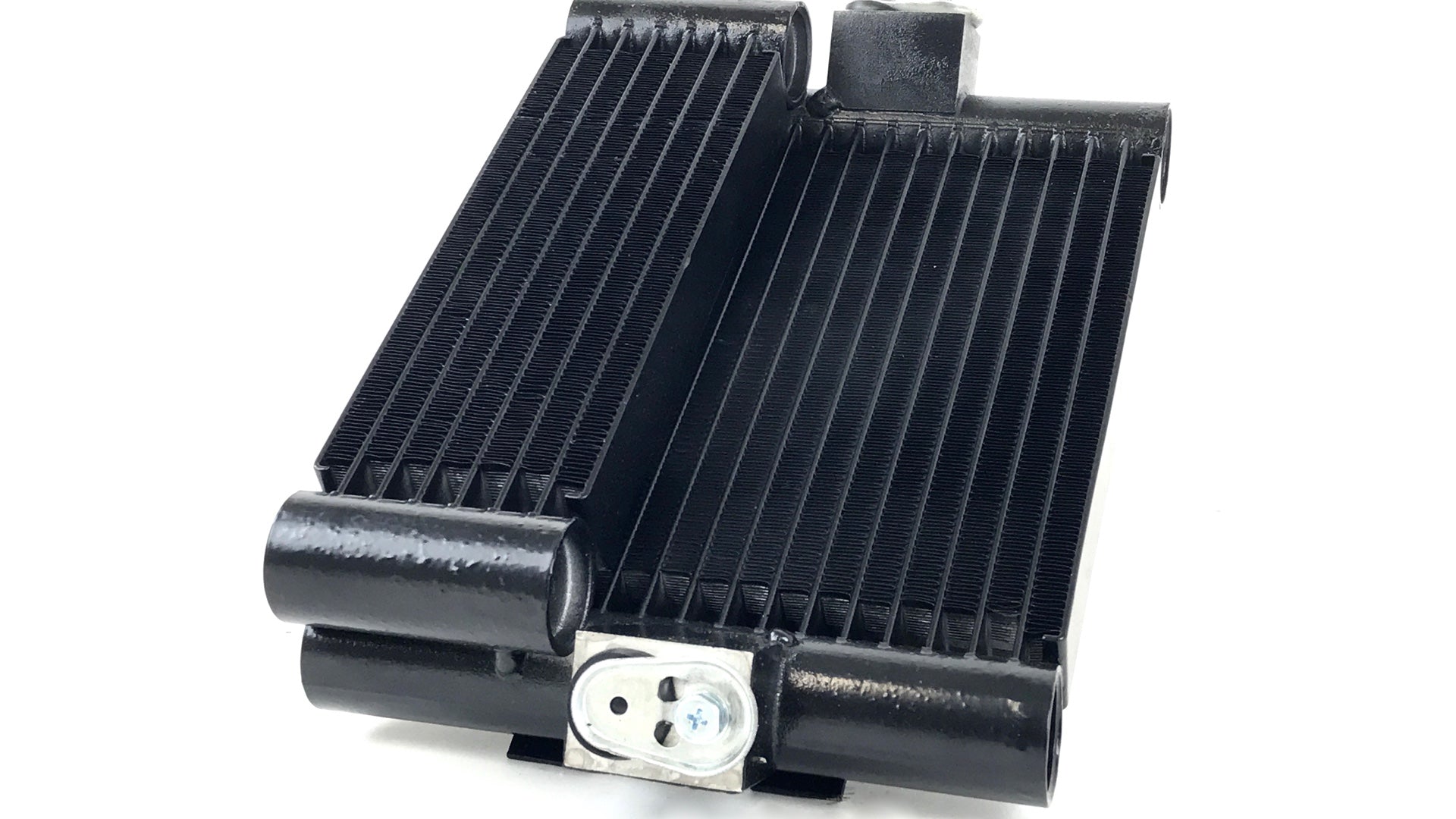

BMW M drivers demand nothing but the best from and for their vehicles. While the BMW F87 M2 (N55) is very capable on the street and track, it does suffer from heat issues in extreme conditions. Extensive track testing reveals the engine oil temps reaching upwards of 280℉ which will send the M2 into limp mode. The CSF Oil Cooler has been track tested in 103℉ (115 ℉ Heat Index) and keep the oil temps much lower than factory with a maximum temperature recorded at 240℉ throughout testing. The extra cooling performance is accomplished in a design that is a true "drop-in fit" requiring no modifications to install. It accepts all attaching oem components including oil-line connections, mounting brackets and shroud/ducting. This is accomplished by utilizing CSF's AC Condenser Technology with a 1-Row super-high pressure 26mm multi-channel microtube. The front full-size core has 17 cooling tubes vs. oem 15 tubes while the backside cooler has an additional 6 rows. This also increases the overall oil volume of the system by 0.5 quarts (0.47 liters).
Applications
- 2016-2018 BMW F87 M2 - Turbocharged 3.0L L6
OEM Part Numbers
- BMW: 17 21 7 853 240
- BMW: 17-21-7-853-240
- BMW: 17217853240
