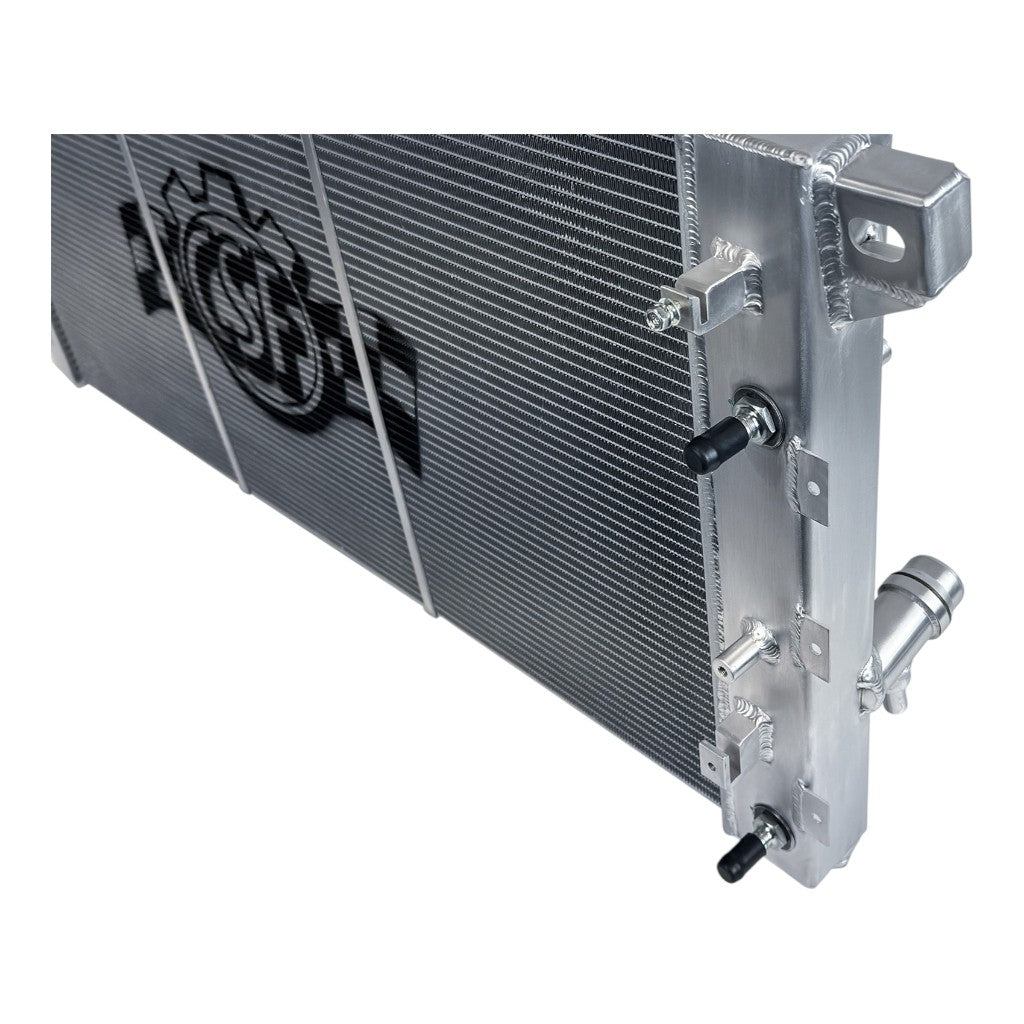

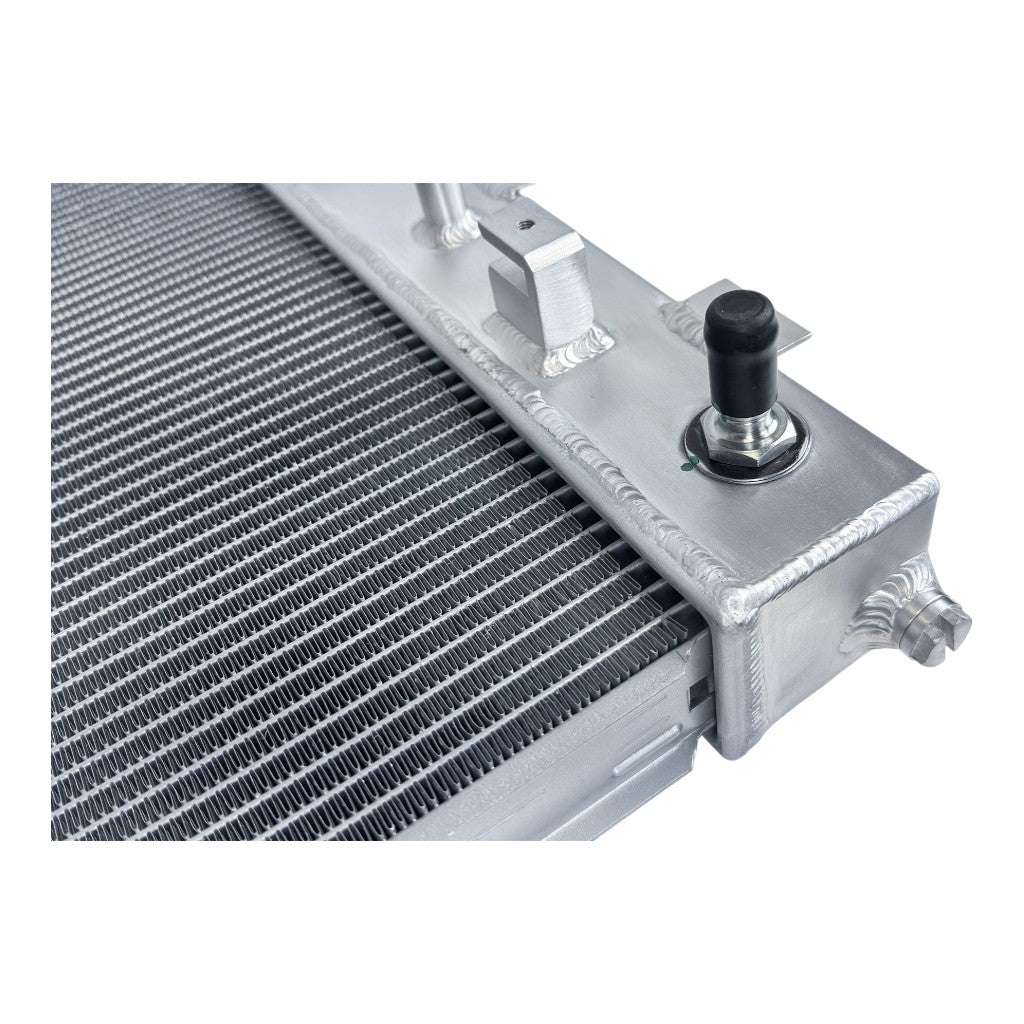

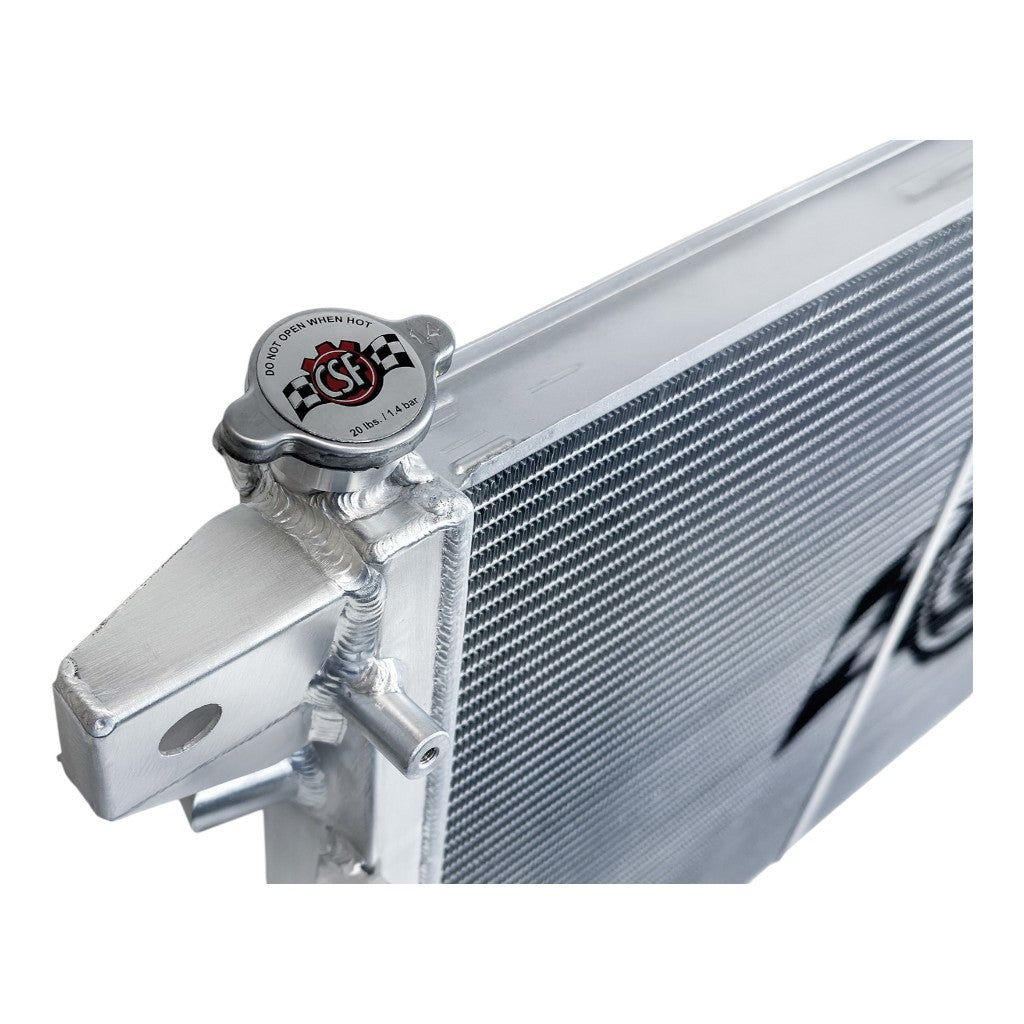

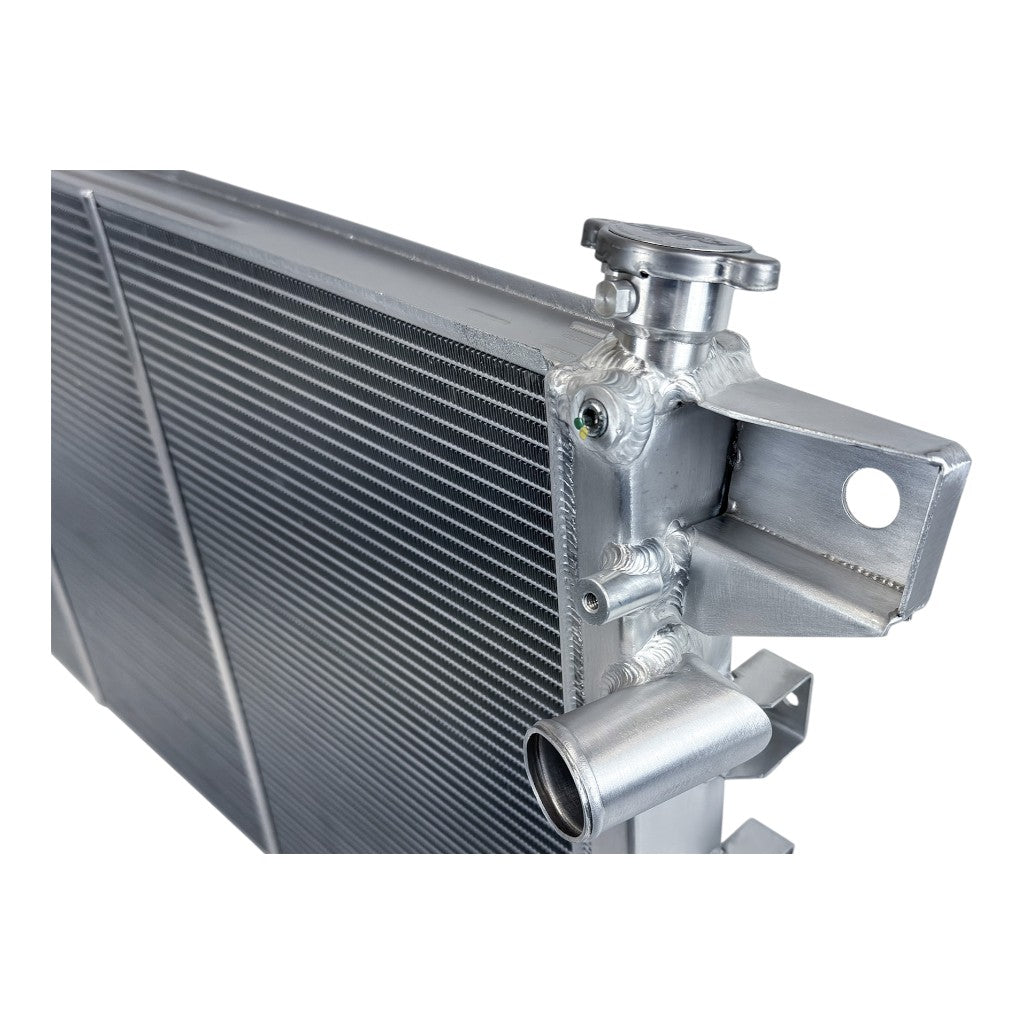

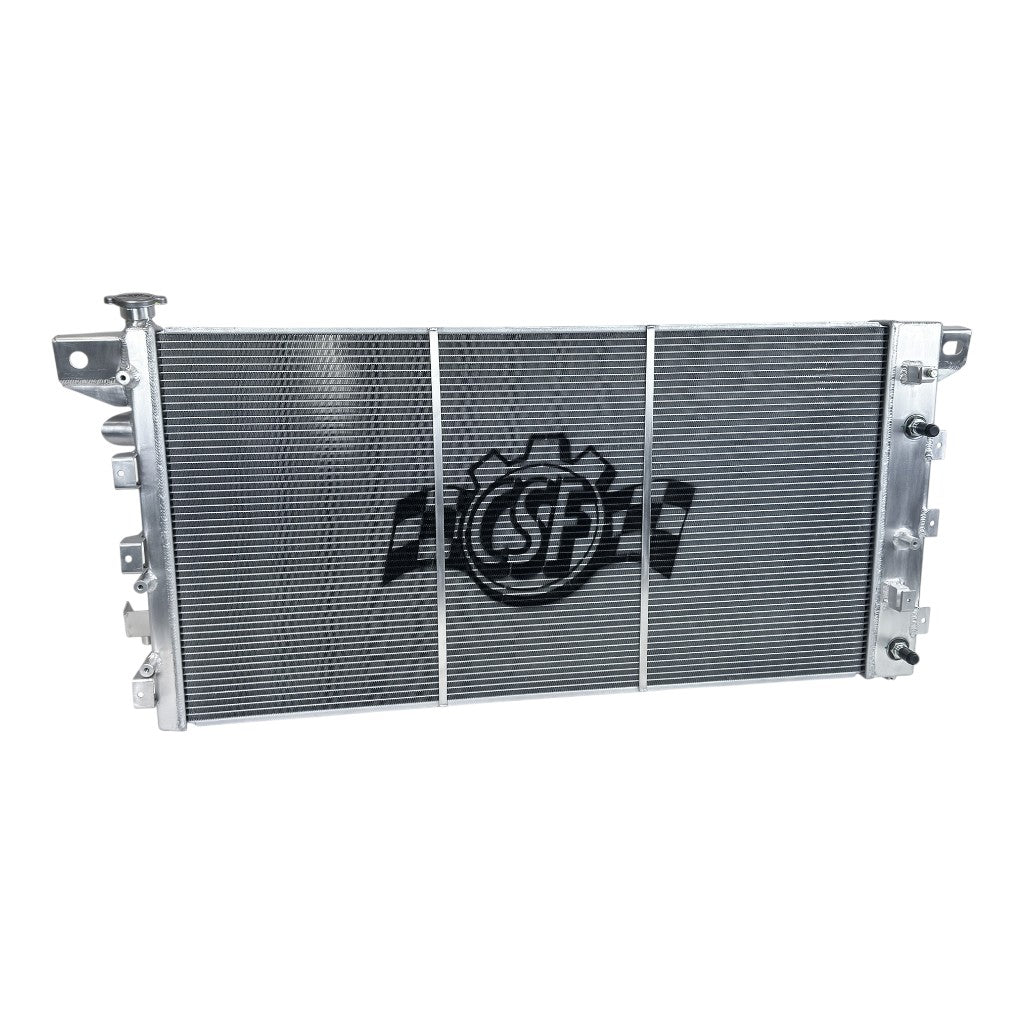

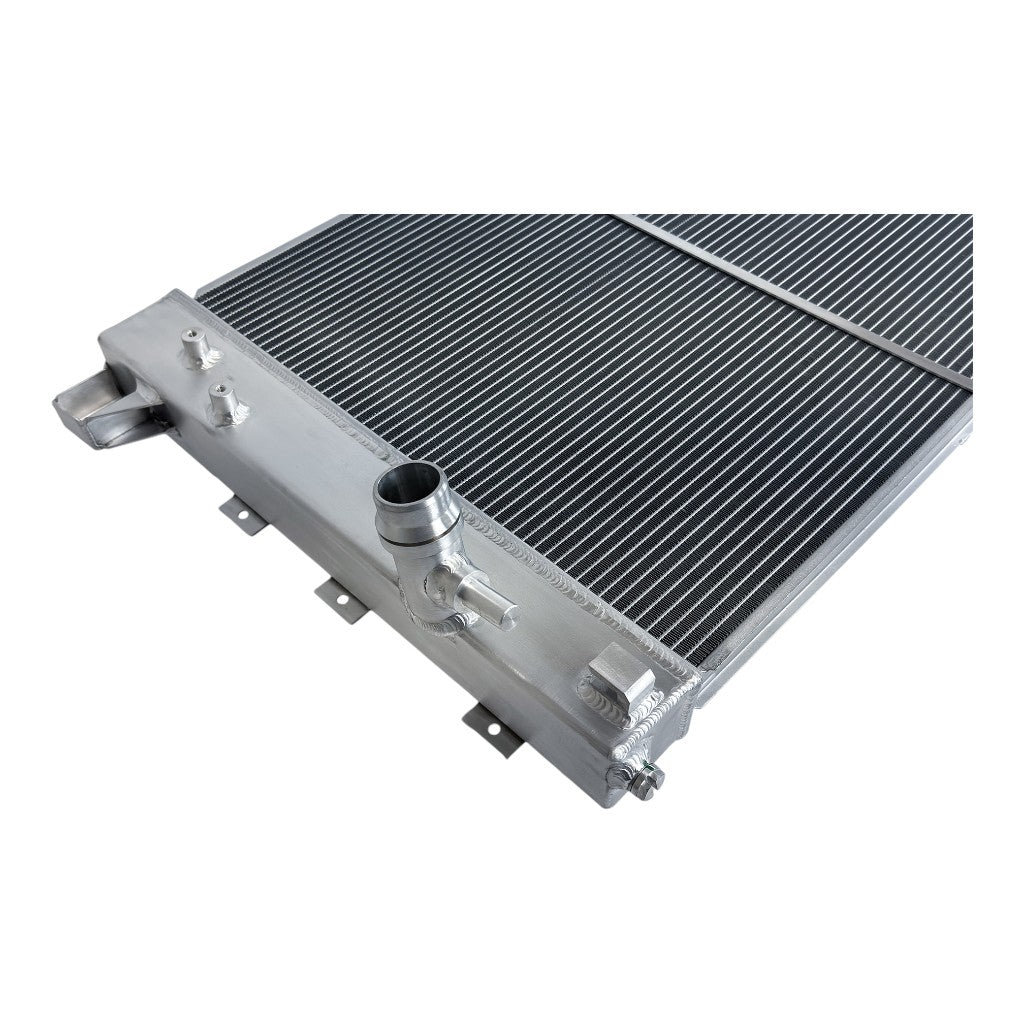

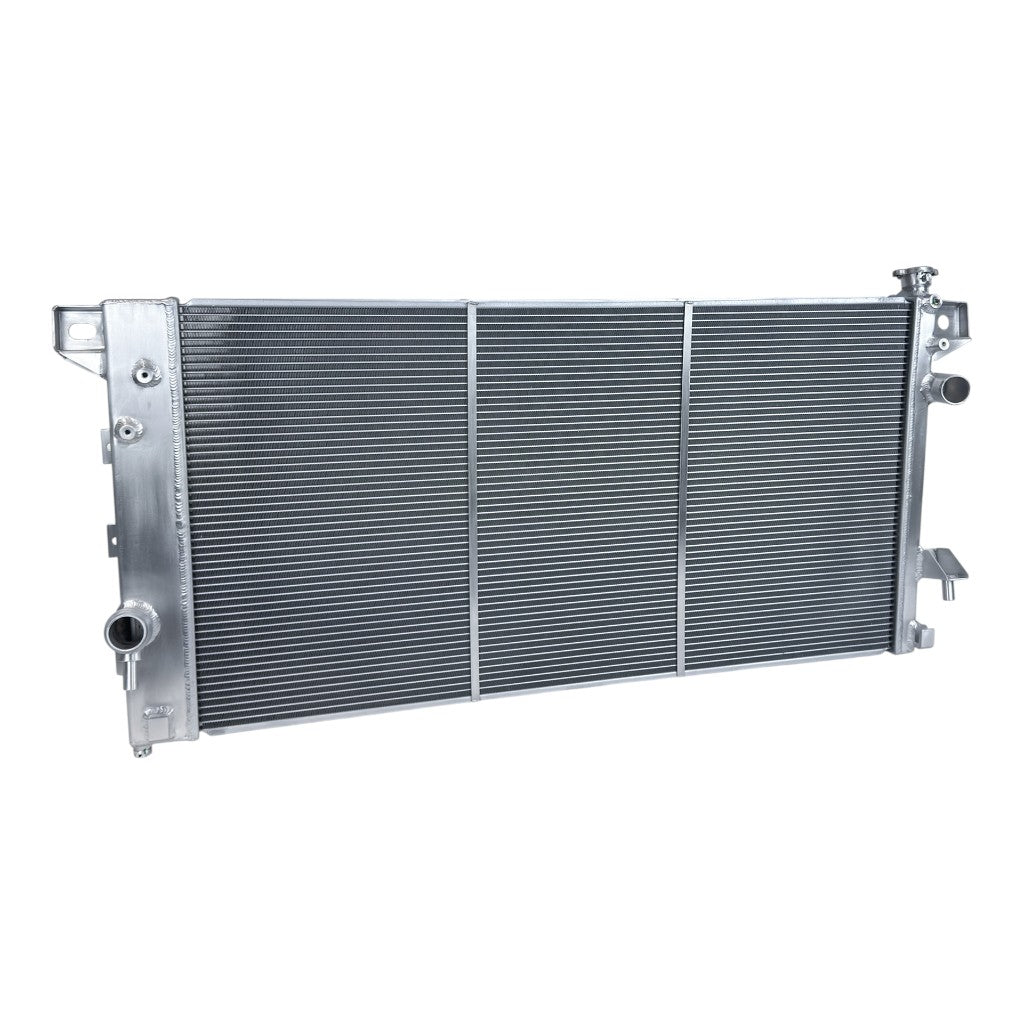

Description CSF 8095 High-Performance Radiator for FORD F-150 Raptor 3.5L EcoBoost 2017-2020
The 13th and 14th generation Ford F-150s, along with the 2nd generation Raptors, were the first to introduce EcoBoost engines into the lineup—an advancement that brought significant gains in power and efficiency. However, the added thermal load from turbocharged operation placed increased demands on the factory cooling system. Many enthusiasts and professionals alike have found the OEM radiator to be undersized for heavy-duty use.
While some vehicles operated without issue under normal driving, those used for towing, high-speed off-roading, or hot climate operation revealed the factory system’s limitations. As these models reach the age where radiator replacement becomes a routine maintenance task, upgrading to a high-performance radiator is a practical and performance-oriented decision. CSF offers advanced cooling solutions that address these shortcomings with increased core capacity, enhanced thermal efficiency, and direct-fit compatibility for seamless installation.
- 2-Row – 42mm Ultra-High-Performance Core
- Cooling Tubes with CSF’s Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Pins and Brackets
- OEM Style Inlet/Outlet
- Core straps for strength and added rigidity
- 100% All Aluminum TIG-Welded Construction
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Applications:
- 2017-2020 F-150 Raptor 3.5L V6 EcoBoost
- 2021-2025 F-150 5.0L V8
- 2015-2020 F-150 5.0L V8
- 2021-2025 F-150 3.5L V6 EcoBoost
- 2015-2020 F-150 3.5L V6 EcoBoost
- 2021-2025 F-150 2.7L V6 EcoBoost
- 2015-2020 F-150 2.7L V6 EcoBoost
- 2018-2020 F-150 3.0L V6 Turbo Diesel
- 2021-2023 F-150 3.3L V6
- 2018-2020 F-150 3.3L V6
- 2015-2017 F-150 3.5L V6
- 2018-2021 Ford Expedition 3.5L V6 EcoBoost
- 2018-2021 Lincoln Navigator 3.5L V6 EcoBoost
OEM Part Numbers:
- HL3Z-8005-B
- HL3Z-8005-C
- FL3Z-8005-A
- FL3Z-8005-B
- ML3Z-8005-A
