CSF 7240 Performance All-Aluminum Cooling Radiator for MERCEDES-BENZ SL600 (R129) 1993-2001

Description CSF 7240 Performance All-Aluminum Cooling Radiator for MERCEDES-BENZ SL600 (R129) 1993-2001

The RENNTech by CSF radiator features 6.5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while improving airflow over the 6mm OE fins. CSF was able to maintain the same tube and fin row count as the OE unit with a larger fin height due to the shorter but more efficient 2-Row B-Tubes. These features improve the core’s ability to dissipate heat while being more structurally robust.

CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

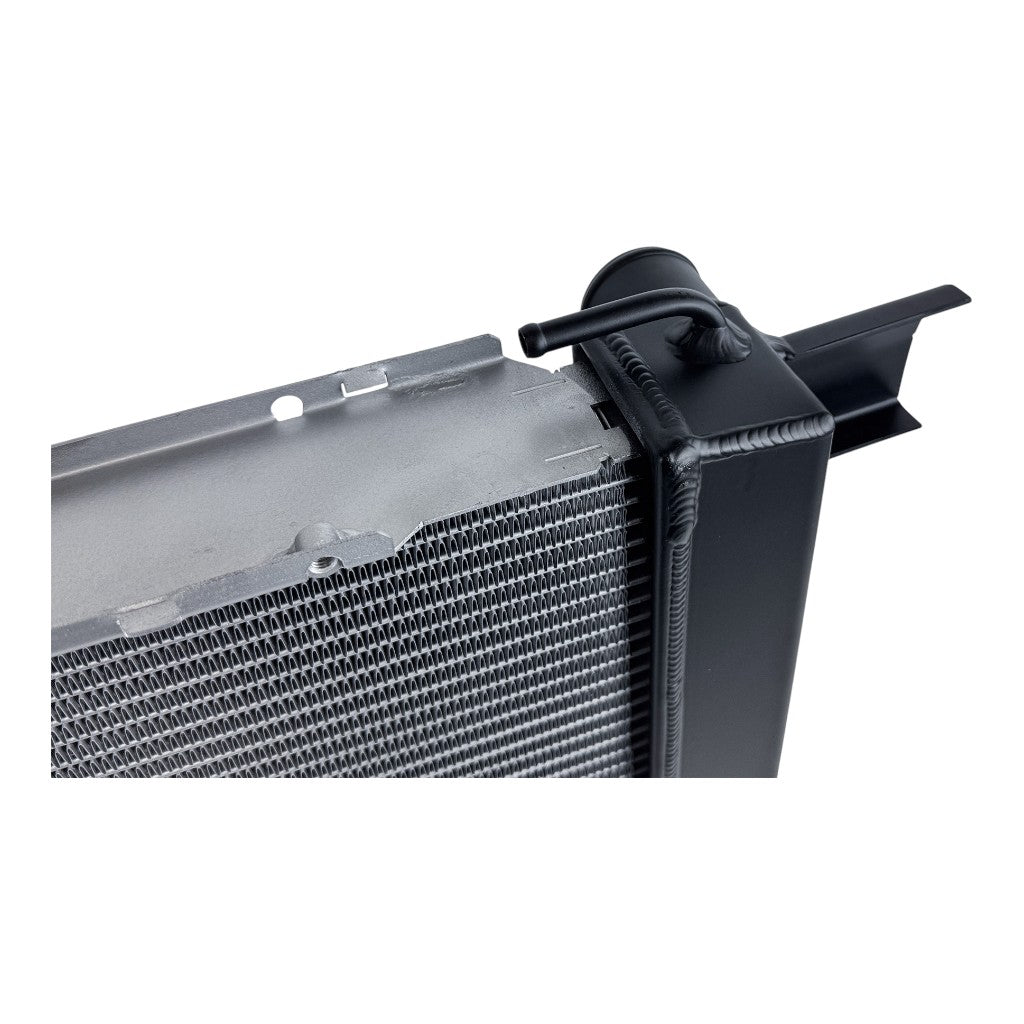

The combination of TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. This includes the 90° overflow pipe which is plastic on the OE unit. This pipe is known to crack on the original radiator requiring a full replacement. The All-Aluminum construction removes this weak point.

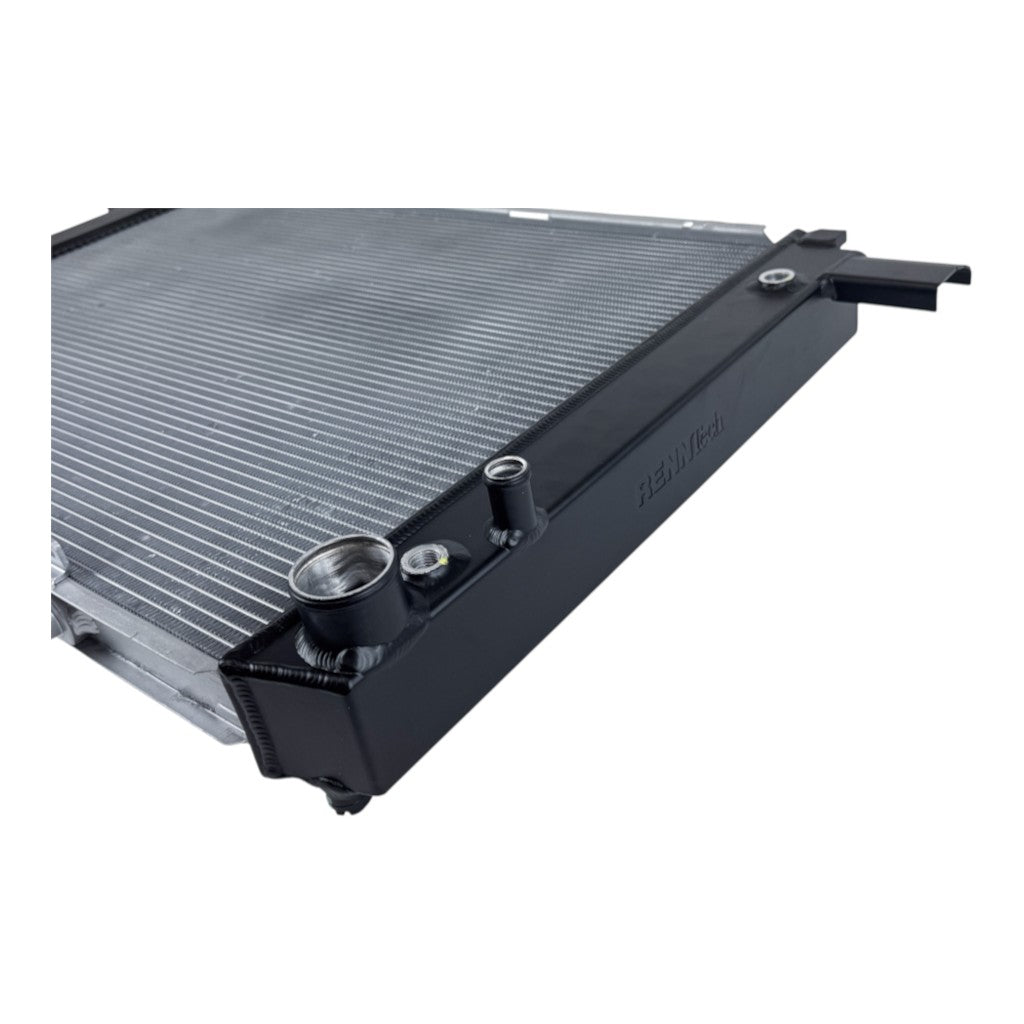

The CSF radiator also features a 5-plate transmission oil cooler built into the right-hand side end tank. It utilizes the OE (M14 x 1.5 Inlet and Outlet) connections for a seamless installation.

Features:

• 2-Row – 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Integrated 5-plate transmission oil cooler in the left-hand side tank

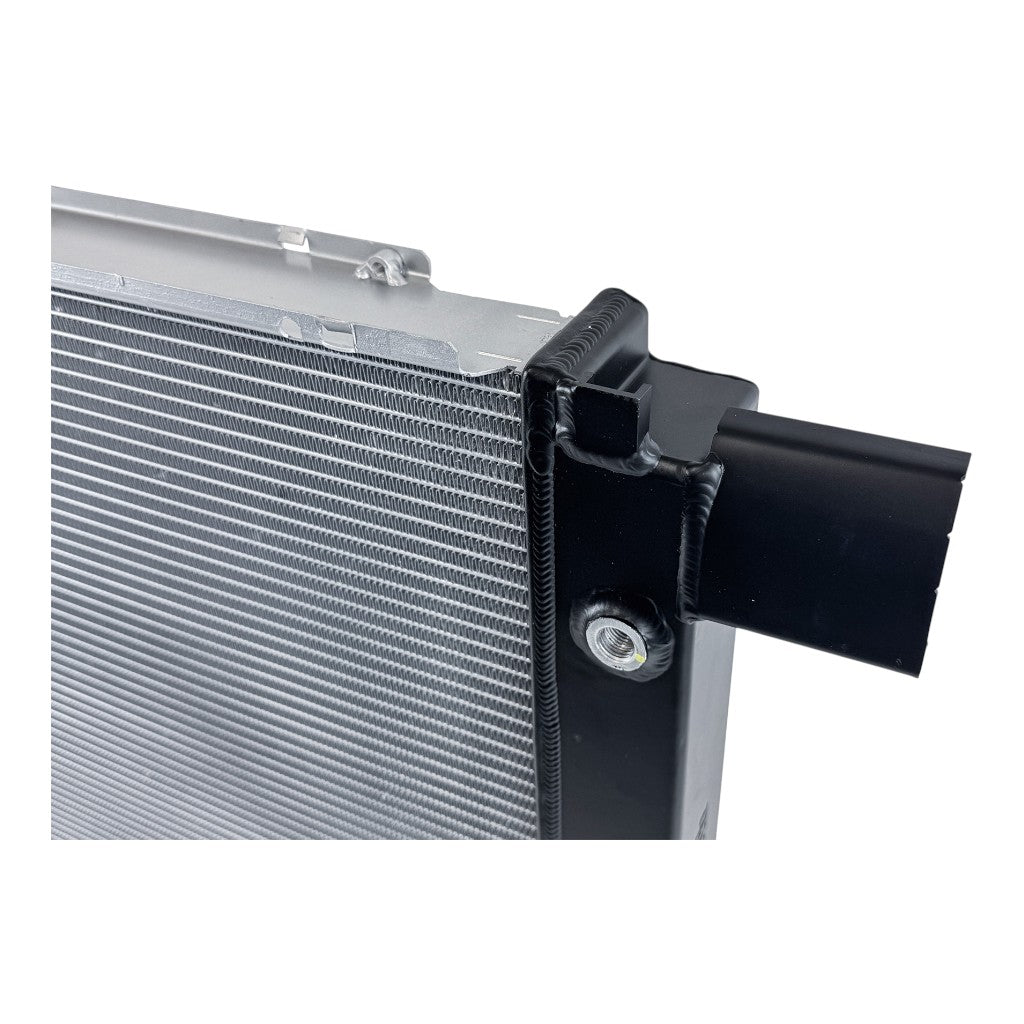

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connections
• 100% All Aluminum TIG-Welded Construction
• Satin Black and Silver Finish for an OE Look
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 1993 Mercedes-Benz 600SL – 6.0L V12
• 1994-2002 Mercedes-Benz SL600 – 6.0L V12
• 1995 Mercedes-Benz SL 72 AMG – 7.1L V12
• 1996-1997 Mercedes-Benz SL 70 AMG – 7.1L V12
• 1997-2001 Mercedes-Benz SL 73 AMG – 7.3L V12
• 1993-2001 RENNTech SL 74 – 7.4L V12
• 1993-2001 RENNTech SL 76 – 7.6L V12

OEM Part Numbers:

• Mercedes-Benz: 129-500-10-03
