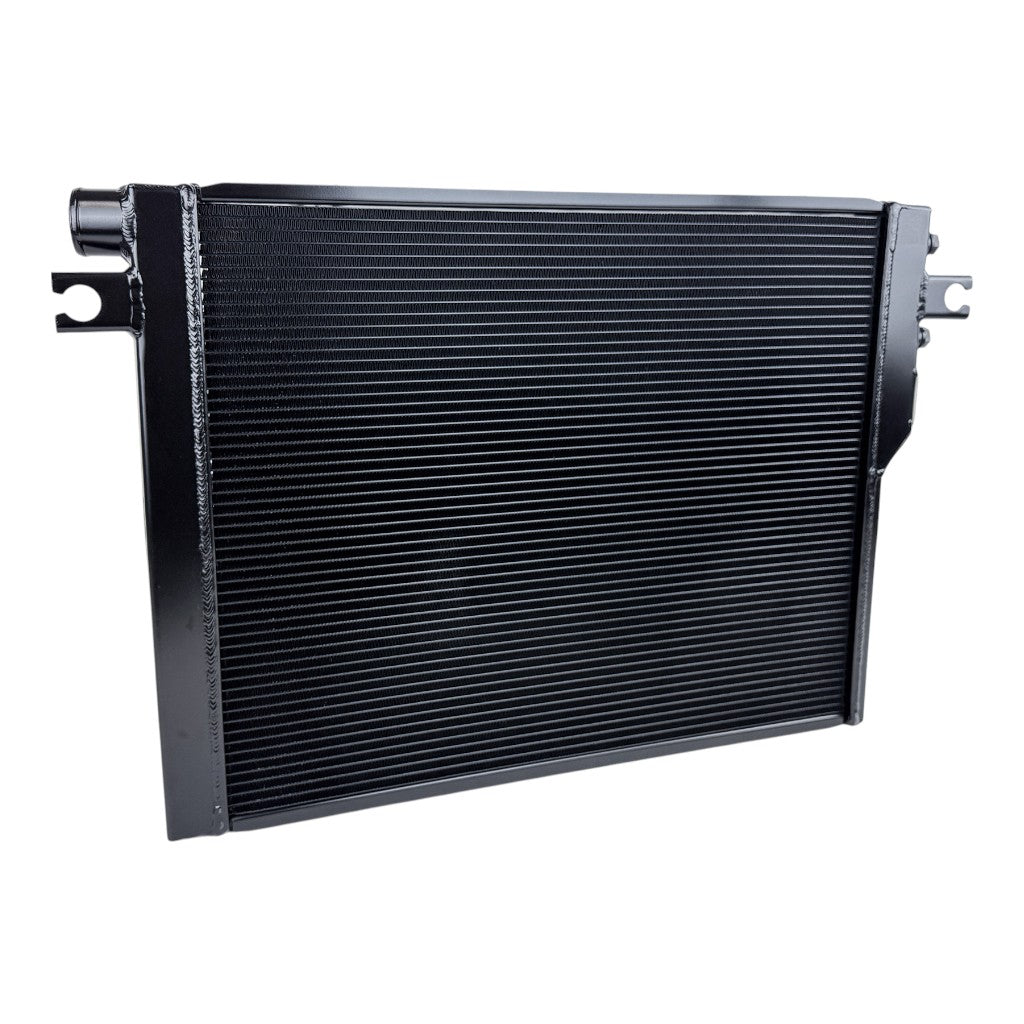

CSF 7232 Cooling Radiator for BMW M5 (E28) / M6 (E24) 1984-1989
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 7232 Cooling Radiator for BMW M5 (E28) / M6 (E24) 1984-1989
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The CSF radiator features a 1-Row 31mm aluminum core that improves heat dissipation. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes, the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting.
- 1-Row – 31mm Ultra-High-Performance Core
- Cooling Tubes with CSF’s Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Satin Black Finish for an OEM+ Look and Feel
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications

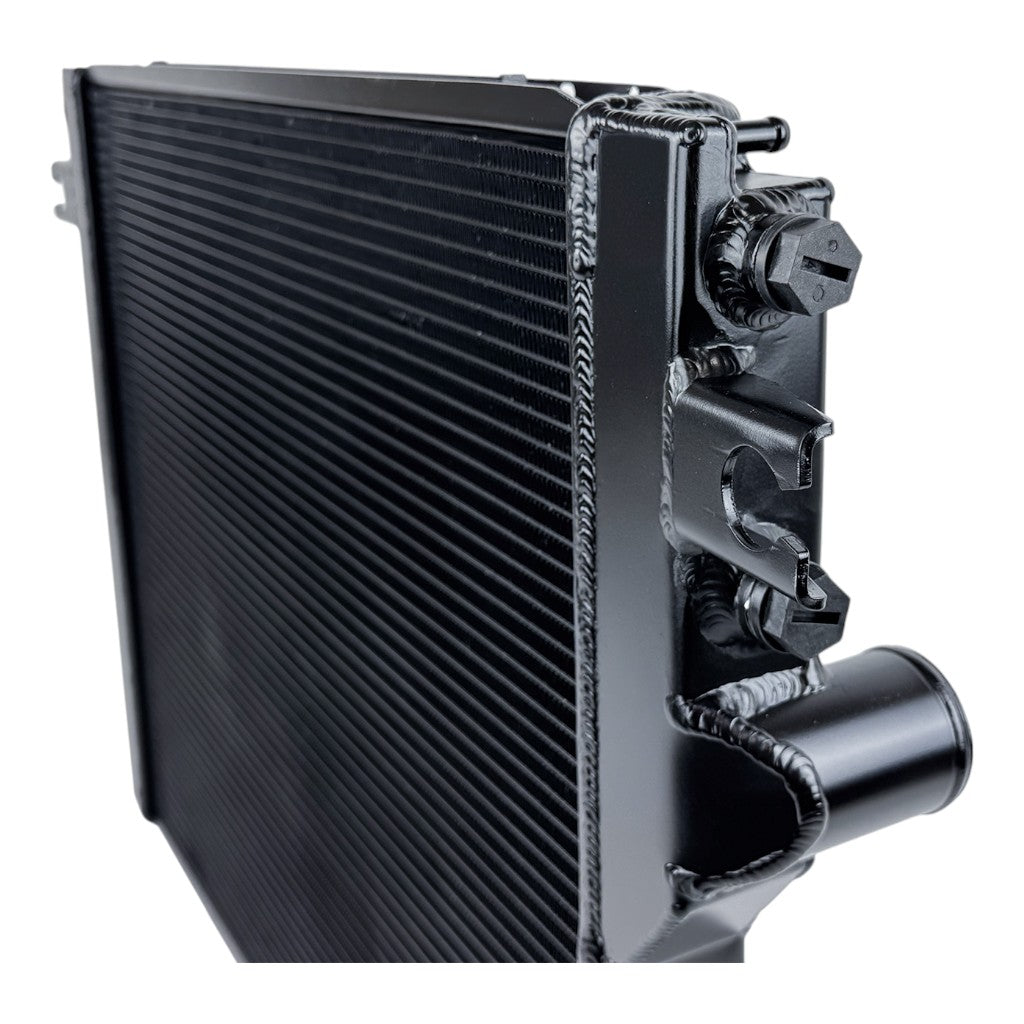

- Two M14x1.5 Temperature Sensor Ports on left side tank (Plugs Included)
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Applications:
- 1984-1988 BMW E28 M5 (US and Euro)
- 1984-1989 BMW E24 M635CSi
- 1987-1989 BMW E24 M6
OEM Part Numbers:
- BMW: 17-11-2-226-082
- BMW: 17-11-2-225-061
- BMW: 17-11-2-226-018
