CSF 7206 High Performance All Aluminum Radiator (left side only) for FERRARI F355

Left Side Only

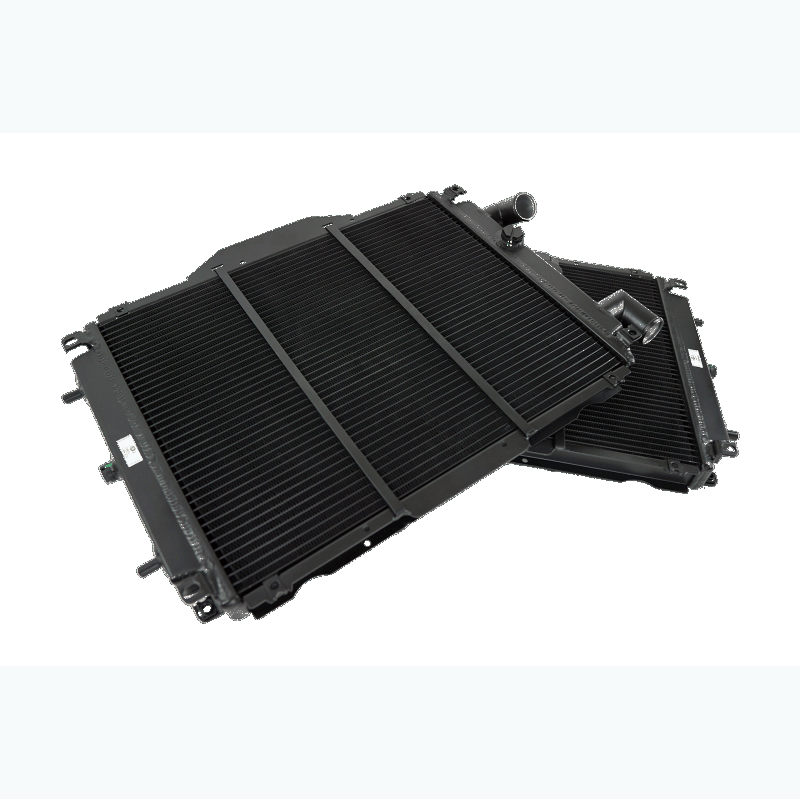

NEW CSF HIGH-PERFORMANCE RADIATORS for FERRARI F355

Almost every Ferrari that has rolled out of the factory in Maranello has gone on to become an icon of the automotive world. However, not all achieve the same level of love and status in the car community. While the Ferrari F355 might not have the same mainstream reverence as some, it is incredibly well loved and has an amazing community supporting it.

As with most vehicles that we built over 20 years ago, the Ferrari F355 is at the age where a lot of the critical components need to be replaced. While the OEM Radiators are still available, they can be quite expensive, and many owners have been looking for a suitable upgrade for their collectable Italian supercars. CSF has listened to the community and has produced the first reputable High-Performance All-Aluminum Radiators for the F355.

When initially designing these radiators, there were several key features that CSF knew were important to the Ferrari community: OEM Fit & Finish, Increased performance, and improved reliability.

CSF vs OEM

The original F355 OE radiators from Ferrari feature aluminum cores crimped onto plastic end tanks. While generally accepted as good quality and durable, this design is significantly weaker than the all-aluminum TIG welded design of the CSF Radiators. Anyone who has restored/updated a older car knows the value of having updated parts that are as efficient as possible.

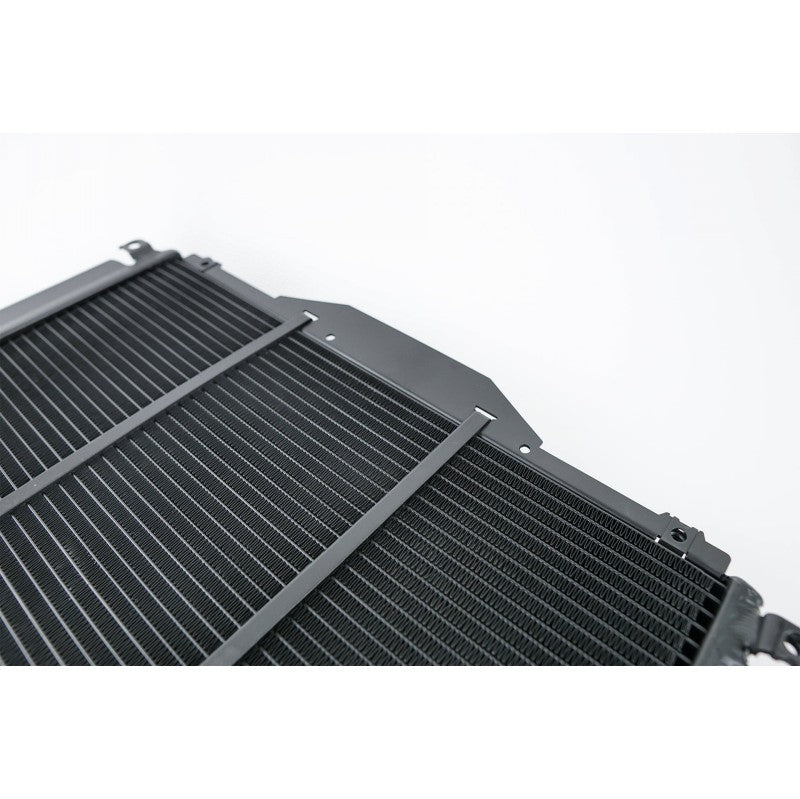

The CSF radiator features a 1-Row 31mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. The 6.5mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. In addition, CSF was able to fit 2 additional cooling tubes and rows of fins.

• Upgraded 1-Row 31mm Ultra-High-Performance Dual Pass Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

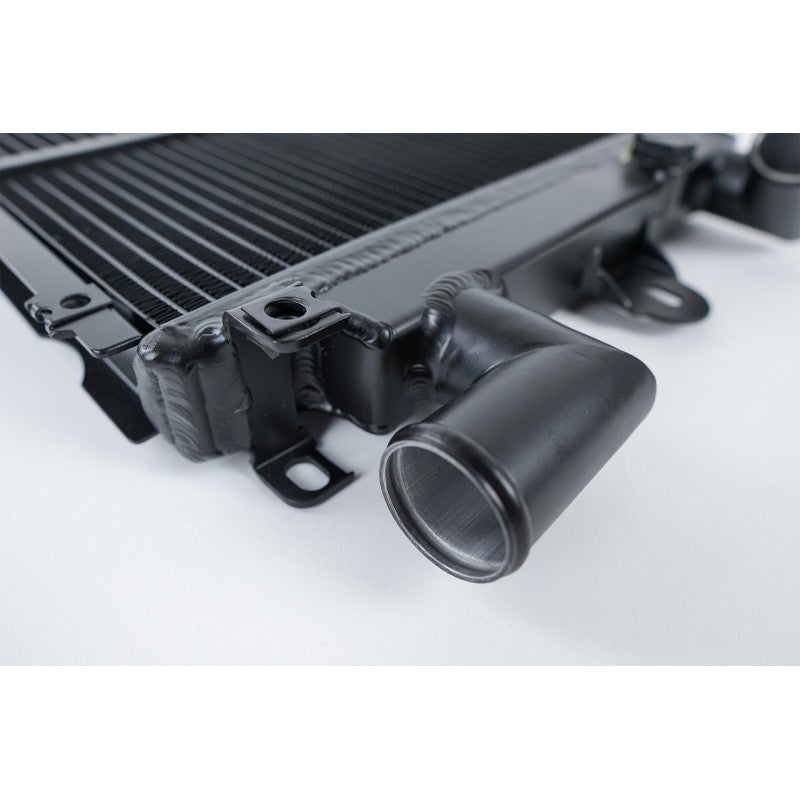

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

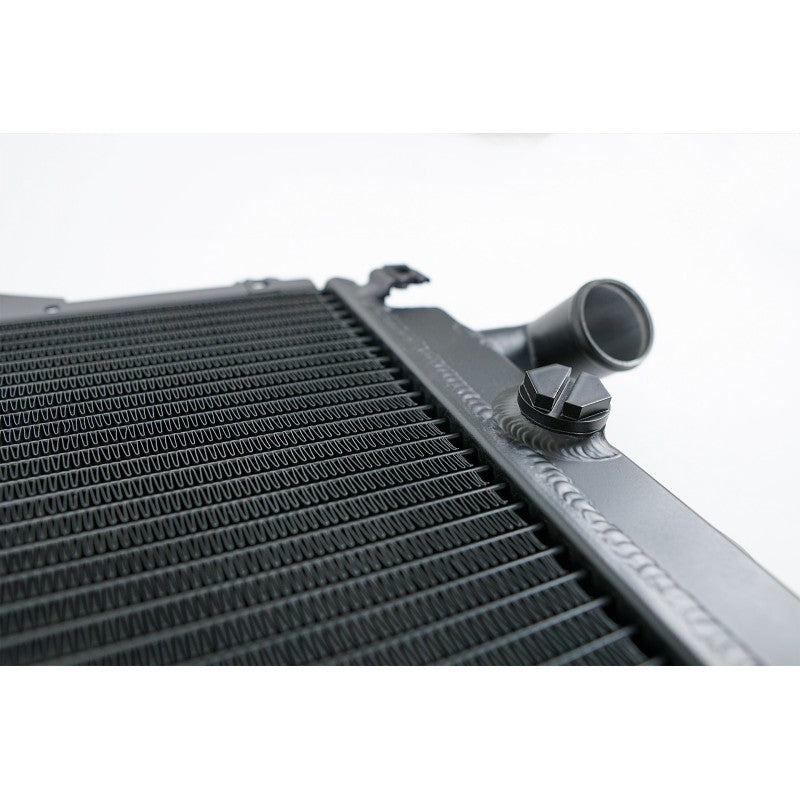

• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish for OEM+ Look
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty

Applications:

• 1994-1999 Ferrari F355 Berlinetta (incl. Challenge models)
• 1995-2001 Ferrari F355 Spider
• 1994-1999 Ferrari F355 GTS
• 1998-1999 Ferrari F355 F1

OEM Part Numbers:

• Ferrari: 807928 (Left)
  • Supersedes: 157590 (Left)
  • Supersedes: 159920 (Left)
