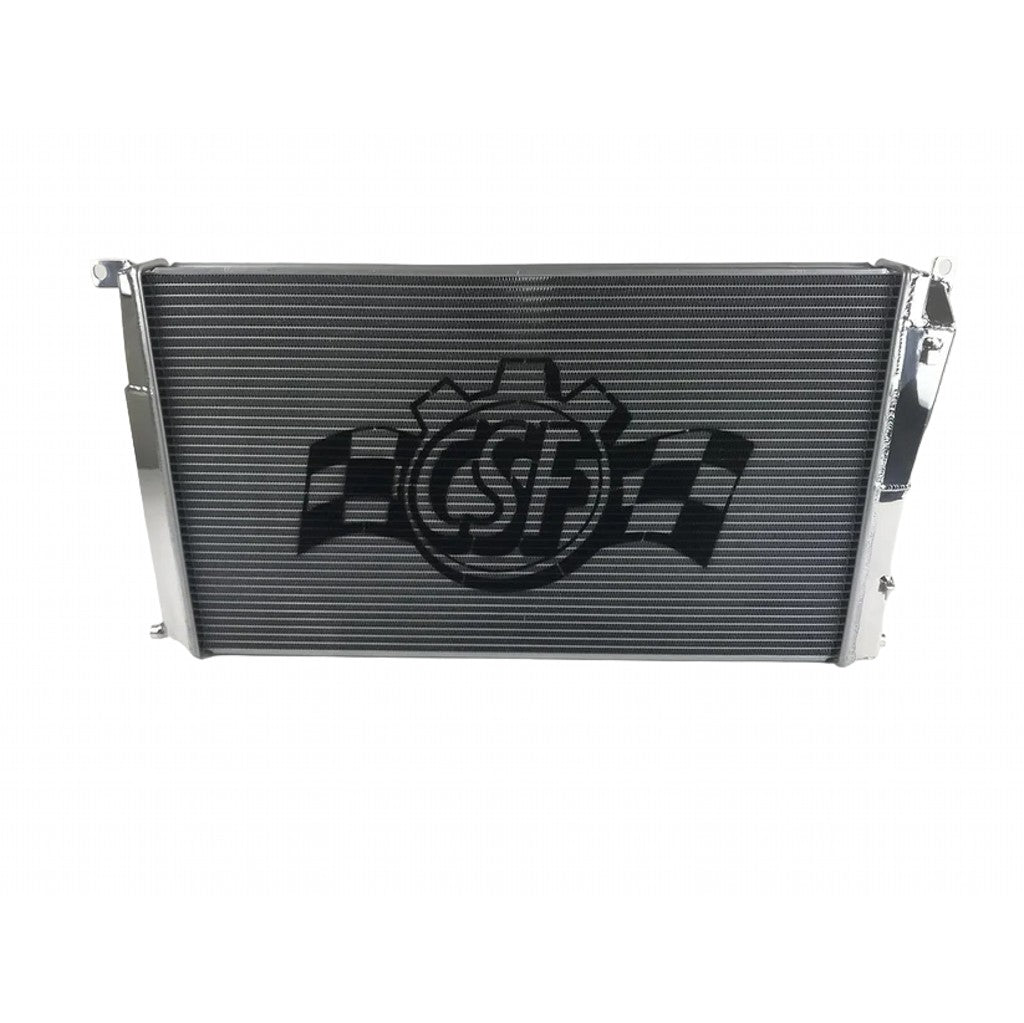

CSF 7081 High Performance Radiator for BMW M235i (F23) / 435i (F36)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 7081 High Performance Radiator for BMW M235i (F23) / 435i (F36)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

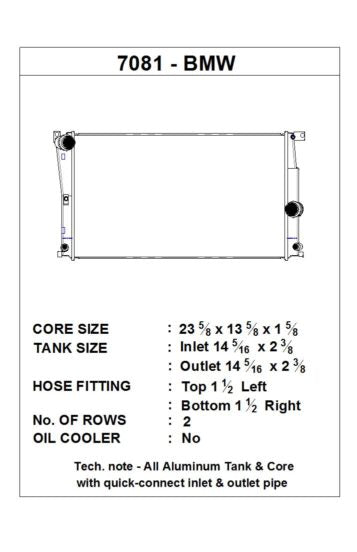

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your BMW F2X/F3X running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
The CSF BMW F2X/F3X radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
Applications
- 2014-2016 BMW F22 228i - Turbocharged 2.0L L4 (Automatic)
- 2015-2016 BMW F23 228i - Turbocharged 2.0L L4 (Automatic)
- 2015-2016 BMW F22 228i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2015-2016 BMW F23 228i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2013-2018 BMW F30 320i - Turbocharged 2.0L L4 (Automatic)
- 2013-2018 BMW F30 320i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2012-2016 BMW F30 328i - Turbocharged 2.0L L4 (Automatic)
- 2013-2016 BMW F30 328i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2014-2016 BMW F31 328i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2012-2015 BMW F30 335i - Turbocharged 3.0L L6 (Automatic)
- 2013-2015 BMW F30 335i xDrive - Turbocharged 3.0L L6 (Automatic)
- 2014-2016 BMW F32 428i - Turbocharged 2.0L L4 (Automatic)
- 2014-2016 BMW F33 428i - Turbocharged 2.0L L4 (Automatic)
- 2015-2016 BMW F36 428i Gran Coupe - Turbocharged 2.0L L4 (Automatic)
- 2014-2016 BMW F32 428i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2014-2016 BMW F33 428i xDrive - Turbocharged 2.0L L4 (Automatic)
- 2015-2016 BMW F36 428i xDrive Gran Coupe - Turbocharged 2.0L L4 (Automatic)
- 2014-2016 BMW F32 435i - Turbocharged 3.0L L6 (Automatic)
- 2015-2016 BMW F36 435i Gran Coupe - Turbocharged 3.0L L6 (Automatic)
- 2014-2016 BMW F32 435i xDrive - Turbocharged 3.0L L6 (Automatic)
- 2015-2016 BMW F36 435i xDrive Gran Coupe - Turbocharged 3.0L L6 (Automatic)
- 2015-2016 BMW F23 M235i - Turbocharged 3.0L L6 (Automatic)
- 2016 BMW F23 M235i xDrive - Turbocharged 3.0L L6 (Automatic)
OEM Part Numbers
- BMW: 17 11 8 672 104
- BMW: 17-11-8-672-104
- BMW: 17118672104
- BMW: 17 11 7 618 807 *Ended
- BMW: 17-11-7-618-807 *Ended
- BMW: 17117618807 *Ended
