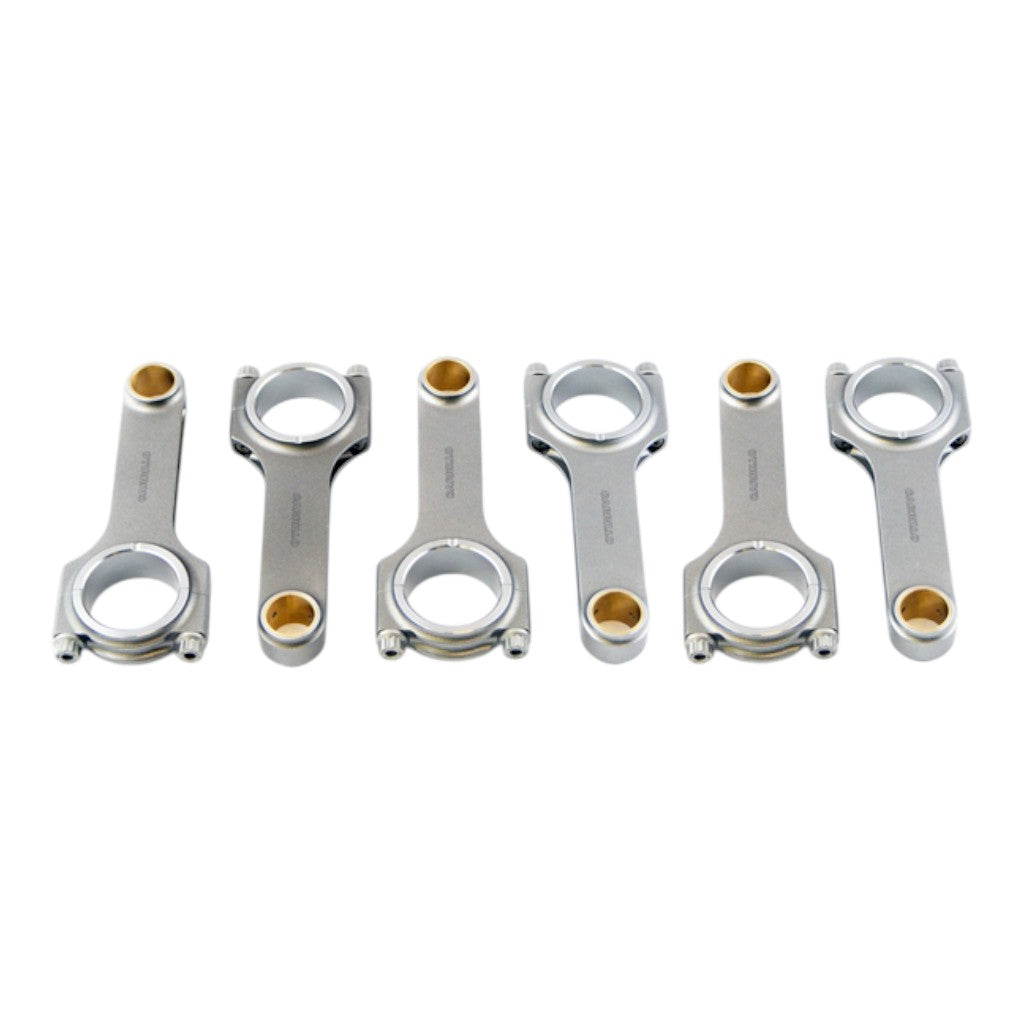

CARRILLO SCR7567-6 Connecting Rod Kit PRO-H (6 Pieces) for BMW N54B30 Engine

Description CARRILLO SCR7567-6 Connecting Rod Kit PRO-H (6 Pieces) for BMW N54B30 Engine

The CARRILLO SCR7567-6 connecting rod kit is designed for the BMW N54B30 twin-turbo six-cylinder engine. The kit includes six PRO-H connecting rods equipped with WMC connecting rod bolts. This version is not compatible with original BMW pistons.

Each connecting rod is machined from a Carrilloy forging, a proprietary steel alloy containing chromium, nickel, molybdenum, and vanadium. The rods are heat-treated and shot-peened to increase strength and durability. The WMC rod bolts are manufactured from H11 tool steel and withstand approximately 15–18 torque cycles.

• Set of six PRO-H connecting rods for the BMW N54B30 engine
• Manufactured from proprietary Carrilloy steel alloy
• Heat-treated and shot-peened construction
• Supplied with WMC connecting rod bolts
• H11 tool steel bolts withstand approximately 15–18 torque cycles
• Manufactured in the USA

Fitment Note: Not for use with original BMW pistons.

Specifications:

• Product Code: SCR7567-6
• Connecting Rod Series: PRO-H
• Quantity: 6 Pieces
• Center-to-Center Length: 145 mm
• Pin Width: 20.88 mm
• Big End Width: 20.88 mm
• Big End Bore: 53.624 mm
• Pin Bore: 22.00 mm
• Rod Bolt Type: WMC
• Rod Bolt Material: H11 Tool Steel
• Approximate Torque Cycles: 15–18

Vehicle Compatibility:

• BMW 1 Series E82 / E88 135i N54: 2008–2010
• BMW 3 Series E90 / E91 / E92 / E93 335i N54: 2007–2010
• BMW 3 Series E90 / E91 / E92 / E93 335is N54
• BMW 3 Series E90 / E91 / E92 / E93 335xi N54: 2007–2010
• BMW 5 Series E60 / E61 535i: 2004–2010
• BMW 5 Series E60 / E61 535xi: 2004–2010
• BMW 7 Series F01 / F02 740Li: 2009–2015
• BMW 7 Series F01 / F02 740i: 2009–2015
• BMW X6 E71 xDrive35i N54: 2008–2009
• BMW Z4 E89 sDrive35i: 2009–2016
• BMW Z4 E89 sDrive35is: 2009–2016
