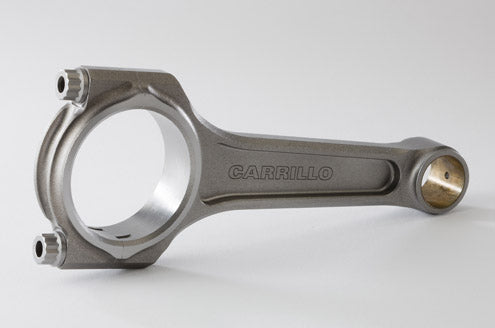

CARRILLO SCR5508 Connecting Rod PRO-H (1 pc) for TOYOTA 1FZ-FE

Overview
Brand: CP-Carrillo
Manufacturer's Part Number: TO-1FZFE-1>-66063H
Part Type: Connecting Rods
Product Line: Carrillo Pro-H Straight H-Beam Connecting Rods
Summit Racing Part Number: CNN-FZFE166063H0
Quantity: Sold individually.
Connecting Rod Length Center to Center (in.): 6.063 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Steel
Connecting Rod Finish: Shot-peened
Wrist Pin Style: Floating
Big End Bore Diameter (in.): 2.3830 in.
Big End Width (in.): 1.096 in.
Pin End Bore Diameter: 26.000mm
Pin End Width (in.): 1.096 in.
Clearanced for Stroker: No
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: WMC
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: H-11 tool steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 754
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Carrillo Pro-H Straight H-Beam Connecting Rods
Lead the way with strong Carrillo Pro-H connecting rods. Able to handle the most abusive forces of your race engine, these straight H-beams are the stoutest configurations available. Obsessed with perfection, Carrillo produces their Pro-H connecting rods in small batches. They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine. Applications are available for many venues of motorsports. Drive your racer to the winner's circle with the high performance ""choice connection""-Carrillo Pro-H straight H-beam connecting rods
