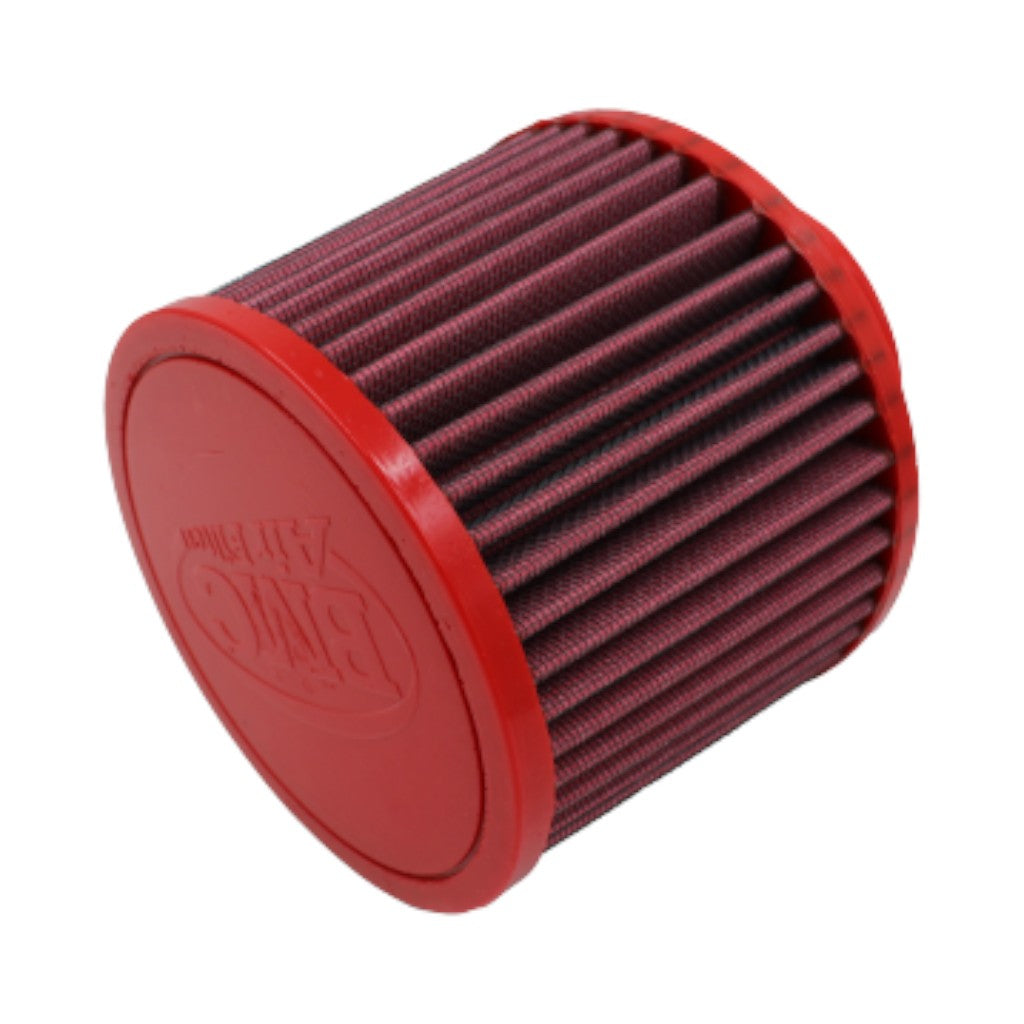

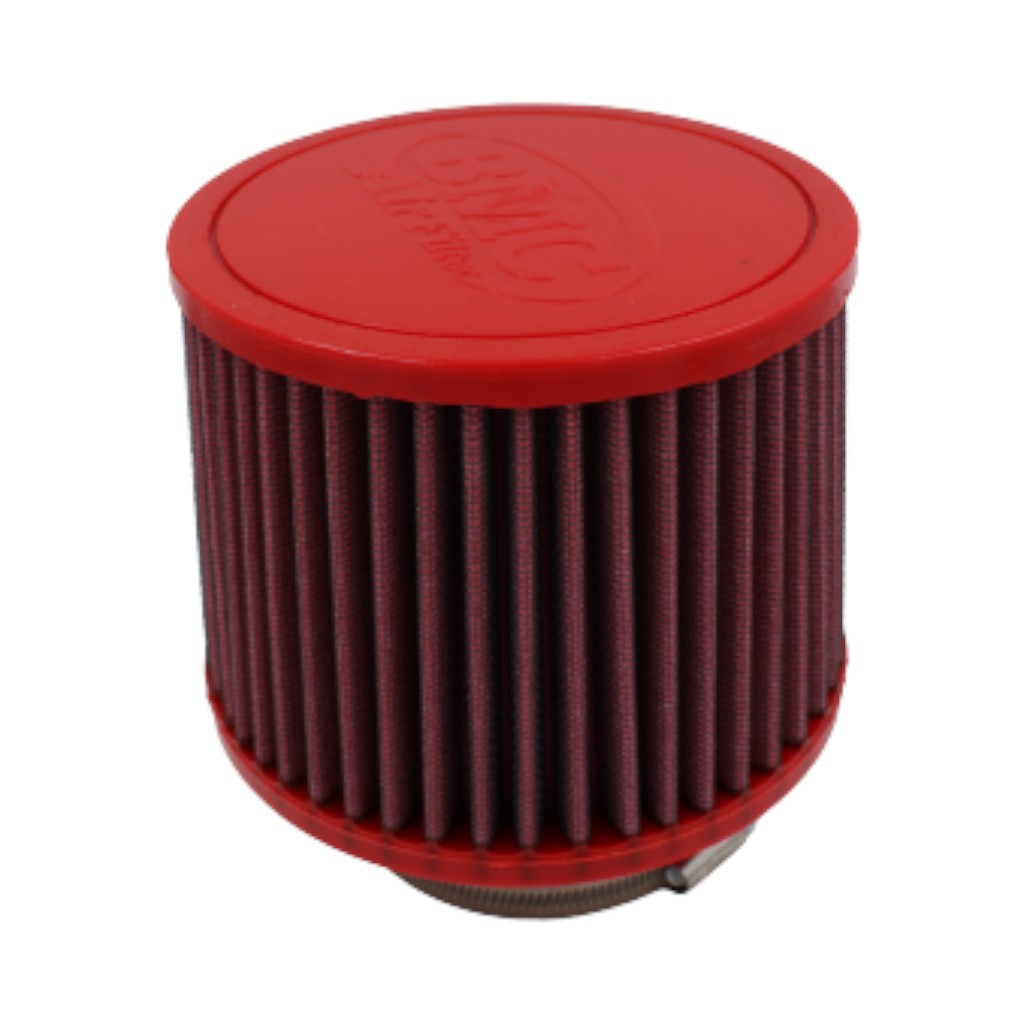

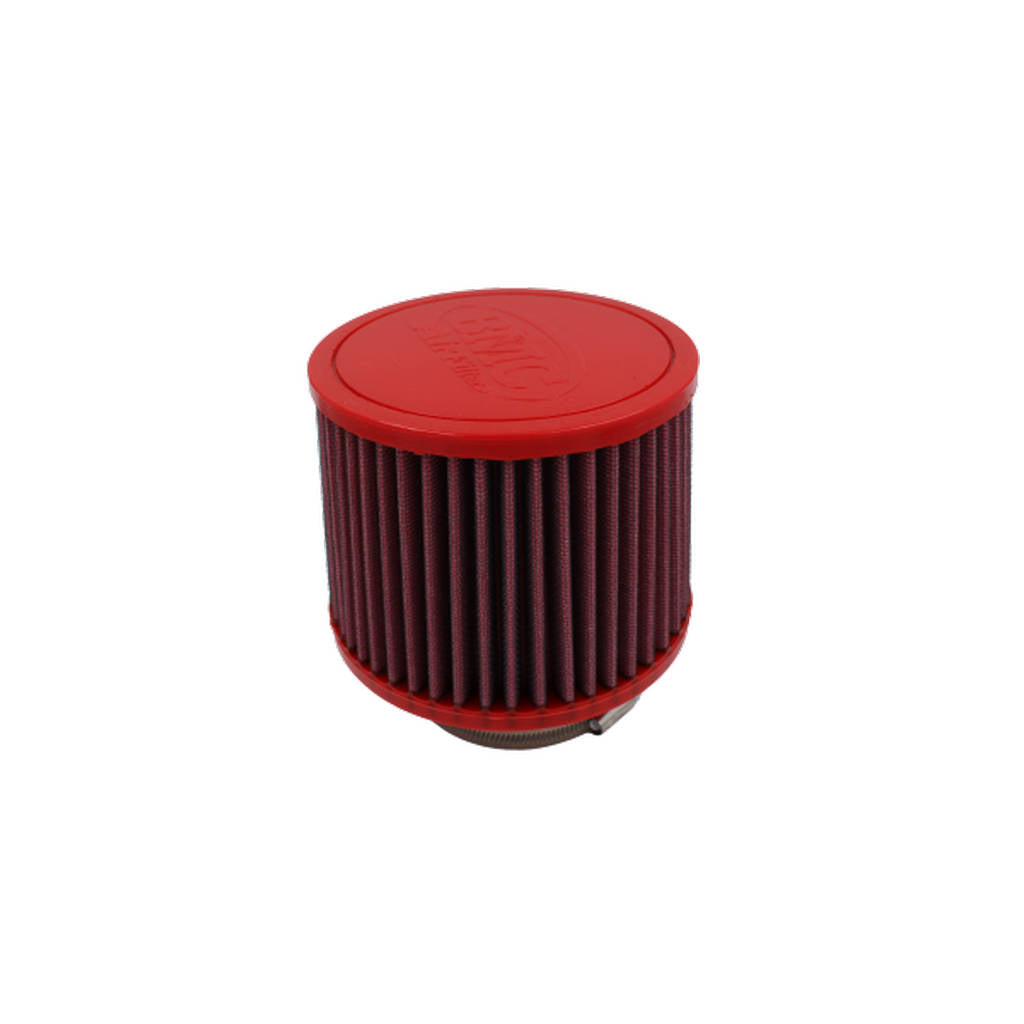

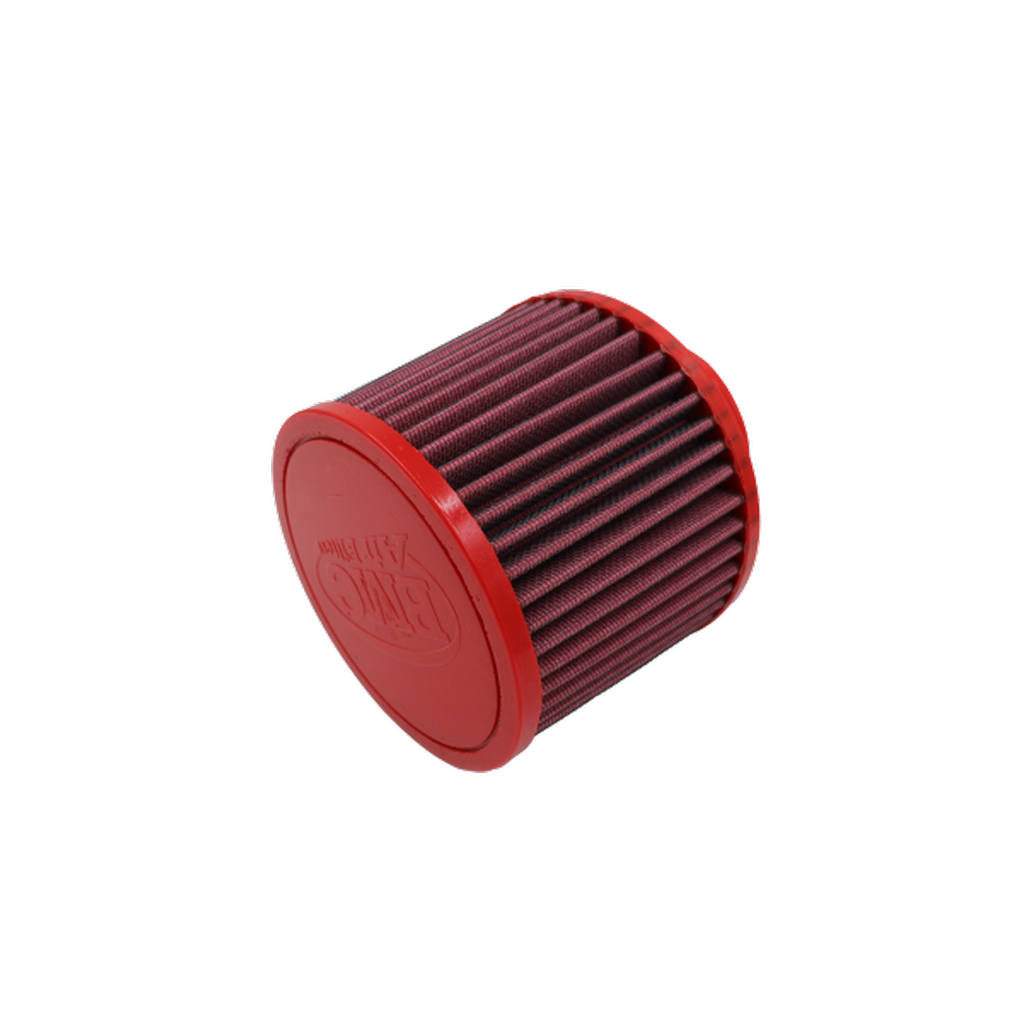

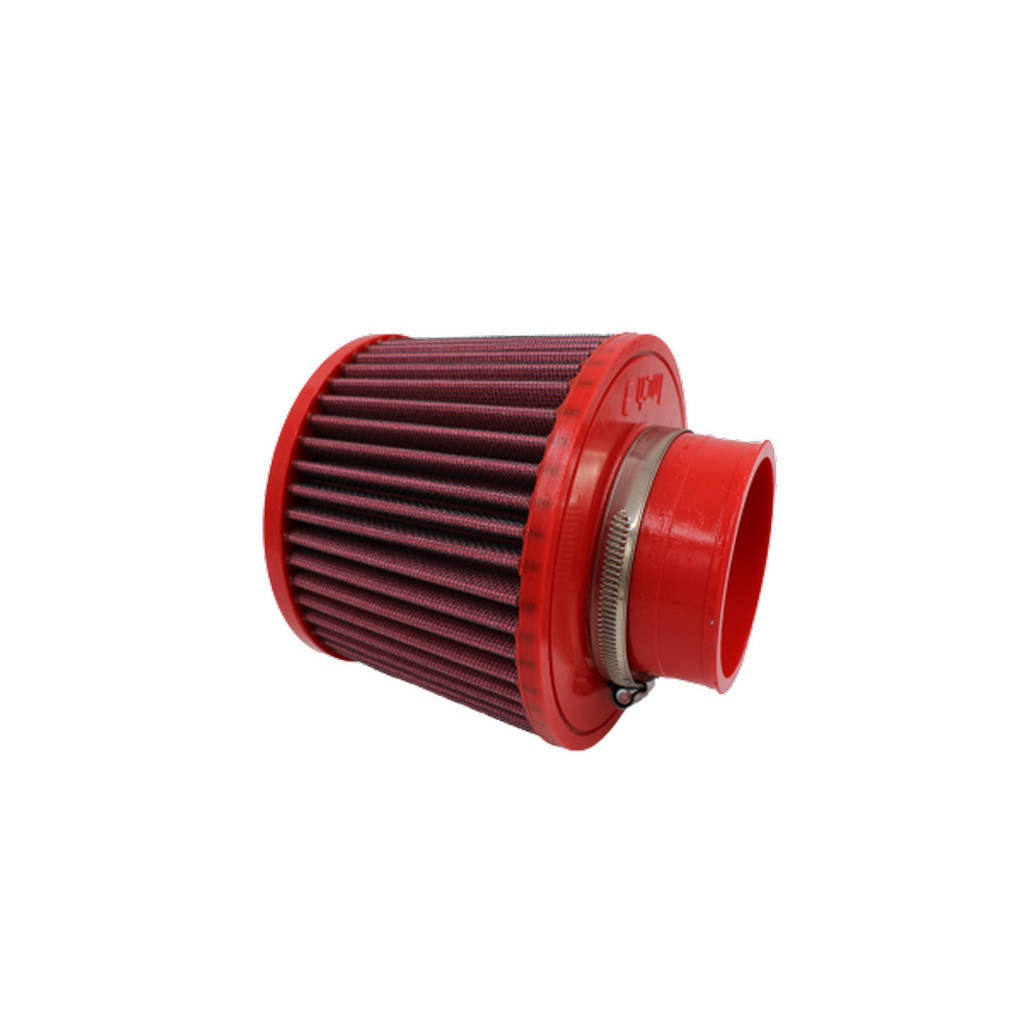

BMC FBSA76-110 Conical Air Filter

BMC Conical Direct Intake Filters (Single Air)

BMC conical filters for direct air intake can be fitted to most engine types by removing the stock airbox. Constructed from BMC’s signature red rubber, these filters resist engine stresses and high temperatures without deforming. The specialized filtration mesh supports engine outputs up to 700 HP without compromising filter integrity.

Technical Specifications (Single Air):

• Flanges: 1
• Flange Length: 40 mm
• Flange Inside Diameter Ø1: 76 mm
• Base Outside Diameter Ø2: 152 mm
• Height H2: 153 mm
• Height H1: 113 mm
• Top Outside Diameter Ø3: 138 mm
• Top Material/Finish: Polyurethane
