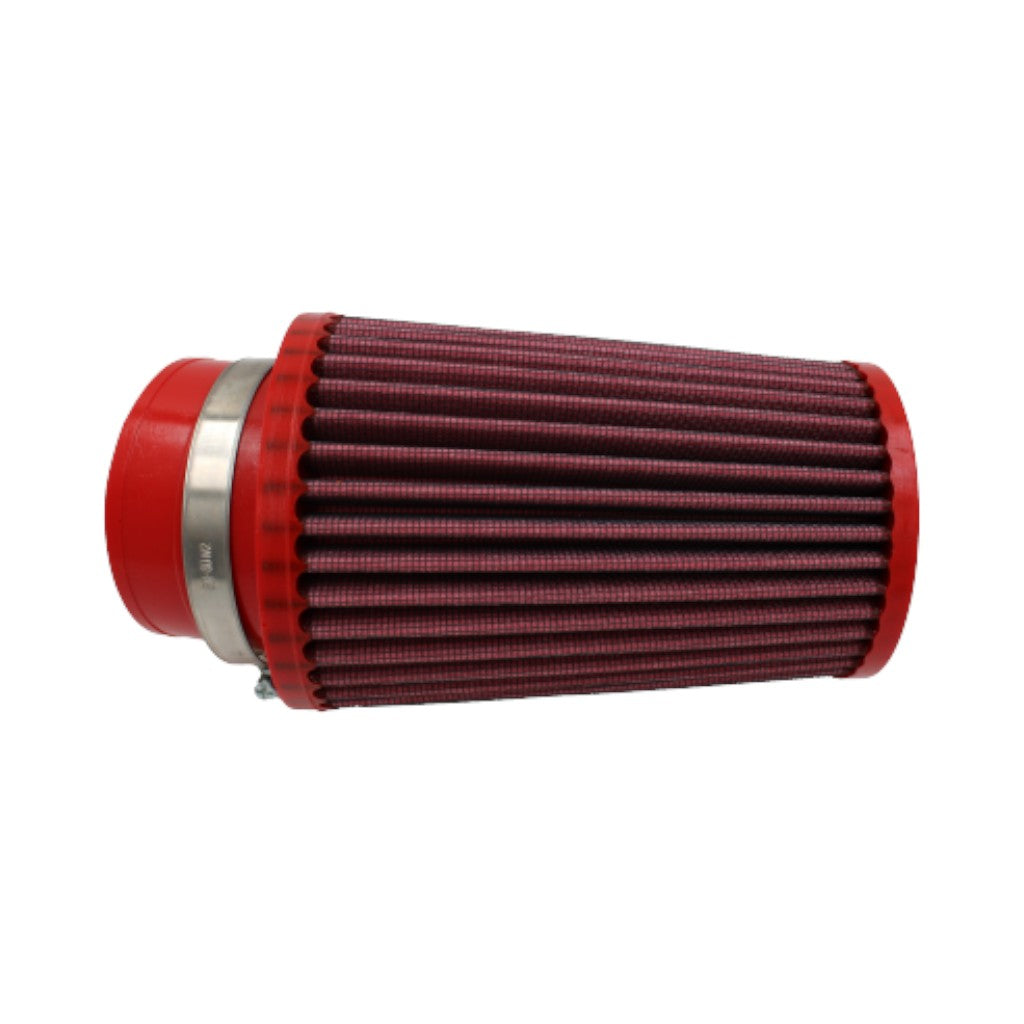

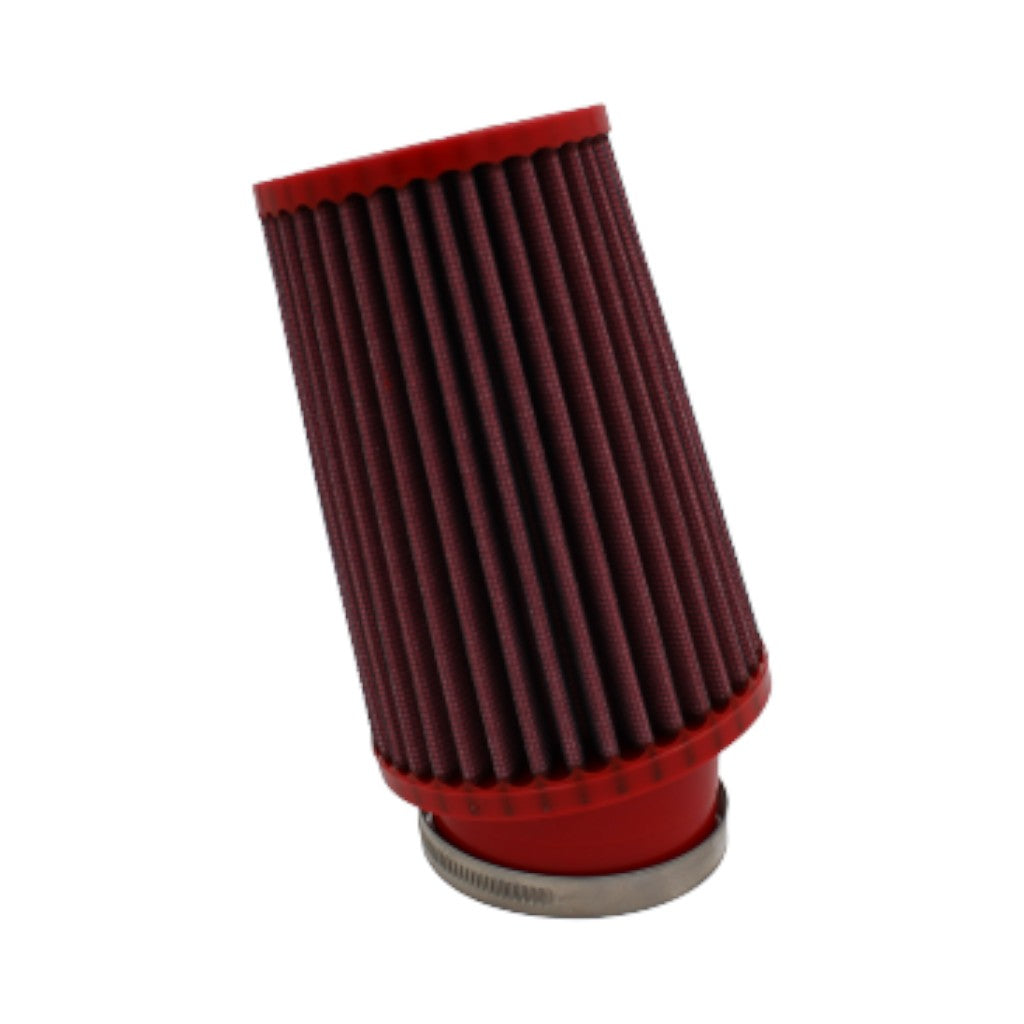

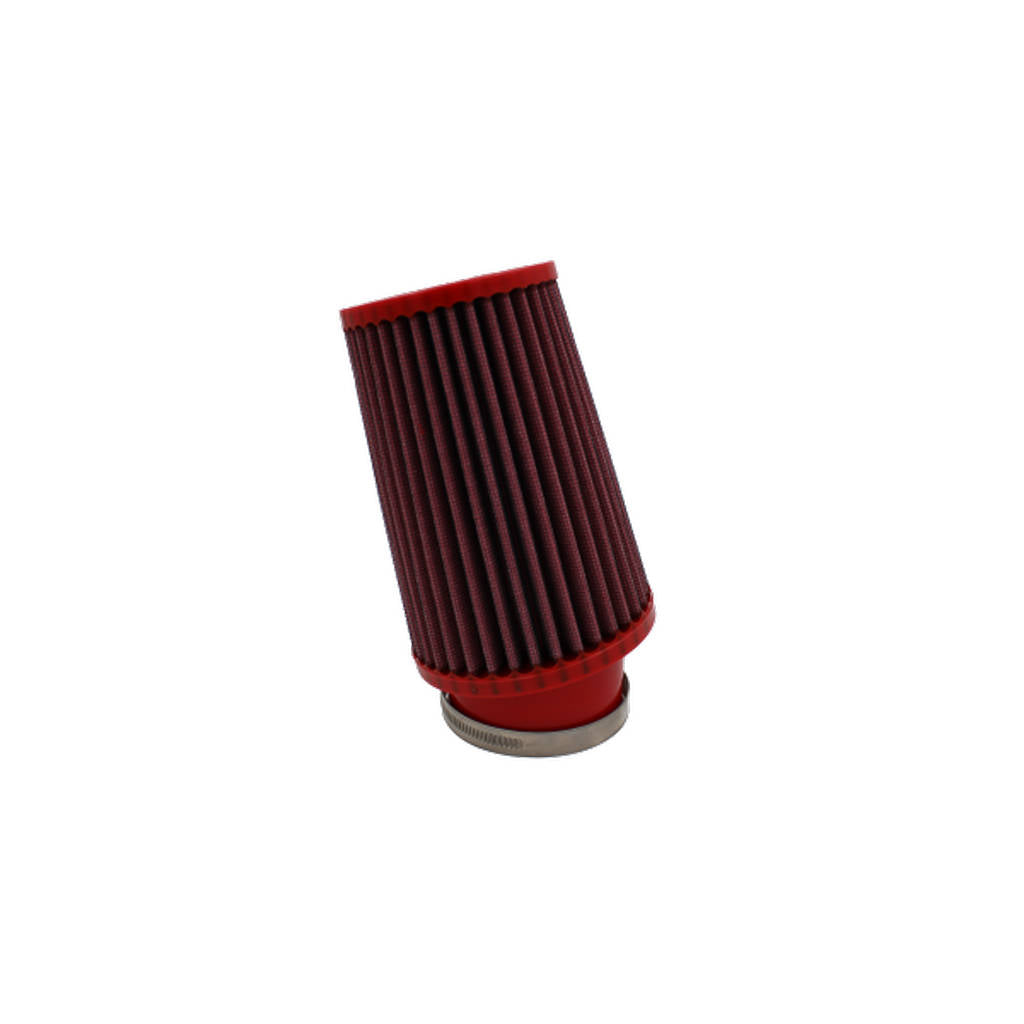

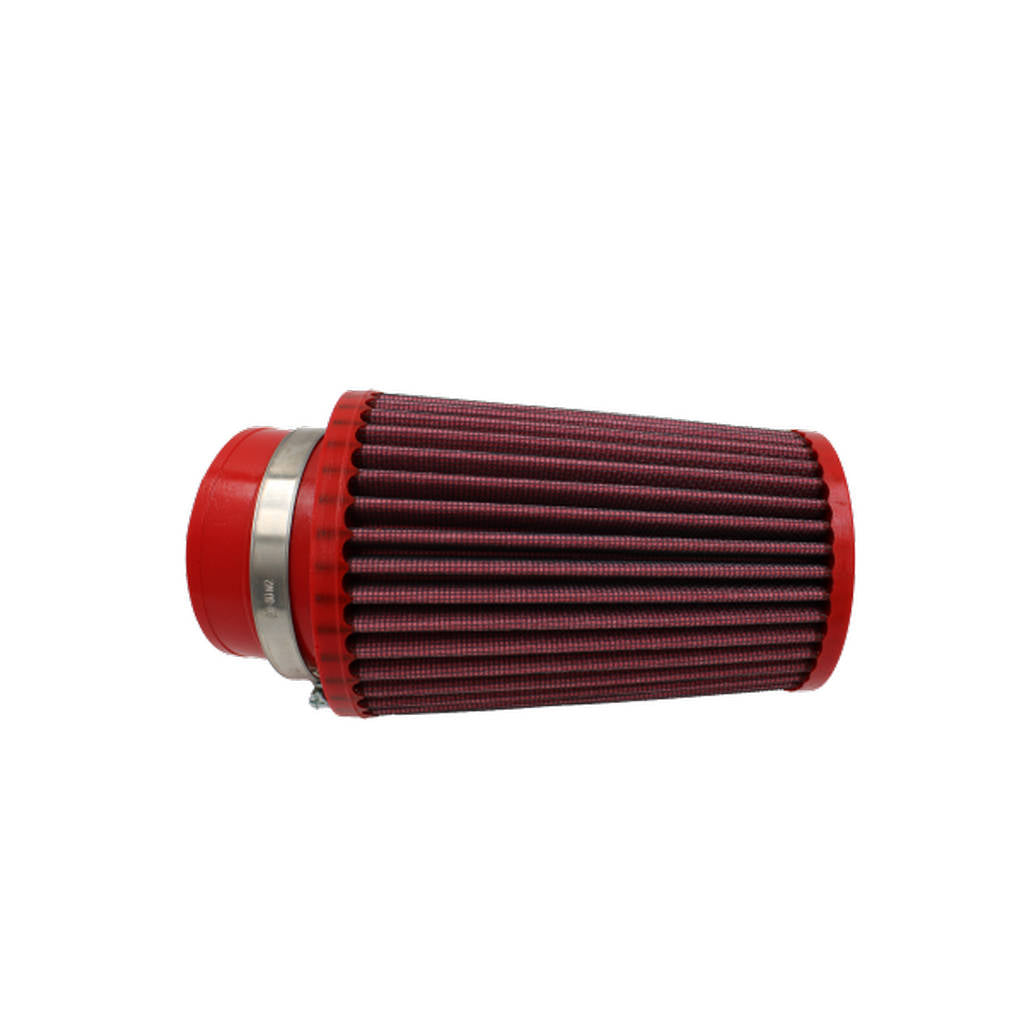

BMC FBSA70-150 Conical Air Filter

BMC Conical Direct Intake Filters (Single Air)

BMC conical filters for direct air intake can be fitted to most engine types by removing the stock airbox. Constructed from BMC’s signature red rubber, these filters resist engine stresses and high temperatures without deforming. The specialized filtration mesh supports engine outputs up to 700 HP without compromising filter integrity.

Technical Specifications (Single Air):

• Flanges: 1
• Flange Length: 46 mm
• Flange Inside Diameter Ø1: 70 mm
• Base Outside Diameter Ø2: 106 mm
• Height H2: 192 mm
• Height H1: 152 mm
• Top Outside Diameter Ø3: 87 mm
• Top Material/Finish: Polyurethane
