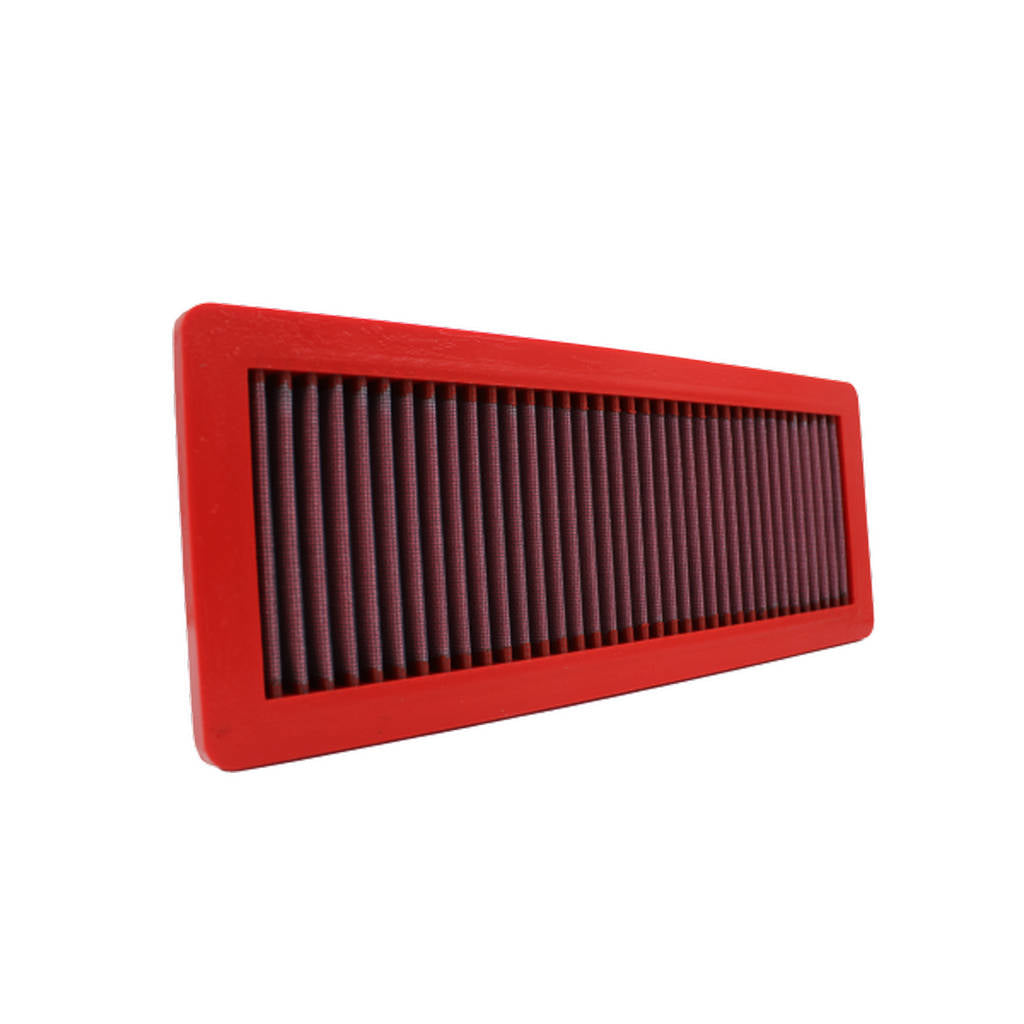

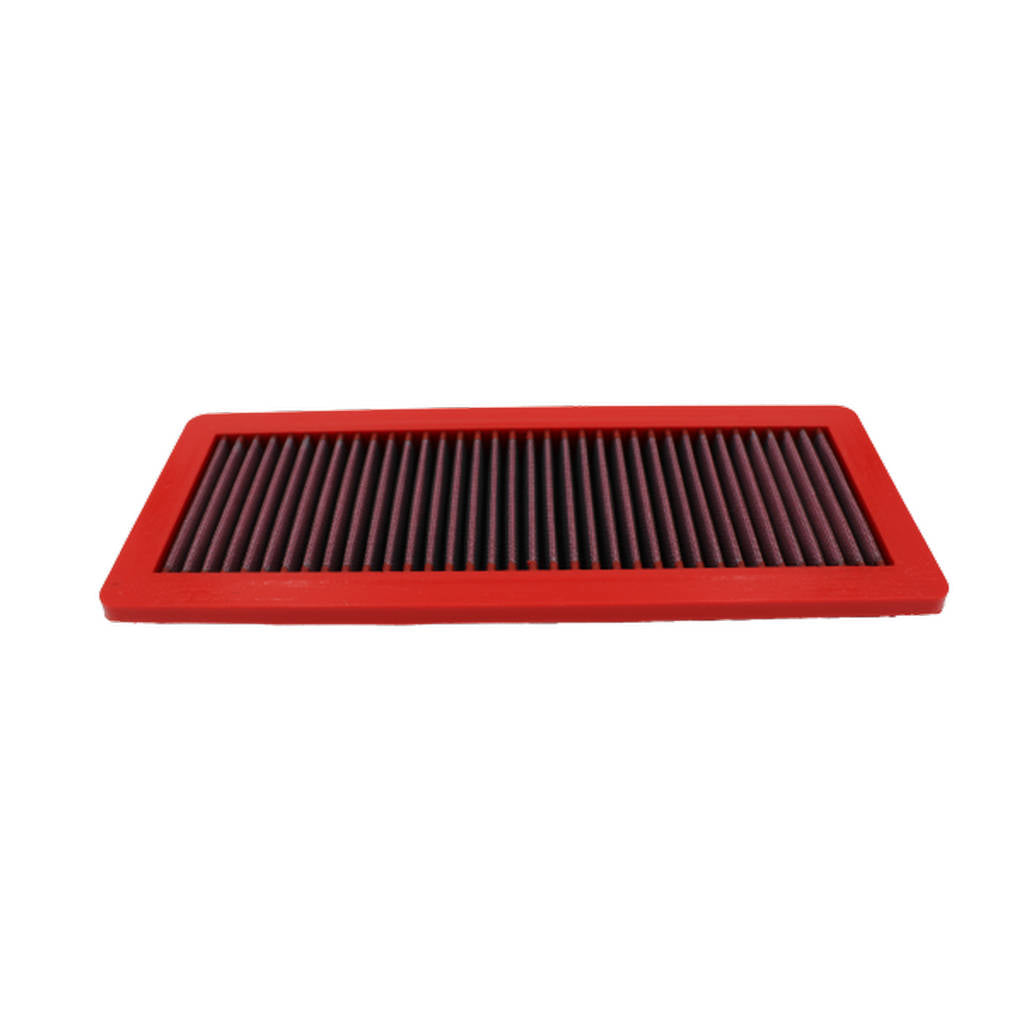

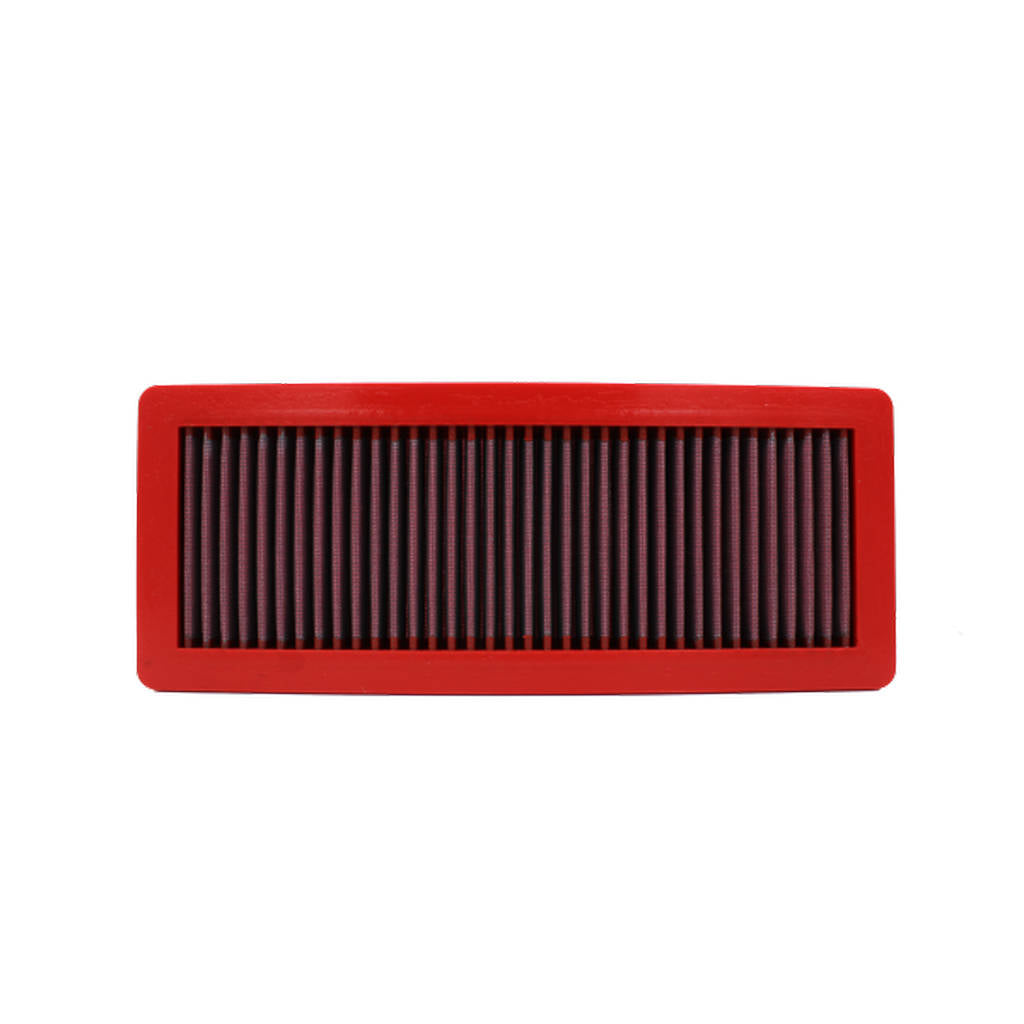

BMC FB484/08 AIR FILTER 147x366
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
BMC FB484/08 AIR FILTER 147x366
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
sizes (mm): B : 366 | A : 147
The panel / cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).
Air flow chart for a sample BMC air filter against an OEM paper filter
Temperature 25C° - Humidity 25% - Pressure 1020mbar
Test ran with oem airbox, and the related air flow constrictions.
This chart has a pure illustrative purpose and does not refer to the present filter.
BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.
BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.
All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.
| MODEL | POWER | YEAR | ENGINE |
|---|---|---|---|
| CITROËN | |||
| C4 1.6 16V THP 140 AUTOMATIC [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 140 | 08 > 10 | EP6DT | |
| C4 1.6 16V THP 150 [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 150 | 08 > 10 | EP6DT | |
| C4 II (B7) 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6DT | |
| C4 II (B7) 1.6 THP 160 | HP | YEAR | ENGINE CODE |
| 163 | 12 > | EP6CDTMD | |
| C4 PICASSO II(B78)/GRAND C4 PICASSO II(B78) 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 14 > | EP6FDT | |
| C4 PICASSO II(B78)/GRAND C4 PICASSO II(B78) 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 13 > | EP6CDT | |
| C4 PICASSO/GRAND C4 PICASSO 1.6 16V THP 140 AUTOMATIC [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 140 | 08 > | EP6DT | |
| C4 PICASSO/GRAND C4 PICASSO 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6CDT | |
| C4 PICASSO/GRAND C4 PICASSO 1.6 16V THP 150 [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 150 | 08 > | EP6DT | |
| C4 SEDAN 1.6 TURBO | HP | YEAR | ENGINE CODE |
| 150 | 13 > | EP6DT | |
| C4 SPACETOURER / GRAND SPACETOURER 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 18 > | EP6FDT | |
| C5 AIRCROSS 1.6 PURETECH 180 | HP | YEAR | ENGINE CODE |
| 181 | 18 > | EP6FADTXD | |
| C5 AIRCROSS 1.6 THP 16V 163 | HP | YEAR | ENGINE CODE |
| 163 | 19 > | EP6FDT M | |
| C5 AIRCROSS 1.6 THP 16V 50 | HP | YEAR | ENGINE CODE |
| 150 | 19 > | EP6FDT MD | |
| C5 II 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 09 > | EP6DT, EP6CDT | |
| C5 II 1.6 VTI 120 | HP | YEAR | ENGINE CODE |
| 120 | 10 > | EP6C | |
| DS3 1.6 16V RACING | HP | YEAR | ENGINE CODE |
| 207 | 10> | EP6DTS | |
| DS3 1.6 16V TURBO | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6DT | |
| DS3 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 14 > | EP6FDT/FDTM | |
| DS3 1.6 THP 208 | HP | YEAR | ENGINE CODE |
| 208 | 15 > | 5GM (EP6FDTX) | |
| DS4 / DS4 CROSSBACK 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 11 > | EP6CDT | |
| DS4 / DS4 CROSSBACK 1.6 THP 160 | HP | YEAR | ENGINE CODE |
| 163 | 12 > | EP6CDTMD | |
| DS4 / DS4 CROSSBACK 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 15 > | EP6FDT/FDTM | |
| DS4 / DS4 CROSSBACK 1.6 THP 200 | HP | YEAR | ENGINE CODE |
| 200 | 11 > | EP6CDTX | |
| DS4 / DS4 CROSSBACK 1.6 THP 210 | HP | YEAR | ENGINE CODE |
| 211 | 15 > | EP6FDTX | |
| DS5 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 11 > | EP6CDT | |
| DS5 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 12 > | EP6CDT | |
| DS5 1.6 THP 200 | HP | YEAR | ENGINE CODE |
| 200 | 11 > | EP6CDTX | |
| DS5 1.6 THP 210 | HP | YEAR | ENGINE CODE |
| 211 | 15 > | 5GM (EP6FDTX) | |
| DS7 CROSSBACK 1.6 PURETECH 180 | HP | YEAR | ENGINE CODE |
| 180 | 18 > | EP6FADTXD | |
| DS7 CROSSBACK 1.6 PURETECH 225 | HP | YEAR | ENGINE CODE |
| 225 | 18 > | EP6FADTX | |
| DS7 CROSSBACK 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 18 > | EP6FDT | |
| DS AUTOMOBILES | |||
| DS3 1.6 16V RACING | HP | YEAR | ENGINE CODE |
| 207 | 10 > | EP6DTS | |
| DS3 1.6 16V TURBO | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6DT | |
| DS3 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 14 > | EP6FDT/FDTM | |
| DS3 1.6 THP 16V 150 | HP | YEAR | ENGINE CODE |
| 150 | 15 > | EP6FDTMD | |
| DS3 1.6 THP 208 | HP | YEAR | ENGINE CODE |
| 208 | 15 > | 5GM (EP6FDTX) | |
| DS4 / DS4 CROSSBACK 1.6 THP 150 | HP | YEAR | ENGINE CODE |
| 150 | 16 > | EP6CDTMD | |
| DS4 / DS4 CROSSBACK 1.6 THP 160 | HP | YEAR | ENGINE CODE |
| 163 | 12 > | EP6CDTMD | |
| DS4 / DS4 CROSSBACK 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 15 > | EP6FDT/FDTM | |
| DS4 / DS4 CROSSBACK 1.6 THP 200 | HP | YEAR | ENGINE CODE |
| 200 | 11 > | EP6CDTX | |
| DS4 / DS4 CROSSBACK 1.6 THP 210 | HP | YEAR | ENGINE CODE |
| 211 | 15 > | EP6FDTX | |
| DS5 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 11 > | EP6CDT | |
| DS5 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 12 > | EP6CDT | |
| DS5 1.6 THP 200 | HP | YEAR | ENGINE CODE |
| 200 | 11 > | EP6CDTX | |
| DS5 1.6 THP 210 | HP | YEAR | ENGINE CODE |
| 211 | 15 > | 5GM (EP6FDTX) | |
| DS7 CROSSBACK 1.6 PURETECH 180 | HP | YEAR | ENGINE CODE |
| 180 | 18 > | EP6FADTXD | |
| DS7 CROSSBACK 1.6 PURETECH 225 | HP | YEAR | ENGINE CODE |
| 225 | 18 > | EP6FADTX | |
| DS7 CROSSBACK 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 18 > | EP6FDT | |
| MINI | |||
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 JCW | HP | YEAR | ENGINE CODE |
| 211 | 08 > | N14B16, N18B16 | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 JCW | HP | YEAR | ENGINE CODE |
| 218 | 07 > | N14B16, N18B16 | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S TURBO | HP | YEAR | ENGINE CODE |
| 163 | 10 > | N18B16A | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S TURBO | HP | YEAR | ENGINE CODE |
| 184 | 10 > | N18B16A | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S TURBO | HP | YEAR | ENGINE CODE |
| 190 | 14 > | N18B16A | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S TURBO | HP | YEAR | ENGINE CODE |
| 200 | 10 > | N18B16A | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S TURBO [US AND KOREA MARKET] | HP | YEAR | ENGINE CODE |
| 175 | 06 > | N18B16A | |
| MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S TURBO [US AND KOREA MARKET] | HP | YEAR | ENGINE CODE |
| 192 | 06 > | N14B16A, N14B16AB | |
| OPEL | |||
| GRANDLAND X 1.6 TURBO | HP | YEAR | ENGINE CODE |
| 150 | 17 > | A16NHT (EP6FDT) | |
| GRANDLAND X 1.6 TURBO | HP | YEAR | |
| 165 | 17 > | ||
| GRANDLAND X 1.6 TURBO | HP | YEAR | |
| 181 | 18 > | ||
| PEUGEOT | |||
| 207 1.6 16V TURBO | HP | YEAR | ENGINE CODE |
| 156 | 09 > | EP6DT | |
| 207 1.6 16V TURBO [FROM CH. ORGA 12169] | HP | YEAR | ENGINE CODE |
| 150 | 06 > 09 | EP6DT (5FX) | |
| 208 1.6 GTI | HP | YEAR | ENGINE CODE |
| 200 | 12 > | EP6CDTX | |
| 208 1.6 GTI 30TH | HP | YEAR | ENGINE CODE |
| 208 | 14 > | EP6CDTX | |
| 208 1.6 THP 156 | HP | YEAR | ENGINE CODE |
| 156 | 12 > | EP6CDT | |
| 208 1.6 THP 163 | HP | YEAR | ENGINE CODE |
| 163 | 15 > | EP6FDT | |
| 3008 1.6 THP [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 150 | 09> | EP6DT, EP6CDTM | |
| 3008 1.6 THP [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 155 | 09 > | EP6CDT | |
| 3008 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 14 > | EP6FDT | |
| 3008 II 1.6 THP 150 | HP | YEAR | ENGINE CODE |
| 150 | 16 > | EP6FDT | |
| 3008 II 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 16 > | EP6FDT | |
| 308 1.6 16V TURBO | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6CDT | |
| 308 1.6 16V TURBO [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 140 | 07 > 10 | EP6DT | |
| 308 1.6 16V TURBO [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 150 | 07 > 10 | EP6DT | |
| 308 1.6 16V TURBO [FROM CH. ORGA 11921] | HP | YEAR | ENGINE CODE |
| 175 | 08 > 10 | EP6DTS | |
| 308 1.6 GTI | HP | YEAR | ENGINE CODE |
| 200 | 10 > | EP6CDTX | |
| 308 II 1.6 GT THP 205 | HP | YEAR | ENGINE CODE |
| 205 | 14 > | EP6FDTX | |
| 308 II 1.6 GTI THP 250 | HP | YEAR | ENGINE CODE |
| 250 | 15 > | EP6FDTR | |
| 308 II 1.6 GTI THP 270 | HP | YEAR | ENGINE CODE |
| 272 | 15 > | EP6FDTR | |
| 308 II 1.6 PURETECH 225 | HP | YEAR | ENGINE CODE |
| 224 | 18 > | EP6 | |
| 308 II 1.6 PURETECH 263 S&S GTI | HP | YEAR | |
| 262 | 18 > | ||
| 308 II 1.6 THP 125 | HP | YEAR | ENGINE CODE |
| 125 | 13 > | EP6CDT | |
| 308 II 1.6 THP 150 | HP | YEAR | ENGINE CODE |
| 150 | 14 > | EP6FDTMD | |
| 308 II 1.6 THP 155 | HP | YEAR | ENGINE CODE |
| 156 | 13 > | EP6CDT | |
| 308 II 1.6 THP 163 | HP | YEAR | ENGINE CODE |
| 163 | 14 > | EP6FDTMD | |
| 408 1.6 TURBO | HP | YEAR | ENGINE CODE |
| 150 | 12 > | EP6DT | |
| 5008 1.6 16V | HP | YEAR | ENGINE CODE |
| 156 | 09 > | EP6CDT | |
| 5008 1.6 THP 150 | HP | YEAR | ENGINE CODE |
| 150 | 12 > | EP6CDT | |
| 5008 1.6 THP 163 | HP | YEAR | ENGINE CODE |
| 163 | 12 > | EP6CDT | |
| 5008 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 12 > | EP6FDT | |
| 5008 II (P87) 1.6 | HP | YEAR | ENGINE CODE |
| 150 | 18 > | EP6FDTMD | |
| 5008 II (P87) 1.6 THP 165 | HP | YEAR | ENGINE CODE |
| 165 | 17 > | EP6FDT | |
| 508 1.6 THP | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6CDT | |
| 508 1.6 THP | HP | YEAR | ENGINE CODE |
| 165 | 12 > | EP6CDTM, EP6FDT | |
| 508 II (R8) 1.6 PURETECH 16V 180 (HYBRID) | HP | YEAR | ENGINE CODE |
| 181 | 19 > | EP6FADTXD | |
| 508 II (R8) 1.6 PURETECH 16V 225 (HYBRID) | HP | YEAR | ENGINE CODE |
| 224 | 19 > | EP6FADTXD | |
| 508 II (R8) 1.6 PURETECH 180 | HP | YEAR | ENGINE CODE |
| 181 | 18 > | EP6F | |
| 508 II (R8) 1.6 PURETECH 225 | HP | YEAR | ENGINE CODE |
| 224 | 18 > | EP6FADTX | |
| RCZ 1.6 16V | HP | YEAR | ENGINE CODE |
| 156 | 10 > | EP6CDT | |
| RCZ 1.6 16V | HP | YEAR | ENGINE CODE |
| 200 | 10 > | EP6CDTX | |
| RCZ 1.6 16V 270 | HP | YEAR | ENGINE CODE |
| 270 | 13 > | EP6CDTR | |
| RCZ 1.6 THP 150 | HP | YEAR | ENGINE CODE |
| 150 | 11 > | EP6CDTDM | |
| VAUXHALL | |||
| GRANDLAND X 1.6 TURBO | HP | YEAR | ENGINE CODE |
| 150 | 17 > | A16NHT (EP6FDT) | |
| GRANDLAND X 1.6 TURBO | HP | YEAR | |
| 165 | 17 > | ||
| GRANDLAND X 1.6 TURBO | HP | YEAR | |
| 181 | 18 > |
