Description BILSTEIN 24-317818 Front Shock Absorber B8 5100 (RHA) for CHEVROLET Silverado 1500 II 2007–2013 / GMC Sierra 1500 II 2007–2013

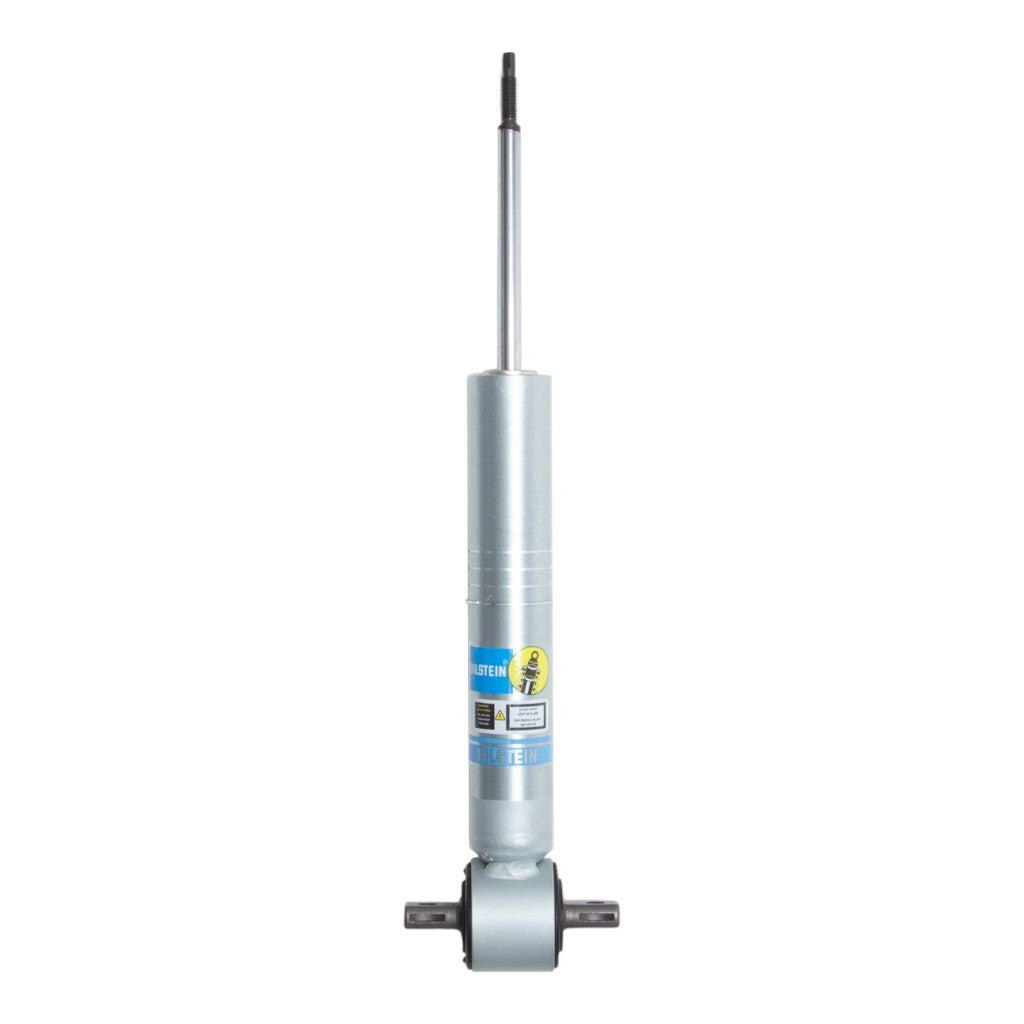

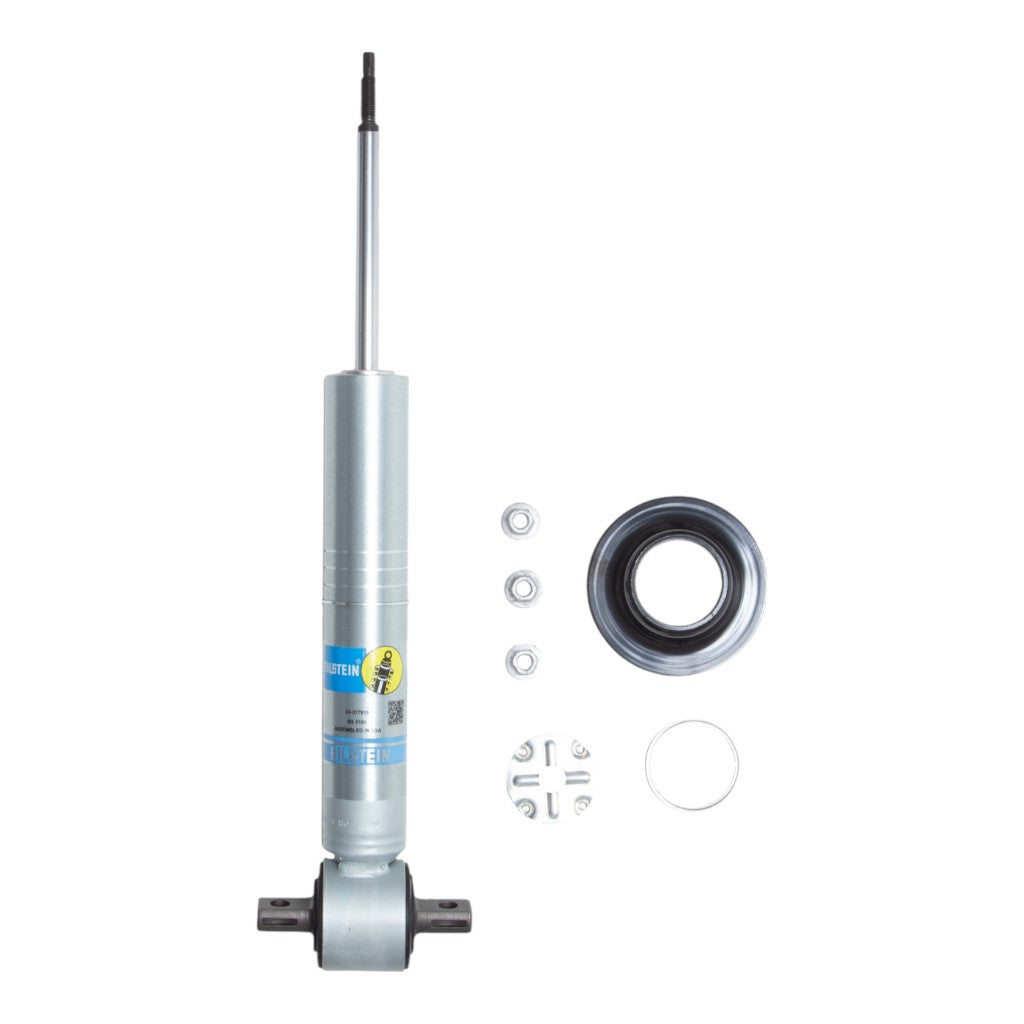

The BILSTEIN 24-317818 Front Shock Absorber from the B8 5100 RHA series is a ride-height adjustable shock absorber designed for trucks and SUVs with front OE coilover style suspension. It is applicable to CHEVROLET Silverado 1500 II 2007–2013 and GMC Sierra 1500 II 2007–2013, with additional listed applications for Chevrolet Avalanche, Suburban 1500, Tahoe, GMC Yukon, and Yukon XL 1500 models.
The B8 5100 RHA shock absorber uses multiple OEM-specified snap-ring grooves in the body to allow different spring seat positions. Depending on the application, this configuration provides 0-3 inches of front lift with OE springs, with listed lift references up to 2.9” and up to 2.75 in.
The monotube shock absorber features a 46 mm digressive piston with self-adjusting deflective disc valving. The design is application-specific tuned and intended to increase wheel travel, maintain proper suspension geometry, and use the vehicle’s OE coil springs and top mount.
- Front shock absorber from the BILSTEIN B8 5100 RHA series
- Ride-height adjustable design for front OE coilover applications
- Designed to level the front of half-ton trucks and SUVs
- Provides 0-3 inches of front lift with OE springs depending on application
- Listed lift references up to 2.9” and up to 2.75 in
- Practical alternative to coil spring spacers
- Snap-ring grooved body for multiple spring seat positions
- Adjustable spring perch
- Utilizes OE coil springs and OEM upper mount
- Maintains proper suspension geometry
- Increases wheel travel and suspension travel
- 46 mm monotube design
- Self-adjusting deflective disc valving
- Application-specific tuning
- Zinc plated finish
- Spring seat included
- Made in the USA
Specifications:
- Position: Front
- Series: B8 5100 RHA (Ride Height Adjustable)
- Lift Range: 0-3 inches depending on application
- Additional Lift Reference: Up to 2.9” / up to 2.75 in
- Weight: 7.75 lbs
- Collapsed Length: 12.95 in / 329.0 mm
- Extended Length: 18.50 in / 470.0 mm
- Stroke / Travel Length: 5.55 in
- Lower Mount Type: Bar Pin
- Upper Mount Type: Stem
- Internal Design: Monotube
- Finish: Zinc Plated
- Reservoir: No
- Body Design: Snap Ring Grooved Body Coilover
- Body Diameter: 2.0 in
- Piston Diameter: 46 mm
- Boot Included: No
- Spring Seat Included: Yes
- Shaft Diameter: 14 mm
- Adjustable Damping: Non-Adjustable
- Country of Manufacture: USA
Compatibility:
- Chevrolet Avalanche II (GMT900) — 2007–2013
- Chevrolet Silverado 1500 II (GMT900) — 2007–2013
- Chevrolet Suburban 1500 X (GMT900) — 2007–2014
- Chevrolet Tahoe III (GMT900) — 2007–2014
- GMC Sierra 1500 II (GMT900) — 2007–2013
- GMC Yukon III (GMT900) — 2007–2014
- GMC Yukon XL 1500 III (GMT900) — 2007–2014
