ATP TURBO ATP-FLS-073 Double Stepped V-Band Flange 2.5" / T31 for 2.5" & 3" Tubing, Mild Steel

Description Double Stepped V-Band Flange 2.5" / T31 for 2.5" & 3" Tubing – Mild Steel

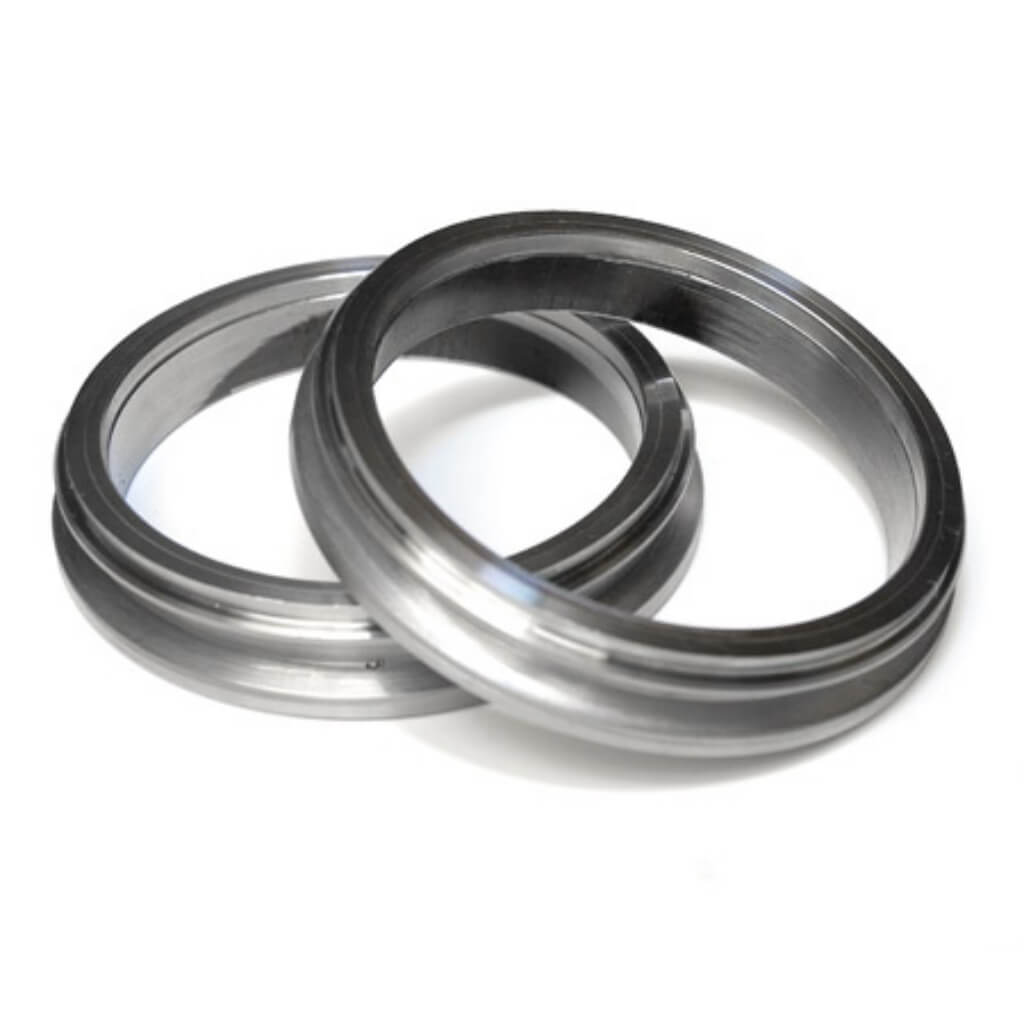

The ATP TURBO ATP-FLS-073 is a double-stepped V-Band flange engineered for T31 turbine housing configurations, offering compatibility with both 2.5-inch and 3-inch outer diameter tubing. Manufactured from mild steel and featuring a precision-machined 3.10-inch outer diameter with internal steps and a grooved bore, this flange allows versatile and secure connections for custom exhaust and turbo systems where mixed tubing sizes are used.

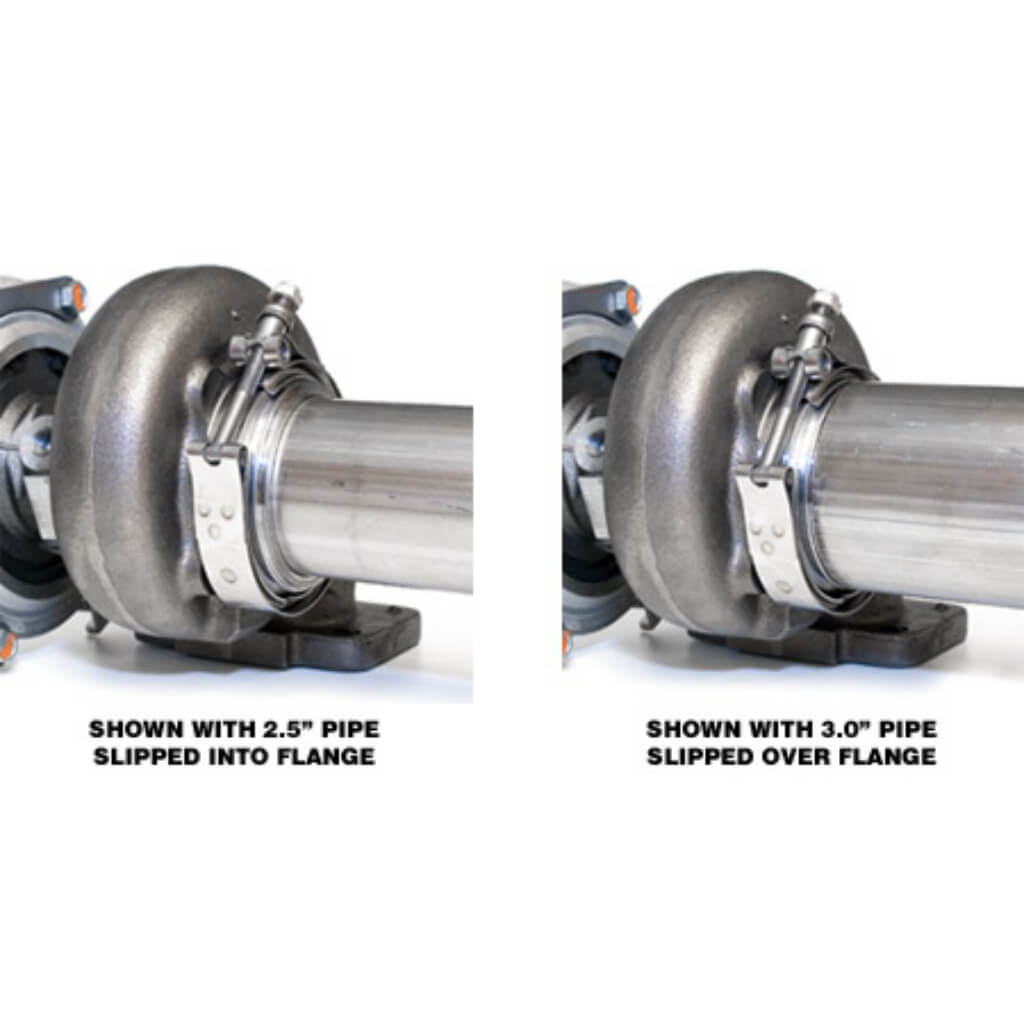

• Double-step design accepts both 2.5" and 3" OD tubing
• Engineered for T31 turbine outlet applications
• Grooved flange bore ensures accurate alignment and sealing
• Mild steel construction ideal for fabrication and welding

Specifications:

• Flange Outer Diameter: 3.10 inches
• Tube Compatibility: 2.5" and 3" OD
• Flange Type: Double Stepped V-Band
• Material: Mild Steel
• Application: T31 Turbine Outlet
