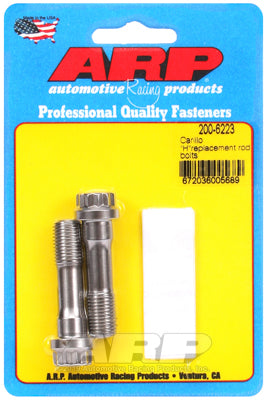

ARP 200-6223 Replacement Rod Bolt Kit 7/16˝ 2 - piece set
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
ARP 200-6223 Replacement Rod Bolt Kit 7/16˝ 2 - piece set
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Replacement Rod Bolt Kit
Rod Bolts - 7/16˝, 2-piece set
Kit #: 200-6223
| Specifications | |
|---|---|
| Material | L19 |
| 1) Thread Size | 7/16˝ |
| 2) UHL | 1.725˝ |
| 3) Thread Length | 0.650˝ |
| 4) Grip Length | 0.300˝ |
| 5) Head Height | 0.380˝ |
| 6) Socket Size | 1/2 12pt |
| 7) Collar Diameter | 0.655˝ |
Stretch & Torque Values
Stretch: 0.0065 - 0.0070 in.
Bolt Torque Value: 80 ft-lbs (108 Nm) with ARP Ultra-Torque Fastener Assembly Lubrican
