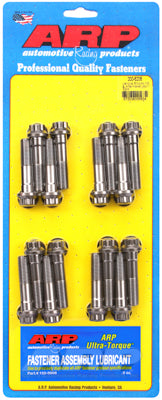

ARP 200-6206 Replacement Rod Bolt Kit 7/16˝ 16 - piece set
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
ARP 200-6206 Replacement Rod Bolt Kit 7/16˝ 16 - piece set
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
| Specifications | |
|---|---|
| Material | ARP2000 |
| 1) Thread Size | 7/16˝ |
| 2) UHL | 2.000˝ |
| 3) Thread Length | 1.000˝ |
| 4) Grip Length | 0.300˝ |
| 5) Head Height | 0.435˝ |
| 6) Socket Size | 1/2 12pt |
| 7) Collar Dia. | 0.745˝ |
Kit Instructions: We provide the stretch and torque values below as a general guide. Please contact the rod manufacturer using the chart below for the exact values for your bolt and rod combination. Rod Bolt stretch and torque values for aftermarket rods are determined by the rod manufacturer. If they provide any information online, we have linked directly to it with the Website link.
Stretch & Torque Values
Stretch: 0.0065 - 0.0070 in.
Bolt Torque Value: 75 ft-lbs (102 Nm) with ARP Ultra-Torque Fastener Assembly Lubricant.
