ARP 184-5401 Main Stud Kit for Olds 350 Photo-0
ARP 184-5401 Main Stud Kit for Olds 350 Photo-1

ARP 184-5401 Main Stud Kit for Olds 350

Sale priceAED 506.53

Tax included. Shipping calculated at checkout

ARPP/N: 184-5401 GTIN: 672036004651
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

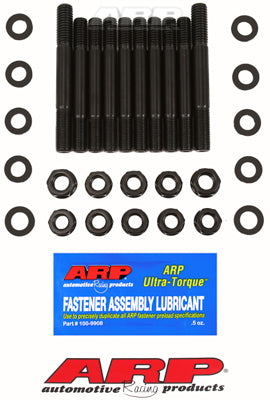

2-Bolt Main Stud Kit by ARP®. There are many important reasons to use ARP main stud kits including the elimination of main cap walk and fretting as well as protecting the threads in your engine block. All kits come complete with hardened parallel-ground washers and high quality nuts. Some applications have provisions for mounting windage trays and have specially designed standoff studs with serrated lock nuts to position the windage tray and lock it securely in place. The studs are manufactured from 8740 Chromoly steel heat-treated in-house to 200,000 psi tensile strength and precision J-form threads rolled after heat-treat to create a fastener that has threads 2000% stronger than others. The engineers at ARP spent quite a bit of time developing these highly effective, unique oil pan studs. They’re designed to make it as easy as possible to install a pan and seal it properly. You’ll note that the studs have a radiused bullet nose that serves to locate the pan rails, then allow the nuts to be easily installed without the worry of cross-threading. For those who prefer bolts, ARP’s got you covered, too.

Specifications
Socket Size(s) 11/16 hex, 3/4 hex, 3/16 Allen

Material: 8740 Chromoly
Kit Type: Stud
Main Bolt Style: 2-Bolt
Finish: Black
Quantity: Kit.

Kit Instructions
