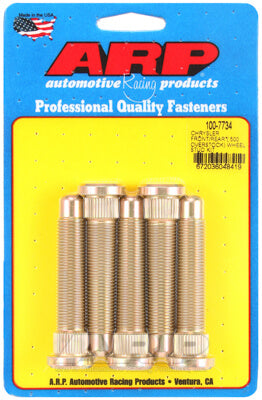

ARP 100-7734 Wheel Stud Kit for Chrysler Front & Rear. M14. 0.5˝ over stock length
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
ARP 100-7734 Wheel Stud Kit for Chrysler Front & Rear. M14. 0.5˝ over stock length
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
| Specifications | |
|---|---|
| Knurl Diameter | 0.625˝ |
| UHL | 2.936˝ |
| Knurl Length | 0.445˝ |
| Nose Length | 0.435˝ |
| Thread Size | M14 x 1.50 |
| Wheel Stud Hole Size - Cast Iron/Steel Hub | 0.609˝ - 0.619˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 39/64˝ (0.672˝) |
| Wheel Stud Hole Size - Aluminum Hub | 0.609˝ - 0.615˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 39/64˝ (0.672˝) |
| click for info on fitting these studs to your hubs | |
