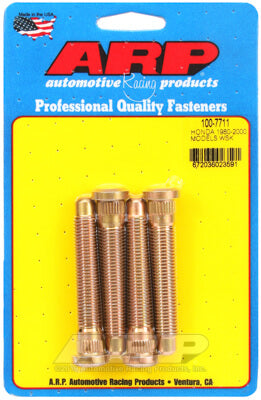

ARP 100-7711 Wheel Stud Kit for Honda '80-'00 M12 X 2.85"
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
| Specifications | |
|---|---|
| Knurl Diameter | 0.485˝ |
| UHL | 2.850˝ |
| Knurl Length | 0.275˝ |
| Nose Length | 0.350˝ |
| Diameter - Pitch | M12 x 1.5 |
| Wheel Stud Hole Size - Cast Iron/Steel Hub | 0.469˝ - 0.479˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 12mm (0.472˝) |
| Wheel Stud Hole Size - Aluminum Hub | 0.469˝ - 0.475˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 12mm (0.472˝) |
| click for info on fitting these studs to your hubs | |
