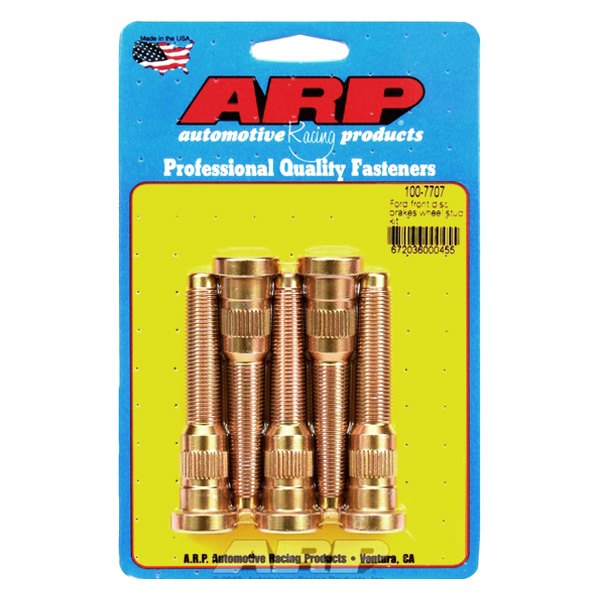

ARP 100-7707 Wheel Stud Kit for Ford front disc brakes
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
| Specifications | |
|---|---|
| Knurl Diameter | 0.618˝ |
| UHL | 3.050˝ |
| Knurl Length | 1.000˝ |
| Nose Length | 0.250˝ |
| Diameter - Pitch | 1/2-20 |
| Wheel Stud Hole Size - Cast Iron/Steel Hub | 0.602˝ - 0.612˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 39/64˝ (0.609˝) |
| Wheel Stud Hole Size - Aluminum Hub | 0.602˝ - 0.608˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 19/32˝* (0.594˝) |
| * The nearest standard drill bit is too small. You will need to use an appropriately sized reamer to enlarge the drilled hole until it is within the tolerance for the material. | |
