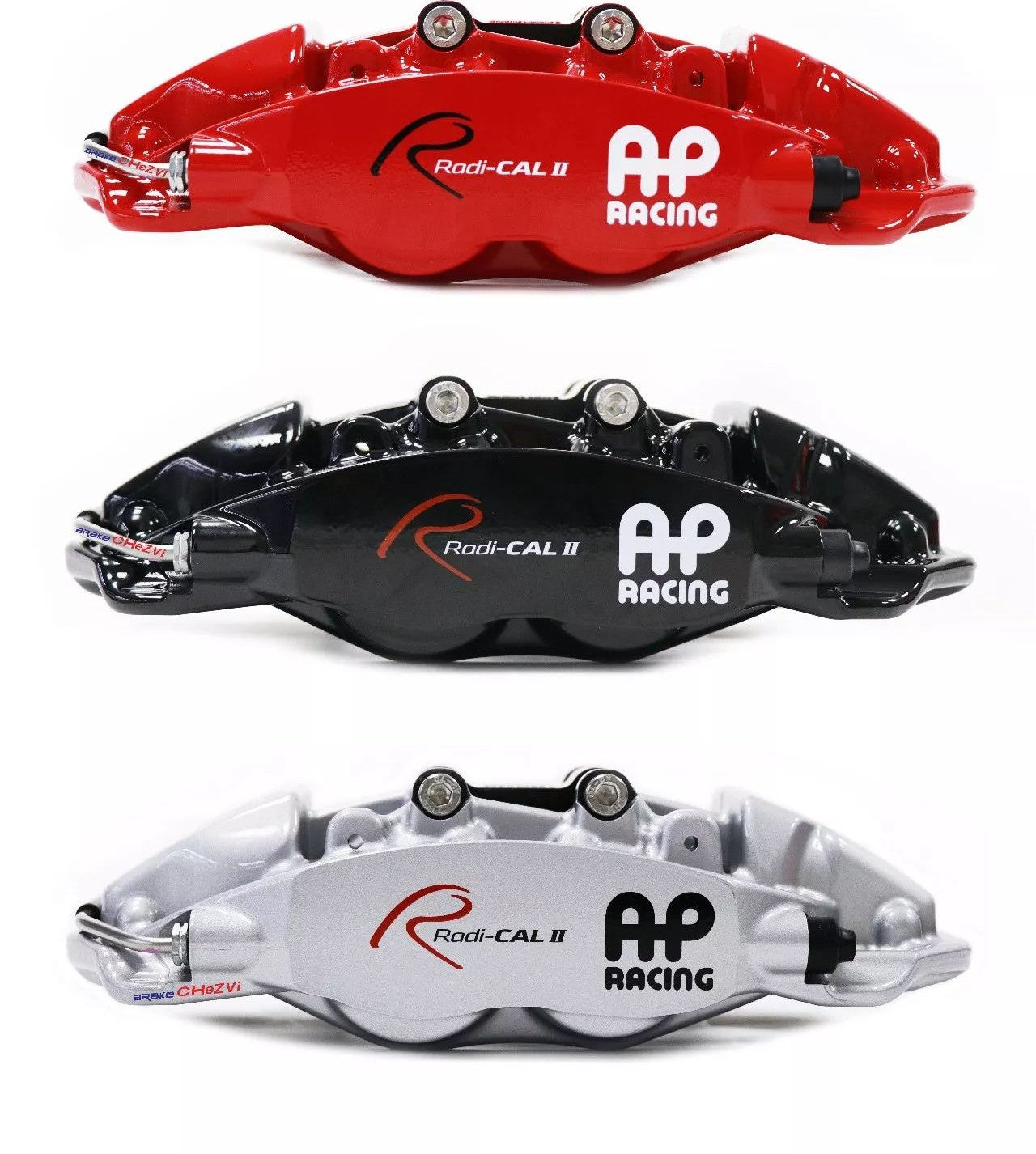

AP RACING CP9541-8S0R12 Brake caliper Radi-CAL (DE)RHLx28.00-CP6600

CP9541 family - 28.8cm² Piston Area

Applications:
- Performance Road Front or Rear.

Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø380mm Max or 356mm Min x 32mm max or 28mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

Black Caliper Part Numbers to suit discs Ø380 x 32mm thickness:
- RHT = CP9541-2S0BG4 / LHT = CP9541-3S0BG4 - RHL = CP9541-4S0BG4 / LHL = CP9541-5S0BG4

Black Caliper Part Numbers to suit discs Ø380 x 28mm thickness:
- RHT = CP9541-6S0BG4 / LHT = CP9541-7S0BG4 - RHL = CP9541-8S0BG4 / LHL = CP9541-9S0BG4

Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9541-2S0R12

Siver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9541-2S0S10

Brake Pad Information
CP6600D55

- Pad Area = 64.6cm²
- Pad Depth = 55.0mm
- Thickness = 16.75mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm
- Ø28.6 x 2
- Ø31.8
Piston Area - cm² 28.8
Disc Diameter - mm 380.0
Disc Thicknesses - mm
- CP9541-2/3/4/5 = 32.0
- CP9541-6/7/8/9 = 28.0

Weight (No Pads) - Kg 3.25
Hydraulic Threads M10x1.0

Mounting Type Radial
Mounting Centres - mm 195.0

Mounting Offset - mm
- CP9541-2/3/4/5 = 36.0
- CP9541-6/7/8/9 = 34.0

Mounting Hole Ø - mm 12.1
Bleed Screw Tightening Torque - Nm 17
PL Dimension - mm 55.0

CALIPER SPARES
Pistons
Ø28.6mm = CP8336-111 x 2
Ø31.8mm = CP8336-116

Seal Repair Kit CP4527-DE
Pad Retainer and Bolt
CP9541-2/3/4/5 Caliper - CP9560-104 x 4 & CP3596-112ST x 2
CP9541-6/7/8/9 Caliper - CP9560-104 x 4 & CP3796-121ST
Pad Retaining Pin
CP9541-2/3/4/5 Caliper - CP7555-182 x 2
CP9541-6/7/8/9 Caliper - CP8335-116 x 2
Bleed Screw Kit CP3880-1
Pad Anti-Rattle Clip
CP9541-2/3/4/5 Caliper - CP9540-107
CP9541-6/7/8/9 Caliper - CP9540-108
