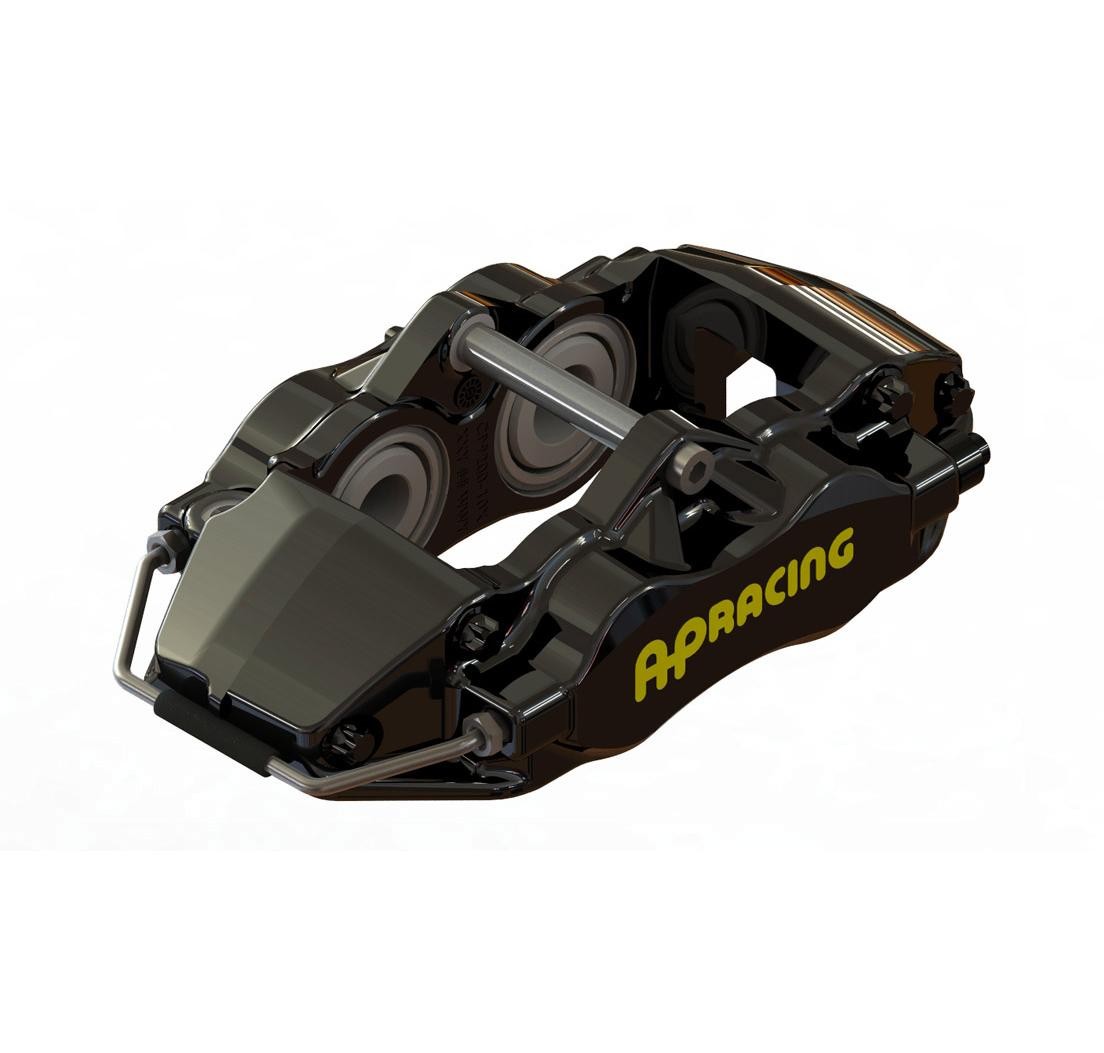

AP RACING CP9202-5S0BG Brake caliper Radi-CAL (CC)LHLx28.0-CP3215
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP9202-5S0BG Brake caliper Radi-CAL (CC)LHLx28.0-CP3215
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
CP9202 - Forged Rear - 152mm Mounting Ctrs
Applications:
- Rear.
- Factory Big Brake Kit. - Compliment CP9040 Front 6 piston caliper.
Features:
- Radial Mount, 152mm centres.
- Suits Ø360 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body. - Designed to compliment CP9040. 6 piston caliper family.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP9202-2S0BG / - LHT = CP9202-3S0BG.
- RHL = CP9202-4S0BG / - LHL = CP9202-5S0BG.
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9202-2S0R2
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | 27.0mm (1.06") x 4 |
| Disc Diameter - mm | 360.0 |
| Disc Thickness - mm | - Max = 28.0 - Min = 26.0 |
| Weight (no pads) - Kg | 2.48 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152.0 |
| Mounting Offset - mm | 46.86 |
| Mounting Hole Ø - mm | |
| ‘PL’ Dimension - mm | 60.36 |
| Bleed Screw Tightening Torque | 17Nm |
-
Click on the link to download the relevant drawing.
