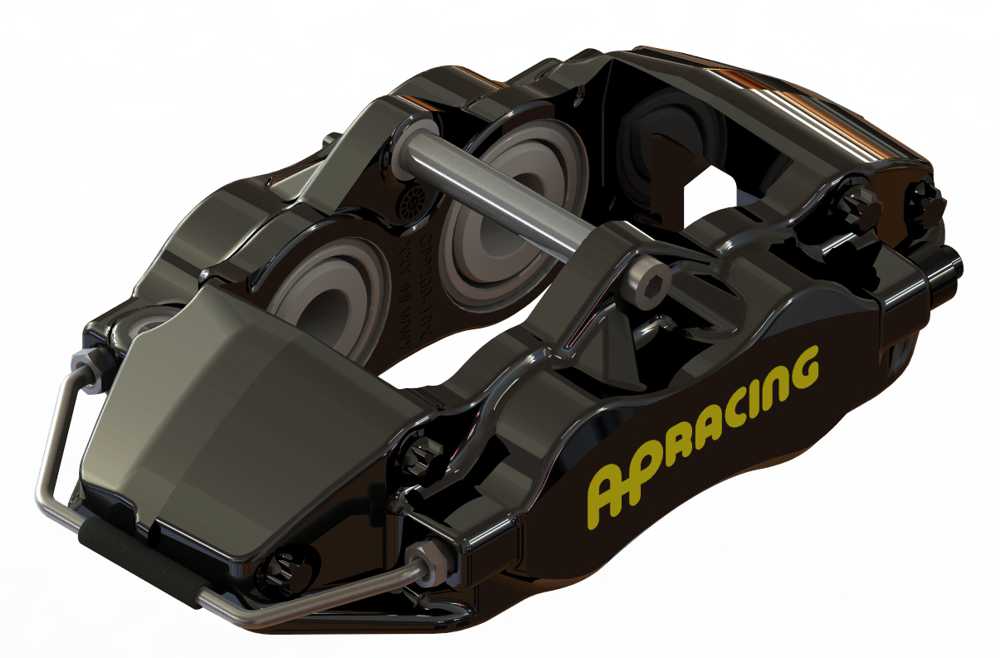

AP RACING CP9200-4S0BG Brake Caliper 4-piston Radial RHL (black)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AP RACING CP9200-4S0BG Brake Caliper 4-piston Radial RHL (black)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Applications:
- Front.
- Factory Big Brake Kit.
Features:
- Radial Mount, 152mm centres.
- Suits Ø330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body.
- Front.
- Factory Big Brake Kit.
Features:
- Radial Mount, 152mm centres.
- Suits Ø330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body.
- Designed to replace CP5200 caliper.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
IMPORTANT NOTE: CP9200 replaces CP5200 family.
Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2
Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2
| Brake Pad Information (To view larger image of pad click on Pad Part No) |
CP3215D50 - Pad Area = 57.4cm² - Pad Depth = 50.3mm - Thickness = 16.8mm |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | Ø38.1 x 2 Ø41.3 x 2 |
| Disc Diameter - mm | Ø330 |
| Disc Thickness - mm | - Max = 28 - Min = 26 |
| Weight (no pads) - Kg | 2.43 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 152 |
| Mounting Offset - mm | 46.86 |
| Mounting Hole Ø - mm | 10.1 Nom |
| ‘PL’ Dimension - mm | 60.36 |
| Bleed Screw Tightening Torque | 17Nm |
| SPARE PARTS | |
| Pistons | - Ø38.1 = CP9200-108 - Ø41.3 = CP109 |
| Seal Repair Kit | CP4527-JK |
| Pad Retainer Type / Part No | Bolt - CP5200-104 |
| Pad Retainer Bolt Part No | CP3596-112ST |
| Bleed Screw | CP4970-125 |
| Fluid Pipes | CP9200-10 |
| Pad Anti-Rattle Clip | CP5200-151 |
