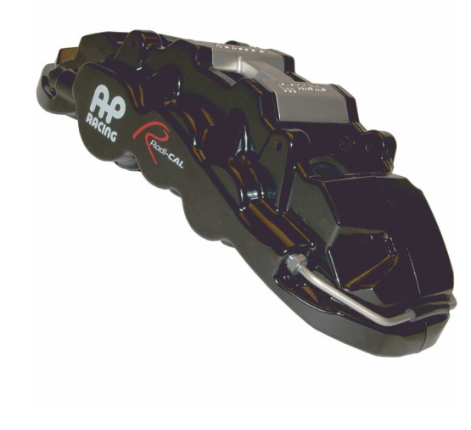

AP RACING CP8520-3S0BG Brake caliper Radi-CAL (EHK)LHTx35.6-CP7555
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP8520-3S0BG Brake caliper Radi-CAL (EHK)LHTx35.6-CP7555
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
CP8520 Family - 62.5cm² Piston Area
Applications:
- Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø410mm or 380mm x 36mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP8520-2S0BG
- LHT = CP8520-3S0BG.
- RHL = CP8520-4S0BG
- LHL = CP8520-5S0BG
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8520-2S0R2
Brake Pad Information
- Pad Area = 108.9cm²
- Pad Depth = 70mm
- Thickness = 16.75mm
CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm Ø31.8 / Ø36.0 / Ø41.3
Piston Area - cm² 62.5
Disc Diameter - mm
- Max = Ø410.0
- Min = Ø380.0
Disc Thickness - mm 36.0
Weight (No Pads) - Kg 4.65
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 195.0
Mounting Offset - mm 49.50
Mounting Hole Ø - mm 12.10
PL Dimension - mm 70.0
Bleed Screw Tightening Torque - Nm 17
CALIPER SPARES
Pistons
- Ø31.8mm = CP8336-116
- Ø36.0mm = CP8520-107
- Ø41.3mm = CP8335-111
Seal Repair Kit CP4527-EHK
Pad Retainer Type / Part No. Pin / CP7555-116
H / Piece and Bolt CP8520-106 & CP3596-112ST x 2
Bleed Screws CP3880-1
Pad Anti Rattle Clip
CP8520-110
