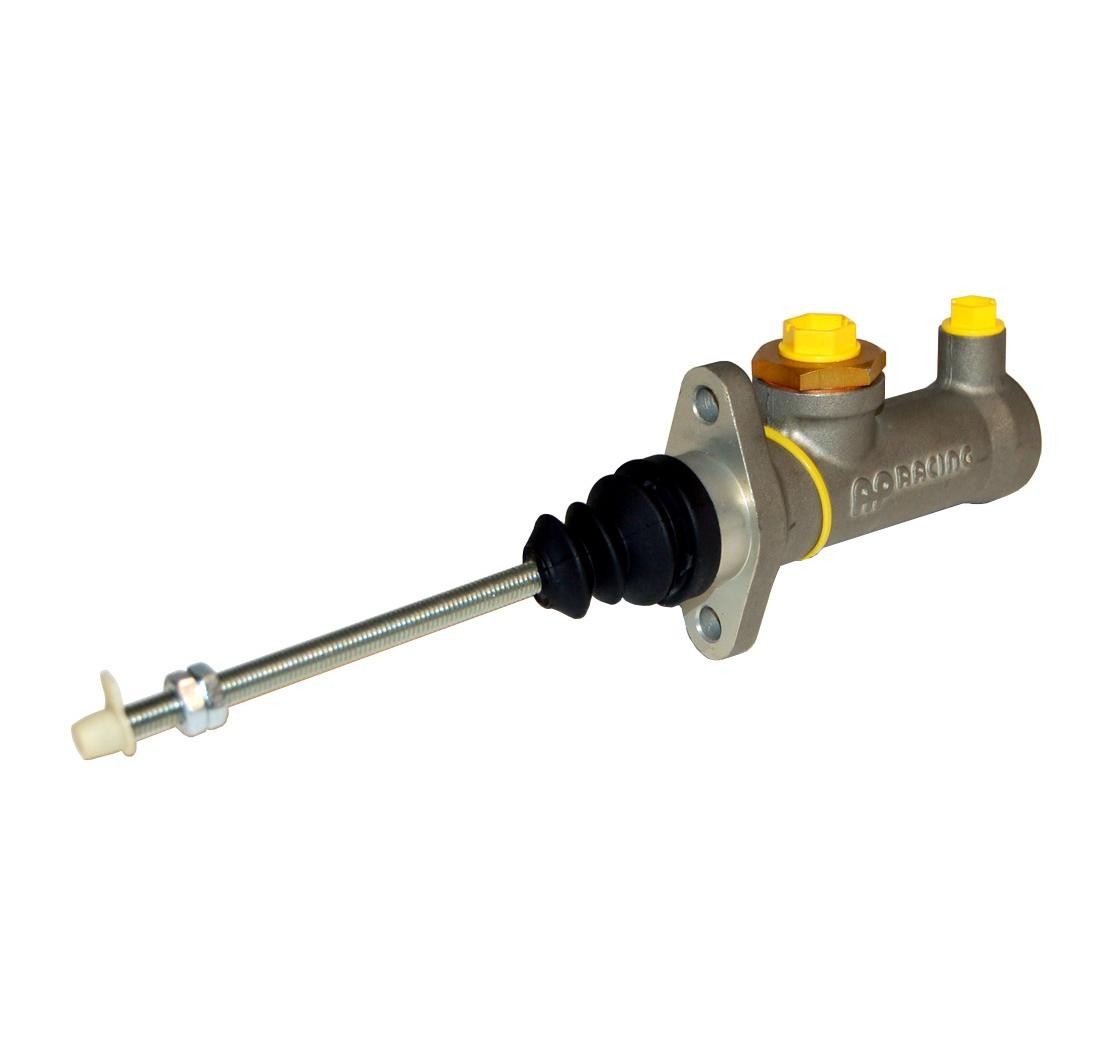

AP RACING CP7198-91PRM163 MCYL-0.70xALU-REMTMET
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP7198-91PRM163 MCYL-0.70xALU-REMTMET
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
General Information: - Centre Valve configuration, helps to improve cylinder performance and seal durability.
- For use with ABS and high pressure applications.
- Forged Aluminium Alloy body.
- Flange mounted.
- Suitable for most brake and particularly clutch applications.
- Metric hydraulic threads.
- Short travel to cut-off standard.
- Choice of 8 bore sizes.
- Rubber boots fitted as standard.
Servicing Note:- For Repair Kit instruction please view P14.339 leaflet in the downloads tab.
| Weight | 0.37Kg (0.81lbs) |
| Full Stroke | 30.00mm (1.18") |
| Travel To Cut-Off | Short - 0.68 to 1.09mm - 0.27" to 0.43") |
| Inlet Hydraulic Threads | M12x1.0 |
| Outlet Hydraulic Threads | M10x1.0 |
| Push Rod Thread Available | - PRT - 5/16" UNF - PRM - M8x1.25 |
| Push Rod Length from Mounting Flange | 163mm (6.41") |
