AP RACING CP7030-5S0 Brake caliper Radi-CAL (GK)LHLx17.0-CP2340
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP7030-5S0 Brake caliper Radi-CAL (GK)LHLx17.0-CP2340
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

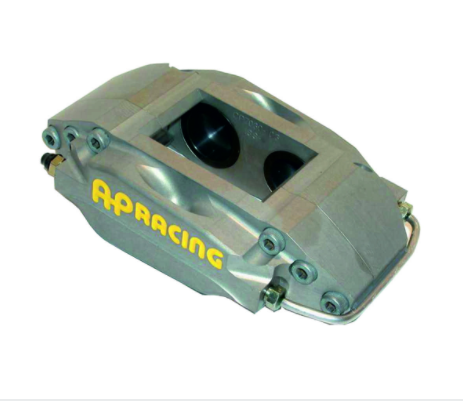

Radial 4 Piston - Two Piece Billet F3 Caliper - CP7030
Applications:
- F3 Front & Rear.
Features:
- Radial Mount, 120 x 40mm centres.
- Two piece aluminium alloy body.
- CNC machined from billet.
- Lightweight.
- Suits Ø278 x 17mm or 16mm disc.
- Aluminium pistons.
- Complete system (calipers discs and bells) available.
- Stainless steel wear plates fitted.
Part Numbers:
- RHT = CP7030-2S0. / - LHT = CP7030-3S0.
- RHL = CP7030-4S0. / - LHL = CP7030-5S0.
Brake Pad Information
CP3345D38
- Pad Area = 38.7cm²
- Pad Depth = 38.0mm
- Thickness = 16.0mm
TECHNICAL SPECIFICATIONS
Piston Area cm³ 45.92
Piston Sizes - mm
- Ø34.9 x 2
- Ø41.3 x 2
Disc Diameter - mm Ø278.0
Disc Thickness - mm - Max = 17.0 / Min = 16.0
Weight (no pads) - Kg 1.5
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 120.0
Mounting Offset - mm 40.0
Mounting Hole Ø - mm 10.2
‘PL’ Dimension - mm 50.3
Bleed Screw Tightening Torque 17n=Nm
SPARE PARTS
Pistons
- Ø34.9 = CP7030-108
- Ø41.3 = CP7030-107
Seal Repair Kit CP4518-GK
Wear Plates CP7030-106 x 4
Bleed Screw CP3720-173
Fluid Pipe CP7030-6
