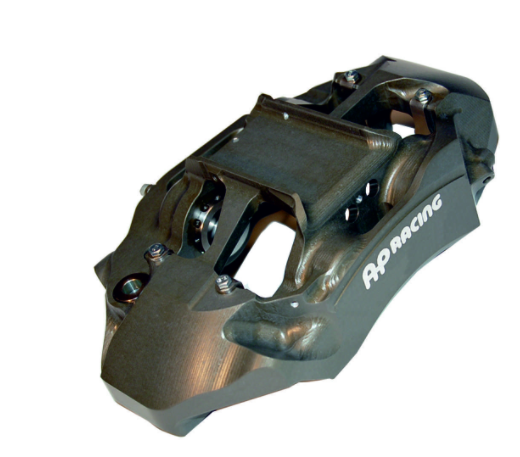

AP RACING CP6830-5S4LP Brake caliper Radi-CAL (GK)LHLx32.0-CP6820

4 Piston - WRC / S2000 - Billet Monobloc Front - CP6830

Applications:
- WRC Turbo / S2000 front, Tarmac / Gravel specifications.

Features:
- Radial mount, 180 x 42mm centres.
- Suits Ø355 x 32mm iron discs.
- Benefits from radical asymmetric design concept for superior dynamic performance.
- Ducted air cooling features, reduces caliper temperatures.
- Monobloc aluminium alloy body.
- Internally Ported
- No external bridge pipe.
- Stainless steel pistons.
- High temperature, low drag seals fitted as standard.
- Manufactured with bleedscrew and pipe protection.
- Ceramic piston insulation caps are available.

Part Numbers:
- RHL = CP6830-4S4LP
- LHL = CP6830-5S4LP

Brake Pad Information

- Gravel Pad CP6820D46
- Pad Area = 61.7cm²
- Pad Depth = 46.0mm
- Thickness = 16.0mm

- Tarmac Pad CP6820D48
- Pad Area = 63.2cm²
- Pad Depth = 48.0mm
- Thickness = 16.0mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm
- Ø34.9mm x 2
- Ø41.3mm x 2
Piston Area cm³ 45.9
Disc Diameter - mm Ø355.0
Disc Thickness - mm 32.0
Weight (no pads) - Kg 2.11
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 180.0
Mounting Offset - mm 42.0
Mounting Hole Ø - mm 10.175
‘PL’ Dimension - mm 57.5
Bleed Screw Tightening Torque 17Nm

SPARE PARTS
Pistons
- Ø34.9 = CP6820-106
- Ø41.3 = CP6820-107
Seal Repair Kit CP4518-GK
Wear Plates CP6830-102 x 2
Beam = CP6820-109
Anti-Knockback Springs CP6518-4LBLL
Bleed Screw CP3880-1
