AP RACING CP6269-2S7L Brake caliper Radi-CAL (EFK)RHTx35.6-CP6210
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP6269-2S7L Brake caliper Radi-CAL (EFK)RHTx35.6-CP6210
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

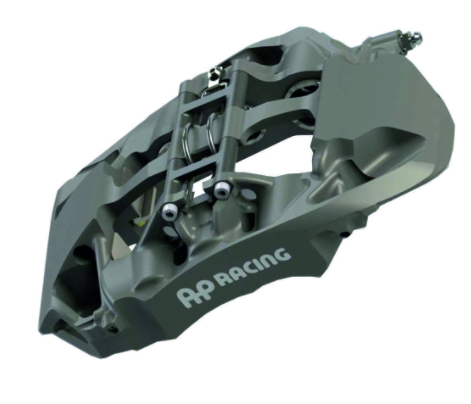

CP6269 - GT3 Forged Radi-CAL - 6 Piston
Applications:
- GT3
Features:
- Radial Mount, 210 x 42mmmm centres.
- Radical asymmetric design concept.
- Superior dynamic performance.
- Ducted Air cooling features, significantly reduces caliper temperatures.
- Forged Monobloc Aluminium alloy body.
- Designed to operate on Ø390.0mm x 36mm Iron Disc.
- 95.6mm total stack thickness allowed.
- Stainless Steel pistons fitted.
- Internally Ported.
- Dry Breaks available as an option.
- Pads are retained by a bolted retainer, with a quick release spring clip supplied for use in events when fast pad changes are required.
Part Numbers:
- RHT = CP6269-2S7L.
- LHT = CP6269-3S7L.
- RHL = CP6269-4S7L.
- LHL = CP6269-5S7L.
Brake Pad Information
- CP6210D54 Iron Pad
- Pad Area = 83.0cm²
- Pad Depth = 54.0mm
- Thickness = 30.0mm
TECHNICAL SPECIFICATIONS
Piston Sizes - mm Ø31.8 / Ø33.8 / Ø41.3
Piston area = cm² 60.75
Disc Diameter - mm 390.0
Disc Thickness - mm 36.0
Weight (no pads) - Kg 3.3
Hydraulic Threads M10 x 1.0
Mounting Type Radial
Mounting Centres - mm 210.0
Mounting Offset - mm 42.0
Mounting Hole Ø - mm 12.15
‘PL’ Dimension - mm 63.5
Bleed Screw Tightening Torque 17Nm
SPARE PARTS
Pistons
- Ø31.8mm - CP6268-104
- Ø33.8mm - CP6268-105
- Ø41.3mm - CP6268-106
Seal Repair Kit CP8518-EFK
Pad Retainer H-Piece Kit - CP6268-20
Pad Retainer Bolt
Quick Release (Clip) Pad Retainer Kit CP6268-21
Pad Abutment Plates
- Leading x 2 - CP6269-102
- Trailing x 2 - CP6269-103
Pad Supports CP6269-104
Anti-knockback Springs CP6518-7LBSSL
Bleed Screw CP3880-1
