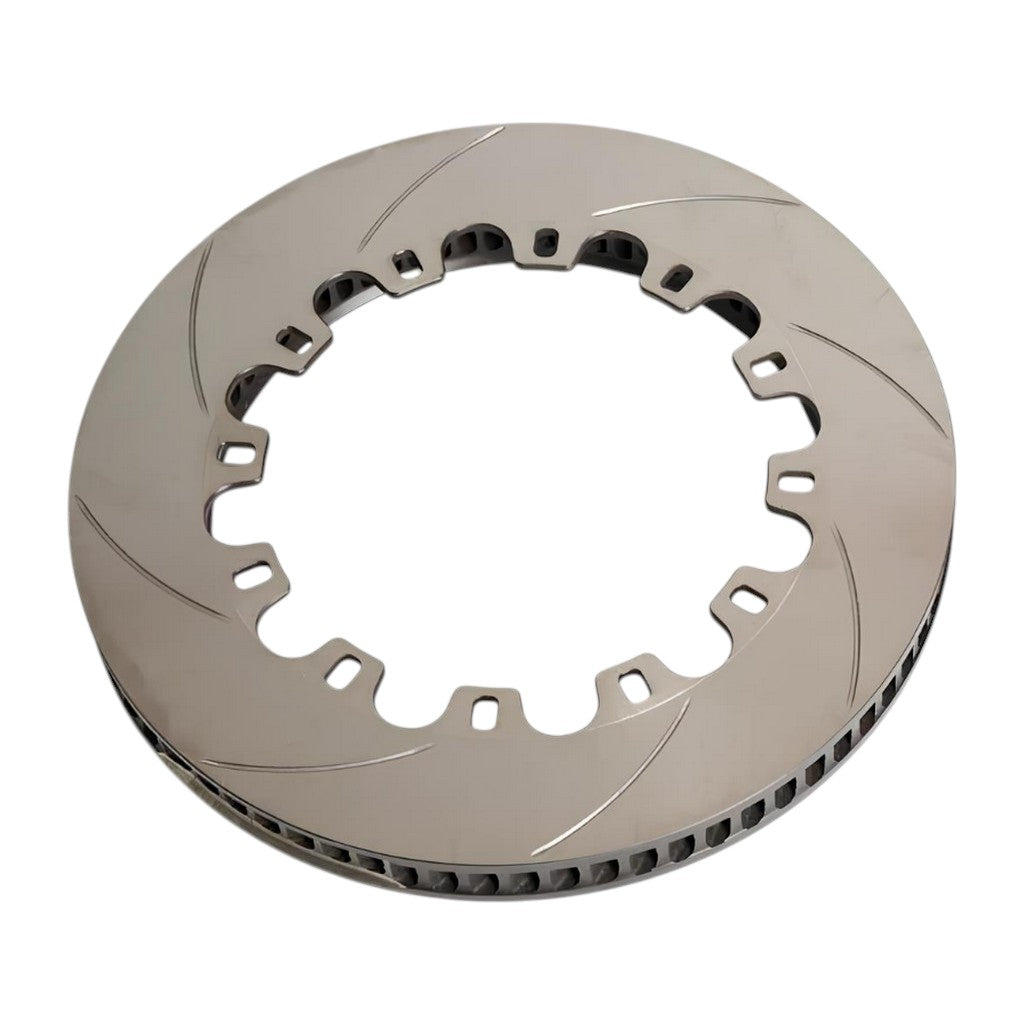

AP RACING CP5772-2069CG8 Left Brake Disc 378 x 36mm, PCD 240mm (Ventilated)

Description AP RACING CP5772-2069CG8 Left Brake Disc 378 x 36mm, PCD 240mm (Ventilated)

The AP Racing CP5772-2069CG8 is a high-performance left-side brake disc engineered for motorsport and intensive track use. Featuring an external diameter of 378 mm and a thickness of 36 mm, this vented rotor is designed to deliver optimal thermal efficiency and consistent braking under demanding conditions. The disc utilizes AP Racing’s curved slot CG8 pattern for improved pad deglazing, cooling, and stability during repeated high-speed braking. Constructed as a floating assembly without an integrated hub, it employs a 12-hole mounting pattern with a 240 mm pitch circle diameter, making it suitable for professional racing systems where thermal expansion and component longevity are critical.

Specifications

• Vented design for superior heat dissipation
• Disc Diameter: 378 mm
• Disc Thickness: 36 mm
• Slot Type: CG8 (8 Curved Slots)
• Mounting Type: Floating
• Mounting Holes: 12
• Pitch Circle Diameter (P.C.D.): 240 mm
• Application Side: Left
