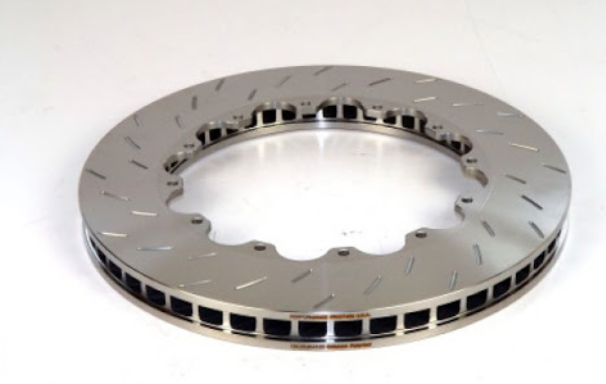

AP RACING CP3580-394RA VD-295x32R12Fx177,8D51
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AP RACING CP3580-394RA VD-295x32R12Fx177,8D51
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
| ‘A’ Outside Diameter - mm | 295 |
| ‘B’ Thickness - mm | 32 |
| ‘M’ P.C.D. Diameter - mm | 177.8 |
| Mounting Hole Number | 12 |
| Mounting Fixing Type | "Floating" |
| Mounting Bobbin Part Number | CP2494-504MP |
| ‘C’ Eye Diameter - mm | 193.4 |
| ‘D’ Inside Flange Diameter - mm | 153 |
| ‘H’ Mtg Flange Thickness - mm | 6.3 |
| Max Pad Depth | D51 |
| Number of Vanes | 24 |
| Air Gap - mm | 15.5 |
| Weight - Kg | 5.8 |
| Face Types Available | D / RA |
-
Click on the link to download the relevant drawing.
