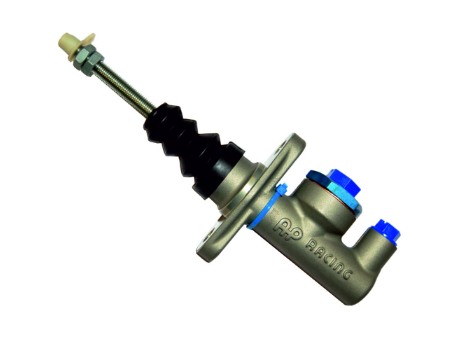

AP RACING CP2623-92PRM088 MCYL-0.750xALU-REMTMET Photo-0

AP RACING CP2623-92PRM088 MCYL-0.750xALU-REMTMET

Sale priceAED 1,108.59

Tax included. Shipping calculated at checkout

AP RACINGP/N: CP2623-92PRM088
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

AP RACING CP2623-92PRM088 MCYL-0.750xALU-REMTMET

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

Features:

- Forged Aluminium Alloy Body.
- 50g weight saving over cast version
- Short travel to cut-off.
- Non Captive Cylinders available.
- Hydraulic threads are imperial.

- Weight 0.31Kg (0.7lbs)
- Full Stroke 25.4mm (1.00")
- Travel To Cut-Off Short - 0.68 to 1.09mm (0.27 to 0.43")
- Inlet Hydraulic Thread 7/16" x 20UNF
- Outlet Hydraulic Thread 3/8" x 24UNF
- Push Rod Threads Available - PRM = M8 x 1.25mm- PRT = 5/16" UNF
- Push Rod Length from Mounting Flange PRM065 - 65mm (2.55")
- PRM088 - 88mm (3.46")
- PRM/PRT115 - 115mm (4.53")
- PRM/PRT160 - 160mm (6.30")

Bore Sizes Available

Part Numbers

14mm
CP2623-88PRM115 / CP2623-88PRM160
CP2623-88PRT115 / CP2623-88PRT160

15mm
CP2623-89PRM088 / CP2623-89PRM115 /CP2623-89PRM160
CP2623-89PRT115 / CP2623-89PRT160

15.9mm (.625") 5/8"
CP2623-90PRM065 / CP2623-90PRM088
CP2623-90PRM115 / CP2623-90PRM160
CP2623-90PRT115 / CP2623-90PRT160

16.8mm
CP2623-905PRM088 / CP2623-905PRM115 /CP2623-905PRM160
CP2623-905PRT115 / CP2623-905PRT160

17.8mm (.70")
CP2623-91PRM065 / CP2623-91PRM088
CP2623-91PRM115 / CP2623-91PRM160
CP2623-91PRT115 / CP2623-91PRT160

19.1mm (.75") 3/4"
CP2623-92PRM065 / CP2623-92PRM088
CP2623-92PRM115 / CP2623-92PRM160
CP2623-92PRT115 / CP2623-92PRT160

20.6mm (.812") 13/16"
CP2623-93PRM065 / CP2623-93PRM088
CP2623-93PRM115 / CP2623-93PRM160
CP2623-93PRT115 / CP2623-93PRT160

22.2mm (.875") 7/8"
CP2623-94PRM065 / CP2623-94PRM088
CP2623-94PRM115 / CP2623-94PRM160
CP2623-94PRT115 / CP2623-94PRT160

23.8mm (.937") 15/16"
CP2623-95PRM065 / CP2623-95PRM088
CP2623-95PRM115 / CP2623-95PRM160
CP2623-95PRT115 / CP2623-95PRT160

25.4mm (1.00")
CP2623-96PRM065 / CP2623-96PRM088
CP2623-96PRM115 / CP2623-96PRM160

CP2623-96PRT115 / CP2623-96PRT160-92PRM088
