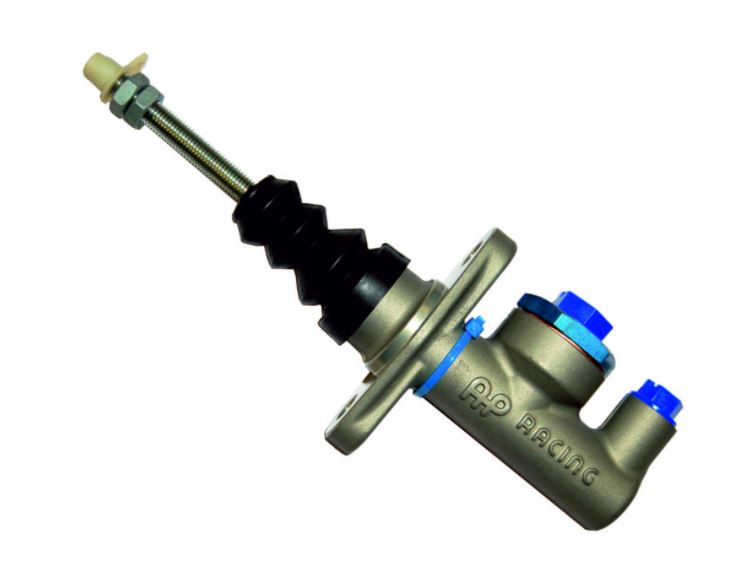

AP RACING CP2623-90PRT115 Master Cylinder 0.625" (15,9 mm) Photo-0

AP RACING CP2623-90PRT115 Master Cylinder 0.625" (15,9 mm)

AED 1,108.59

Tax included. Shipping calculated at checkout

AP RACINGP/N: CP2623-90PRT115
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

AP RACING CP2623-90PRT115 Master Cylinder 0.625" (15,9 mm)

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

AP RACING  Master Cylinder 0.625" (15,9 mm)



Features:

  • Forged Aluminium Alloy Body.
  • 50g weight saving over cast version
  • Short travel to cut-off.
  • Non Captive Cylinders available.
  • Hydraulic threads are imperial.

 TECHNICAL SPECS:

  • Weight - 0.31Kg (0.7lbs)
  • Full Stroke - 25.4mm (1.00")
  • Travel To Cut-Off - Short - 0.68 to 1.09mm (0.27 to 0.43")
  • Inlet Hydraulic Thread - 7/16" x 20UNF
  • Outlet Hydraulic Thread - 3/8" x 24UNF
  • Push Rod Threads Available - PRM = M8 x 1.25mm- PRT = 5/16" UNF
  • Push Rod Length from Mounting Flange - PRM065 - 65mm (2.55") PRM088 - 88mm (3.46") PRM/PRT115 - 115mm (4.53") PRM/PRT160 - 160mm (6.30")Other Pushrod Lengths available. Contact Technical Department for more information.

  • INSTALLATION DRAWING can be downloaded here


Bore Sizes Available                     Part Numbers


14mm                                 CP2623-88PRM115 / CP2623-88PRM160
                                            CP2623-88PRT115 / CP2623-88PRT160

15mm                                 CP2623-89PRM088 / CP2623-89PRM115 / CP2623-89PRM160
                                             CP2623-89PRT115 / CP2623-89PRT160

15.9mm (.625") 5/8"        CP2623-90PRM065 / CP2623-90PRM088
                                             CP2623-90PRM115 / CP2623-90PRM160
                                             CP2623-90PRT115 / CP2623-90PRT160

16.8mm                              CP2623-905PRM088 / CP2623-905PRM115 / CP2623-905PRM160
                                             CP2623-905PRT115 / CP2623-905PRT160

17.8mm (.70")                   CP2623-91PRM065 / CP2623-91PRM088
                                             CP2623-91PRM115 / CP2623-91PRM160
                                             CP2623-91PRT115 / CP2623-91PRT160

19.1mm (.75") 3/4"          CP2623-92PRM065 / CP2623-92PRM088
                                             CP2623-92PRM115 / CP2623-92PRM160
                                             CP2623-92PRT115 / CP2623-92PRT160

20.6mm (.812") 13/16"    CP2623-93PRM065 / CP2623-93PRM088
                                             CP2623-93PRM115 / CP2623-93PRM160
                                             CP2623-93PRT115 / CP2623-93PRT160

22.2mm (.875") 7/8"        CP2623-94PRM065 / CP2623-94PRM088
                                             CP2623-94PRM115 / CP2623-94PRM160
                                             CP2623-94PRT115 / CP2623-94PRT160

23.8mm (.937") 15/16"    CP2623-95PRM065 / CP2623-95PRM088
                                             CP2623-95PRM115 / CP2623-95PRM160
                                             CP2623-95PRT115 / CP2623-95PRT160

25.4mm (1.00")                CP2623-96PRM065 / CP2623-96PRM088
                                             CP2623-96PRM115 / CP2623-96PRM160
                                             CP2623-96PRT115 / CP2623-96PRT160
