AMS AMS.47.07.0009-1 Fuel Filter for NISSAN Z (RZ34) 2022-

Description AMS AMS.47.07.0009-1 Fuel Filter for NISSAN Z (RZ34) 2022-

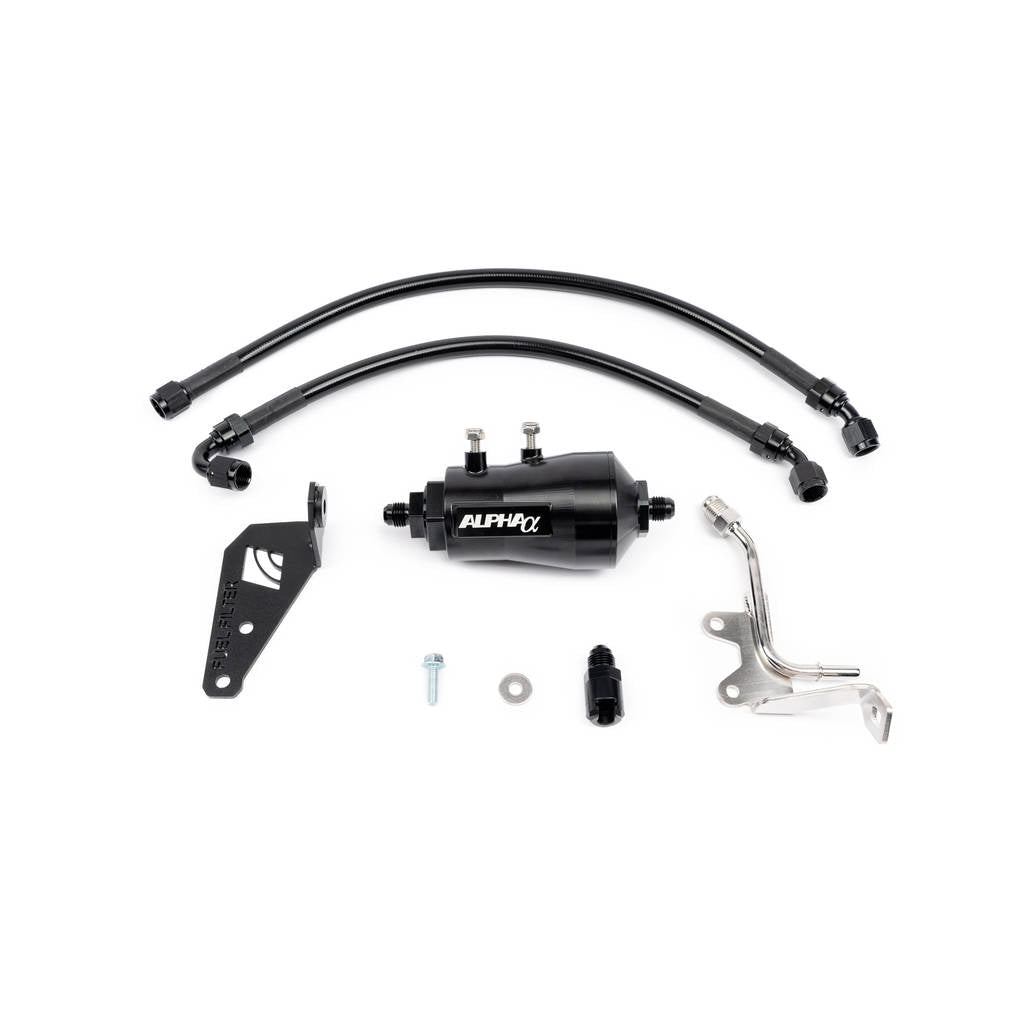

The AMS Performance Nissan Z Fuel Filter is designed as a high quality and sophisticated solution for fuel filtering of the VR30 engine. OEM fuel system component failures are fairly common on the VR30 engine, especially when using higher concentrations of ethanol like E50 or E85. Ethanol is an excellent high octane fuel source with high alcohol content, and because of this it also acts as a cleaning agent.

For some cars, ethanol can dislodge sediment in the fuel tank and lines built up over years of running low grade gasoline. One of the best ways to help prevent this dislodged foreign object debris from making its way into the injectors or engine is by utilizing a high quality in-line fuel filter. The AMS Nissan Z Fuel Filter has been engineered with this purpose in mind.

AMS Performance is an engineering company first, with a long-standing reputation as a motorsports aftermarket component manufacturer focused on engineering-driven design. This design approach allows inclusion of features not found in many other kits on the market, such as motorsports quality braided fuel lines and quick connect AN fittings. Where others may use plastic fittings, low grade rubber fuel hose, and leak-prone clamps, the AMS Snailworks Engineering Team has assembled a system using high quality materials intended for years of trouble free operation.

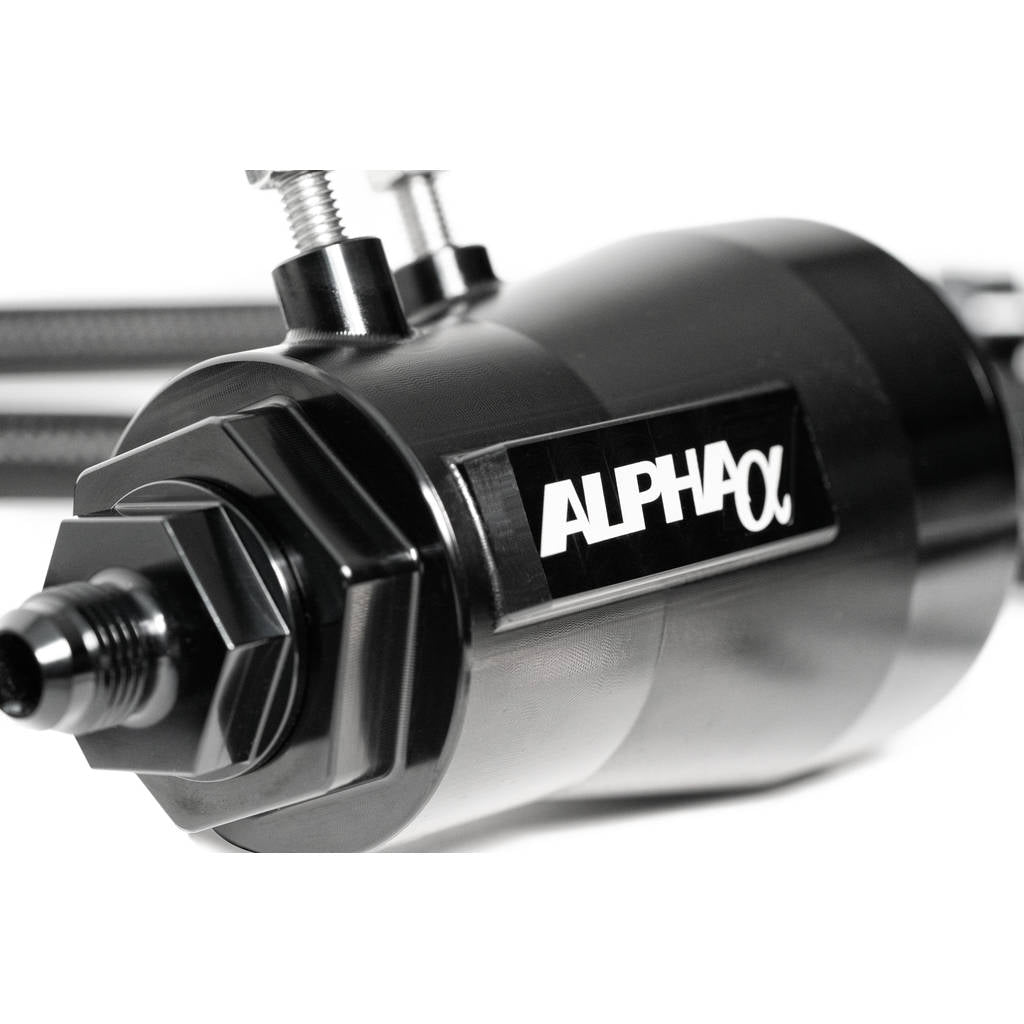

The custom filter housing is designed specifically for the Nissan Z with VR30 engine so that it can be bolted directly to the vehicle’s chassis in OEM bolt locations. Other kits or universal DIY options may use an unsecured generic housing, but this design integrates a mounting solution so the filter unit can be securely mounted. This is a safety feature as much as an aesthetic one, helping to prevent damage to the lines from rubbing on other components and to reduce the possibility of fittings loosening over time and causing a fuel leak.

Inside the filter housing, the shape has been engineered to promote unimpeded fuel flow by reducing or expanding the size of the internal ports. As fuel flows from right to left, the internal volume is reduced to send fuel inward toward the filter. The inlet and outlets are radiused at the ends and tapered at a specific angle for optimal fuel throughput. Significant engineering effort has been invested into this kit to make it a highly effective unit.

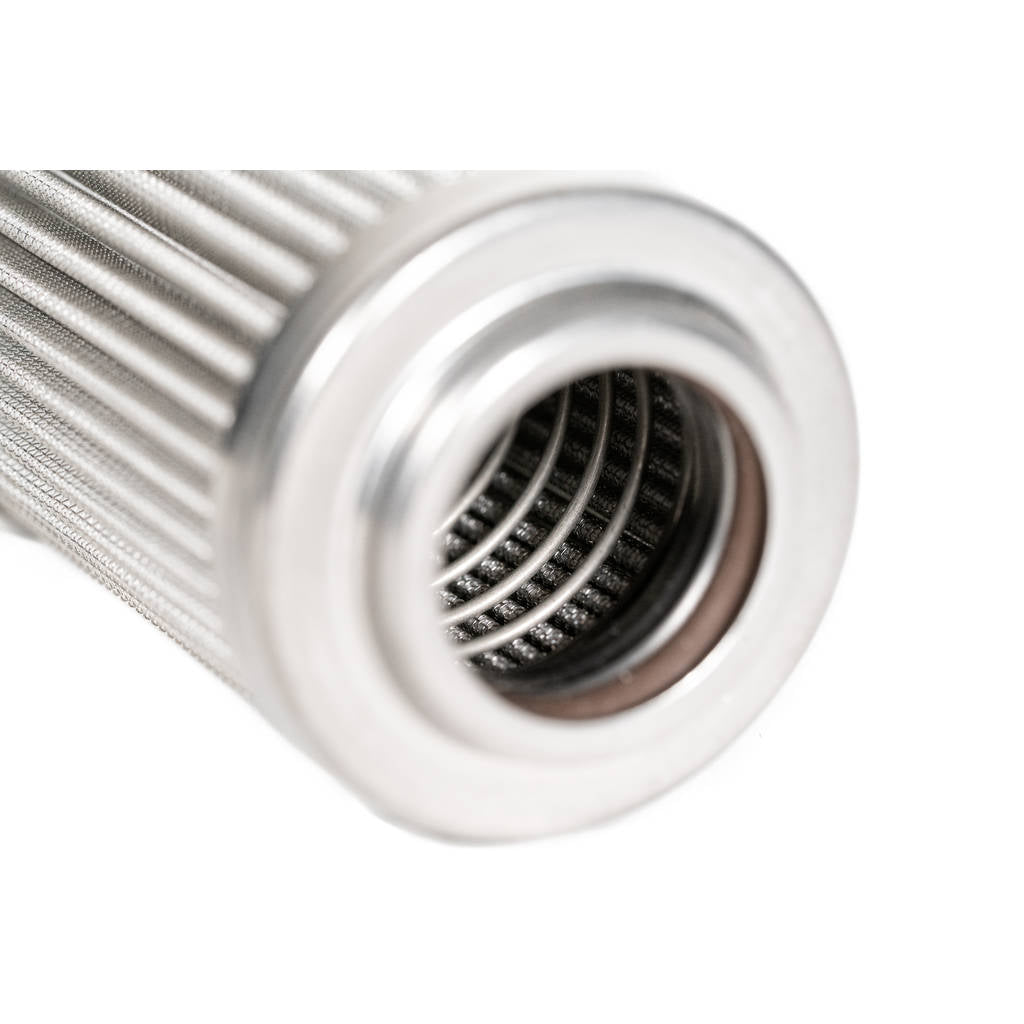

The most important part of any fuel filter kit is the filter element itself. Without a quality filter element designed specifically for the intended fuel type, a fuel filter kit would be ineffective. For this reason, a 6 micron glass filter element from a top tier automotive fuel system component manufacturer was chosen. This allows the AMS Nissan Z Fuel Filter to filter particulate down to 6 microns in size for a high level of engine protection.

This 6 micron glass filter is one of the finest fuel filter elements specifically for the VR30 engine, and is selected to protect the engine while providing confirmed compatibility with all fuel types, from gasoline to ethanol and methanol. While this glass filter is a more expensive option, it offers durability and compatibility where cellulose (paper) filters found in cheaper kits have been known to break down when used with ethanol based fuels.

Warning: By purchasing this fuel system component the purchaser confirms that the following has been read and understood: WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. THIS FLEX FUEL KIT MUST BE INSTALLED AND REMOVED ONLY BY A QUALIFIED MOTORSPORT TECHNICIAN. THE TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS KIT FROM THIS SPECIFIC VEHICLE. THE TECHNICIAN MUST NOT PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING THIS KIT AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.

Product Notes: The fuel filter element is replaceable and cannot be cleaned: Fuelab 6 Micron / Micro-Fiberglass Element – 3 inch – with 2 O-Rings (Fuelab SKU# 71804).

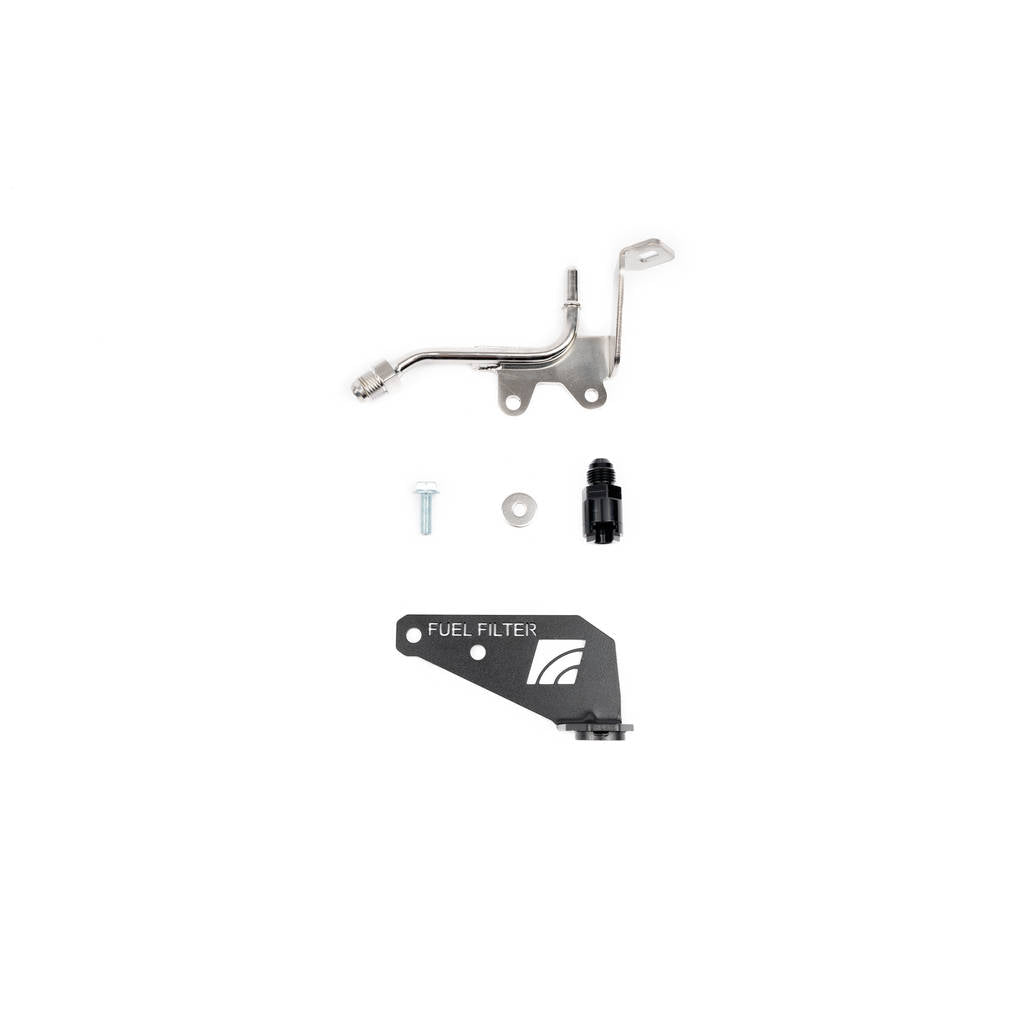

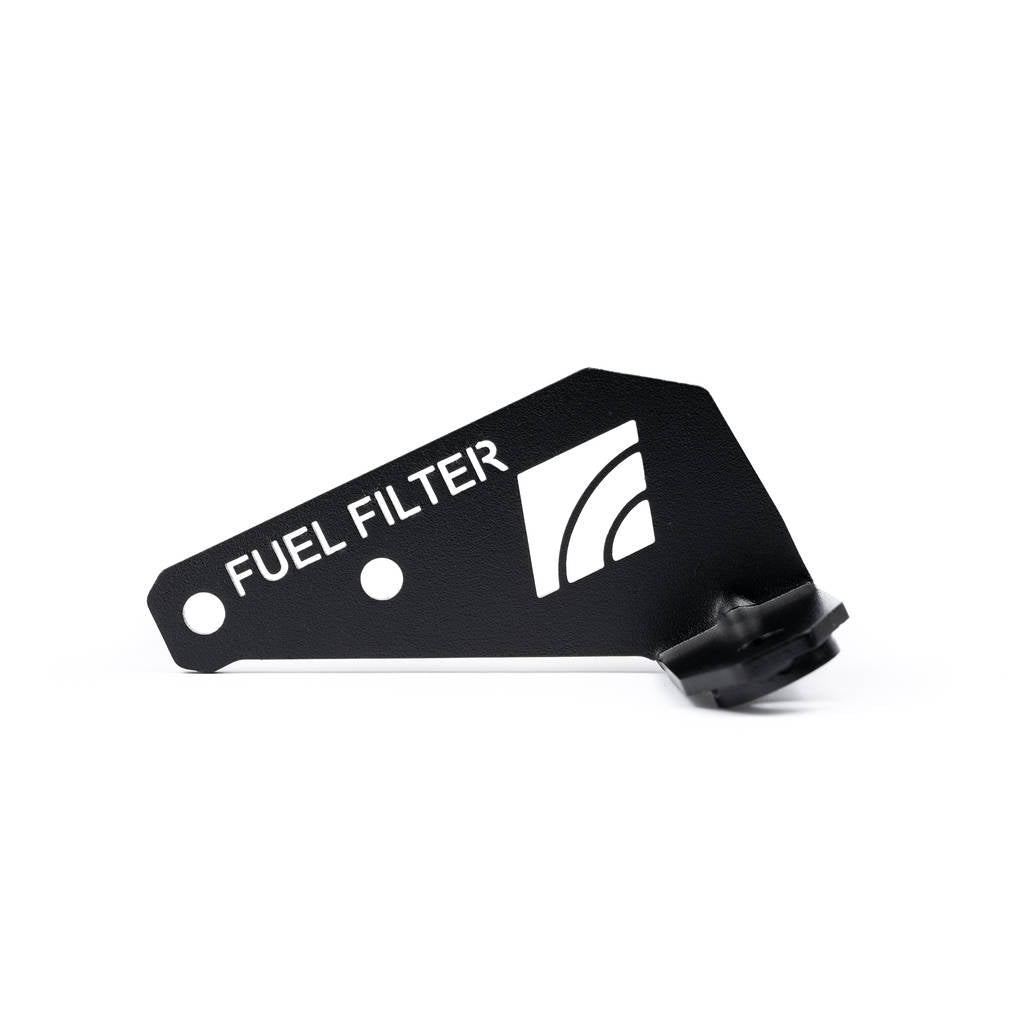

• CNC machined filter housing with built-in mounting solution to secure the unit and lines from dangerous movement
• 6 micron glass filter element for high filtering effectiveness and 100% ethanol compatibility
• Allows installation on factory stock fuel lines and fully integrates with the AMS Flex Fuel Kit (available separately)

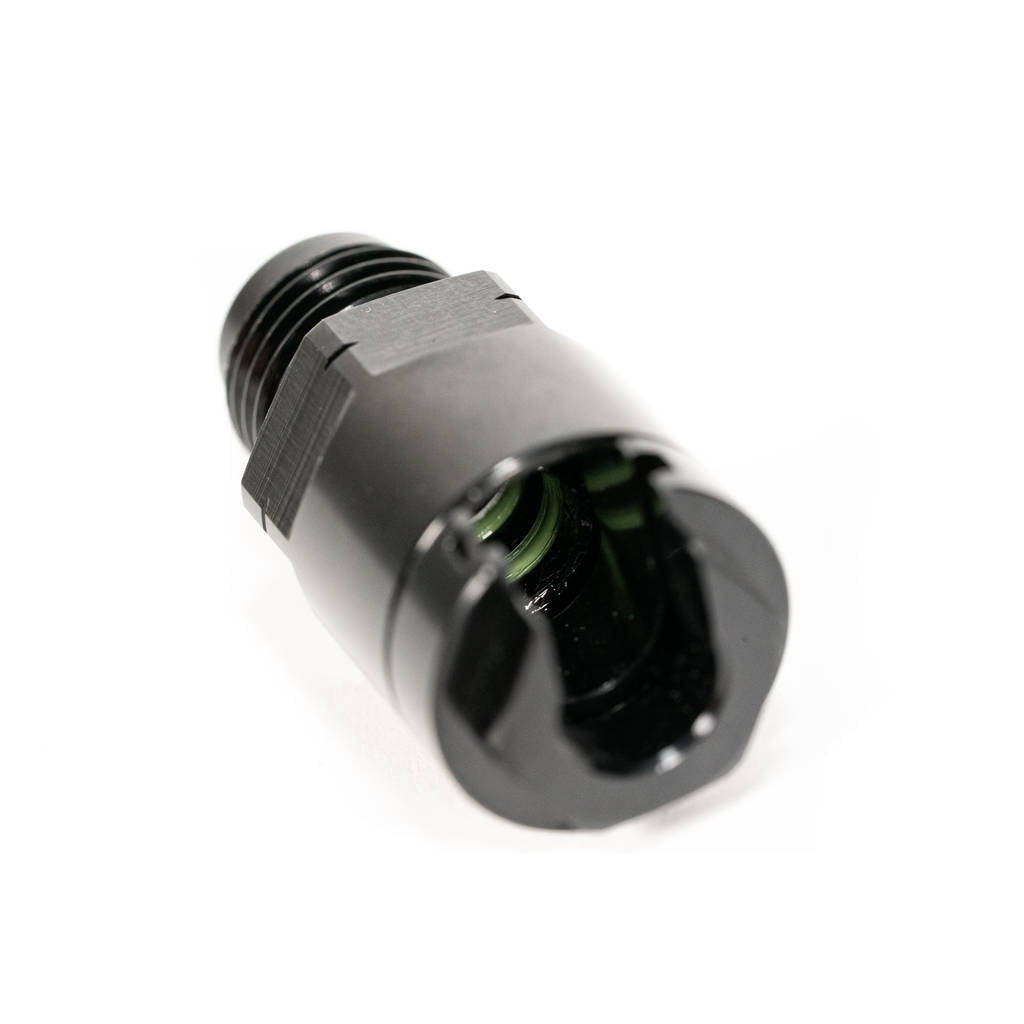

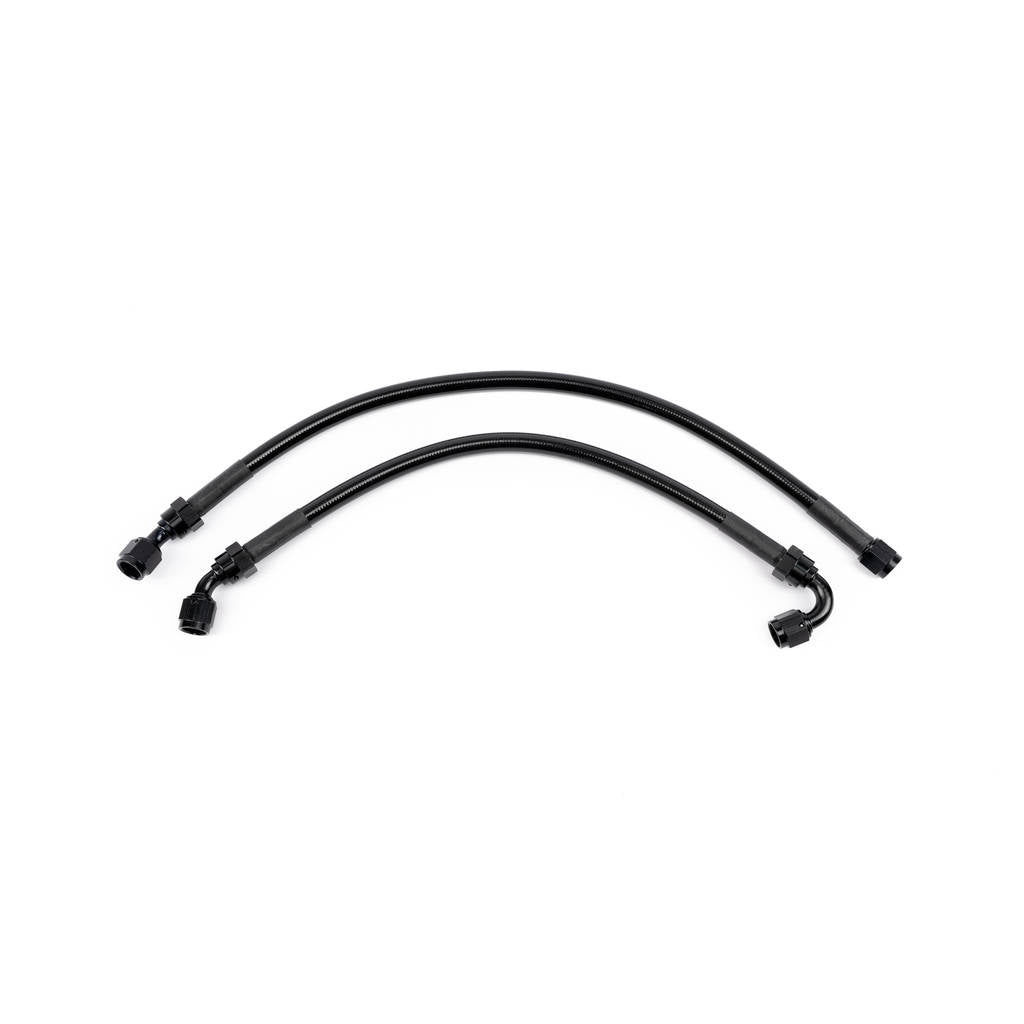

• Motorsport-grade AN fittings, aluminum quick connect fittings, and race grade black nylon coated E85 compatible -6AN braided hose for bolt-in installation with no permanent vehicle modification

Vehicle Compatibility:

• 2023+ Nissan Z with VR30DDTT engine (all sub-models)
