AMS AMS.38.14.0001-1 Turbo Kit ALPHA 6 GTX3076 GEN II for TOYOTA GR Supra (A90) 2020

Description AMS AMS.38.14.0001-1 Turbo Kit ALPHA 6 GTX3076 GEN II for TOYOTA GR Supra (A90) 2020

Adding more horsepower to the new Toyota GR Supra is made easier with the AMS Performance A90 2020 Toyota GR Supra Alpha 6 GTX3076 GEN II Turbo Kit. This kit is the platform's first publicly available internally gated full turbo kit that utilizes the OEM electronic wastegate. This advancement allows seamless integration with the OEM ECU for factory-style boost control.

The GR Supra’s electronic wastegate system excels at boost response compared to mechanical alternatives, providing optimal part throttle drivability and performance in on-off throttle situations, such as those encountered on a road course.

Engineered with minimal bends and restrictions, the turbo kit efficiently feeds more air through the intake and exhaust path into the B58 engine. CNC machined adapters allow AN coolant and oil lines to install directly to the engine for a leak-free fit. The design supports direct bolt-in installation, compatibility with A/C and power steering, and easy reversibility to stock configuration.

Note: A custom charge pipe solution must be fabricated during turbo kit installation, unless the AMS Performance GR Supra 3″ Charge Pipe is used.

• Utilizes GTX3076 Gen II Garrett Turbocharger with 58mm inducer
• Incorporates factory electronic wastegate for OEM-like boost control
• Hand fabricated 304L stainless steel exhaust manifold and 3.5″ downpipe
• Includes all ancillary components, hardware, lines, and couplers

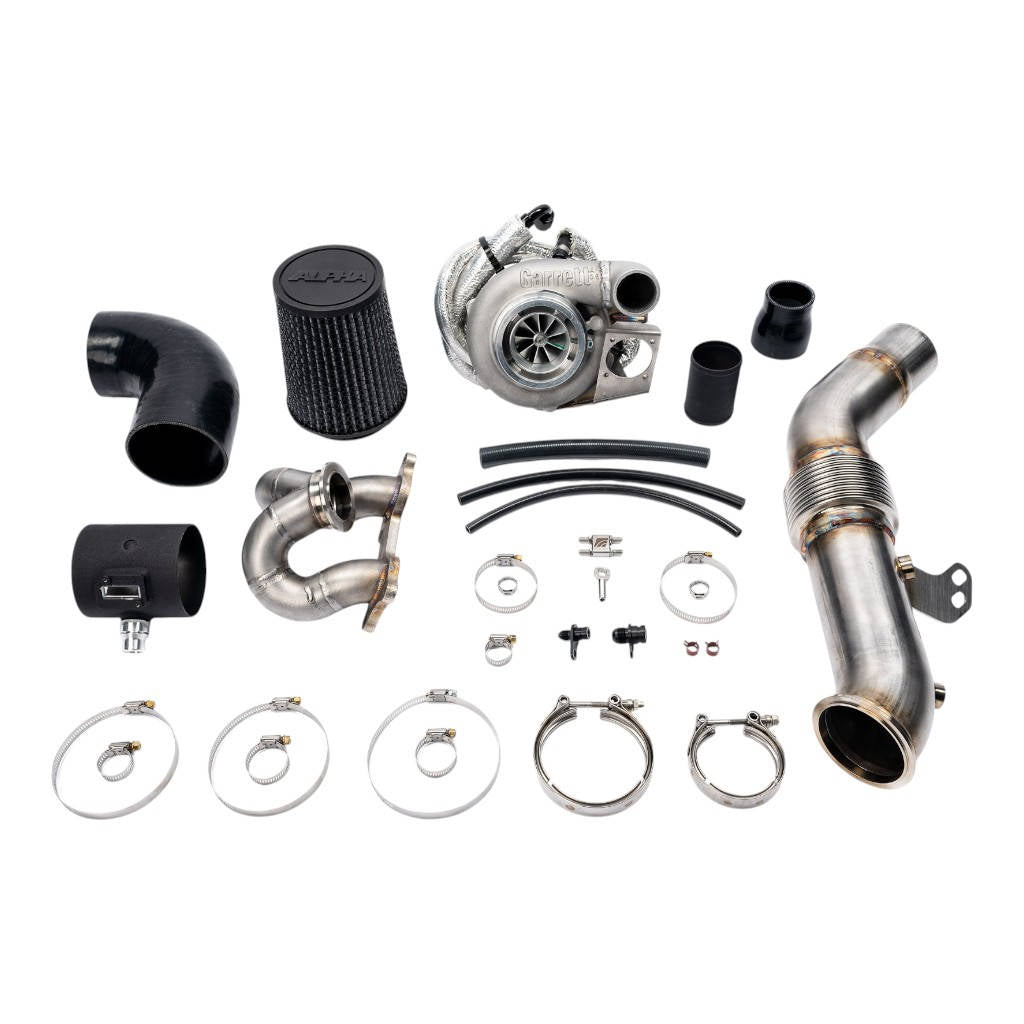

Kit comes with:

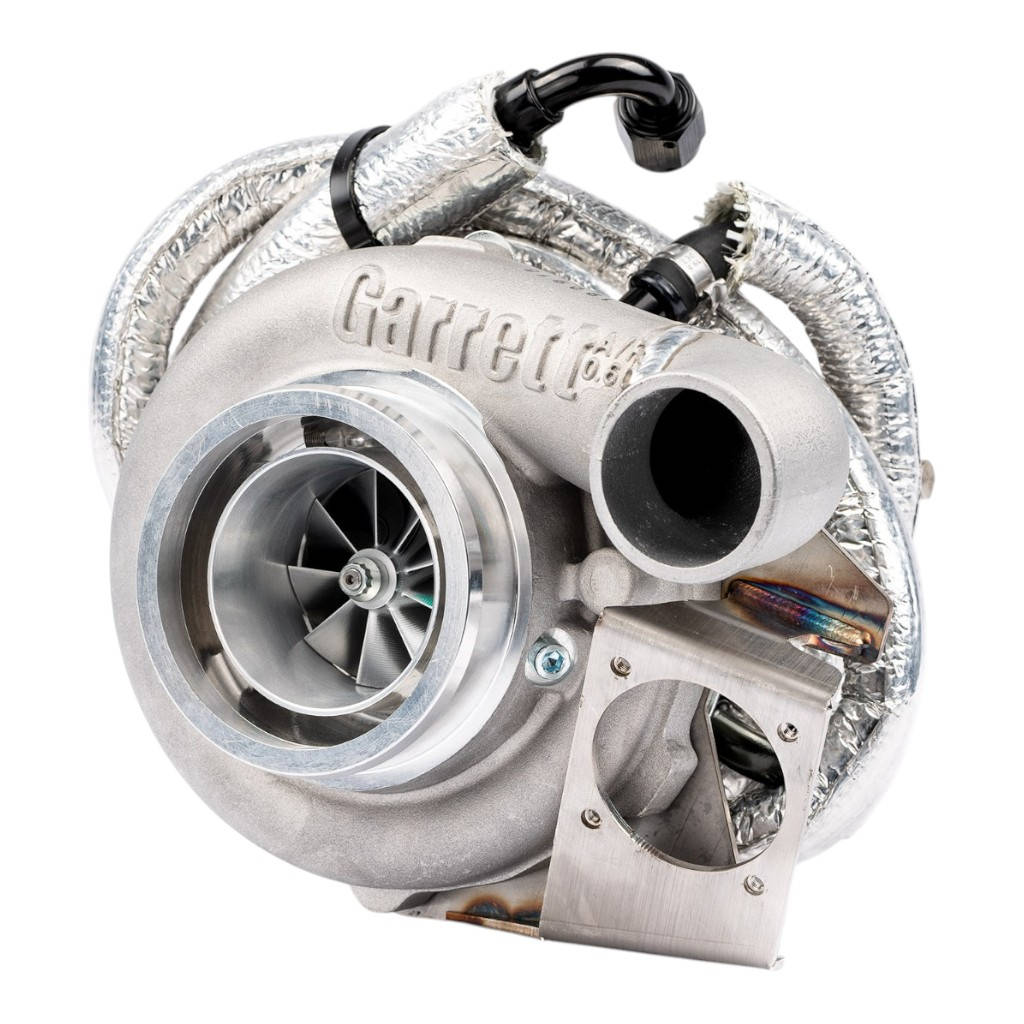

• GTX3076R Gen II Garrett Turbocharger

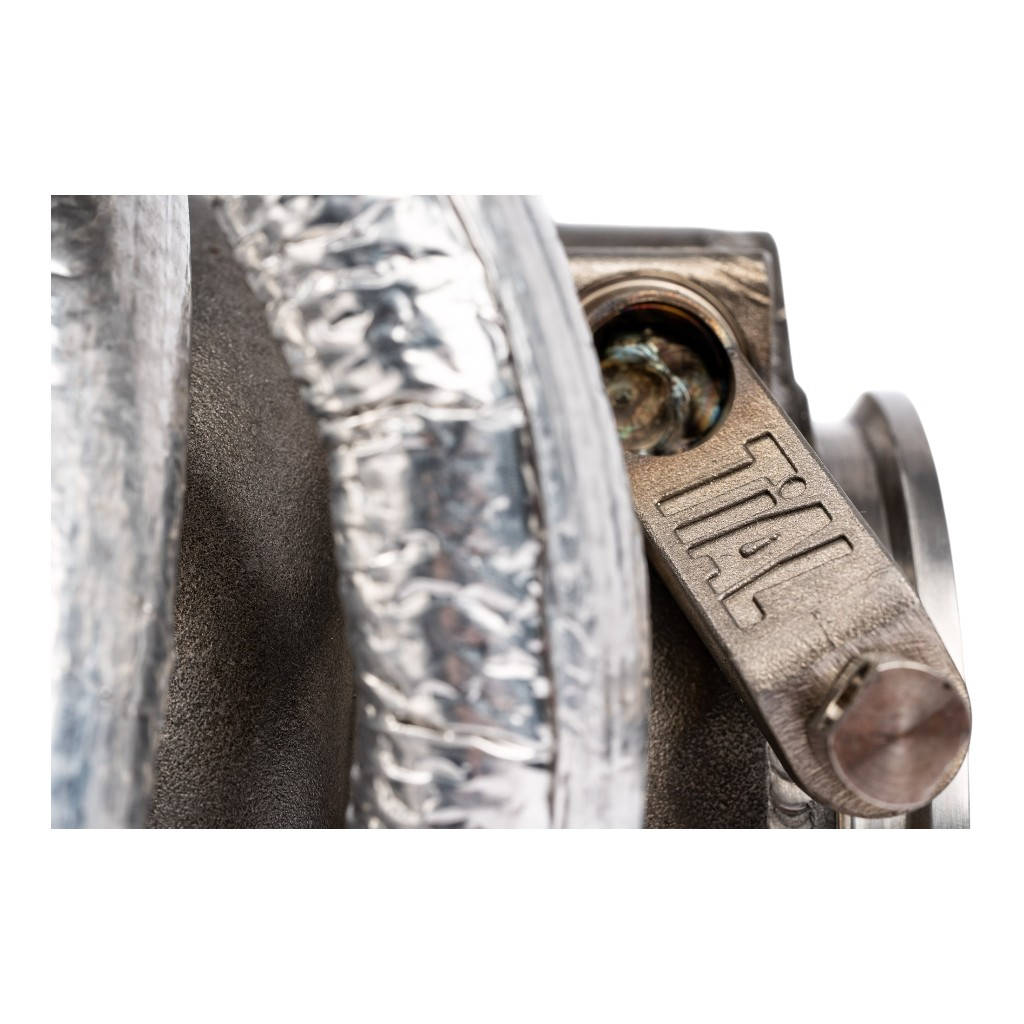

• TiAL Internal Wastegate Exhaust Housing with 3.5″ V-Band Discharge

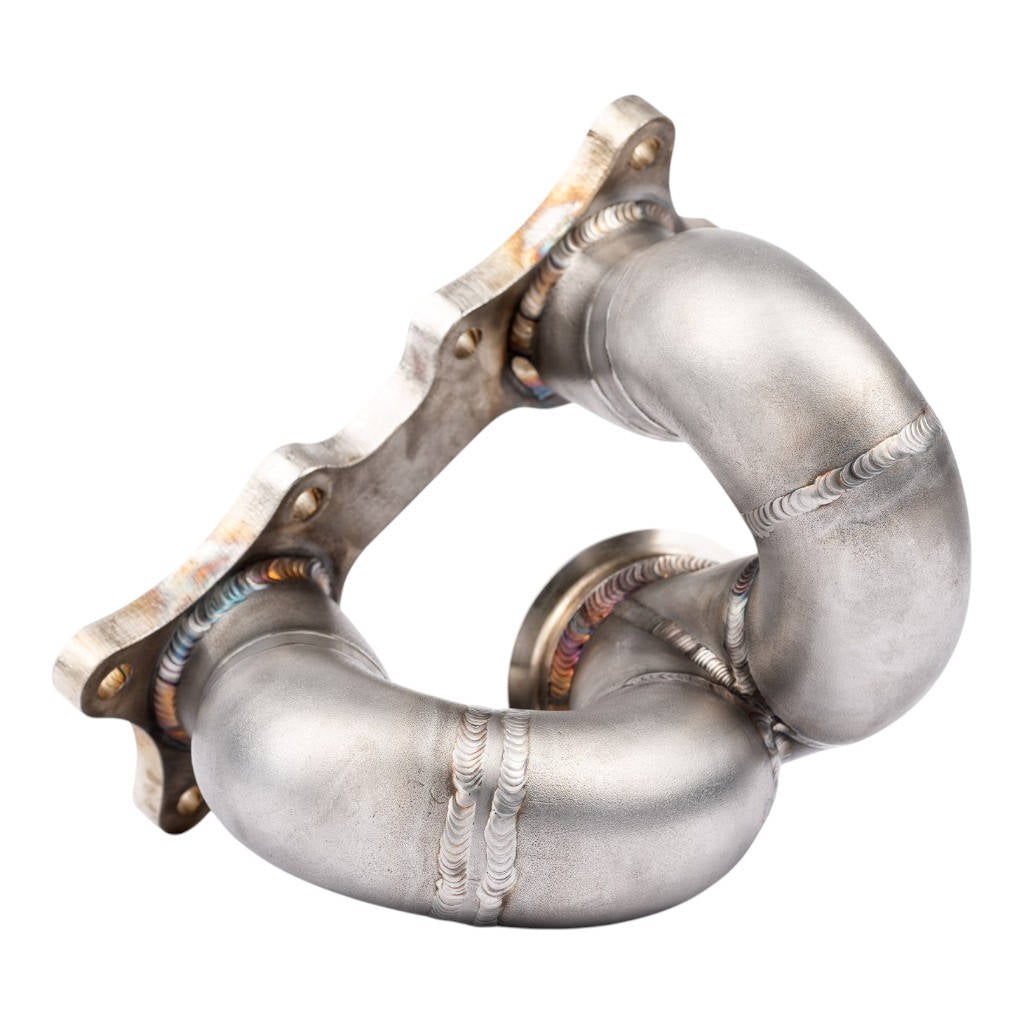

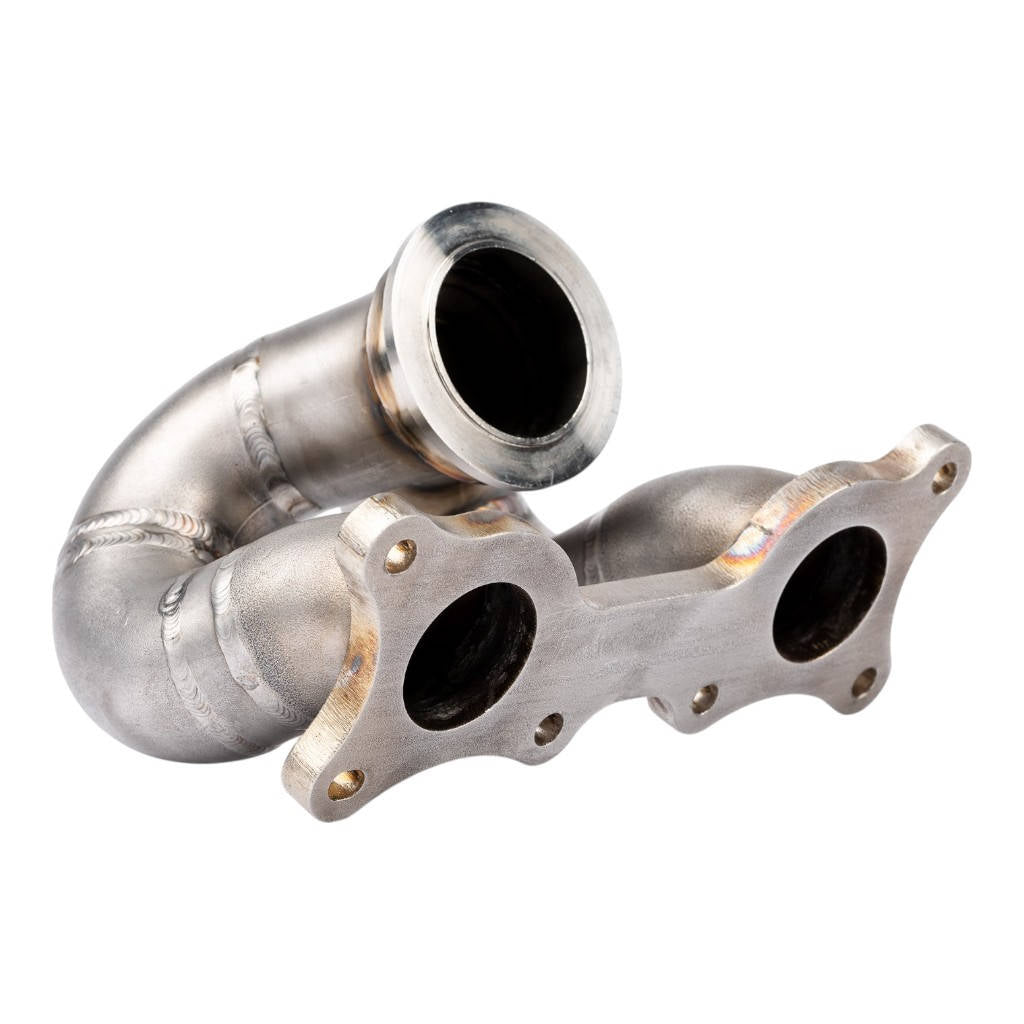

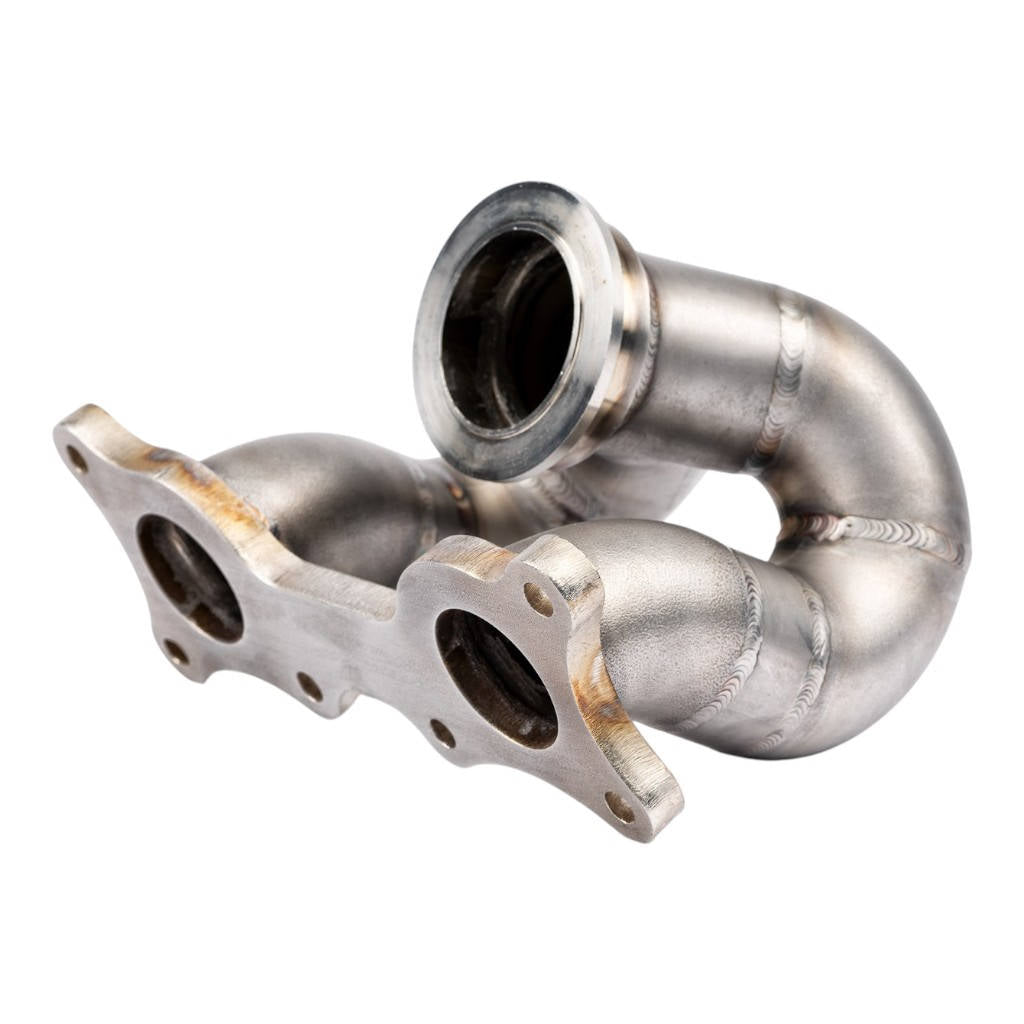

• AMS Performance Exhaust Manifold with 1.5″ Primaries

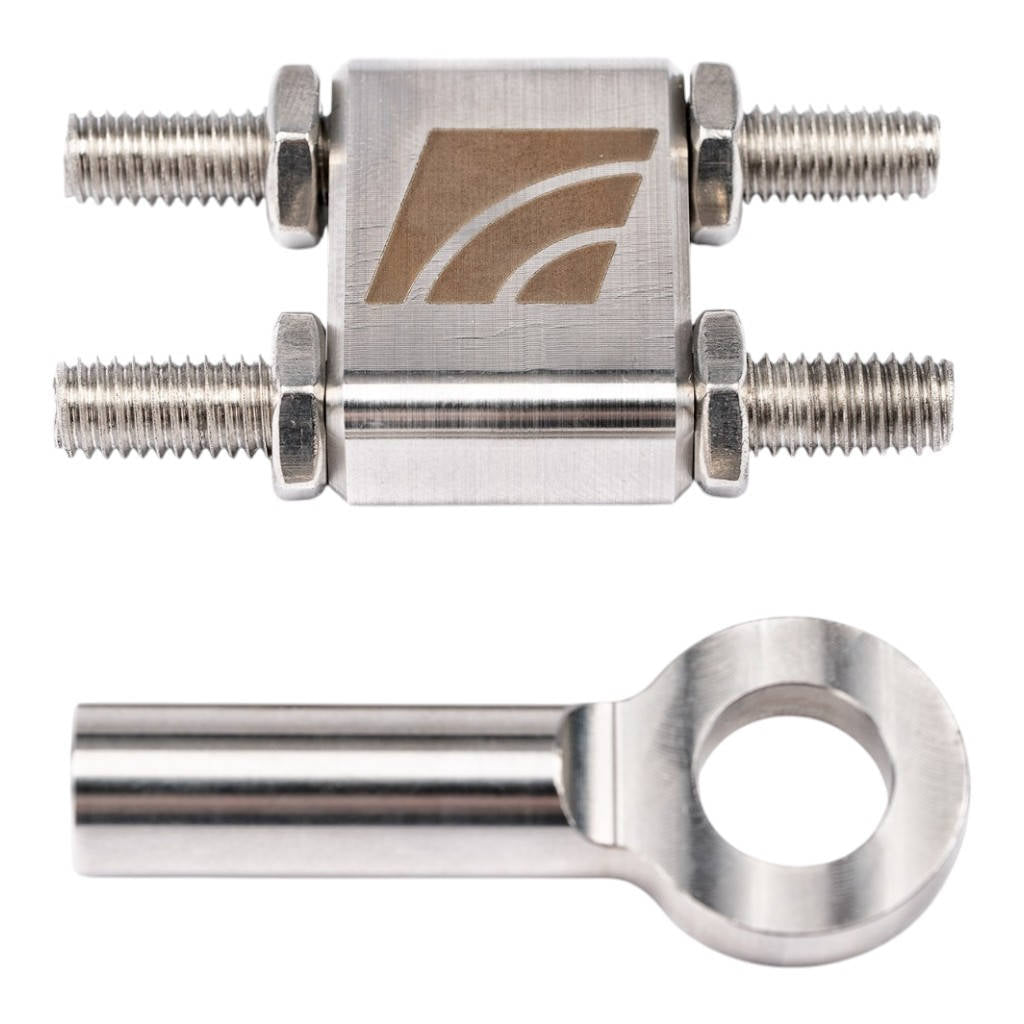

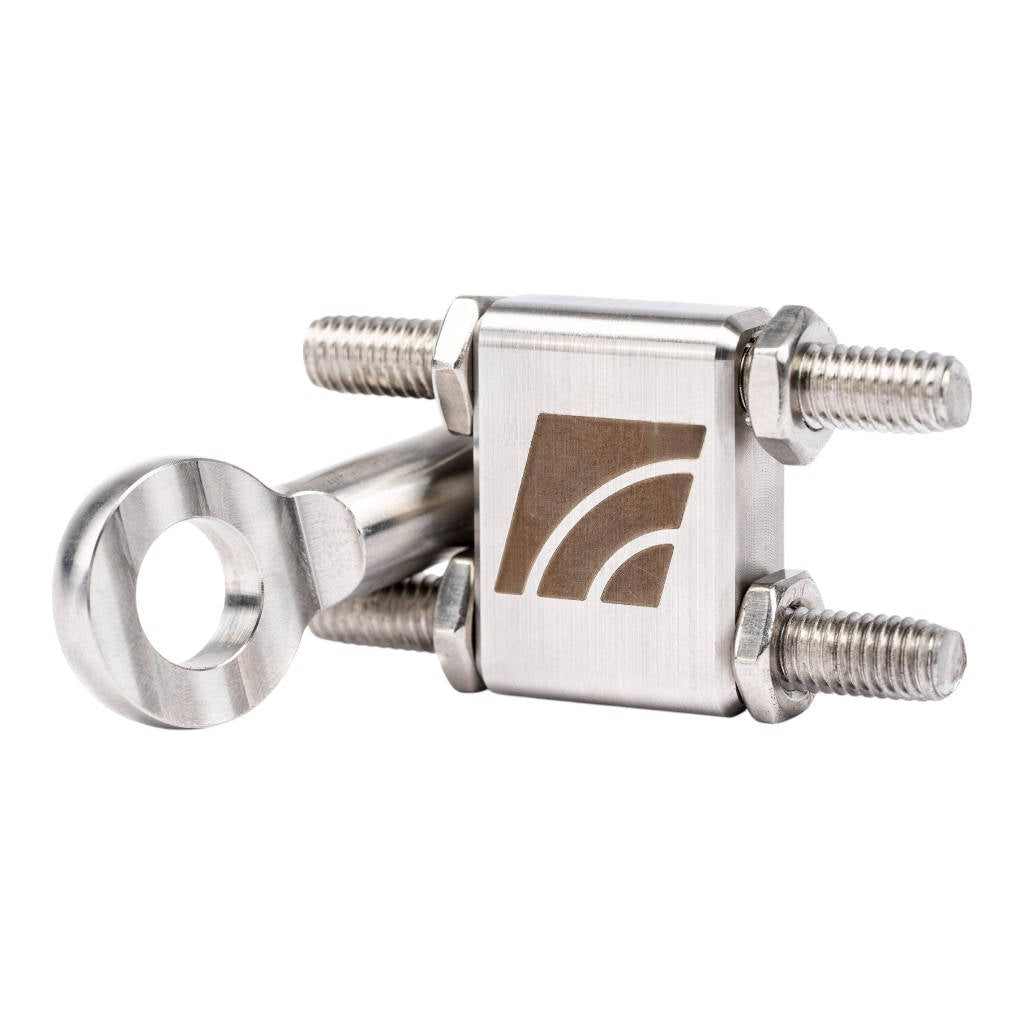

• AMS Performance CNC Billet Aluminum Wastegate Rod Adapter

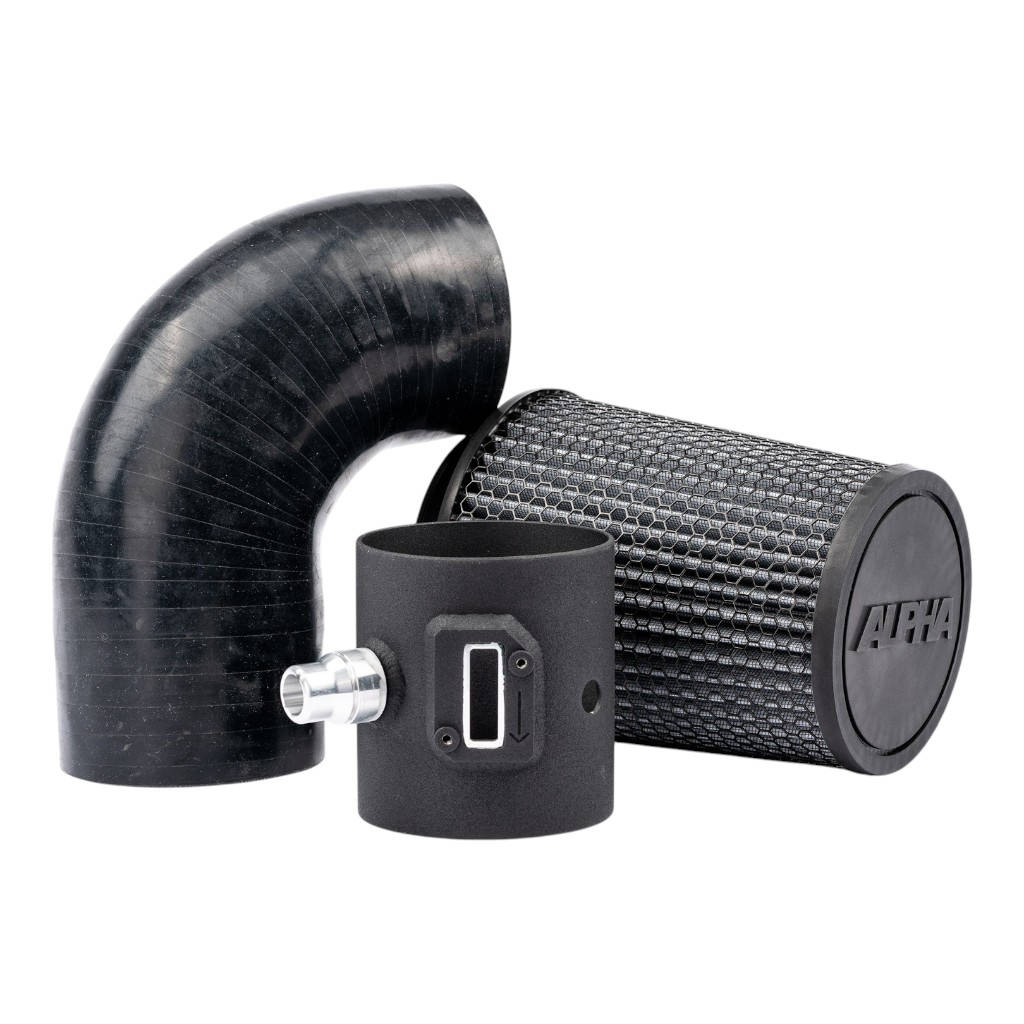

• AMS Performance Powder Coated 4″ Aluminum Intake Piping with Sensor Bung

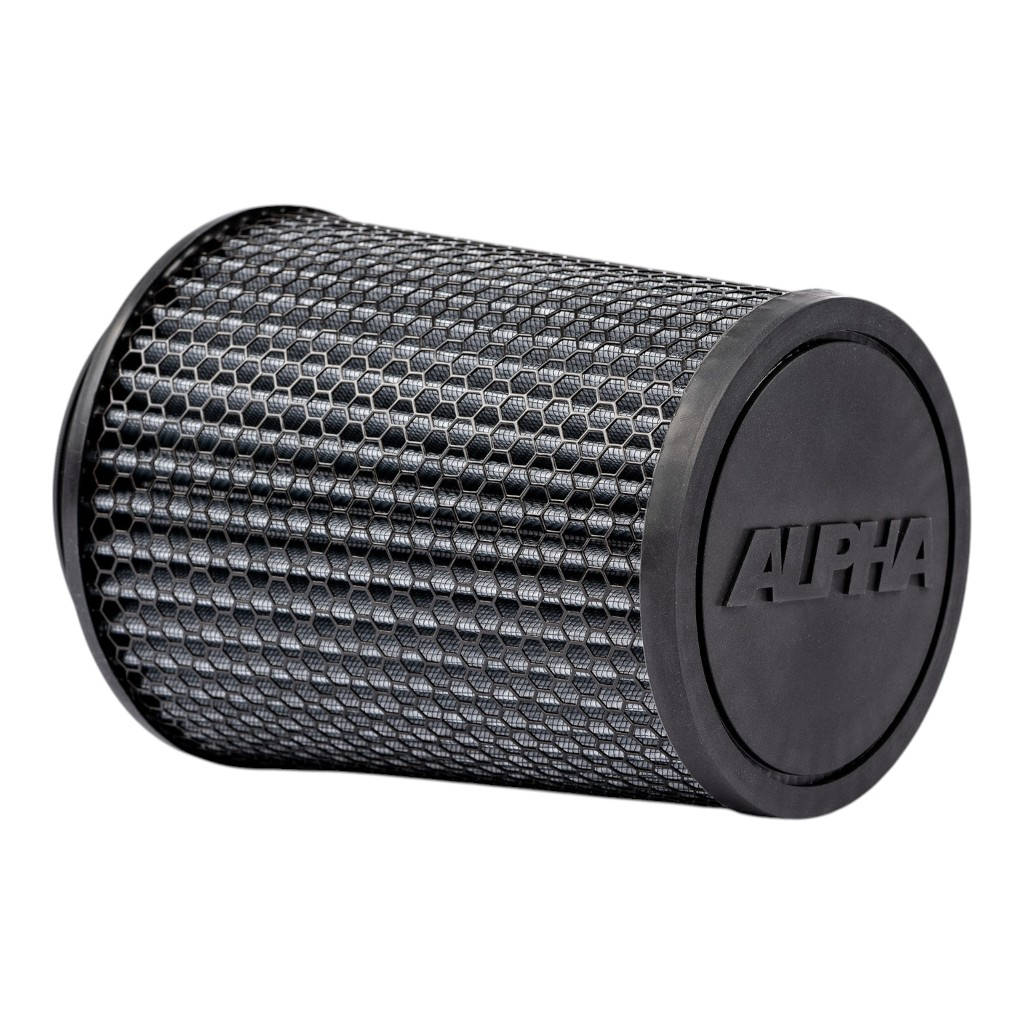

• AMS Performance Dry Media Air Filter

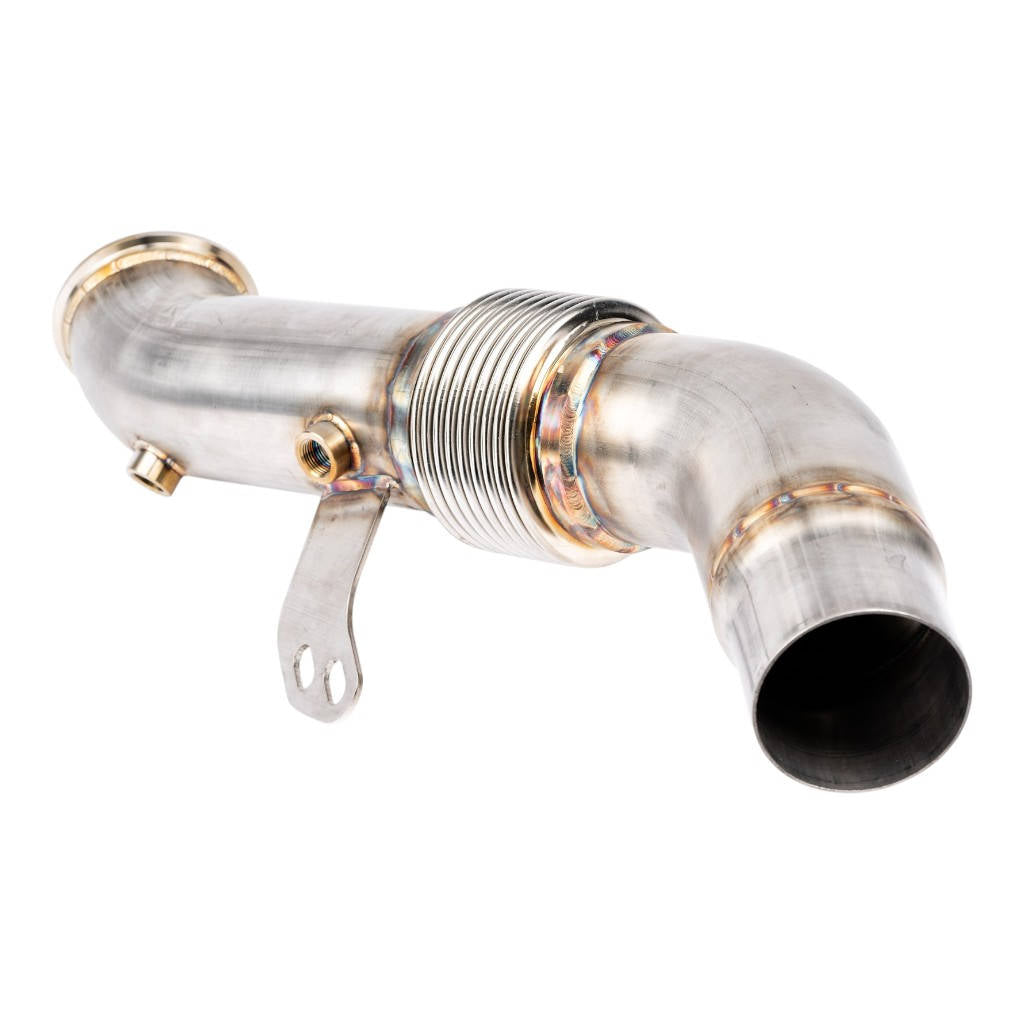

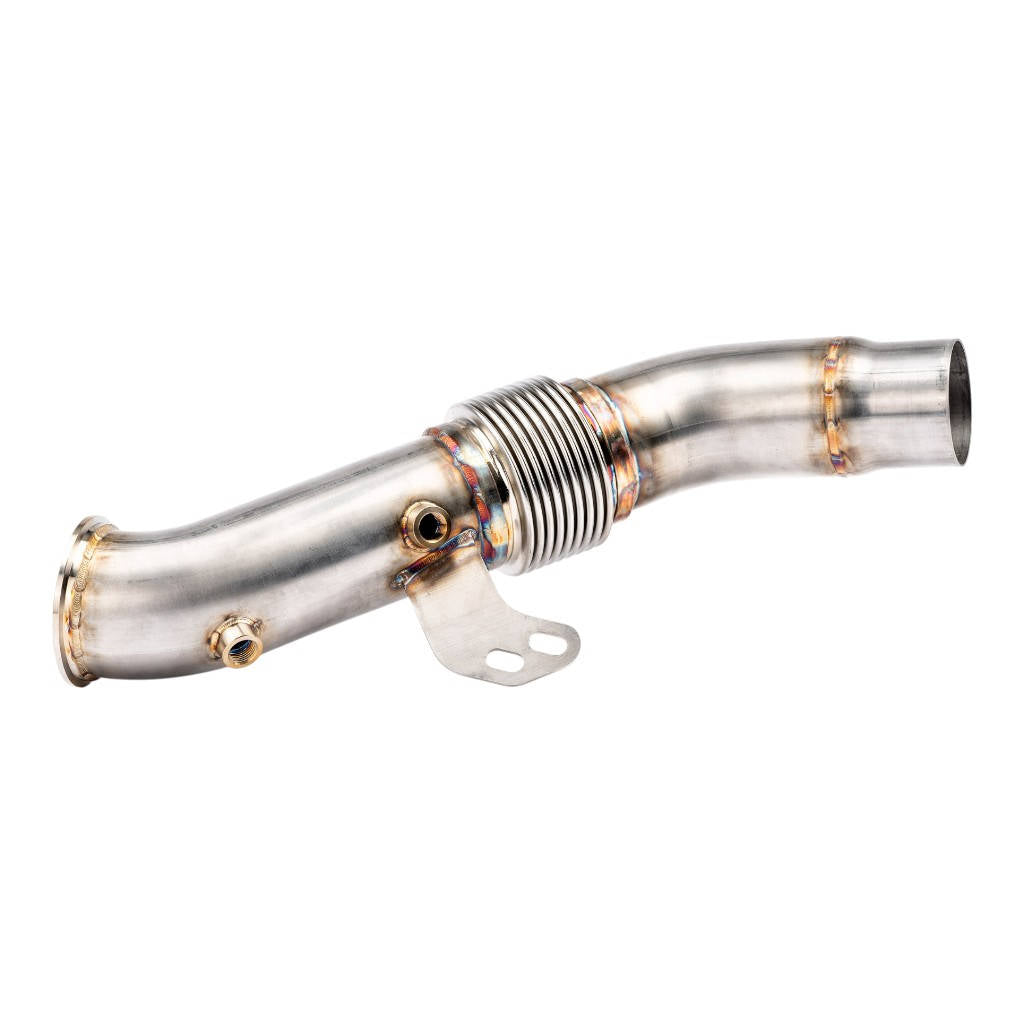

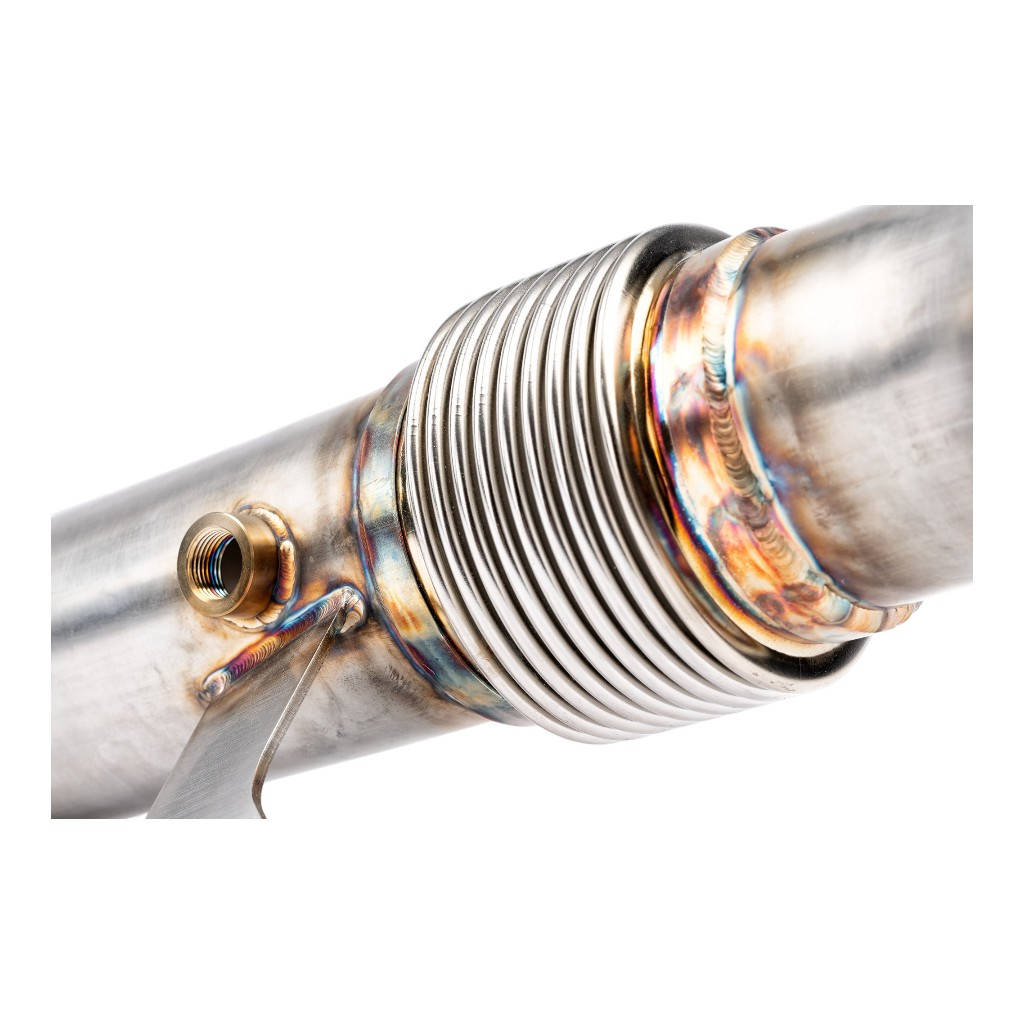

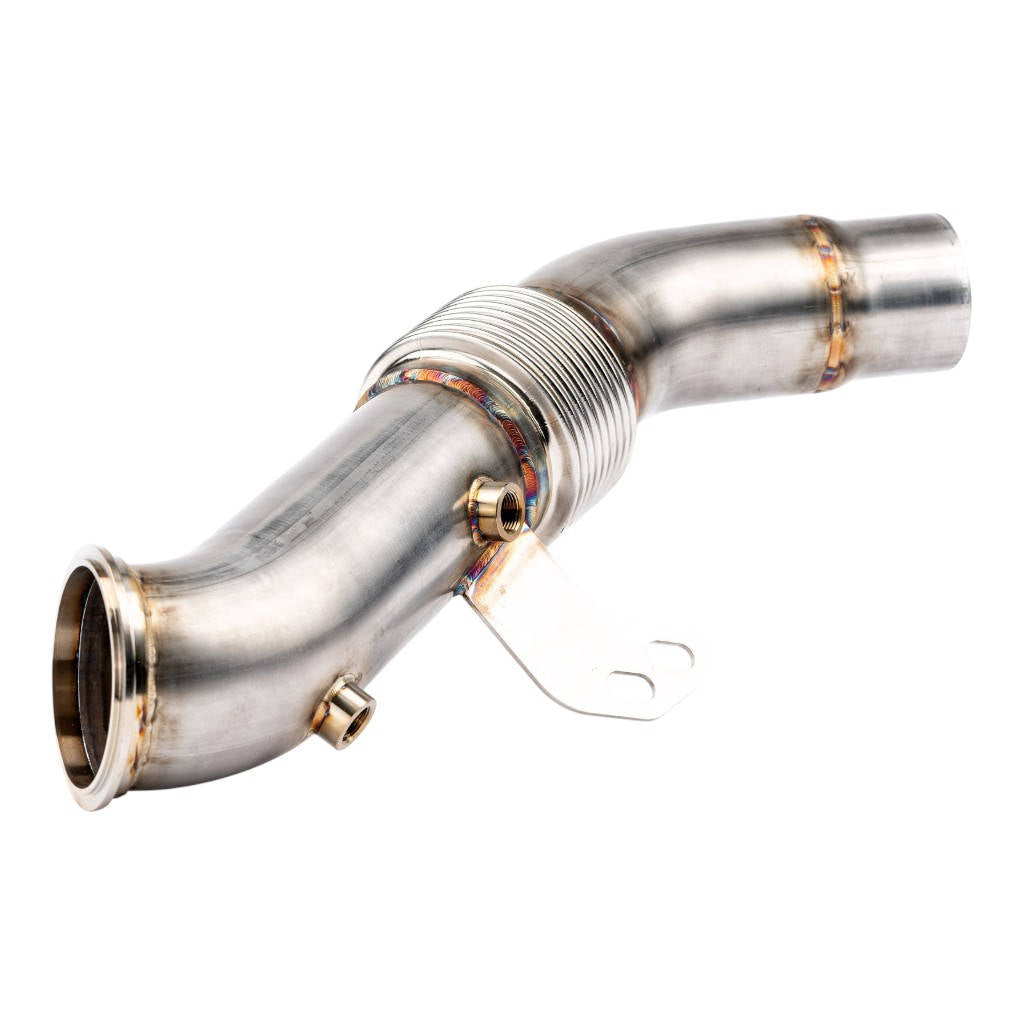

• AMS Performance Tig Welded 3.5″ 304L Stainless Steel Downpipe

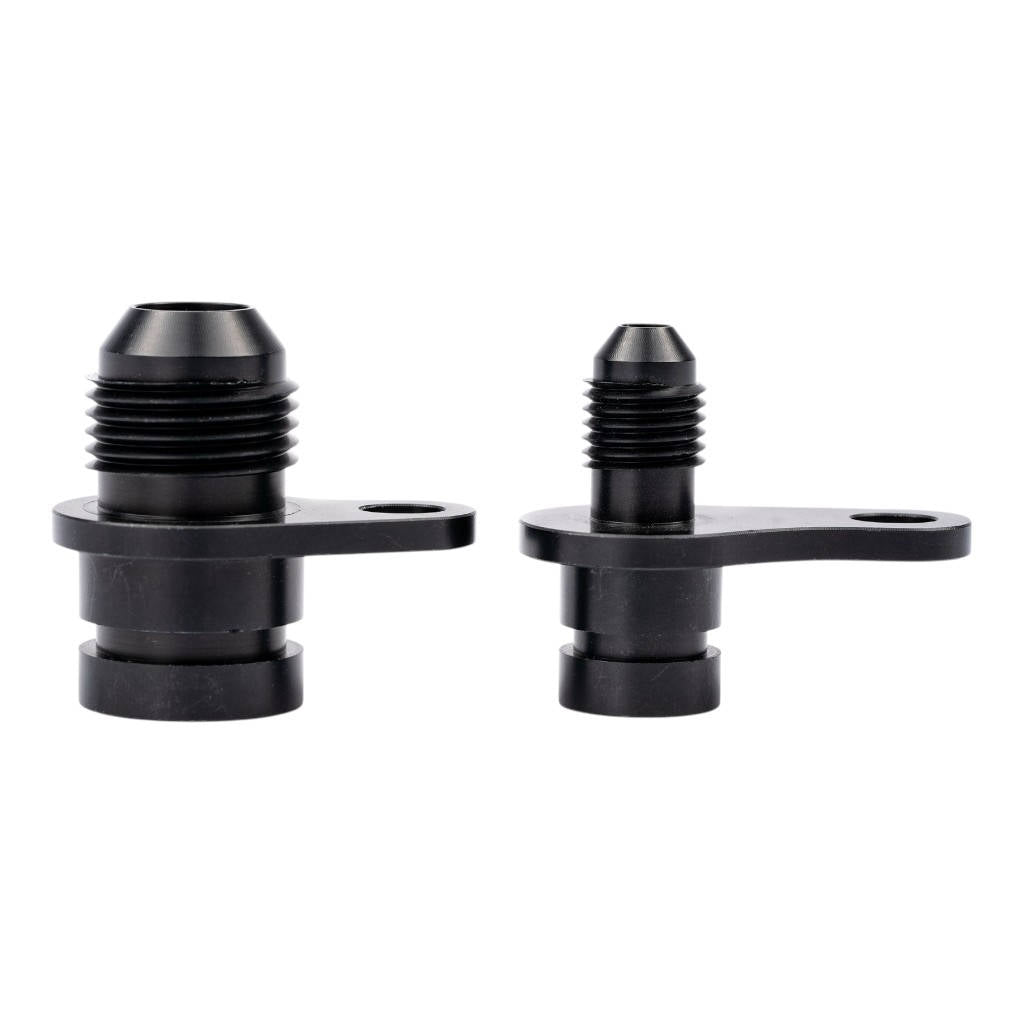

• AMS Performance CNC Billet Aluminum Oil and Water Port AN Adapter Fittings

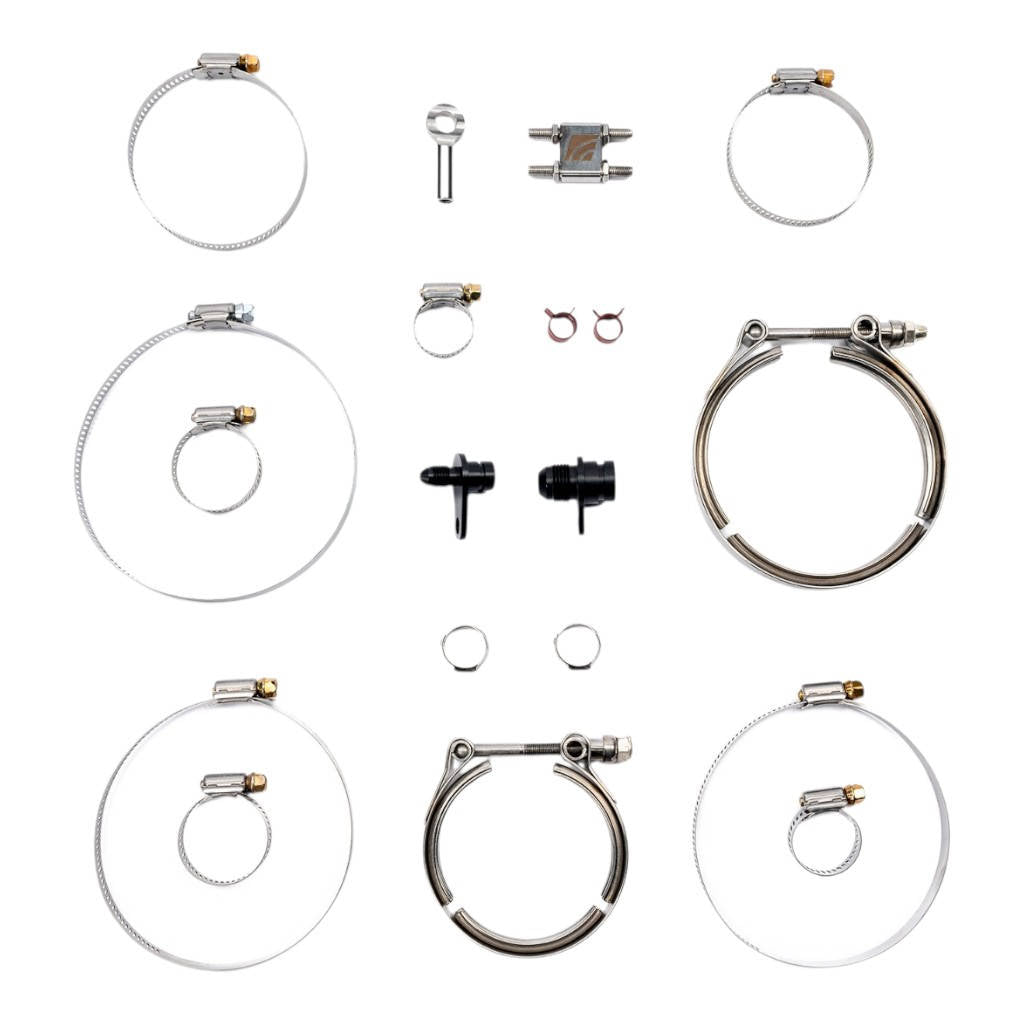

• AMS Performance Ancillary Components, including all hardware, lines, and couplers

Vehicle Compatibility:

• 2020 Toyota GR Supra with B58 3.0L Turbo Engine (2 Port)
