AMS AMS.04.07.0006-2 Aluminum Fuel Rail in Black with Pulsation Dampener for MITSUBISHI EVO X

Description AMS AMS.04.07.0006-2 Aluminum Fuel Rail in Black with Pulsation Dampener for MITSUBISHI EVO X

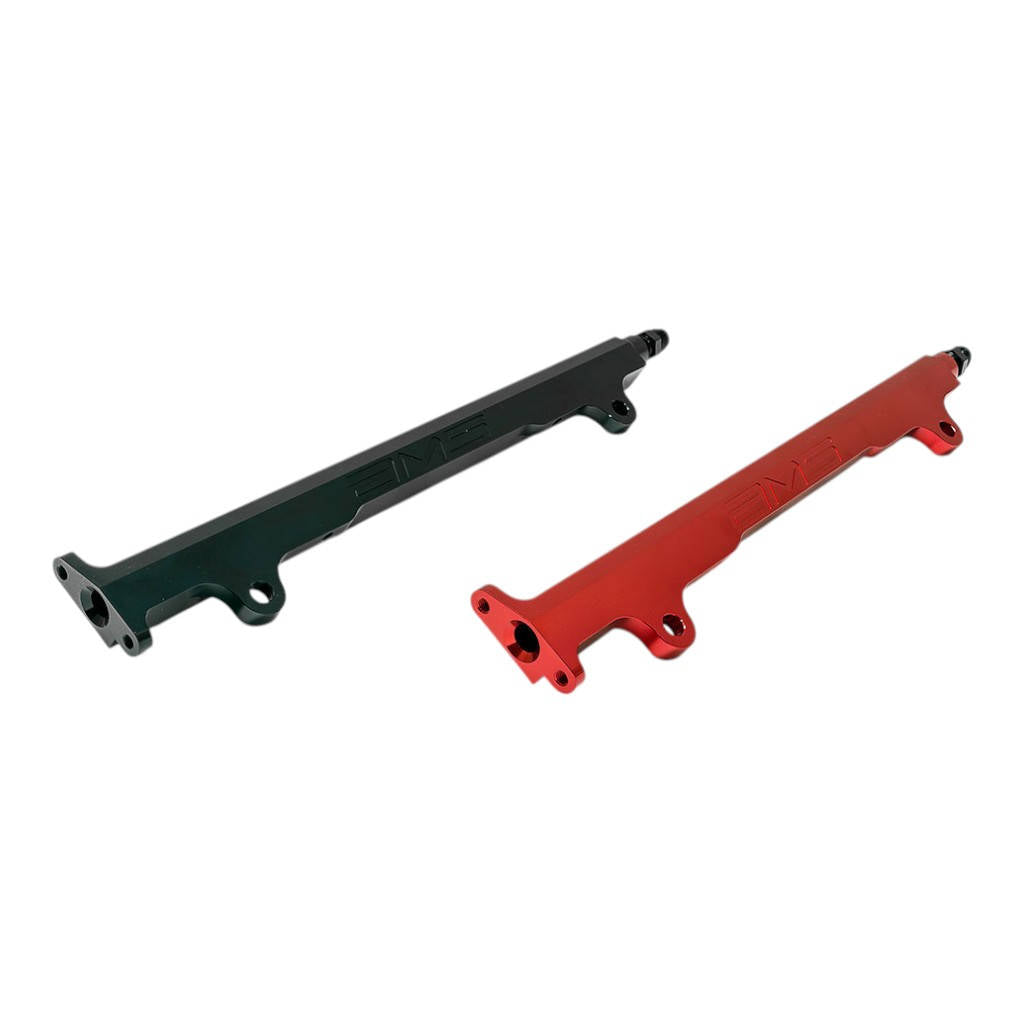

The AMS EVO X Fuel Rail is designed to provide increased fuel flow, which is essential at higher boost levels. This CNC-machined aluminum rail is available anodized in Red or Black and features the AMS logo. With a -6AN (7.5 mm) diameter inlet and outlet, it offers over 25% more flow area compared to the stock rail.

This bolt-on part installs with factory fuel lines and fuel pressure regulator, and is compatible with all factory style fuel injectors. The included -6AN braided fuel feed line further increases fuel flow by 25% and enhances safety by replacing the hard factory fuel feed line that may crack over time due to engine vibration.

Note: AMS does not recommend the use of any degreasers on anodized parts. If washing parts is needed, it is recommended to use soap and water.

• Precision CNC machined from 6061 billet aluminum
• Direct bolt-on installation with no modifications required
• Retains factory fuel pressure regulator and works with all factory style fuel injectors
• Available anodized in Red or Black with AMS logo

Specifications:

• Fuel inlet and outlet: -6AN (7.5 mm)
• Return port: 11 mm
• 1/4″ thick flanges and stanchions

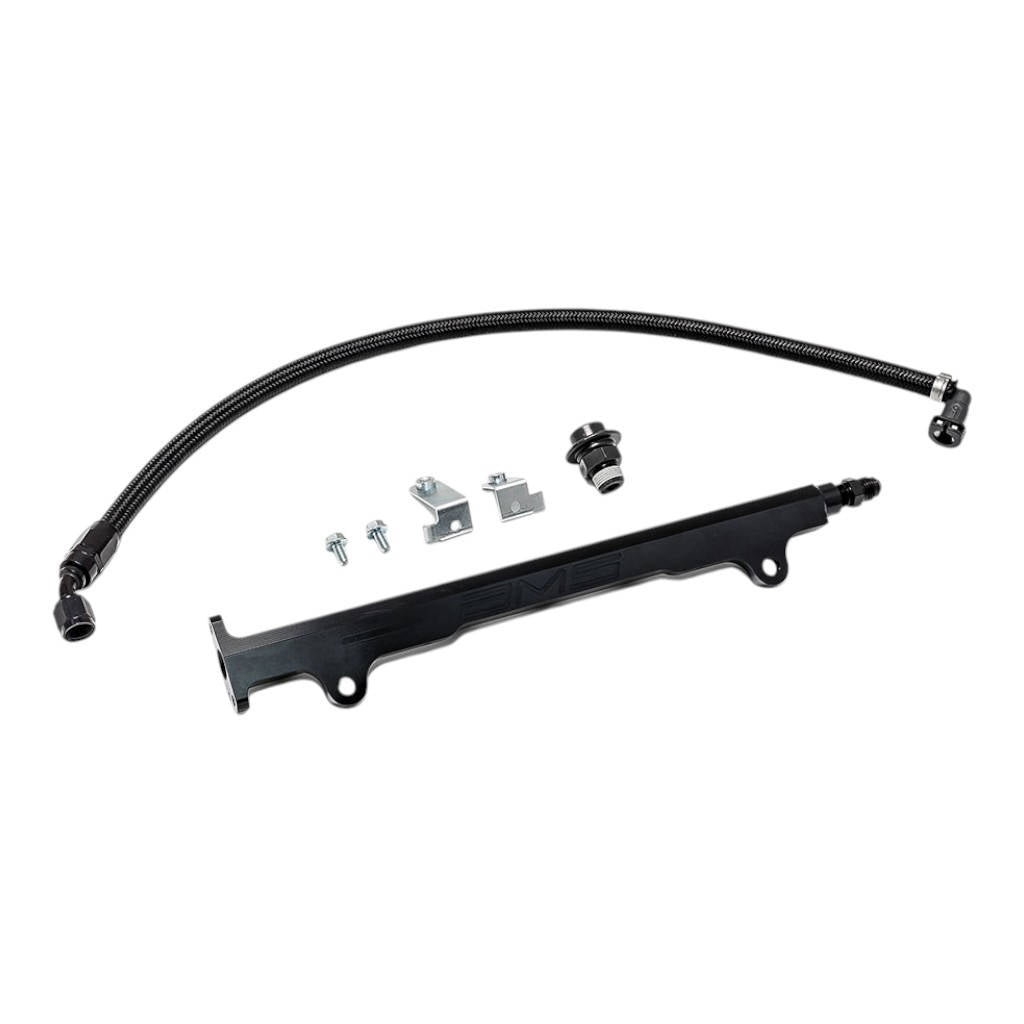

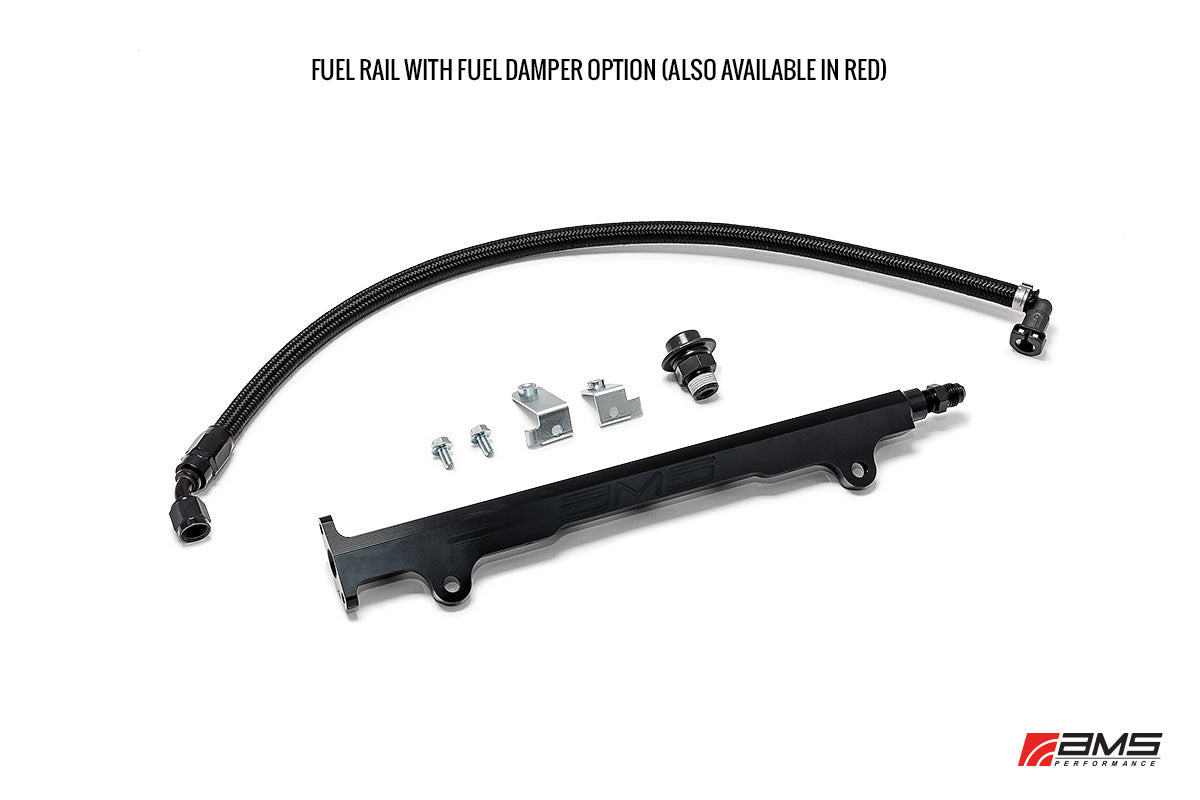

Kit comes with:

• Fuel Rail
• Fuel Feed line with appropriate fittings
• Fuel Pulsation Damper

Vehicle Compatibility:

• Mitsubishi Evolution 10 GSR & MR (all USDM, JDM, and European Models)
