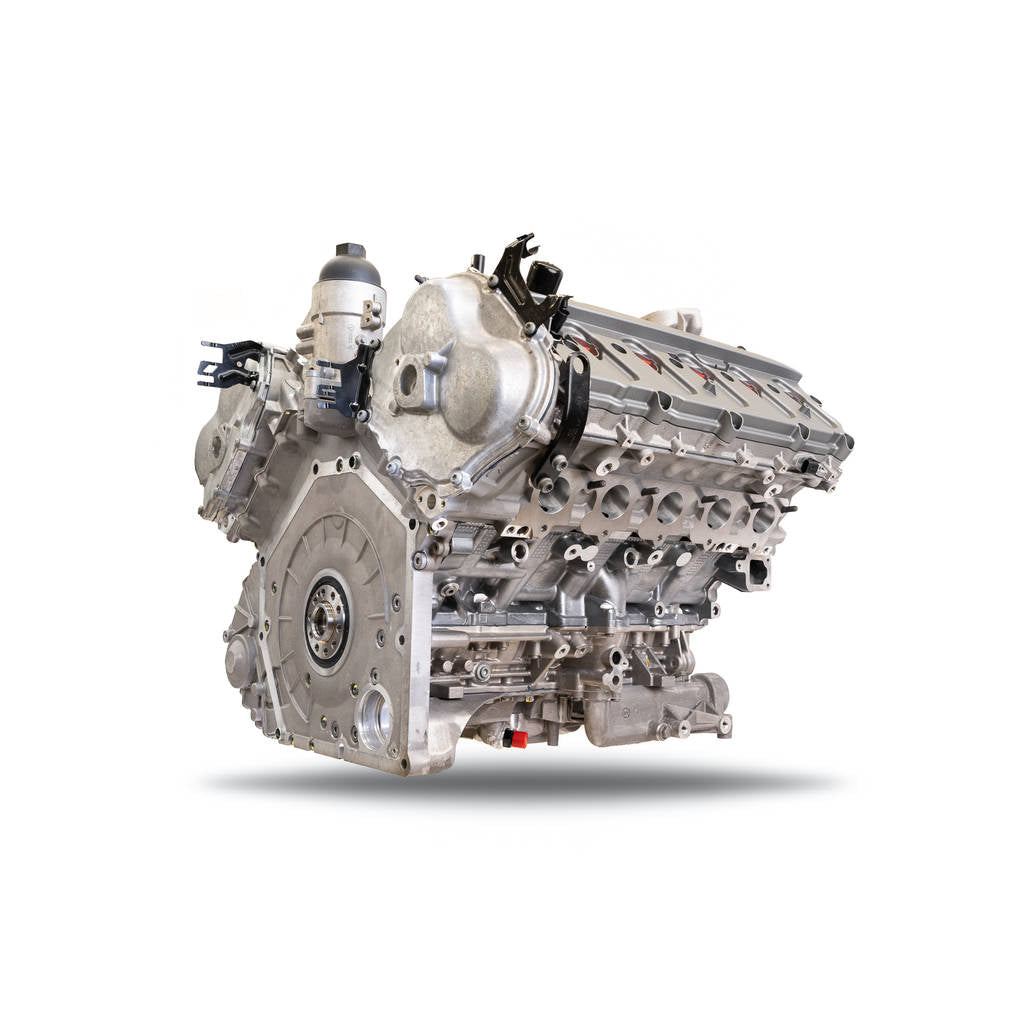

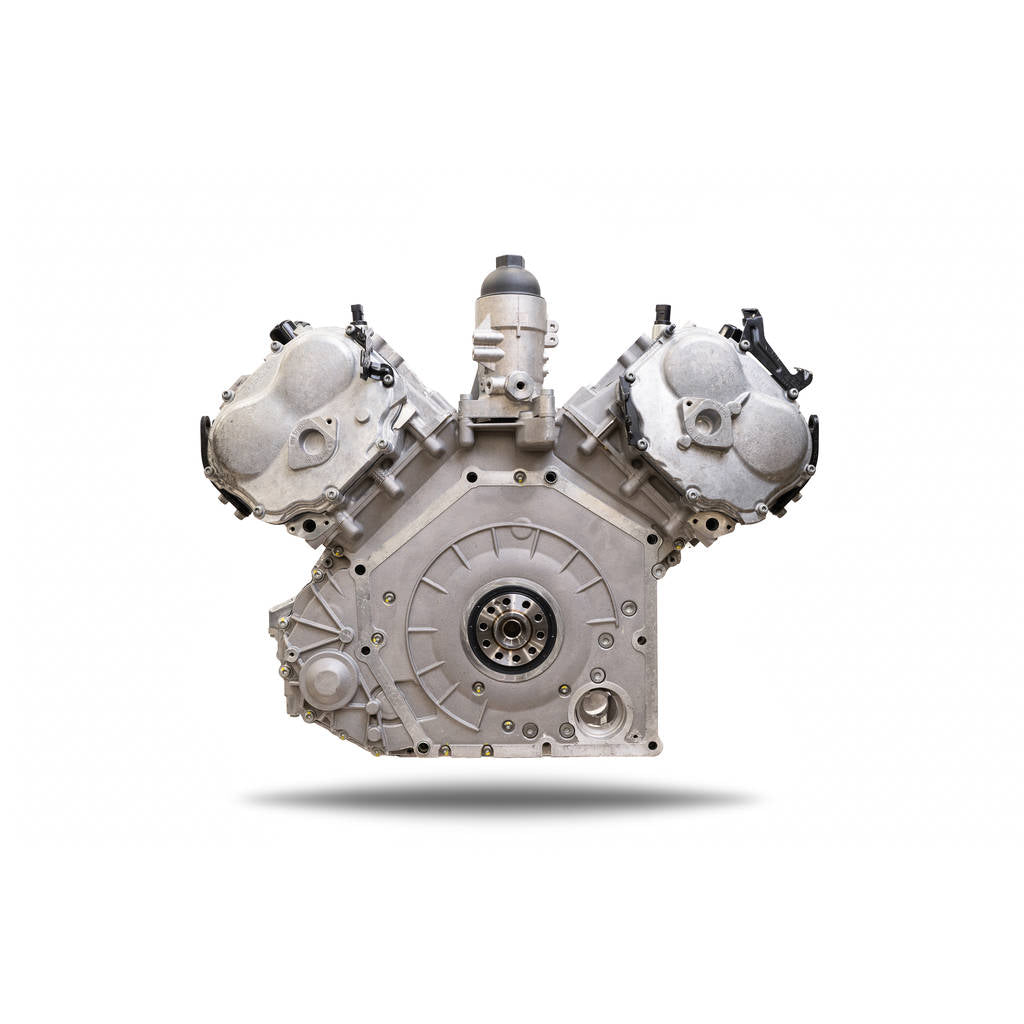

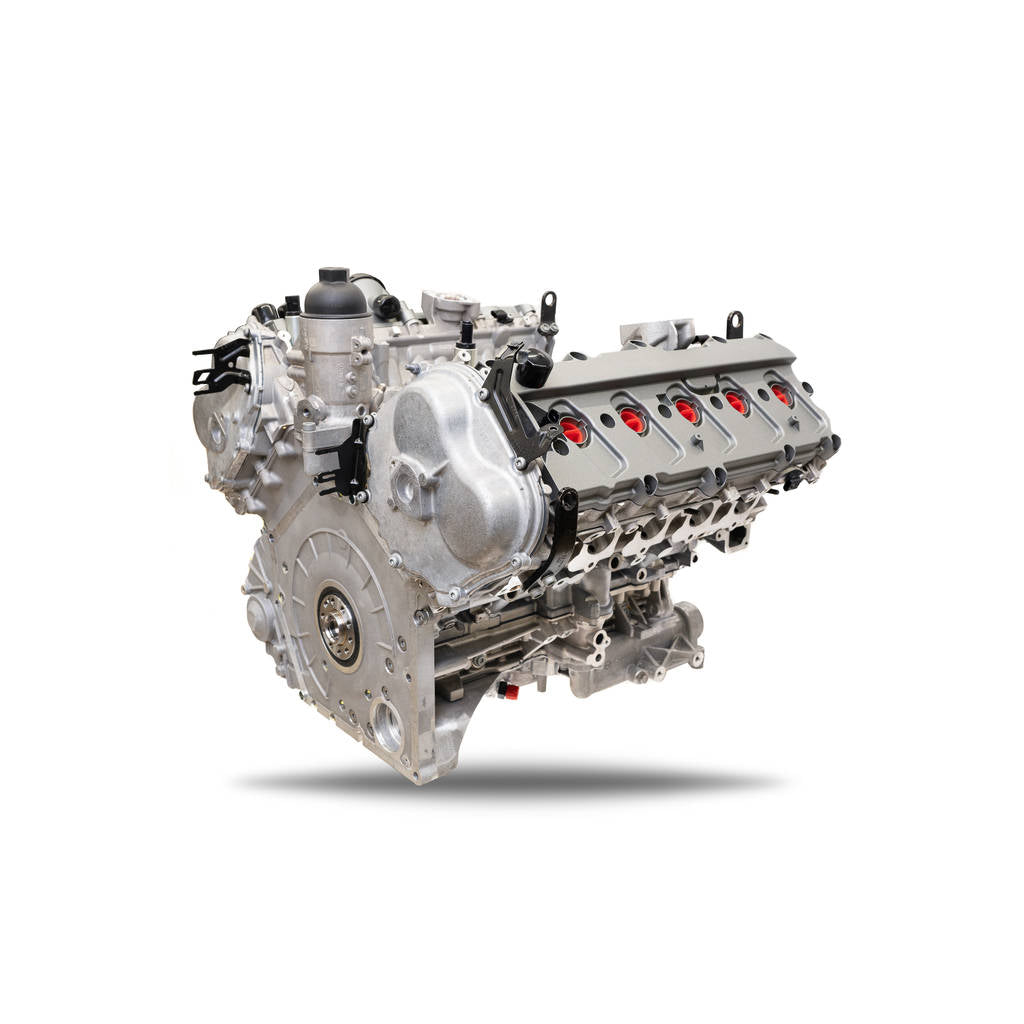

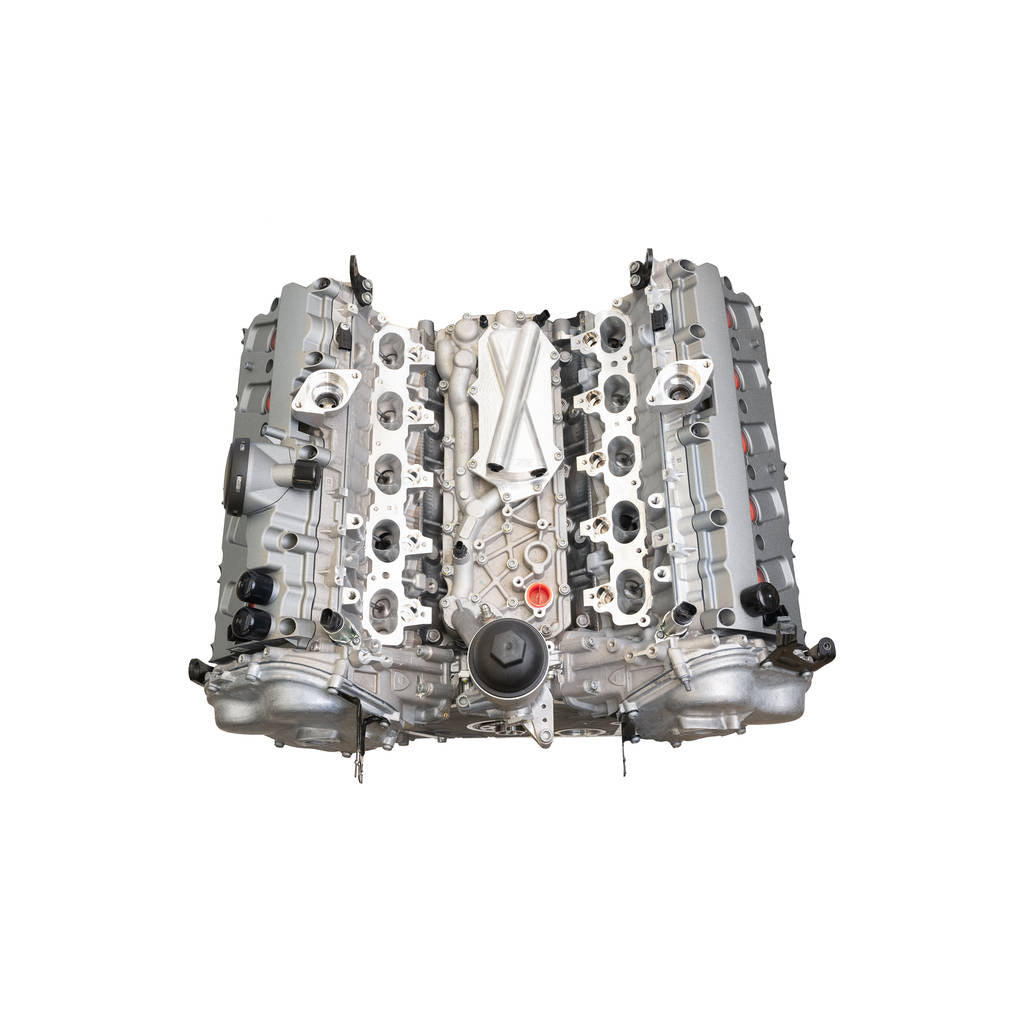

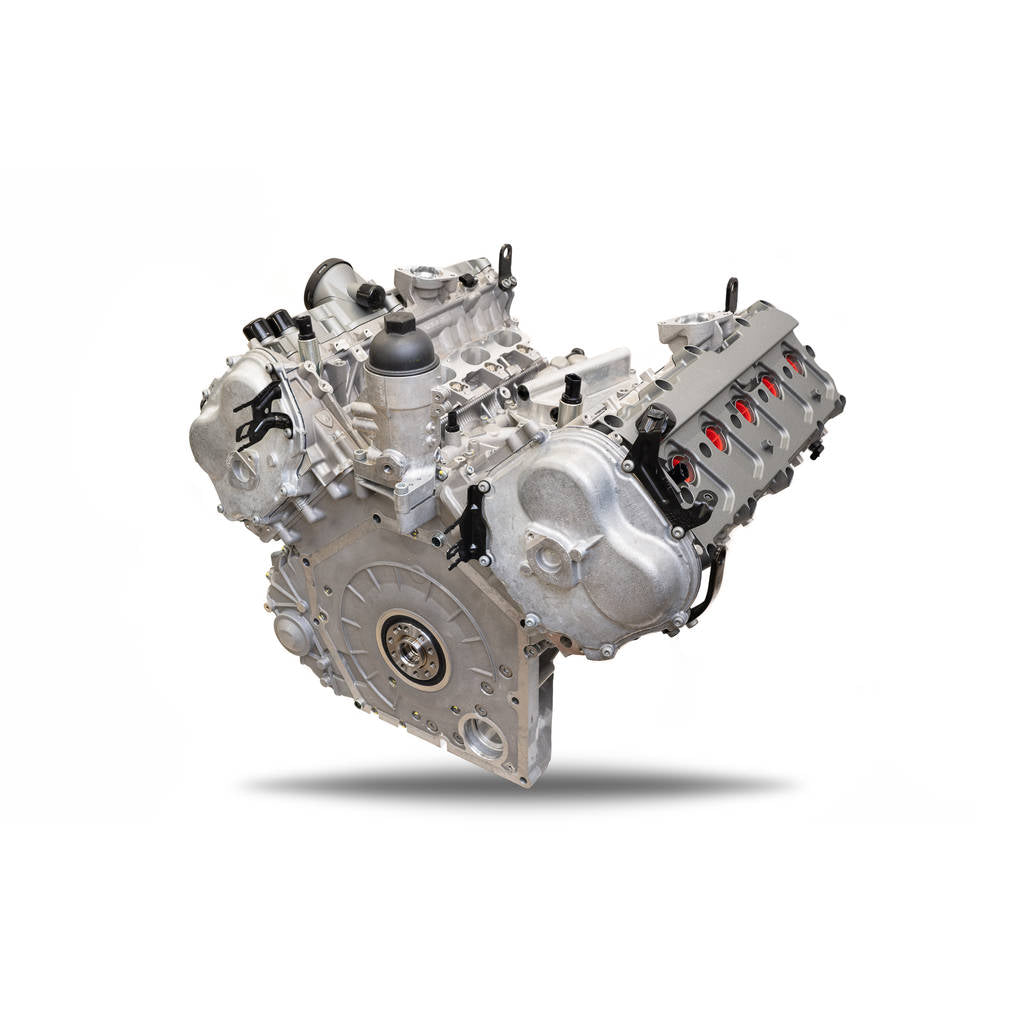

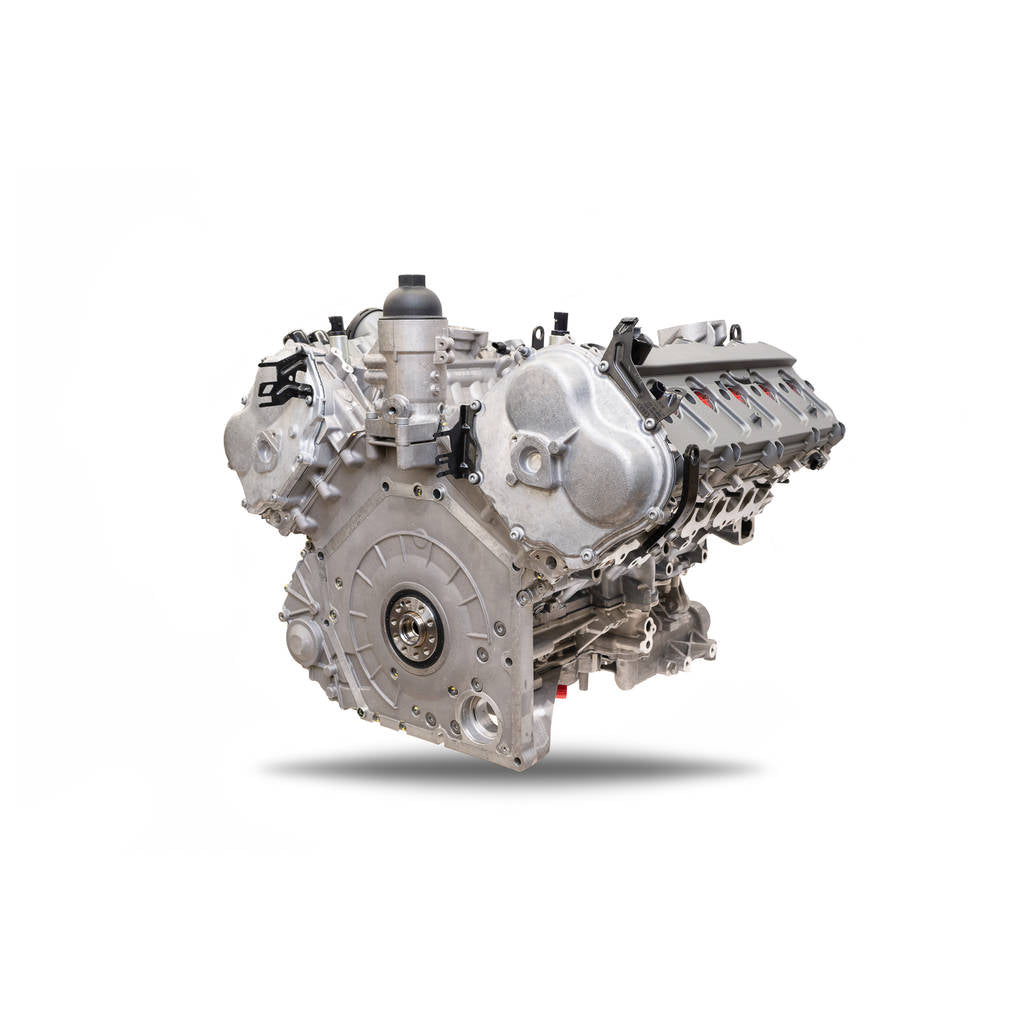

AMS ALP.37.04.0023-2 Long Block Stage 3 (CNC Cylinder Heads) for LAMBORGHINI Huracan 5.2L V10

Description AMS ALP.37.04.0023-2 Long Block Stage 3 (CNC Cylinder Heads) for LAMBORGHINI Huracan 5.2L V10

The AMS Performance 5.2L V10 Stage 3 Long Block is designed for high horsepower twin turbo builds in the Audi R8 and Lamborghini Huracan. This fully assembled long block is crafted with precision machining using advanced in-house equipment. Each engine is strategically strengthened to support the power and torque produced by ALPHA twin turbo packages.

Assembled in a temperature and humidity controlled clean room, every detail is meticulously crafted. The engine program applies decades of race-winning experience to the Lamborghini 5.2L V10, resulting in a strong and advanced solution for the R8 or Huracan.

The long block assembly includes components from valve covers to oil pan and timing chain, making installation straightforward. It uses both off-the-shelf and custom AMS spec components, meeting exacting standards for performance and reliability.

Product Notes: Horsepower and torque numbers, and RPM limits are approximate and can vary significantly depending on factors such as turbocharger selection, intake and exhaust restriction/backpressure, and fuel octane and quality, among others. The advertised numbers are based on optimal conditions and proper supporting modifications but are generally attainable results by an average customer. Results may vary.

Product Notes: In rare cases, component selection may vary from advertised based on supply chain delays. All component substitutions will be communicated in advance by your AMS Sales Representative during the engine assembly process.

Product Notes: Assumes that a good condition core long block is sent in to build from. To avoid confusion and missing parts, all long blocks should be shipped fully assembled from valve covers to oil pan, including timing covers. Components not in reusable condition will have replacements quoted during assembly.

• Best suited for the ALPHA 24 Twin Turbo Package
• Fully assembled long block ready for manifolds and accessories
• Precision machining with advanced industry-leading equipment
• Utilizes existing engine as a core to build from

Specifications:

• Displacement: 5.2 liters
• Bore: 84.5 mm
• Stroke: 92.8 mm
• Recommended Rev Limit: 10,000 RPM*
• Recommended Max Power & Torque: 2400 WHP / 1300 lb-ft*

Kit comes with:

• Inspect and blueprint engine block
• AMS ALPHA Spec iron cylinder liners
• Hone main housing bore to AMS spec
• Manley connecting rods to AMS spec
• Mahle pistons to AMS spec
• OEM crankshaft inspection and magnaflux
• OEM crankshaft polish and full balance job
• New main and rod bearings
• New non-reusable hardware
• New OEM seals and gaskets
• Multiple stage cleaning and prep process
• AMS ALPHA CA625+ head studs
• AMS Stage 2 CNC ported cylinder head package

Vehicle Compatibility:

• 2015-2019 Lamborghini Huracan
• 2017-2019 Lamborghini Huracan Performante
• 2020-Current Lamborghini Huracan Evo / STO / Tecnica / Sterrato
• 2017-Current Audi R8 (Gen 2 with V10)
