AMS ALP.07.08.0101-95 Billet Intake Manifold with Triple Fuel Rail 18 Injector Purple for NISSAN GT-R (R35)

Description AMS ALP.07.08.0101-95 Billet Intake Manifold with Triple Fuel Rail 18 Injector Purple for NISSAN GT-R (R35)

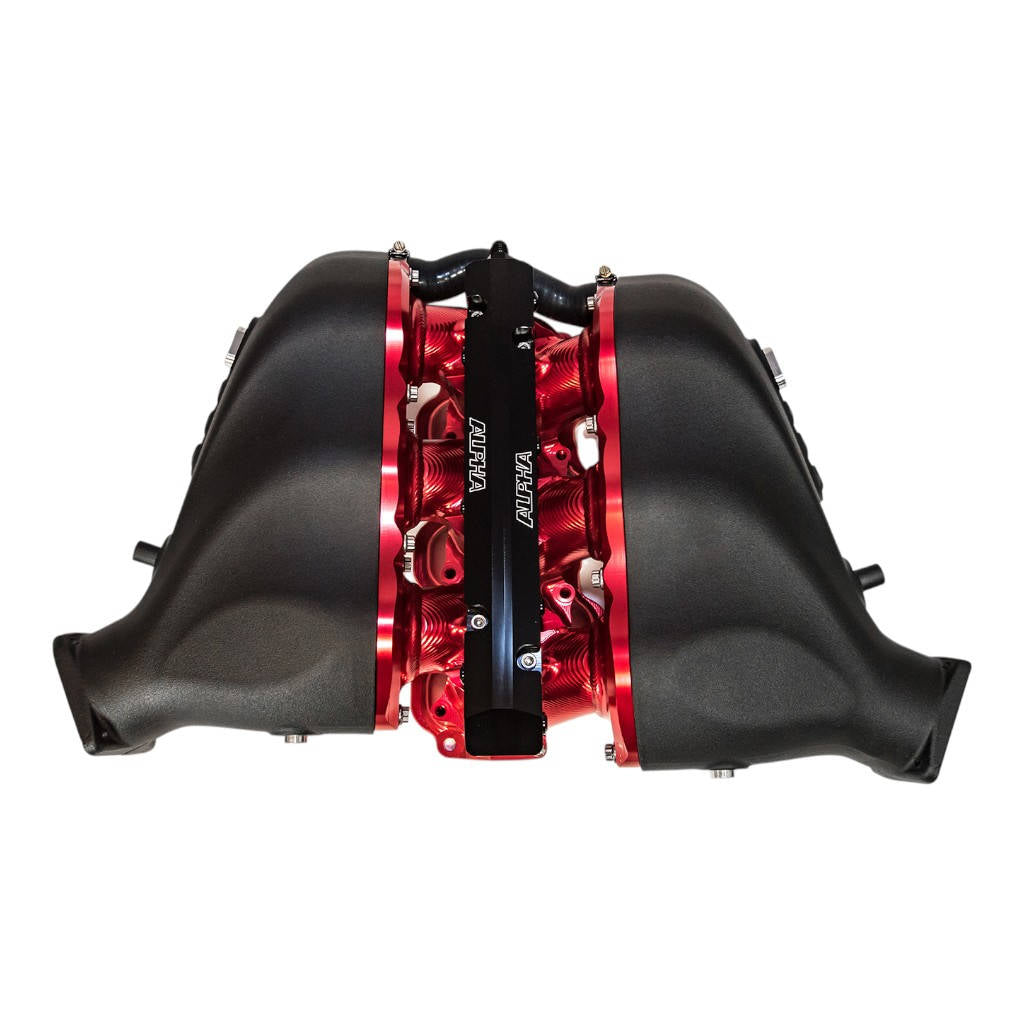

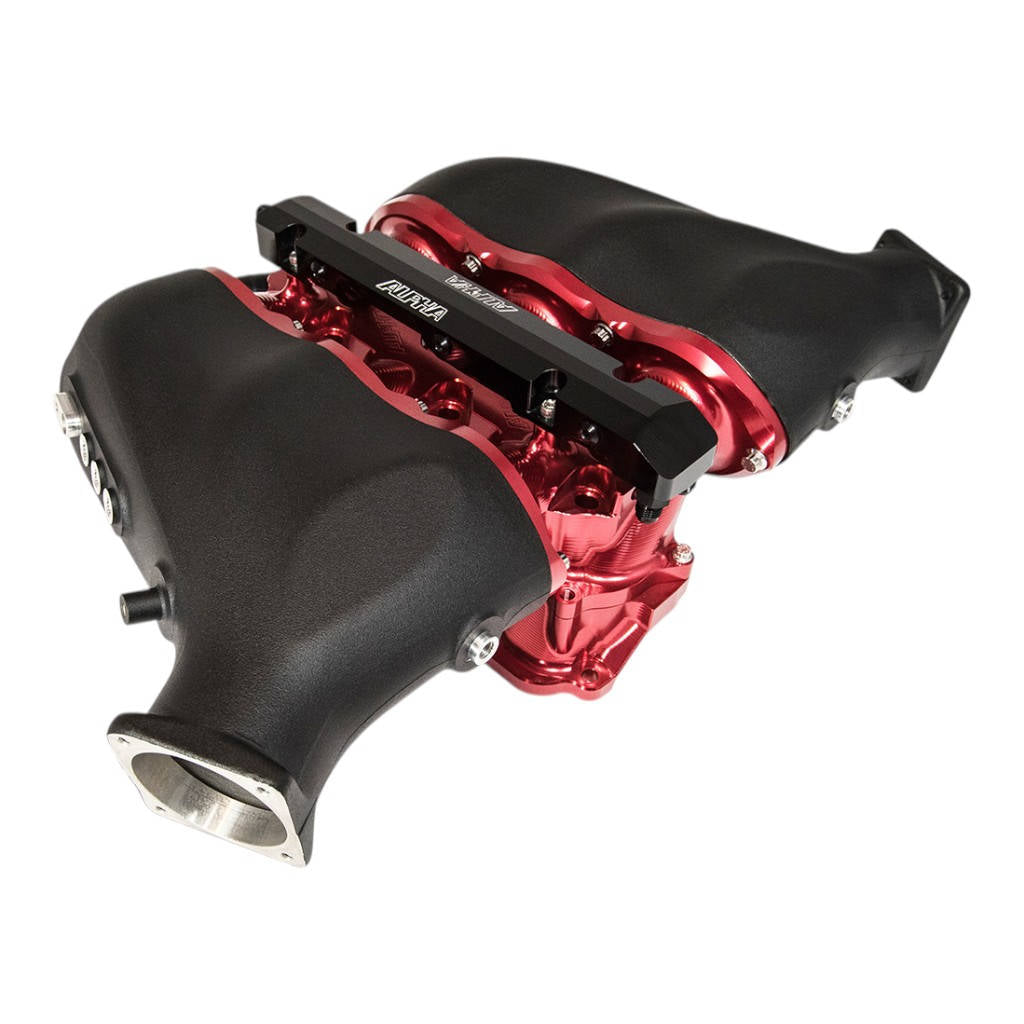

The Alpha Performance R35 GT-R Cast Aluminum Intake Manifold Plenums are designed by AMS to be a highly efficient and power-producing cast intake manifold. Every detail was considered in the creation of this high-performance induction component. The design provides global performance gains, delivering increased horsepower and torque throughout the entire power band without sacrificing response or power under the curve.

Based on the championship-winning Carbon Fiber Intake Plenums, the cast aluminum plenums are molded and tapered for optimal airflow, reducing turbulence and accelerating delivery of charged air to the engine. The manifold features optimally designed CNC billet aluminum velocity stacks and precise alignment between the upper and lower sections to maintain smooth air flow. Rigorous testing, including cycle and burst tests, ensures strength and reliability.

For high-powered GT-Rs, the manifold supports an optional third fuel rail, capable of fueling engines producing over 2000+ horsepower. Additional support is available with optional Alpha billet big bore throttle bodies. Multiple anodized color finishes are offered to complement the engine bay.

Product Notes: AMS Performance R35 GT-R Big Bore Billet Throttle Bodies available separately.

Product Notes: Custom PCV routing would be needed if the owner wishes to retain its functionality.

Product Notes: Alpha upper intercooler pipe adapter for current Alpha intercooler piping or full Alpha Induction Kit is required.

Product Notes: While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS/ALPHA Fuel rails to be compatible with this Intake Manifold.

Product Notes: Custom color anodizing can add 2-4 weeks to build time.

Product Notes: 14035-JF00A OEM Nissan Gasket – R35 GT-R Lower Intake Manifold to Cylinder Head (Need qty. 2).

Product Notes: 16175-ET80A OEM Nissan Gasket – R35 GT-R Throttle Body to Manifold Adapter (Need qty. 2).

• Over 25% lighter than the leading cast intake manifold
• Dowel pin aligned for smooth, continuous flow between upper and lower runners
• Dual MAP sensor ports allow for monitoring bank to bank differences in boost pressure
• Retains PCV and functions exactly like stock

Kit comes with:

• Cast Aluminum Plenums

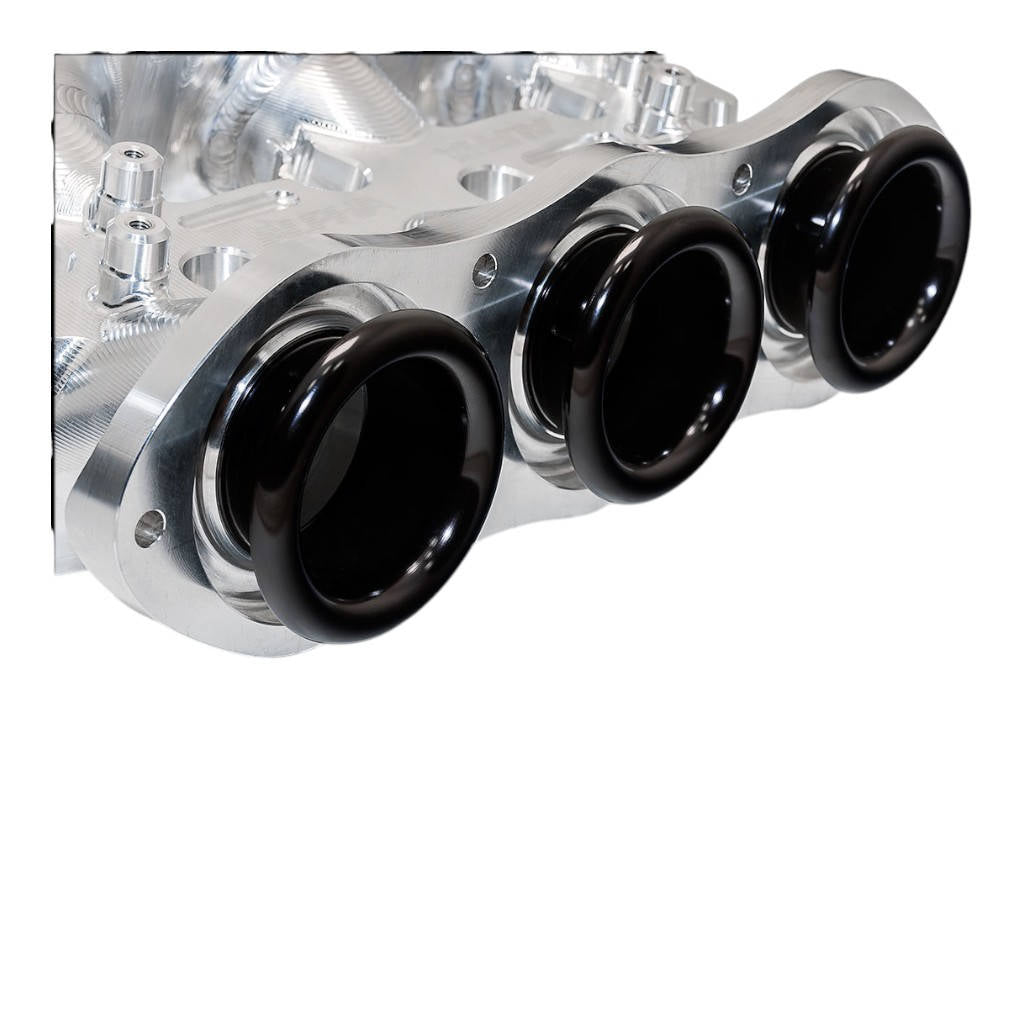

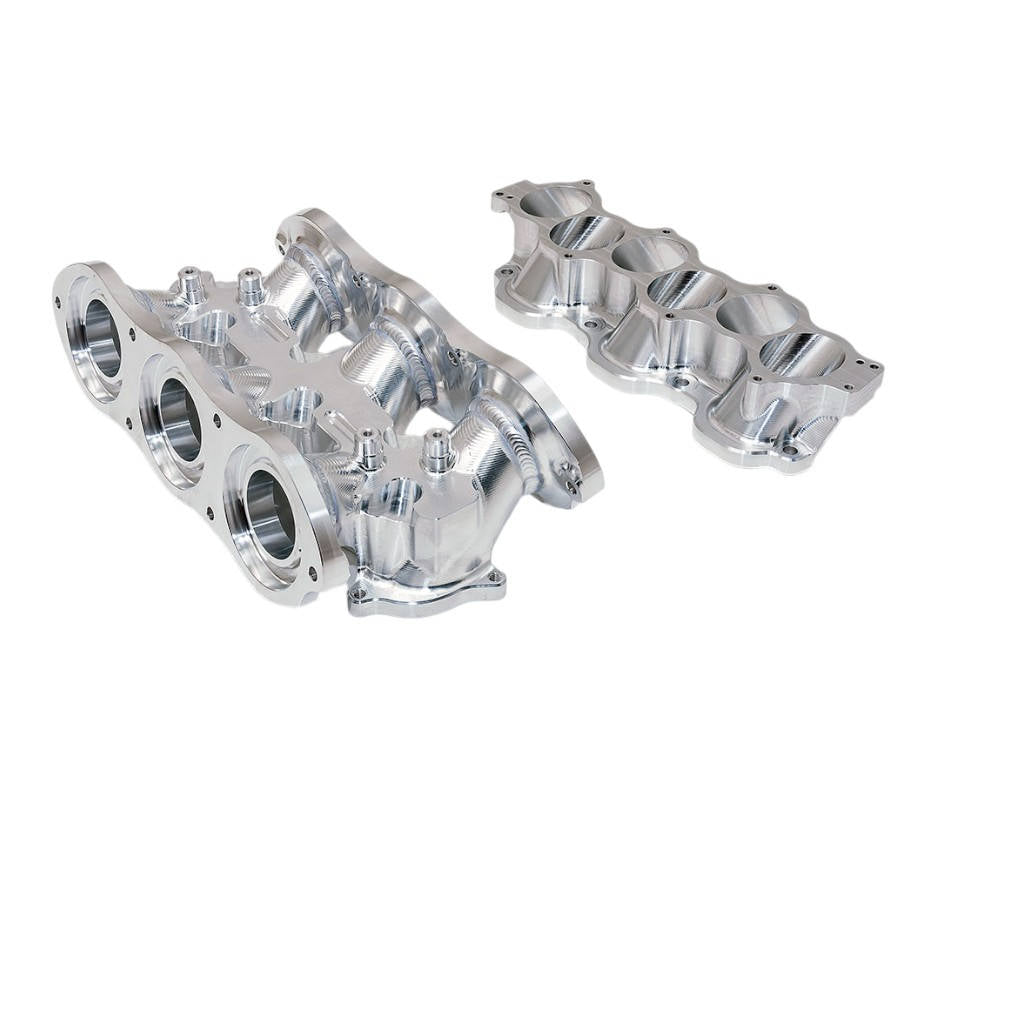

• Billet Upper Intake Runner
• Billet Lower Intake Runner

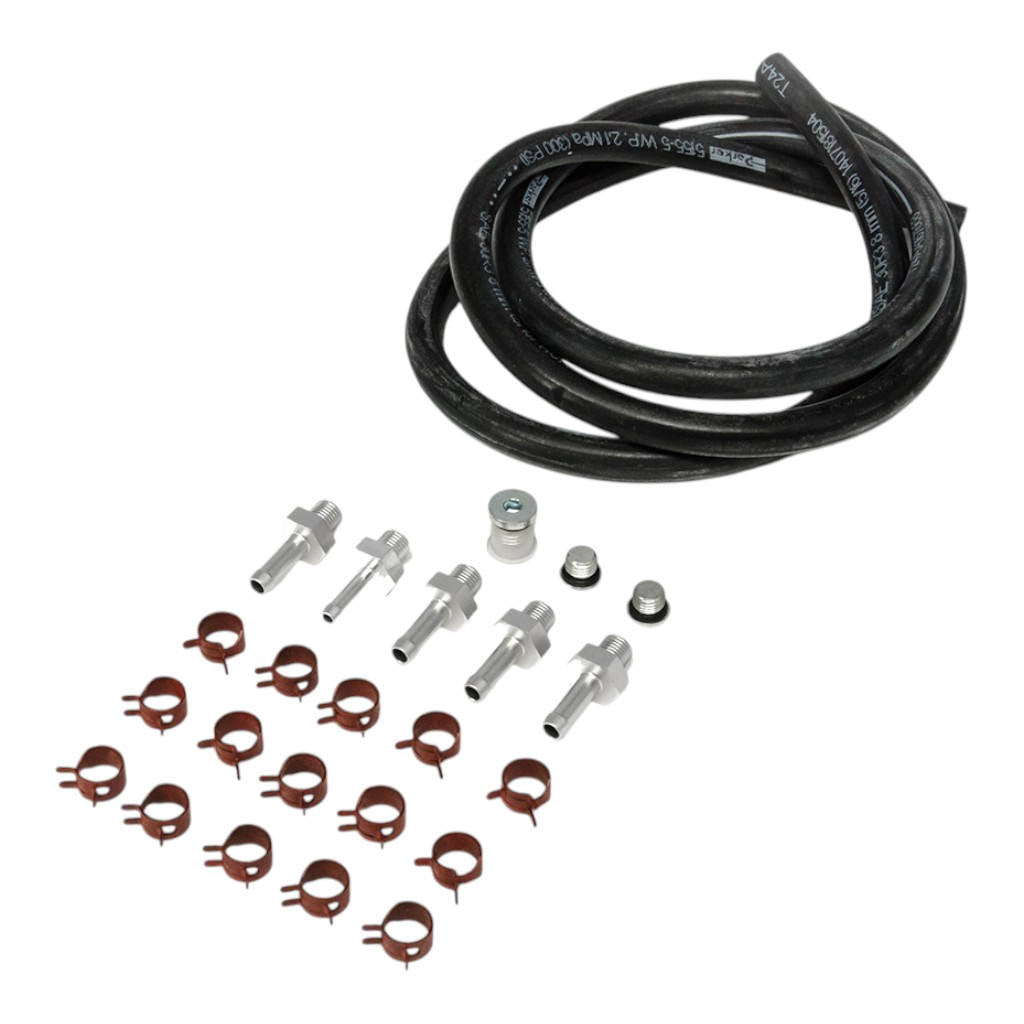

• Vacuum and Boost Fitting Kit

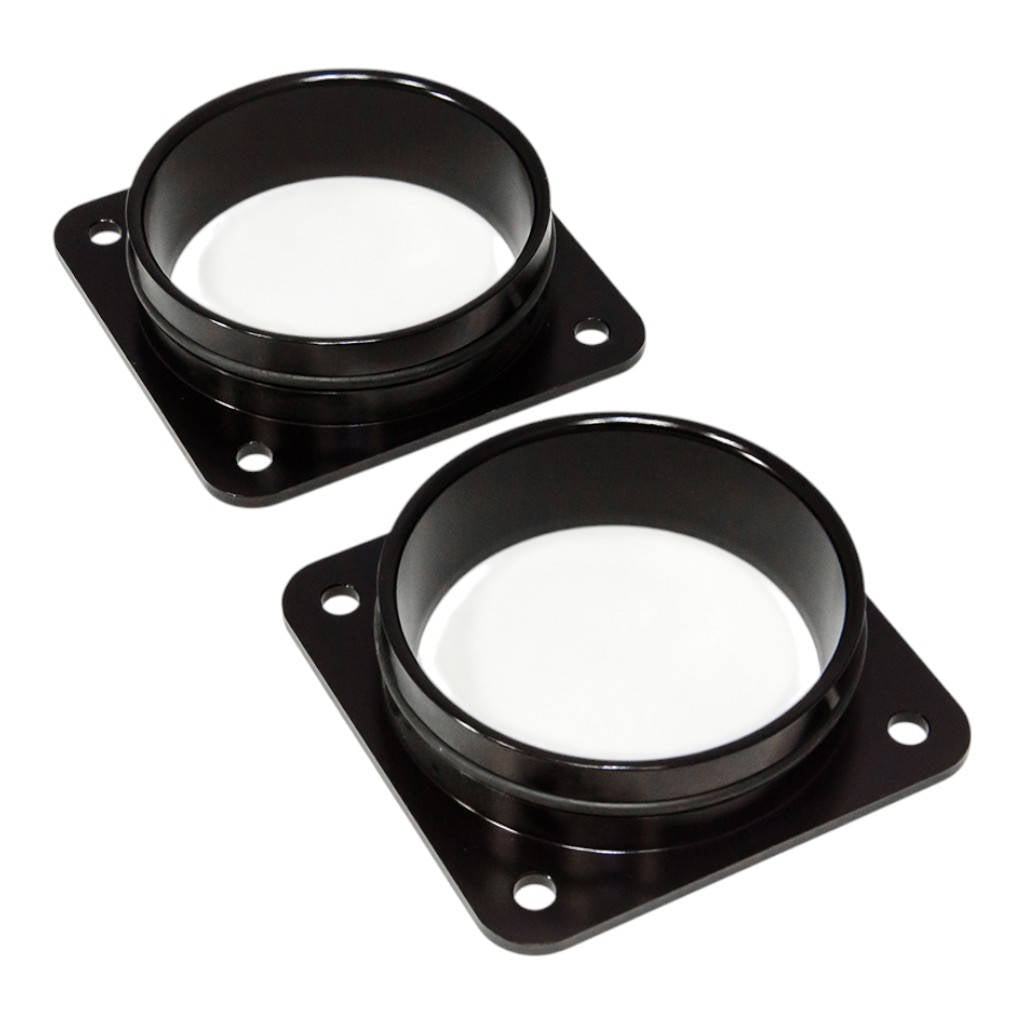

• Adapters for Stock Throttle Bodies

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (USDM, JDM, Gulf Spec, and European Models, LHD & RHD)
