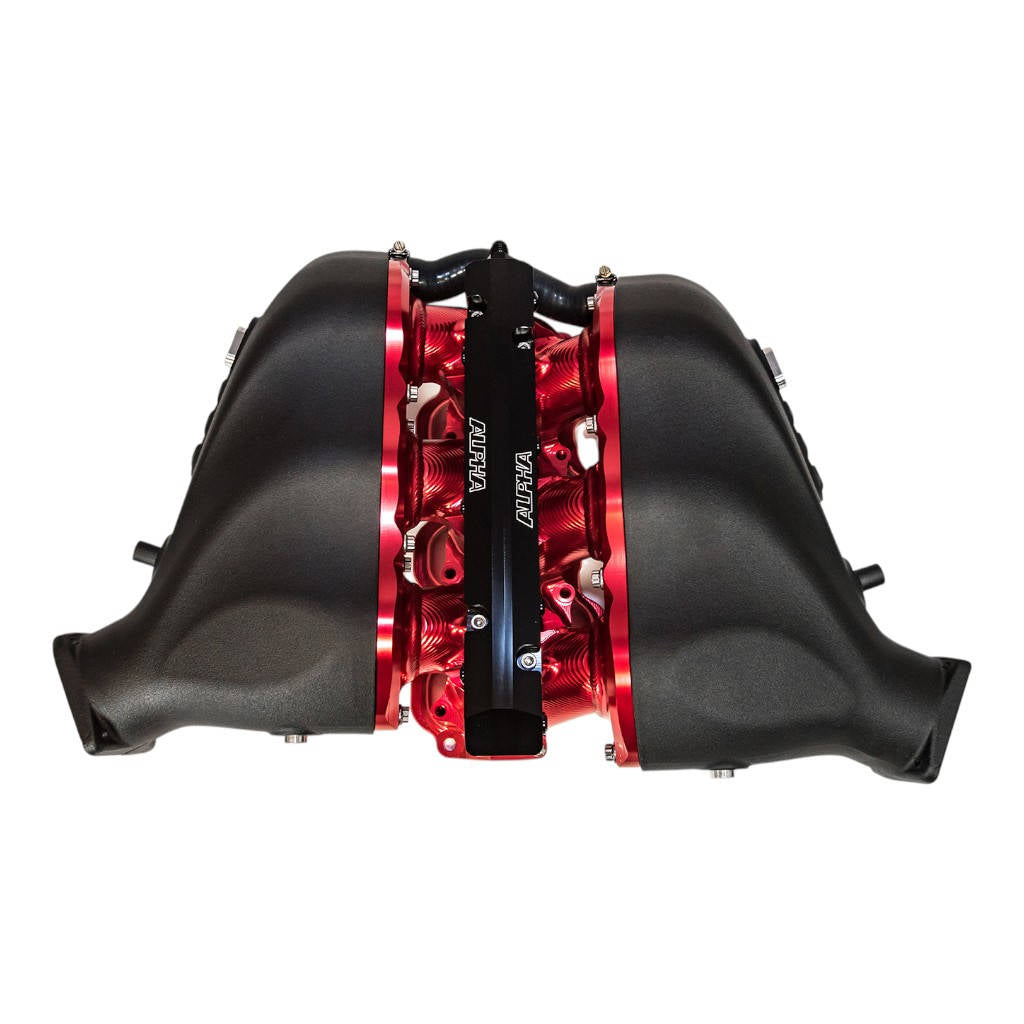

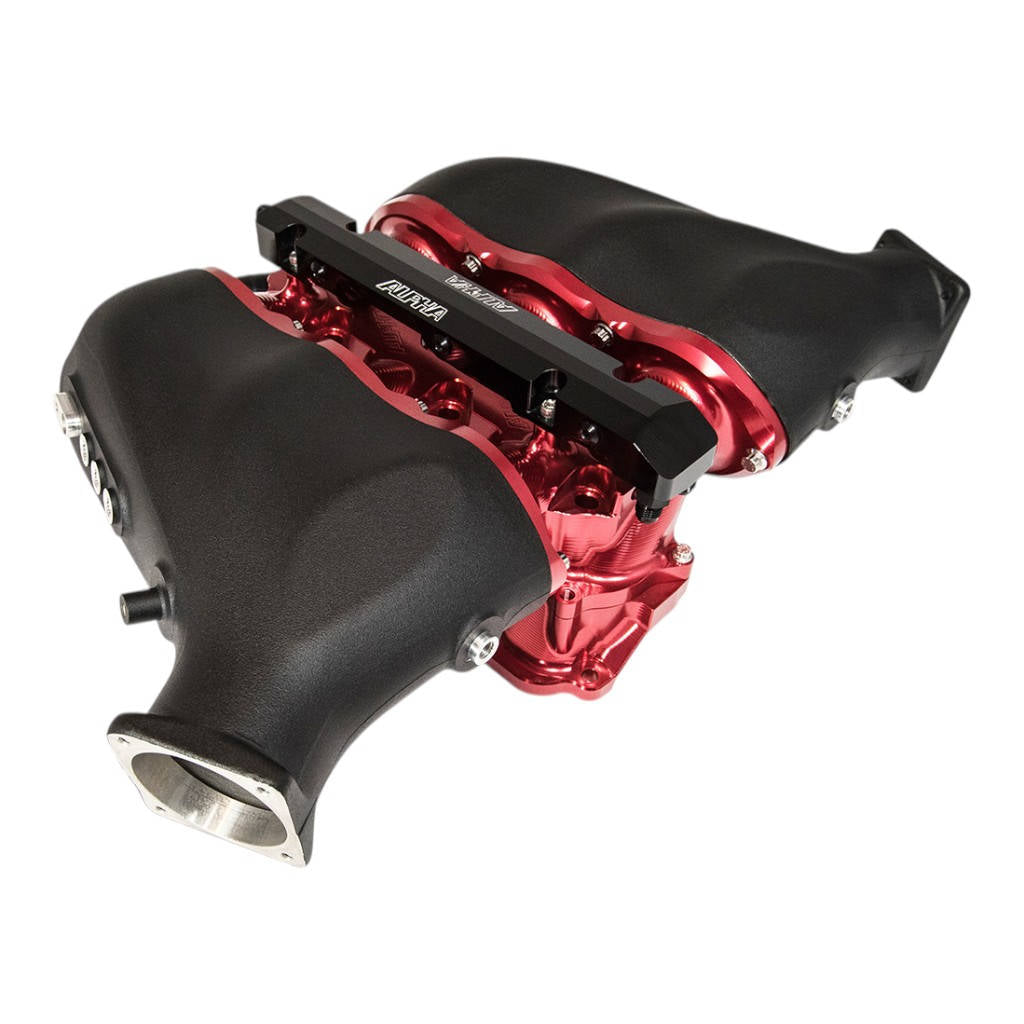

AMS ALP.07.08.0101-94 Billet Intake Manifold with Triple Fuel Rail 18 Injector Red for NISSAN GT-R (R35)

Description AMS ALP.07.08.0101-94 Billet Intake Manifold with Triple Fuel Rail 18 Injector Red for NISSAN GT-R (R35)

The Alpha Performance R35 GT-R Cast Aluminum Intake Manifold Plenums are engineered by AMS to deliver efficient power gains for the VR38 engine. Every detail has been carefully considered to create a high-performance induction component that offers global performance improvements across the entire power band.

Unlike many aftermarket GT-R intake manifolds that only provide gains at high RPM, the Alpha GT-R Cast Aluminum Intake Manifold Plenums produce more horsepower and torque from the moment the turbos spool, with no sacrifice in response or power under the curve. Both lightweight cast aluminum plenums are molded and tapered to channel charged air effectively, reducing turbulence and accelerating airflow to the engine.

Each manifold is precisely matched between upper and lower runner sections to maintain optimal airflow. Dowel locating pins ensure perfect alignment, minimizing turbulence. The manifold is rigorously tested for strength and reliability, including cycle testing from 0–50psi in high heat and a burst test over 150psi. Provisions for a third fuel rail are available for extremely high-powered applications, and optional Alpha billet big bore throttle bodies are offered for vehicles exceeding 800HP.

Note: AMS Performance R35 GT-R Big Bore Billet Throttle Bodies are available separately.

Note: Custom PCV routing is required if the owner wishes to retain its functionality.

Note: Alpha upper intercooler pipe adapter for current Alpha intercooler piping or full Alpha Induction Kit is required.

Note: While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS/ALPHA fuel rails to be compatible with this intake manifold.

Note: Custom color anodizing can add 2-4 weeks to build time.

Note: 14035-JF00A OEM Nissan Gasket – R35 GT-R Lower Intake Manifold to Cylinder Head (Need qty. 2).

Note: 16175-ET80A OEM Nissan Gasket – R35 GT-R Throttle Body to Manifold Adapter (Need qty. 2).

• Based on the most powerful VR38 intake manifold on the market
• Over 25% lighter than the leading cast intake manifold
• Dowel pin aligned for smooth, continuous flow between upper and lower runners
• Dual MAP sensor ports allow monitoring of bank-to-bank boost pressure differences

Kit comes with:

• Cast Aluminum Plenums

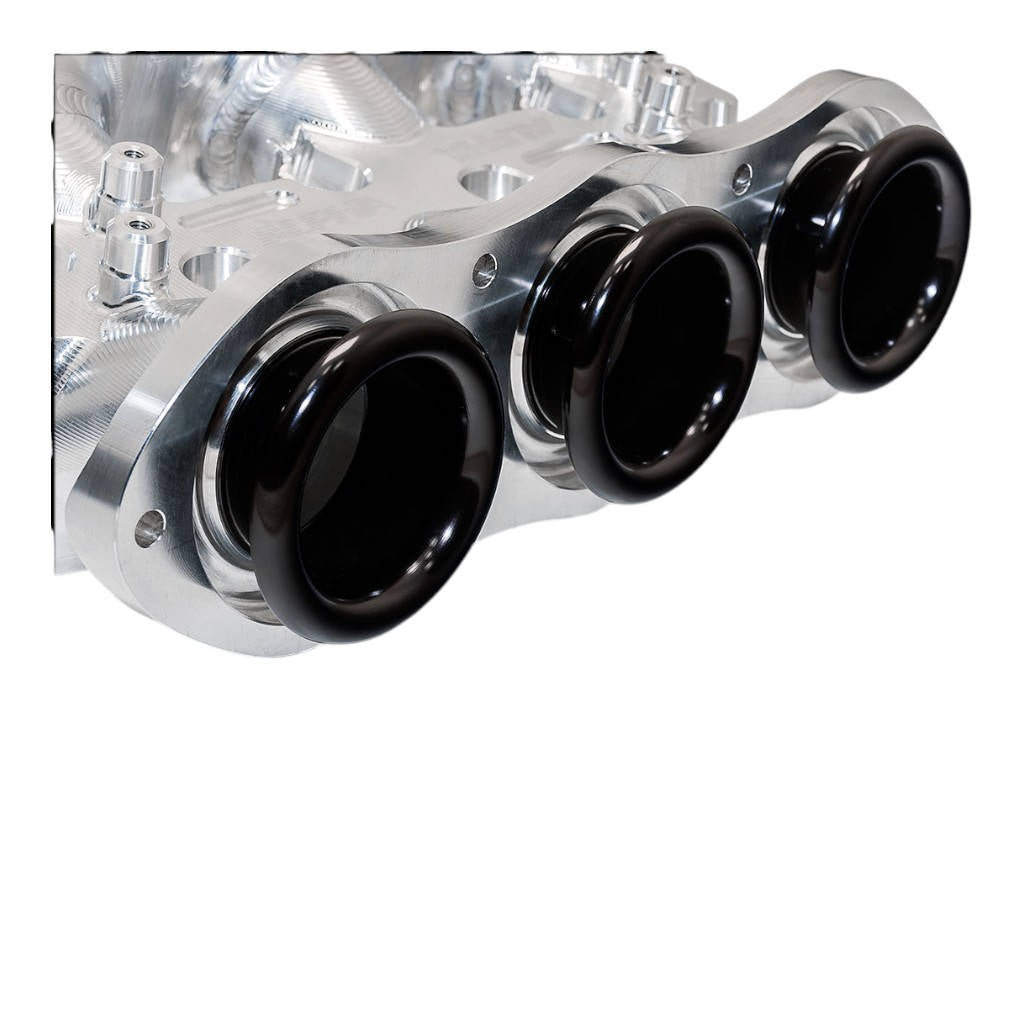

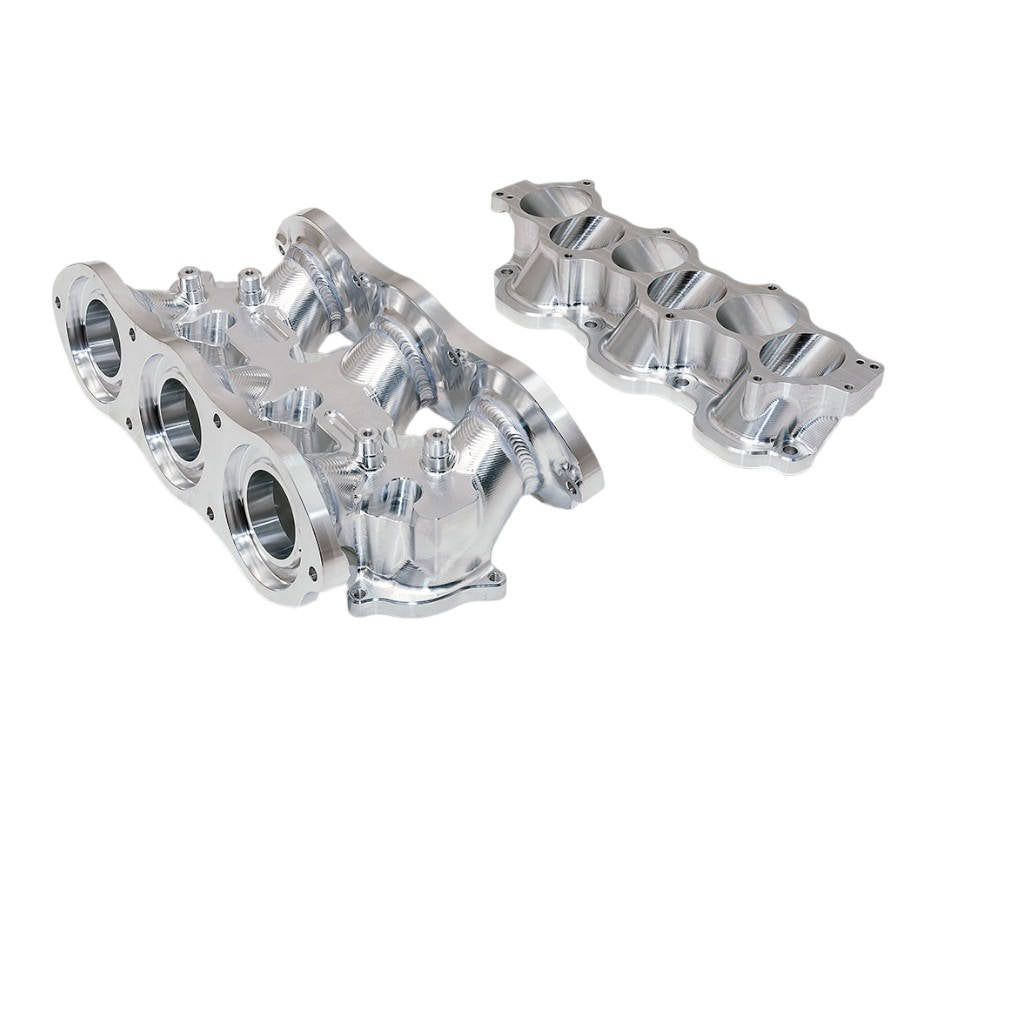

• Billet Upper Intake Runner
• Billet Lower Intake Runner

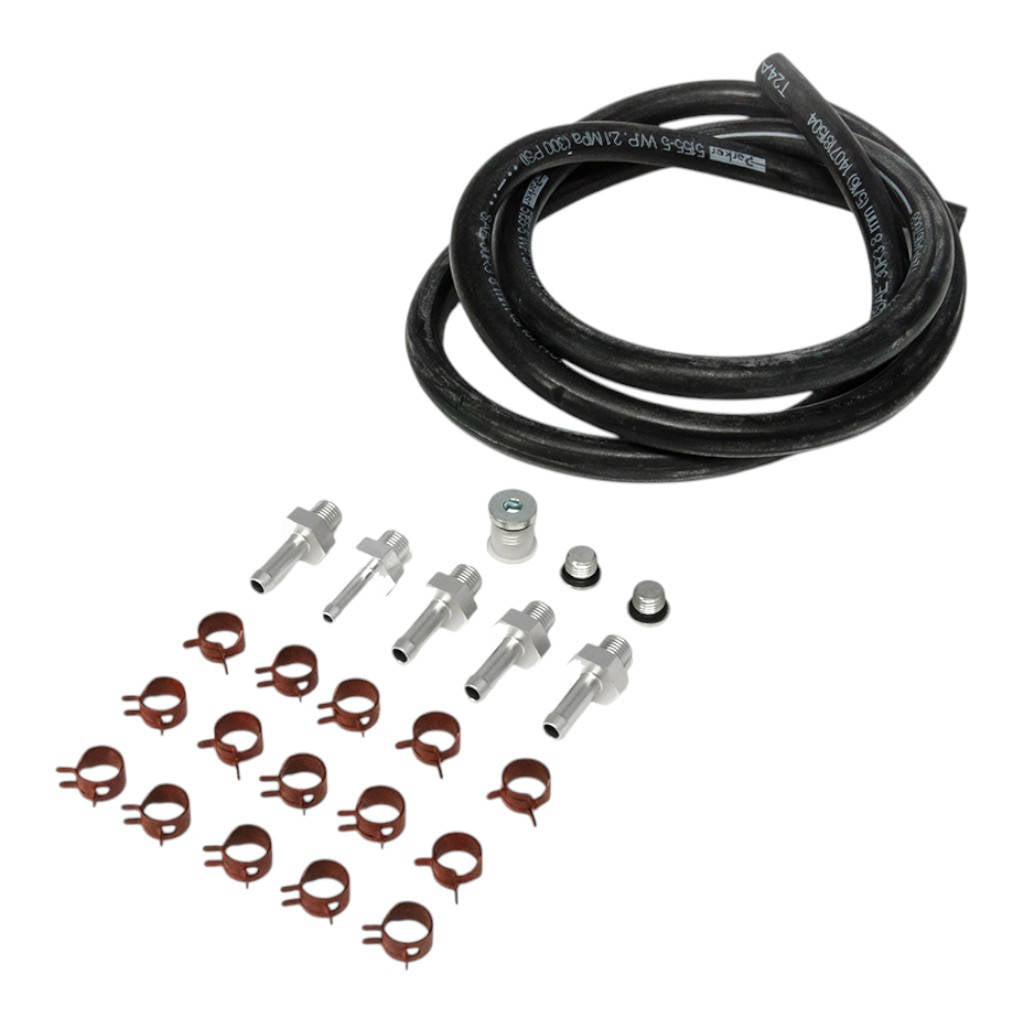

• Vacuum and Boost Fitting Kit

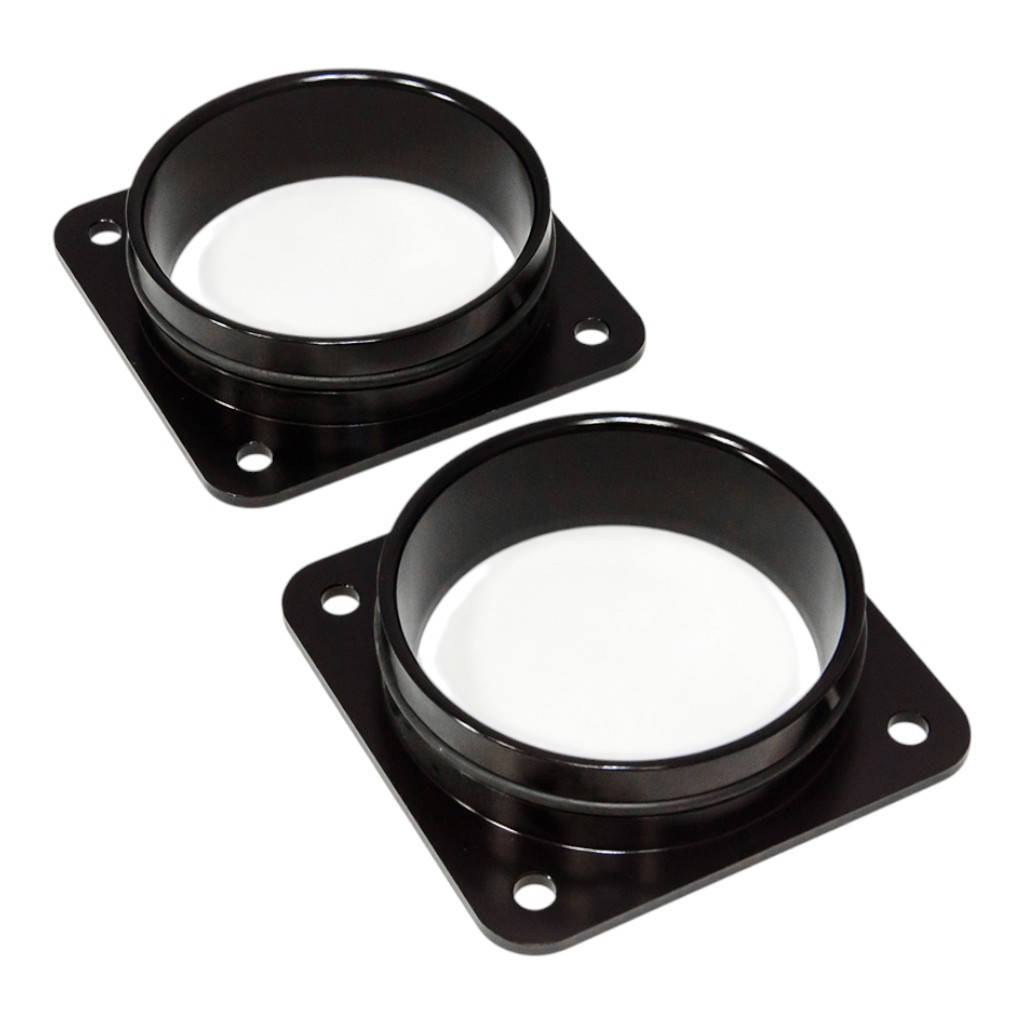

• Adapters for Stock Throttle Bodies

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (USDM, JDM, Gulf Spec, and European Models, LHD & RHD)
