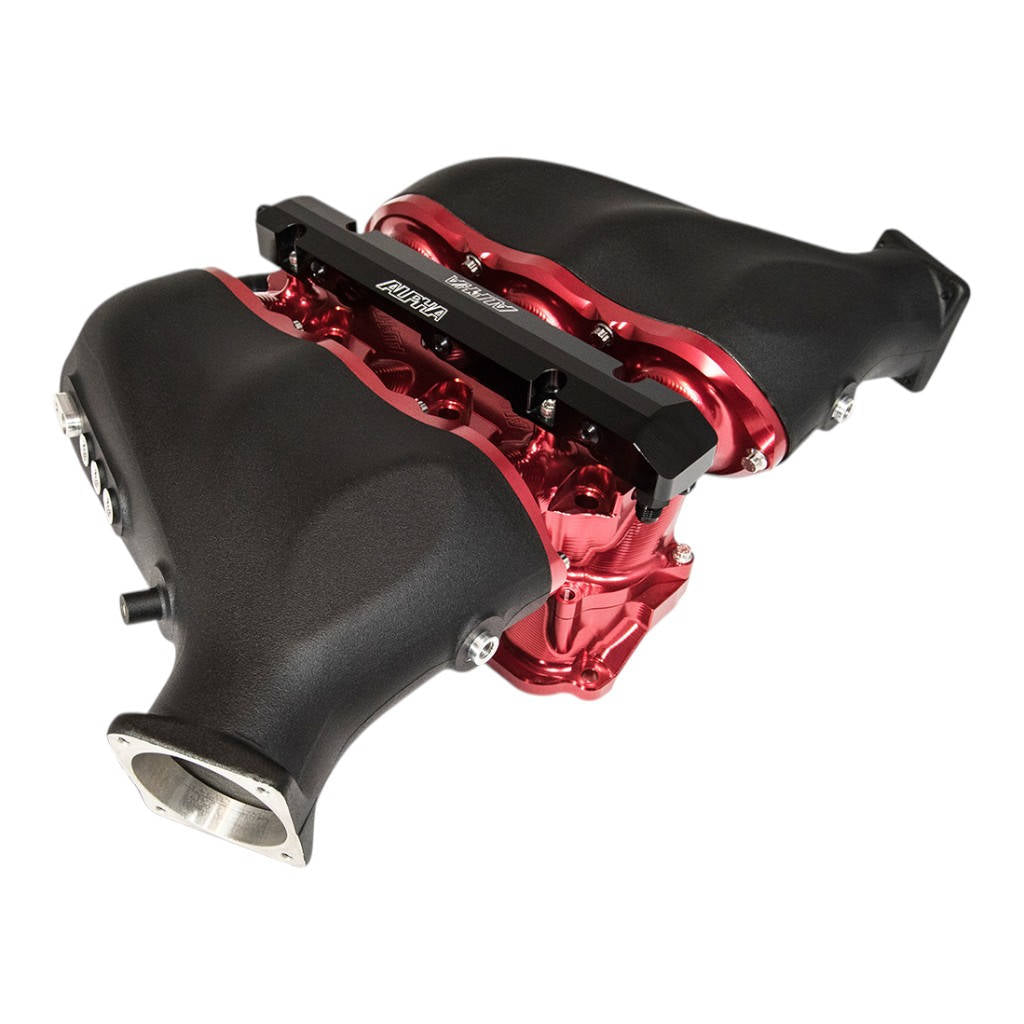

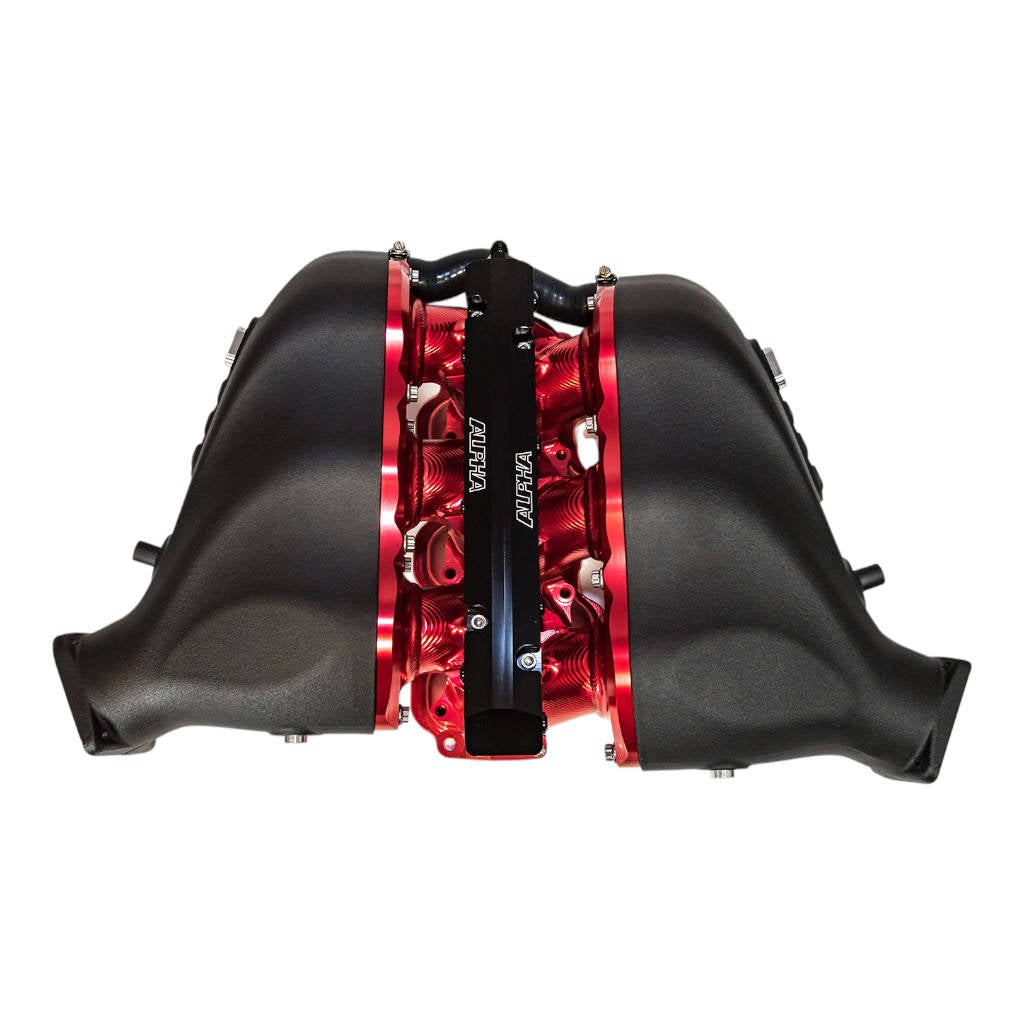

AMS ALP.07.08.0101-91 Billet Intake Manifold with Triple Fuel Rail 18 Injector Black for NISSAN GT-R (R35)

Description AMS ALP.07.08.0101-91 Billet Intake Manifold with Triple Fuel Rail 18 Injector Black for NISSAN GT-R (R35)

The Alpha Performance R35 GT-R Cast Aluminum Intake Manifold Plenums are engineered to deliver efficient airflow and increased power. Every detail has been carefully considered to create a high-performance induction component for the VR38 engine.

Unlike most aftermarket GT-R intake manifolds that only offer gains at the top of the power band, the Alpha GT-R Cast Aluminum Intake Manifold Plenums provide improved performance throughout the entire power band. The design is based on championship-winning carbon fiber plenums, with each plenum shaped and sized for optimal volume and airflow distribution.

Each manifold is precisely matched and dowel pin aligned for smooth, continuous flow between the upper and lower runners. Rigorous testing, including cycle and burst tests, ensures strength and reliability. Provisions for a third fuel rail and compatibility with Alpha billet big bore throttle bodies support high-power applications.

Product Notes: AMS Performance R35 GT-R Big Bore Billet Throttle Bodies are available separately.

Product Notes: Custom PCV routing is required if retaining its functionality.

Product Notes: Alpha upper intercooler pipe adapter for current Alpha intercooler piping or full Alpha Induction Kit is required.

Product Notes: While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS/ALPHA Fuel rails to be compatible with this Intake Manifold.

Product Notes: Custom color anodizing can add 2-4 weeks to build time.

Product Notes: 14035-JF00A OEM Nissan Gasket – R35 GT-R Lower Intake Manifold to Cylinder Head (Need qty. 2).

Product Notes: 16175-ET80A OEM Nissan Gasket – R35 GT-R Throttle Body to Manifold Adapter (Need qty. 2).

• Provides increased power and torque across the entire power band
• Over 25% lighter than the leading cast intake manifold
• Dowel pin aligned for smooth, continuous airflow
• Dual MAP sensor ports for monitoring boost pressure differences

Kit comes with:

• Cast Aluminum Plenums

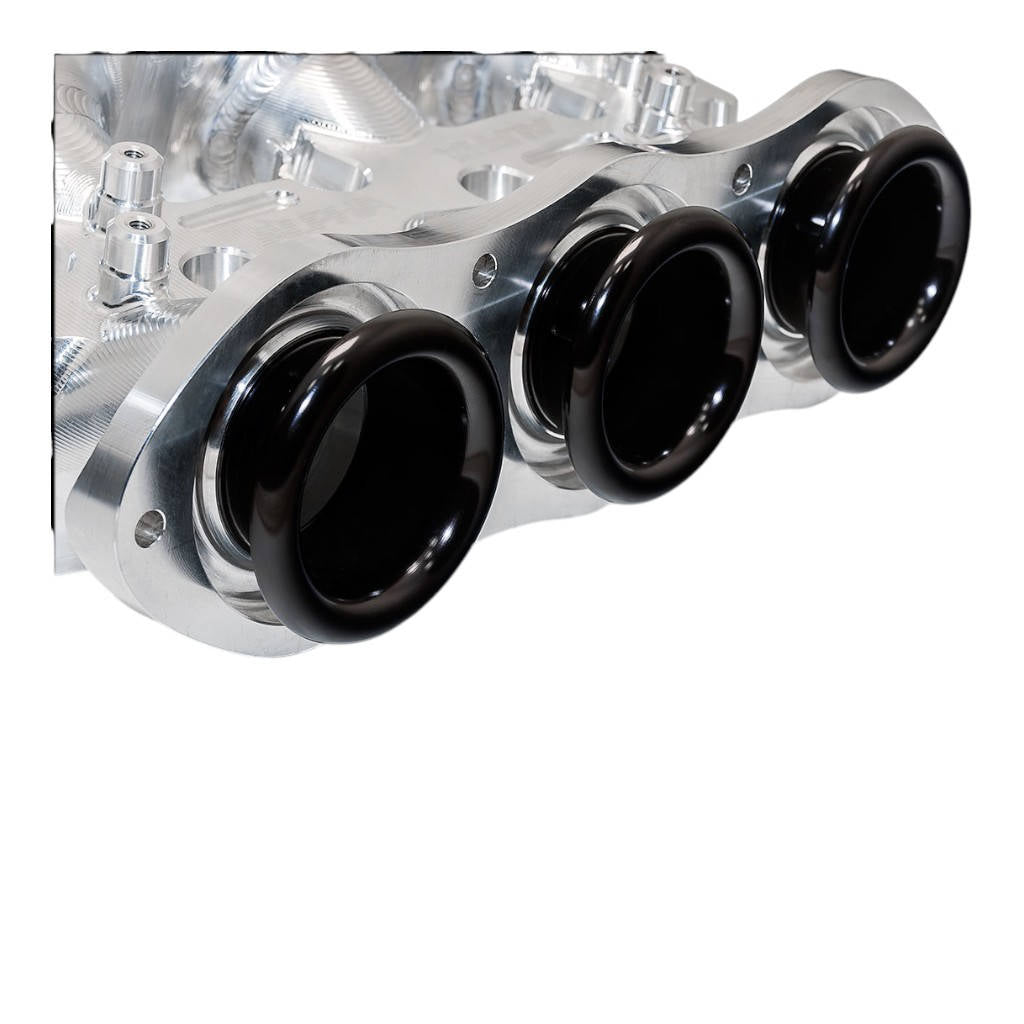

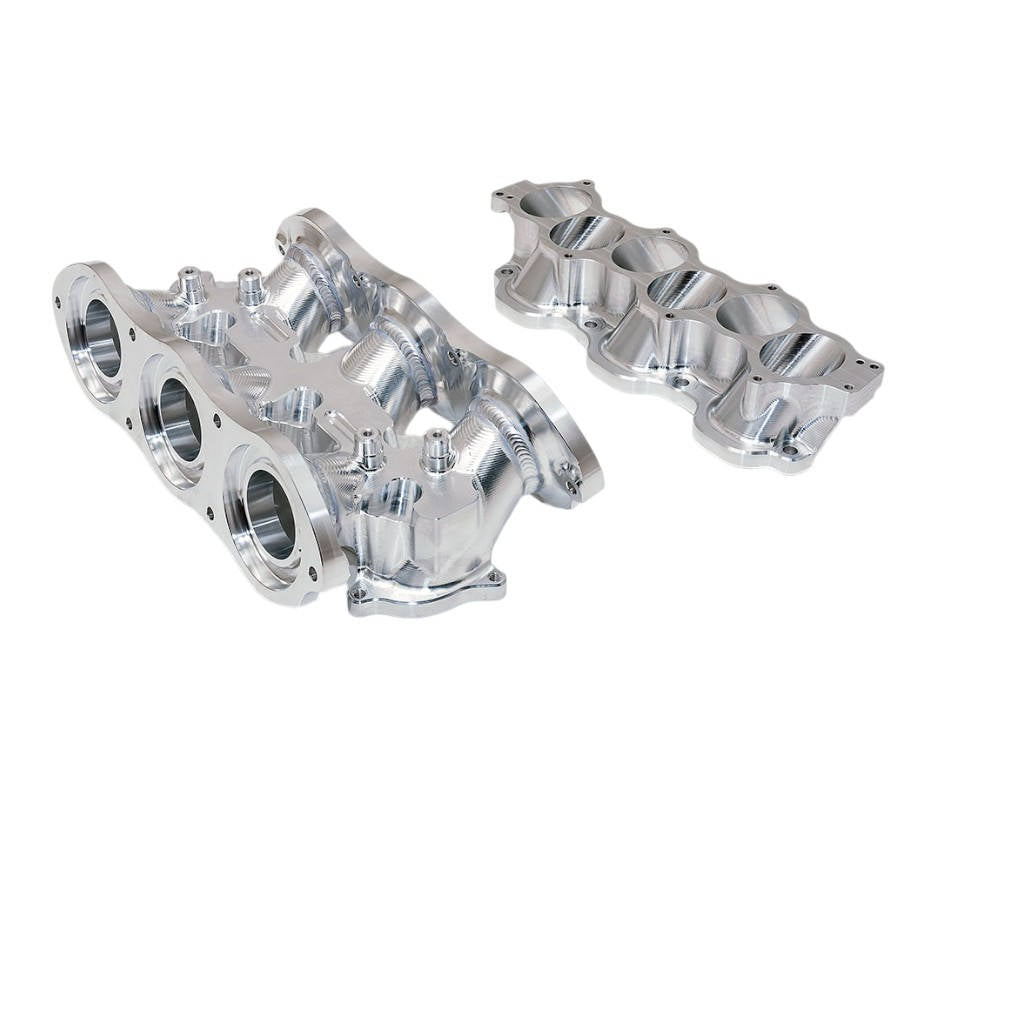

• Billet Upper Intake Runner
• Billet Lower Intake Runner

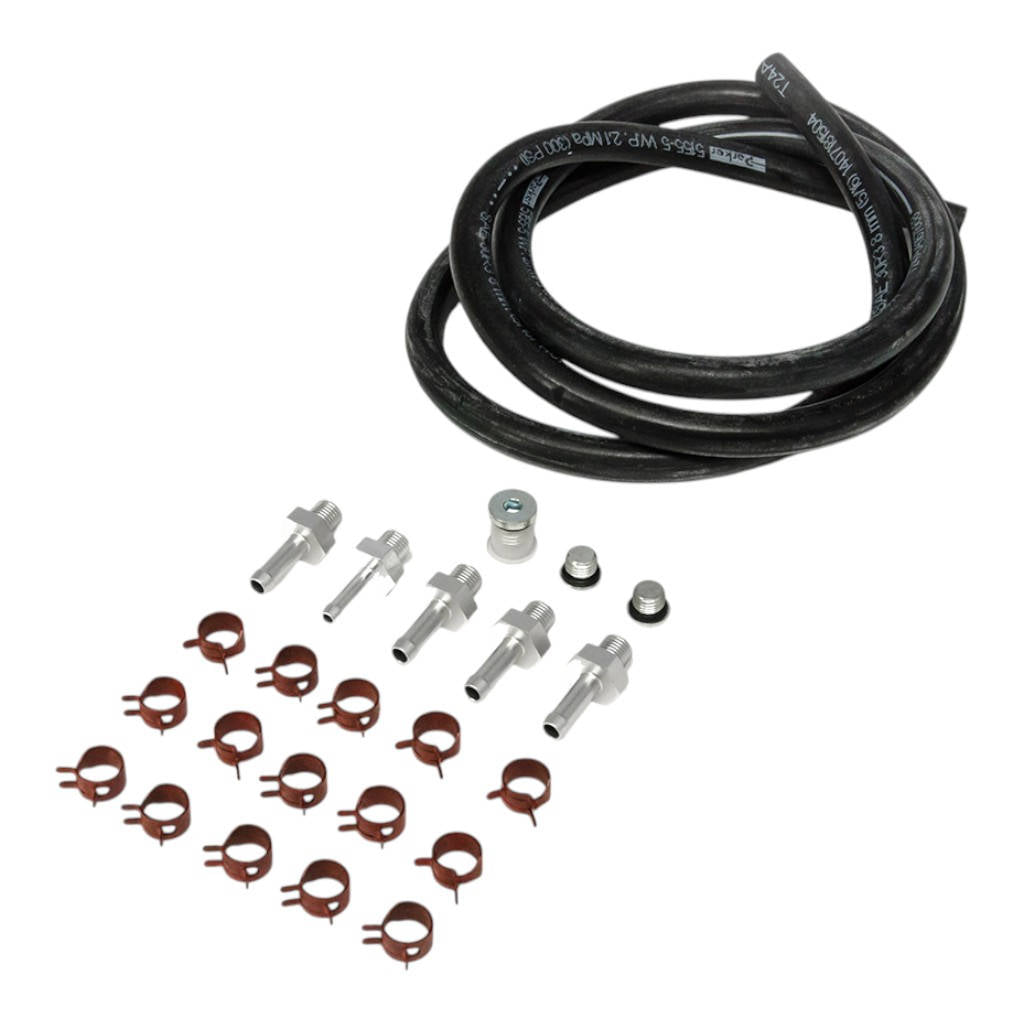

• Vacuum and Boost Fitting Kit

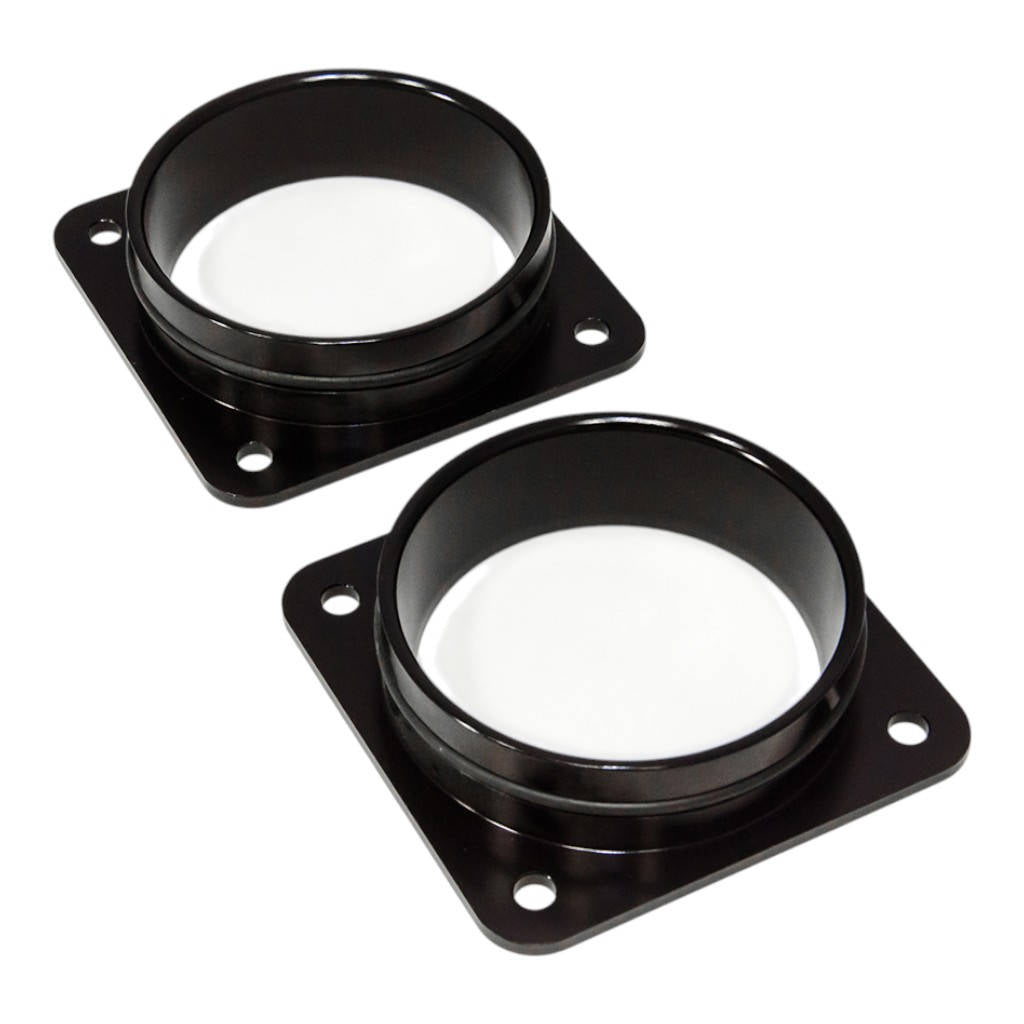

• Adapters for Stock Throttle Bodies

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (USDM, JDM, Gulf Spec, and European Models, LHD & RHD)
