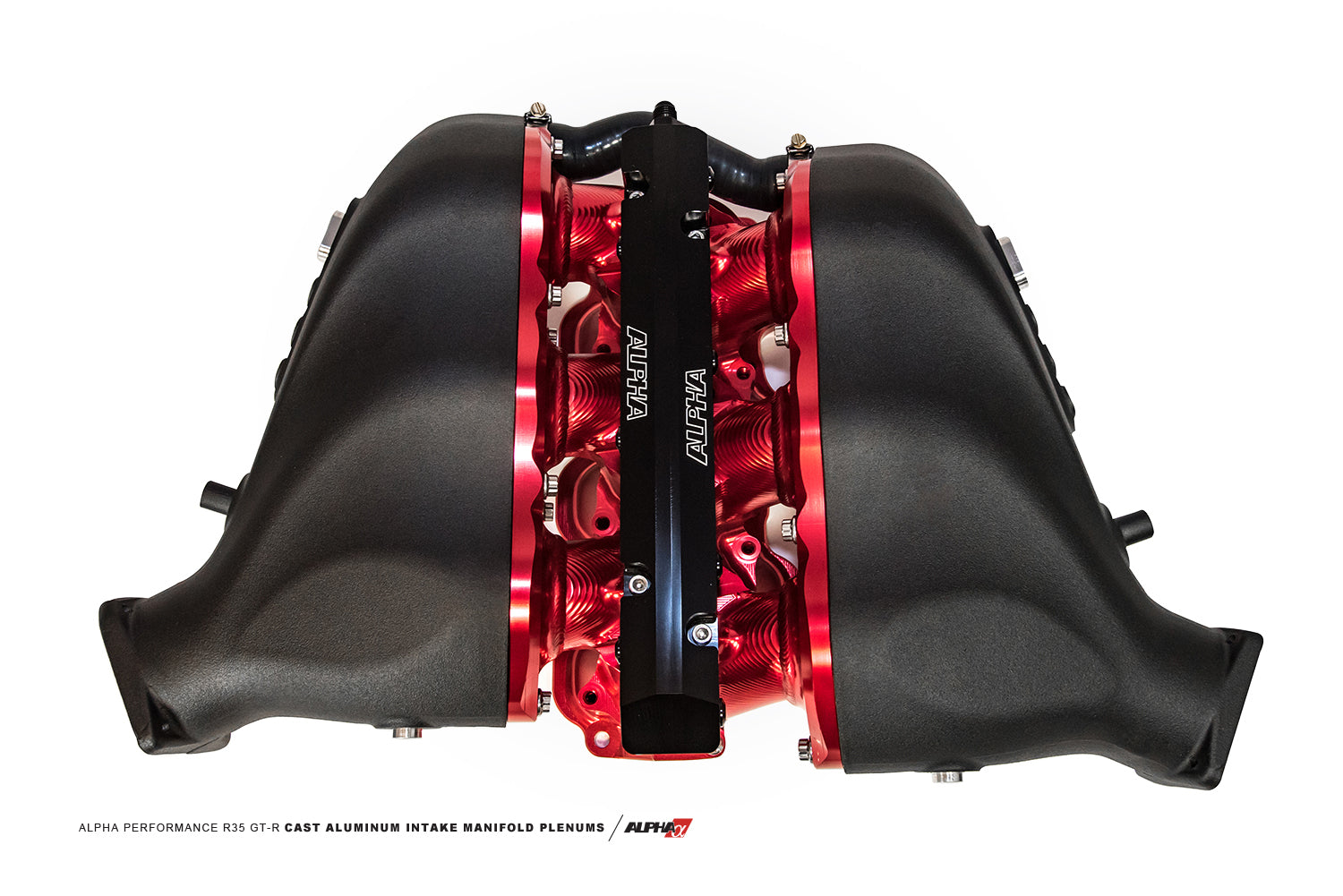

AMS ALP.07.08.0101-9 Cast Plenum Intake Manifold with Auxiliary Fuel Rail 18 Injector for NISSAN GT-R (R35)

Description AMS ALP.07.08.0101-9 Cast Plenum Intake Manifold with Auxiliary Fuel Rail 18 Injector for NISSAN GT-R (R35)

The Alpha Performance R35 GT-R Cast Aluminum Intake Manifold Plenums are designed by AMS to deliver efficient and power-producing performance. Every detail has been considered in the creation of this high-performance induction component. The design aims to provide more than just increased power, offering global performance improvements across the power band.

Unlike most aftermarket GT-R intake manifolds that show gains only at the top of the power band, the Alpha GT-R Cast Aluminum Intake Manifold Plenums provide increased horsepower and torque throughout the entire power band. The lightweight cast aluminum plenums are molded and tapered to reduce turbulence and accelerate the delivery of charged air to the engine, maintaining maximum airflow velocity and pressure when needed.

Each manifold is precisely matched between its upper and lower running sections, with dowel locating pins installed to ensure perfect alignment and minimize turbulence. The design has been rigorously tested, including cycle testing from 0–50 psi in a high-heat environment and a burst test over 150 psi, to ensure strength and reliability.

Product Notes: AMS Performance R35 GT-R Big Bore Billet Throttle Bodies are available separately.

Product Notes: Custom PCV routing is needed if the owner wishes to retain its functionality.

Product Notes: Alpha upper intercooler pipe adapter for current Alpha intercooler piping or full Alpha Induction Kit is required.

Product Notes: While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS/ALPHA Fuel rails to be compatible with this Intake Manifold.

Product Notes: Custom color anodizing can add 2-4 weeks to build time.

Product Notes: 14035-JF00A OEM Nissan Gasket – R35 GT-R Lower Intake Manifold to Cylinder Head (Need qty. 2).

Product Notes: 16175-ET80A OEM Nissan Gasket – R35 GT-R Throttle Body to Manifold Adapter (Need qty. 2).

• Provides increased horsepower and torque throughout the entire power band
• Lightweight cast aluminum plenums with optimized airflow and reduced turbulence
• Dowel pin alignment ensures smooth, continuous flow between upper and lower runners
• Dual MAP sensor ports allow monitoring of bank-to-bank boost pressure differences

Kit comes with:

• Cast Aluminum Plenums
• Billet Upper Intake Runner
• Billet Lower Intake Runner
• Vacuum and Boost Fitting Kit
• Adapters for Stock Throttle Bodies

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (fits all USDM, JDM, Gulf Spec, and European Models, LHD & RHD)
